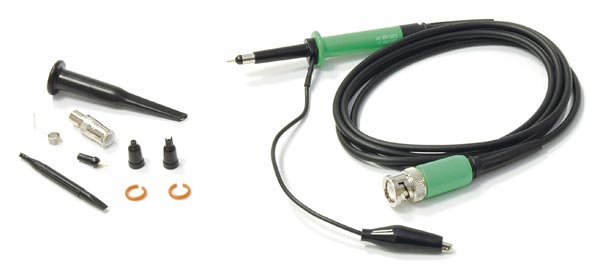

HP-9250 Oscilloscope Probe 250 MHz Selectable X1/Ref/X10

The HP-9060 is a passive high impedance oscilloscope probe designed and calibrated for use with instruments having an input impedance of 1MΩ. Switch Selectable x1/ x10/ Ref Probe

The HP-9060 is a passive high impedance oscilloscope probe designed and calibrated for use with instruments having an input impedance of 1MΩ. Switch Selectable x1/ x10/ Ref Probe.

Position X1

Attenuation Ratio 1:1
Bandwidth DC to 6MHz
Rise Time 58ns
Input Resistance 1MW (Oscilloscope input)
Input Capacitance 90 pF Plus Oscilloscope Capacitance
Working Voltage 600V DC incl. peal AC derating with frequency

Position Ref

Probe tip disconnected, oscilloscope input grounded

Position X 10

Attenuation Ratio 10:1
Bandwidth DC to 250MHz
Rise Time 1.4ns
Input Resistance 10MW when used with oscilloscopes with 1MW input.
Input Capacitance Approx. 14 pF
Compensation Range 10 to 35 pF
Working Voltage 600V DC incl. peak AC derating with frequency
