ADG-1011 Function Generator
ADG-1011 Function Generator
|
|
Function Waveform Generator: Dual channel output; Ch A: Frequancy: sine: 40μHz…10MHz, other: square and pulse: 40mHz…5MHz, accuracy: ±50ppm ±40mHz; Waveform: Sine, Square, Pulse, DC; Length: 3-16Kpoints. Ch B: Frequancy: sine: 40mHz…1MHz, other: 40mHz…50kHz, accuracy: ±50ppm ±40mHz; Waveform: 22 types including Sine, Square, Triangle, Ramp, Stair, etc. Size: 8.7×3.9×13.4in / 221×100×340mm; Weight: 7lb / 3.15kg.
|
|
AKTAKOM ADG-1011 is a DDS function generator with the high performance indexes and numerous function characteristics which are necessary for the fast completion of measuring. The simple and clear front panel design and color liquid crystal display interface are convenient for the users to operate and observe. Moreover, the extended optional functions enhance the system characteristics. The generator is of the following advanced specifications and powerful function characteristics.
Features
- With the function of Pulse&Harmonic signal source
- With the function of AM, FM, FSK, ASK, PSK and external modulation input
- Multi-waveform: 22 types of waveforms can be output
- Output in two independent channels independently or added linearly
- High frequency accuracy: up to the level of 10-5
- Non-intergraded process: up to the stable value immediately when switching, continuous signal phase and amplitude without deflection
- Memory property: 40 groups of generator state parameters set by users can be saved and they can recur at any moment when necessary.
Specifications
| Modification | ADG-1011 | ADG-1021 | ADG-1031 | ADG-1041 |
|---|
| Main waveforms | sine, square, pulse (channels A and B) |
| Additional forms | 12 waveforms (channels A and B), 1 waveform (channel A), 28 waveforms (channel B) |
| Channel A |
| Sine | 40µHz…10MHz | 40µHz…20MHz | 40µHz…30MHz | 40µHz…40MHz |
| Other waveforms | 30mHz…5MHz |
| Resolution | 10µHz (< 41kHz), 10mHz (> 41kHz) |
| Frequency accuracy | > 10mHz ±(2×10-5+1range) |
| Amplitude range (high impedance) | 0-20Vpp |
| Overshoot of frequency, not more | < 1MHz ±5dB > 1MHz ±10dB |
| Level accuracy, 1 kHz, high impedance | > 10mV ± (1% + 2mV) |
| Offset range: | ± 10V (high impedance) |
| Offset accuracy | > 10mV ± (1% + 2mV) |
| Total harmonic distortion | < 0,5% (20Hz…200kHz) |
| Rise/fall time of pulse signal | < 30ns |
| Pulse duty ratio | 0,01%…99,99 % |
| Pulse length | 20ns…10s |
| Trigger output | Pulse, compatible with TTL, CMOS, 50Ω |
| Channel B |
| Sine | 10mHz…1MHz |
| Other waveforms | 10mHz…1MHz |
| Resolution | 10mHz |
| Frequency accuracy | ±(2×10-5+1range) |
| Amplitude range | 0…20Vpp |
| Technical characteristics |
| Channel quantity | 2 |
| Display | LCD, TFT 5,7" |
| Interface | USB-host |
| Supply voltage | 110V/220V |
| Operating conditions | Air temperature 0…40ºC, relative humidity < 80 % |
| Dimensions | 8.7×3.9×13.4in / 221×100×340mm |
| Weight | 7lb / 3.15kg |
Accessories
- Power cord
- Testing cable
- BNC Coaxial cable
- USB interface cable
- User’s guide

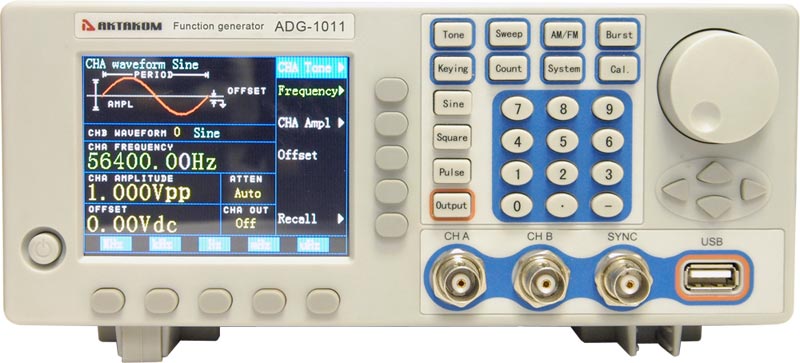

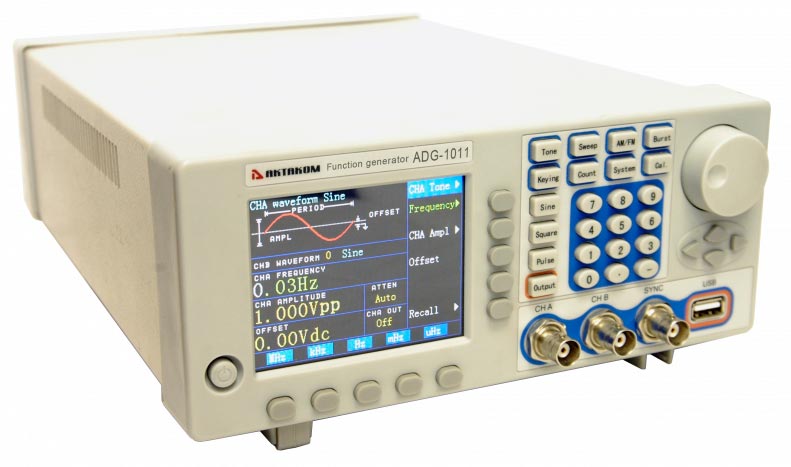

| ADG-1011 Function Generator - front view |
|
|

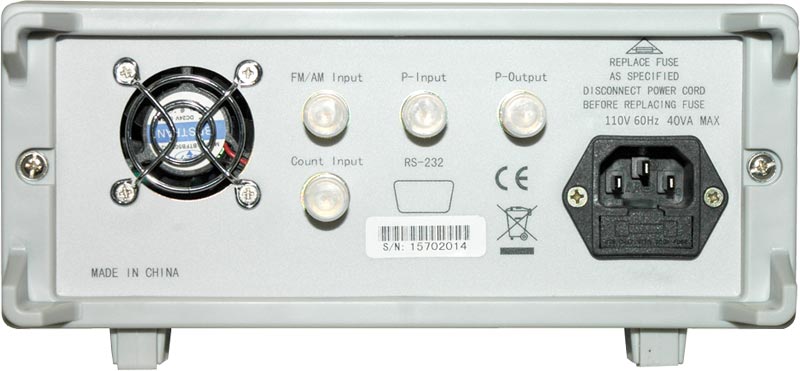

| ADG-1011 Function Generator - rear view |
|
|

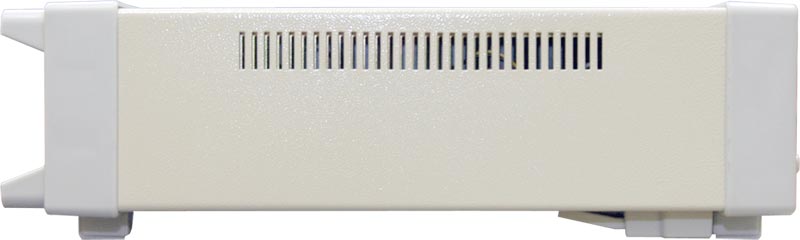

| ADG-1011 Function Generator - side view |
|
|
|
