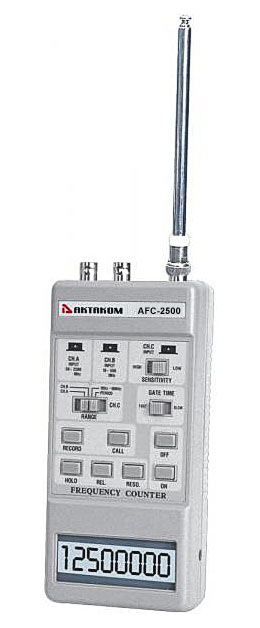

AFC-2500 Frequency Counter
AFC-2500 Frequency Counter
|
|
Frequency Counter: Frequency range: 10Hz…2.5GHz, Input signal amplitude: 50mV…250Vpp; optional functions: three inputs (A - up to 2.5GHz, B – up to 500MHz, C – up to 10MHz), Data Hold, LCD display 8 digits, Relative Measurement, Data record (Max., Min., reading), Period, Auto power off, Noncontact measurement capability through antenna. Power Supply: 4x1.5V AA. Dimension: 173x80x35mm / 6.8x3.1x1.4in. Weight: 340g/0.75lb (including battery).
Manuals:
|
|
AKTAKOM AFC-2500 compact frequency meter that can easily fit in your palm is designed to measure frequency and signal period. The use of a specialized microprocessor allows introducing a number of "smart" functions. Using the external telescopic antenna you can measure the carrier frequency of various radio transmitting devices.
Features
- High sensitivity for the VHF & UHF frequency measurement, excellent for CB hobbyist.
- Handheld & pocket size instrument
- Wide measuring range up to 2.6GHz
- Good resolution, 0.1Hz min. display unit for 10MHz range.
- Used the exclusive Microprocessor IC offered the intelligent function: Frequency, Period, Multi resolution, Data hold, Relative measurement, Data record (Max., Min., Average reading).
- Auto power off & manual power off.
- LCD display for low power consumption & clear read-out even in bright ambient light condition.
- The instrument used the low PPM crystal time base to offer high accuracy measurement.
- The optional telescoping antenna accessory can be used to pick up transmit frequencies from handheld, fixed or mobile radios such as: POLICES, FIRE FIGHTER'S, HAM, TAXI, AIRCRAFT MARINE, etc. at ranges of approaching 5 to 30 cm (depending on transmitter power, antenna obstructions, etc.).
Specifications
|
Display
|
13mm (0.5") LCD (Liquid Crystal Display), 8 digits.
|
|
Measurement
|
Frequency, Data hold, Relative, Memory (max., min., average), Period.
|
|
Range
|
2500MHz
|
50MHz to 2500MHz (typical max. 2600MHz)
|
|
100MHz
|
5MHz to 120MHz.
|
|
10MHz
|
10Hz to 10MHz
|
|
Period
|
10Hz to 10MHz
|
|
Resolution, Sample Time
|
Ref. the following "Table for Resolution & Sample Time".
|
|
Sensitivity (rms)
|
2500MHz range
|
50MHz…75MHz
|
100mV
|
|
76MHz…2500MHz
|
50mV
|
|
100MHz range
|
5MHz…100MHz
|
50mV
|
|
> 100MHz to 120MHz
|
100mV
|
|
10MHz
|
50mV
|
|
Period
|
50mV
|
|
Frequency Accuracy
|
± (4PPM+1d) - 23±5°C, after calibration.
|
|
Time Base circuit
|
4.194MHz quartz crystal
|
|
Time Base Temp. Coeffic
|
0.1PPM/per (typical, 23±5°C).
|
|
Over-input
|
2500MHz & 100MHz range
|
Max. 5V peak to peak.
|
|
10MHz & Period range
|
Max. 250V peak to peak
|
|
Input Connector
|
BNC, female.
|
|
Case
|
Durable & strong ABS-plastic housing.
|
|
Operating Temperature
|
0 to 50°C (32 to 122°F).
|
|
Operating Humidity
|
Less than 80% RH
|
|
Power Supply
|
4 x 1.5V AA (UM-3) battery.
|
|
Power Consumption
|
2500MHz & 500MHz range
|
Approx. DC 105mA
|
|
10MHz & Period range
|
Approx. DC 45mA
|
|
AC Adapter Power Input
|
Optional, 9V DC , 300 to 500mA rating, central positive for socket.
|
|
Power Off
|
Automatic power off & manual power off
|
|
Dimension
|
173x80x35mm (6.8x3.1x1.4in).
|
|
Weight
|
340g/0.75lb (including battery).
|
Resolution & Sample Time
|
Range
|
Gate Time Select
|
Resolution
|
Sampling Time
|
|
2500MHz
|
FAST
|
1000Hz
|
0.5s
|
|
SLOW
|
100Hz
|
2.75s
|
|
SLOW (select 1)
|
200Hz
|
s
|
|
SLOW (select 2)
|
500Hz
|
0.75s
|
|
500MHz
|
FAST
|
100Hz
|
0.75s
|
|
SLOW
|
10Hz
|
6s
|
|
SLOW (select 1)
|
20Hz
|
5s
|
|
SLOW (select 2)
|
50Hz
|
1.5s
|
|
10MHz
|
FAST
|
10Hz
|
0.5s
|
|
SLOW
|
1Hz
|
1.25s
|
|
SLOW (select 1)
|
0.2Hz
|
6s
|
|
SLOW (select 2)
|
0.1Hz
|
11s
|
Standard Accessories
- Instruction Manual
Optional Accessories
- Telescoping RF pick-up antenna with BNC connector
- Direct probe with BNC connector & alligator clip pairs. (Be used only for the measuring frequency 500MHz)
- Soft carrying case

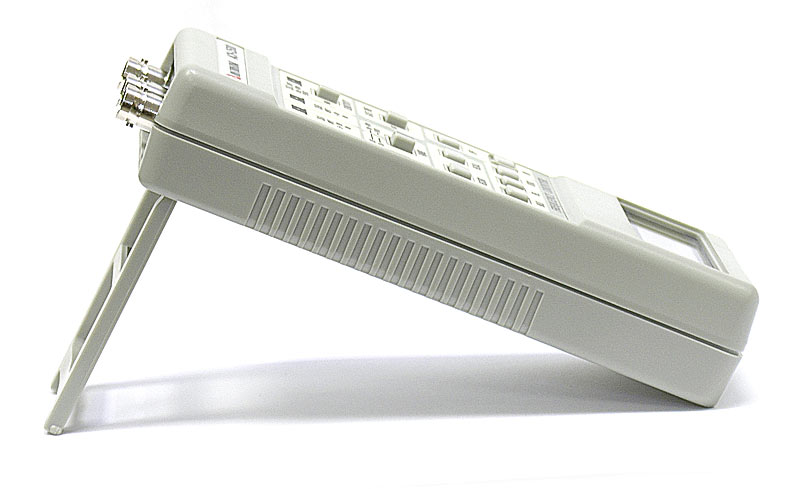

| AFC-2500 Frequency Counter - side view |
|
|

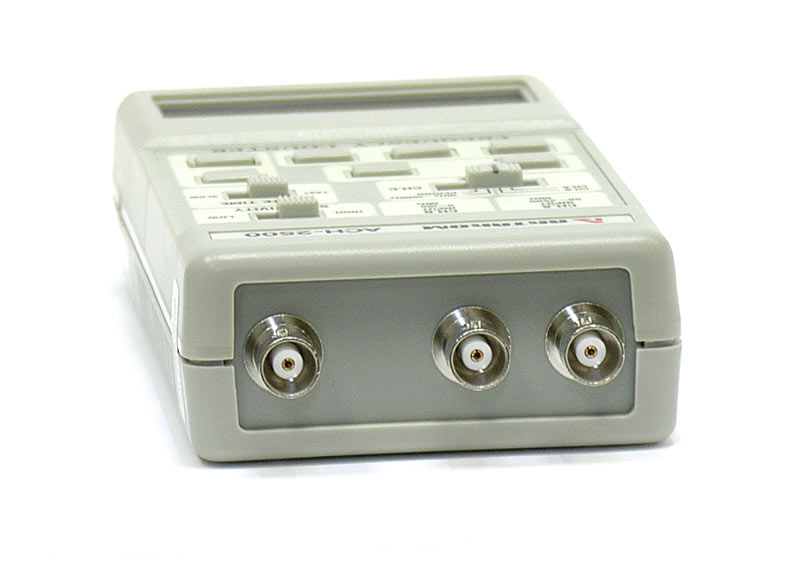

| AFC-2500 Frequency Counter - top view |
|
|

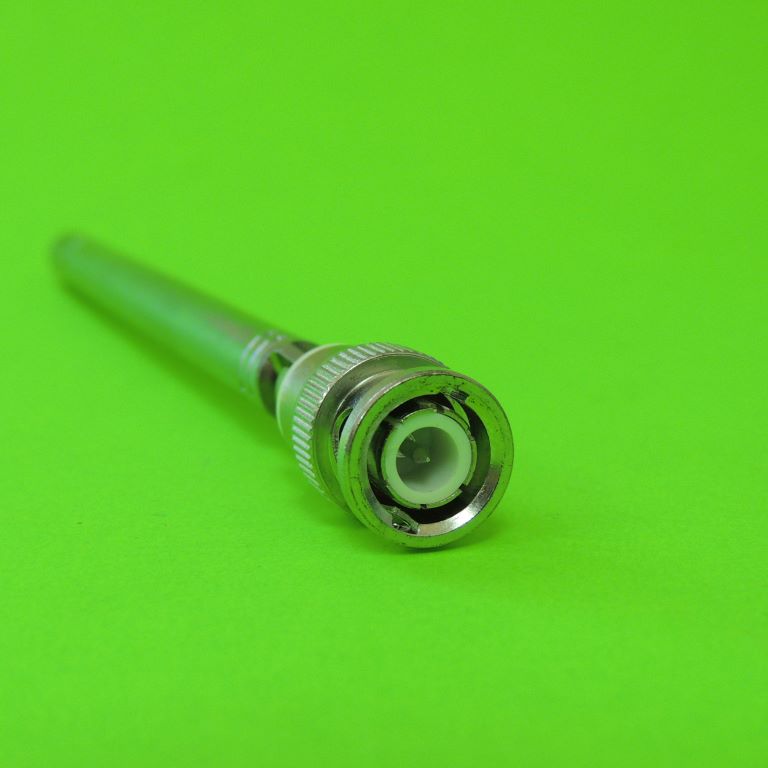

| AFC-2500 Frequency Counter - antenna |
|
|
|

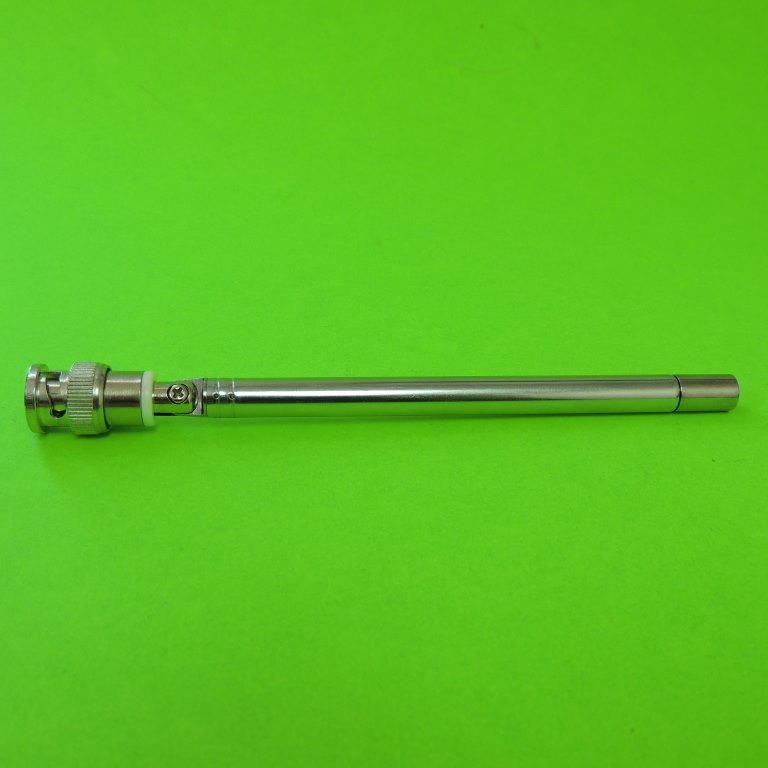

| AFC-2500 Frequency Counter - antenna |
|
|
