AM-3001 Digital LCR Meter

Measurement Modes: AUTO, R+Q, L+Q, C+D, C+R; Equivalent Circuit: Series or Parallel; Parameters Displayed: Value, Deviation, % Deviation or Bin Number. Deviation and % deviation are calculated from a stored relative value; Averaging: 2~10 Measurement; Measurement Range: R+Q R 0.0001Ω~2000MΩ Q 0.00001~50 / L+Q L 0.0001μH~99999H Q 0.00001~50 / C+D C 0.0001ρF~99999μF D 0.00001~10 / C+R C 0.0001ρF~99999μF R 0.00001~99999kΩ; Test Frequency: 100Hz, 120Hz, 1 kHz, 10 kHz, 100 kHz; Frequency accuracy: ±100ppm; Drive Voltage: 0.1V, 0.25V, 1Vrms; Drive levels accuracy: ±2%; Triggering: Through External Trigger, Continuous, Manual or Remote over Rs232, GPIB or Handler Interface; Conditions: At least 30 minutes warm up, 23°C±5°C; Basic Accuracy: 0.05%; Dimensions: 109x363x386 mm / 4.3x14.3x15.2 in; Weight: 5.8 kg / 204.6 oz.

AKTAKOM AM-3001 is a useful tool to measure a device’s characteristics with various functions. It provides more than 13 orders of magnitude, basic accuracy of 0.05% and 5 test frequencies.

Features

Basic accuracy of 0.05%
5 Test frequencies
Store up to 9 setups in the memory
Remote over RS-232C and GPIB/Handler (Option) Interface

Specifications

Measurement Modes: AUTO, R+Q, L+Q, C+D, C+R

Equivalent Circuit: Series or Parallel

Parameters Displayed: Value, Deviation, % Deviation or Bin Number. Deviation and % deviation are calculated from a stored relative value.

Averaging: 2~10 Measurement

Measurement Range:

R+Q R 0.0001Ω~2000MΩ Q 0.00001~50
L+Q L 0.0001μH~99999H Q 0.00001~50
C+D C 0.0001ρF~99999µF D 0.00001~10
C+R C 0.0001ρF~99999µF R 0.00001~99999kΩ

Test Frequency: 100Hz, 120Hz, 1 kHz, 10 kHz, 100 kHz

Frequency accuracy: ±100ppm

Drive Voltage: 0.1V, 0.25V, 1Vrms

Drive levels accuracy: ±2%

Measurement Rate: Slow, Medium, Fast: 2, 10 or 20 measurements per second at test frequencies of 1KHz and above 0.6, 2.4, or 6 measurements per second at 100z and 120Hz

Ranging: Auto or Manual

Triggering: Through External Trigger, Continuous, Manual or Remote over Rs232, GPIB or Handler Interface

Bias Voltage: Internal → 2.0 VDC±2% External → 0~+40 VDC (fused at 0.25A)

Conditions: At least 30 minutes warm up, 23°C±5°C

Basic Accuracy: 0.05%

Dimensions: 109x363x386 mm / 4.3x14.3x15.2 in

Weight: 5.8 kg / 204.6 oz

Accessories

Power cord
User's manual
AM-3001-AE adaptor

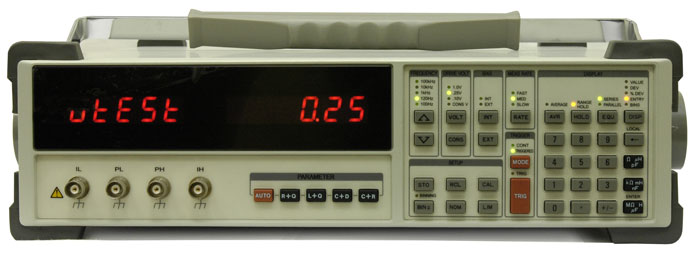

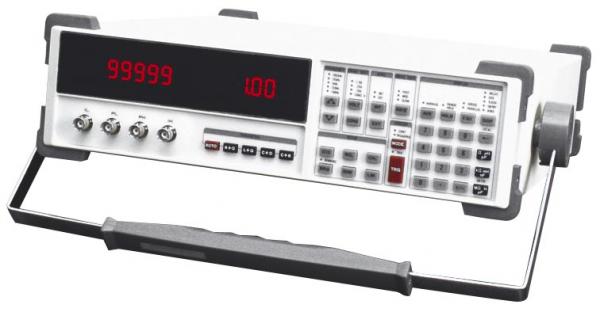

AM-3001 Digital LCR Meter - front view

Enlarge

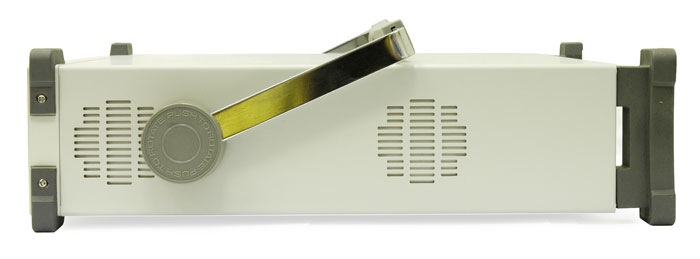

AM-3001 Digital LCR Meter - side view

Enlarge

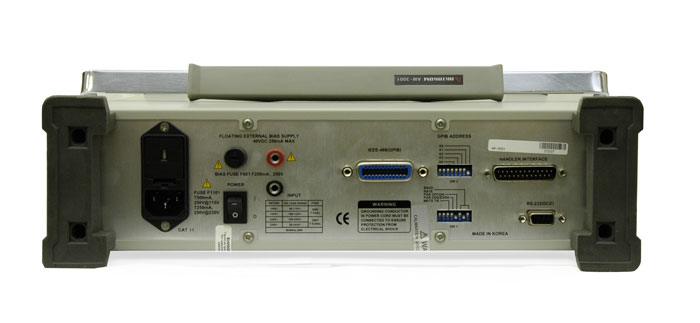

AM-3001 Digital LCR Meter - rear view

Enlarge

Frequently Asked Questions

What is the purpose of Handler/Sorter interface use on DB25 of AKTAKOM AM-3001 LCR meter?

What is the purpose of Handler/Sorter interface use on DB25 of AKTAKOM AM-3001 LCR meter?
Handler/Sorter interface on DB25 indicates sorting data as well as the information about the measuring process. The device switching with this interface is made by TTL signal setting. Trigger output protection is provided within ± 15 V. Up
