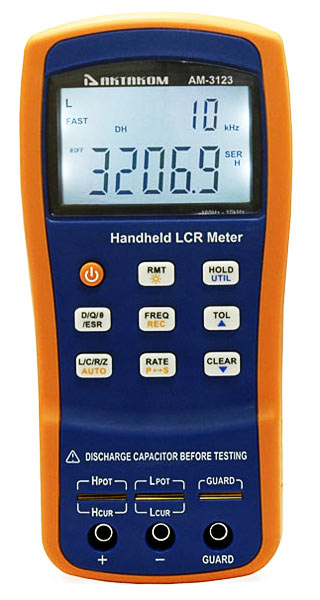

AM-3123 LCR Meter
|
|
Digital LCR meter. Dual LCD display. Measurements: Capacitance 0.01pF...20mF, Inductance 0.01µH...1kH, Resistance 0.1mΩ...10MΩ. Basic accuracy: 0.25%. Relative measurements and data hold. Frequency: 100Hz, 120Hz, 1kHz, 10kHz. Measurement in parallel mode (Lp, Cp, Rp) and series mode (Ls, Cs, ESR). Test Terminals: 3-terminal and 5-terminal. Mini-USB interface.
Manuals:
|
|
AKTAKOM AM-3123 is a perfect combination of outstanding performance and convenience. Accurate measurements of passive-components can be achieved in all occasions for a long period of time.
Features
- Basic measurement accuracy: 0.25%
- Gorgeous dual-color cast shell
- 40,000 counts for primary parameter
- Innovatively compatible terminal configuration: 5-terminal test slot and 3-terminal banana jack
- Intelligent Auto LCR function
- Measurement speed up to 4 meas/sec, fast automatic range switch design
- Constant output impedance: 100 Ohm
- Percentage display and 4-tolerance comparator: 1%, 5%, 10%, 20%
- Automatic OPEN/SHORT correction detection
- Data Hold, Max/Min/Average recording
- Utility function configuration and current setup recovery after power-off
- Standard Mini-USB interface, SCPI compatible
Specifications
|
Function
|
|
Measurement Parameters
|
Primary Parameters: L / C / R / Z Secondary Parameters: D / Q / θ / ESR
|
|
Equivalent Circuits
|
Serial, Parallel
|
|
Auto LCR Function
|
Manual,Auto
|
|
Ranging Mode
|
Auto
|
|
Test Terminals
|
3-terminal, 5-terminal
|
|
Measurement Speed
|
4 meas/sec (Fast), 1.5 meas/sec (Slow)
|
|
Correction
|
Short, Open
|
|
Tolerance Mode
|
1%, 5%, 10%, 20%
|
|
Input protection fuse
|
0.1A / 250V
|
|
Interface
|
Mini-USB (virtual serial port)
|
|
Test Signal
|
|
Signal Frequency
|
100Hz, 120Hz, 1kHz, 10kHz
|
|
Test Signal Level
|
0.6Vrms
|
|
Output Impedance
|
100Ω
|
|
Display
|
|
Display
|
LCD primary-secondary dual display
|
|
Backlight
|
Battery supply: when backlight is on, luminance is reduced by half 15s later and automatically turned off 30s later. Powered by adapter: backlight on until manually turned off
|
|
Readings
|
Max. counts of Primary Parameter: 40,000; D/Q/θ Min. resolution of secondary parameter: 0.0001
|
|
Basic Accuracy
|
0.25%
|
|
Power Supply
|
|
Battery Model
|
IEC 6LR61, 9V Alkaline battery
|
AC Adapter
|
Input: 220V (1±10%)，50Hz (1±5%); Output: 12V-15V DC
|
Operating Current
|
Max: 28mA, Typical: 25mA (1kHz, 100Ω load)
|
|
Stand by（Power off）Current
|
Max: 2μA (Limited to non-rechargeable model)
|
|
Battery Life
|
16 hours (Typical) based on backlight off and new alkaline
|
|
Auto Power off（valid for battery powered)
|
5min, 15min, 30min, 60min, OFF available; factory default: 5min
|
|
Low Voltage indicator
|
When battery voltage drops below 6.8V, Low Voltage Indicator turns on
|
|
General
|
|
Operation Condition
|
Temperature
|
0°C…40°C
|
|
Relative Humidity
|
≤ 90% R.H.
|
|
Weight
|
350g
|
|
Dimensions (HxWxD)
|
7.5x3.5x1.6in / 190x90x41 mm
|
|
Safety and EMC compliance
|
IEC 61010-1:2001; IEC 61326-2-1: 2005
|
Inductance (L) and Quality Factor (Q)
Range
|
Display Range
|
Accuracy
|
Equivalent Mode
|
|
Le
|
De
|
100Hz/120Hz
|
1000H
|
400.0H…1000.0H
|
1.00%+3
|
0.01
|
Parallel
|
|
400H
|
40.0H…399.99H
|
0.35%+2
|
0.0035
|
Parallel
|
|
40H
|
4.000H…39.999H
|
0.25%+2
|
0.0025
|
Parallel
|
|
4H
|
400.0mH…3.9999H
|
0.25%+2
|
0.0025
|
-
|
|
400mH
|
40.0mH…399.99mH
|
0.25%+2
|
0.0025
|
Series
|
|
40mH
|
4.0mH…39.999H
|
0.45%+2
|
0.0045
|
Series
|
|
4mH
|
0μH…3.9999mH
|
1.40%+5
|
-
|
Series
|
1kHz
|
100H
|
40.00H…100.0H
|
1.00%+3
|
0.0100
|
Parallel
|
|
40H
|
4.000H…39.999H
|
0.35%+2
|
0.0035
|
Parallel
|
|
4H
|
400.0mH…3.9999H
|
0.25%+2
|
0.0025
|
Parallel
|
|
400mH
|
40.00H…399.99H
|
0.25%+2
|
0.0025
|
-
|
|
40mH
|
4.000mH…39.999.0H
|
0.25%+2
|
0.0025
|
Series
|
|
4mH
|
400.0μH…3.9999H
|
0.45%+2
|
0.0045
|
Series
|
|
4μH
|
0μH…399.9μH
|
1.40%+5
|
-
|
Series
|
|
10kHz
|
1000mH
|
400.0mH…999.99mH
|
0.80%+3
|
0.0080
|
Parallel
|
|
400mH
|
40.00mH…399.99mH
|
0.35%+2
|
0.0035
|
Parallel
|
|
40mH
|
4.000mH…39.999mH
|
0.25%+2
|
0.0025
|
-
|
|
4mH
|
400.0μH…3.9999mH
|
0.30%+2
|
0.0030
|
Series
|
|
400μH
|
40.00μH…399.99μH
|
0.45%+2
|
0.0045
|
Series
|
|
40μH
|
0.00μH…39.99μH
|
1.40%+5
|
-
|
Series
|
|
100kHz
|
100mH
|
40.00mH…399.99mH
|
1.20%+5
|
0.0120
|
Parallel
|
|
40mH
|
4.000mH…39.999mH
|
0.80%+2
|
0.0080
|
Parallel
|
|
4mH
|
400.0μH…3.9999mH
|
0.50%+2
|
0.0050
|
-
|
|
400μH
|
40.00μH…399.99μH
|
0.50%+2
|
0.0050
|
Series
|
|
40μH
|
4.000μH…39.999μH
|
0.80%+5
|
0.0080
|
Series
|
|
4μH
|
0.000μH…3.999μH
|
2.50%+10
|
-
|
Series
|
Capacitance (C) and Dissipation (D)
|
Range
|
Display Range
|
Accuracy
|
Equivalent Mode
|
|
Ce
|
De
|
100Hz/120Hz
|
20mF
|
4.000mF…20.000mF
|
5.00%+5
|
±0.0500
|
Series
|
|
4mF
|
400.0μF…3.9999mF
|
1.00%+3
|
±0.0100
|
Series
|
|
400μF
|
40.00μF…399.99μF
|
0.35%+2
|
±0.0035
|
Series
|
|
40μF
|
4.000μF…39.999μF
|
0.25%+2
|
±0.0025
|
Series
|
|
4μF
|
400.0nF…3.9999μF
|
0.25%+2
|
±0.0025
|
-
|
|
400nF
|
40.00nF…399.99nF
|
0.25%+2
|
±0.0025
|
Parallel
|
|
40nF
|
4.000nF…39.999nF
|
0.35%+3
|
±0.0035
|
Parallel
|
|
4nF
|
0pF…3.999nF
|
1.25%+5
|
-
|
Parallel
|
1kHz
|
1000μF
|
400.0μF…999.99μF
|
2.00%+5
|
±0.0200
|
Series
|
|
400μF
|
40.00μF…399.99μF
|
1.00%+3
|
±0.0100
|
Series
|
|
40μF
|
4.000μF…39.999μF
|
0.35%+2
|
±0.0035
|
Series
|
|
4μF
|
400.0nF…3.9999μF
|
0.25%+2
|
±0.0025
|
Series
|
|
400nF
|
40.00nF…399.99nF
|
0.25%+2
|
±0.0025
|
-
|
|
40nF
|
4.000nF…39.999nF
|
0.25%+2
|
±0.0025
|
Parallel
|
|
4nF
|
400.0pF…3.9999nF
|
0.35%+3
|
±0.0035
|
Parallel
|
|
400pF
|
0.0pF…39.99nF
|
1.25%+5
|
-
|
Parallel
|
|
10kHz
|
100μF
|
40.00μF…100.00μF
|
3.00%+5
|
±0.0300
|
Series
|
|
40μF
|
4.000μF…39.999μF
|
1.50%+3
|
±0.0150
|
Series
|
|
4μF
|
400.0nF…3.9999μF
|
0.35%+2
|
±0.0035
|
Series
|
|
400nF
|
40.00nF…399.99nF
|
0.25%+2
|
±0.0025
|
Series
|
|
40nF
|
4.000nF…39.999nF
|
0.25%+2
|
±0.0025
|
-
|
|
4nF
|
400.0pF…3.9999nF
|
0.25%+2
|
±0.0025
|
Parallel
|
|
400pF
|
40.00pF…399.99pF
|
0.35%+3
|
±0.0035
|
Parallel
|
|
40pF
|
0.00pF…39.99pF
|
1.25%+5
|
-
|
Parallel
|
|
100kHz
|
10μF
|
4.000μF…10.000μF
|
6.00%+20
|
±0.0600
|
Series
|
|
4μF
|
400.0nF…3.9999μF
|
2.50%+10
|
±0.0250
|
Series
|
|
400nF
|
40.00nF…399.99nF
|
0.80%+5
|
±0.0080
|
Series
|
|
40nF
|
4.000nF…39.999nF
|
0.50%+2
|
±0.0050
|
Series
|
|
4nF
|
400.0pF…3.9999nF
|
0.50%+2
|
±0.0050
|
-
|
|
400pF
|
40.00pF…399.99pF
|
0.80%+2
|
±0.0080
|
Parallel
|
|
40pF
|
4.000pF…39.999pF
|
1.20%+5
|
±0.0120
|
Parallel
|
|
4pF
|
0.000pF…4.999pF
|
3.00%+10
|
-
|
Parallel
|
Impedance（Z） and Phase Angle （Θ）
|
Range
|
Display Range
|
Accuracy
|
Equivalent Mode
|
|
Ze
|
θe
|
|
100Hz-10kHz
|
10MΩ
|
4.000MΩ…10.000MΩ
|
3.00%+5
|
±1.75°
|
Parallel
|
|
4MΩ
|
400.0kΩ…3.9999MΩ
|
1.25%+3
|
±0.75°
|
Parallel
|
|
400kΩ
|
40.00kΩ…399.99kΩ
|
0.35%+2
|
±0.25°
|
Parallel
|
|
40kΩ
|
4.000kΩ…39.999kΩ
|
0.25%+2
|
±0.15°
|
Parallel
|
|
4kΩ
|
400.0Ω…3.9999kΩ
|
0.25%+2
|
±0.15°
|
-
|
|
400Ω
|
40.00Ω…399.99Ω
|
0.25%+2
|
±0.15°
|
Series
|
|
40Ω
|
4.000Ω…39.999Ω
|
0.35%+2
|
±0.25°
|
Series
|
|
4Ω
|
0.4000Ω…3.9999Ω
|
1.00%+3
|
±0.6°
|
Series
|
|
0.4Ω
|
0.0000Ω…0.3999Ω
|
3.00%+5
|
-
|
Series
|
|
100kHz
|
10MΩ
|
4.000MΩ…10.000MΩ
|
8.00%+20
|
±4.6°
|
Parallel
|
|
4MΩ
|
400.0kΩ…3.9999MΩ
|
3.00%+10
|
±1.75°
|
Parallel
|
|
400kΩ
|
40.00kΩ…399.99kΩ
|
1.20%+5
|
±0.69°
|
Parallel
|
|
40kΩ
|
4.000kΩ…39.999kΩ
|
0.80%+2
|
±0.46°
|
Parallel
|
|
4kΩ
|
400.0Ω…3.9999kΩ
|
0.50%+2
|
±0.3°
|
-
|
|
400Ω
|
40.00Ω…399.99Ω
|
0.50%+2
|
±0.3°
|
Series
|
|
40Ω
|
4.000Ω…39.999Ω
|
0.80%+5
|
±0.46°
|
Series
|
|
4Ω
|
0.4000Ω…3.9999Ω
|
2.50%+10
|
±1.43°
|
Series
|
|
0.4Ω
|
0.0000Ω…0.3999Ω
|
6.00%+20
|
-
|
Series
|
Accessories
- Instruction manual
- Mini USB Interface Cable
- Red / Black Banana plugs—Crocodile clip Test Leads
- Kelvin Clips (5-wire)
- 9V Battery
- Adapter
- Software (see Software tab)

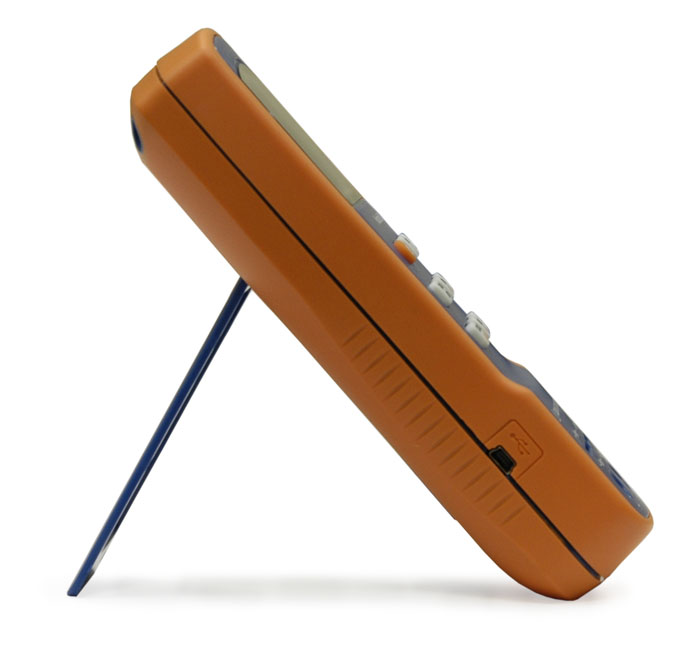

| AM-3123 LCR Meter - left view |
|
|

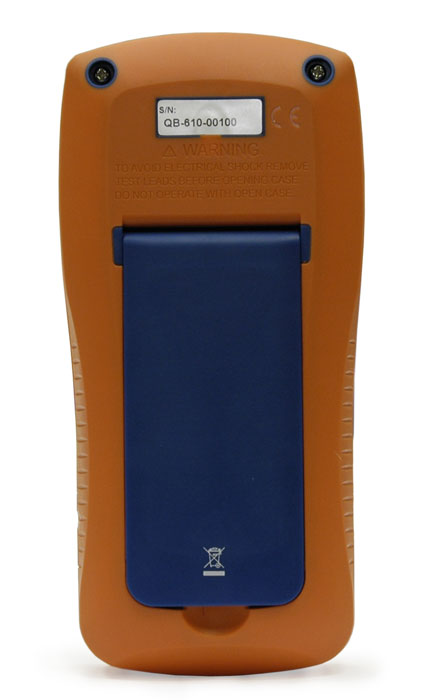

| AM-3123 LCR Meter - rear view |
|
|

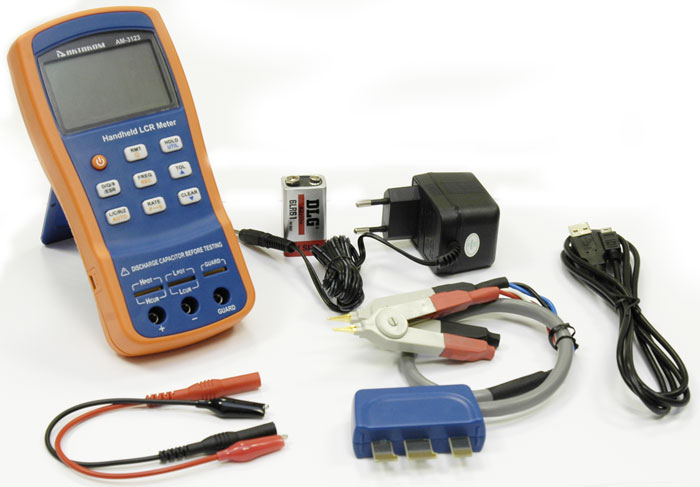

| AM-3123 LCR Meter - with accessories |
|
|
|

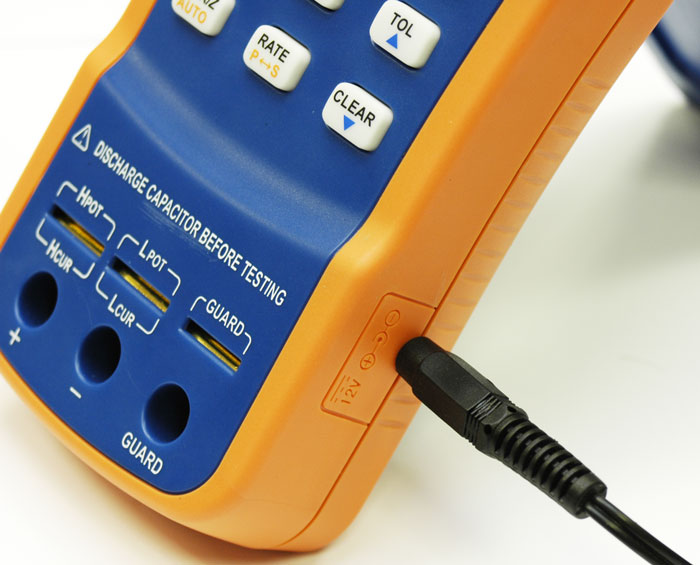

| AM-3123 LCR Meter - Connecting the adaptor |
|
|

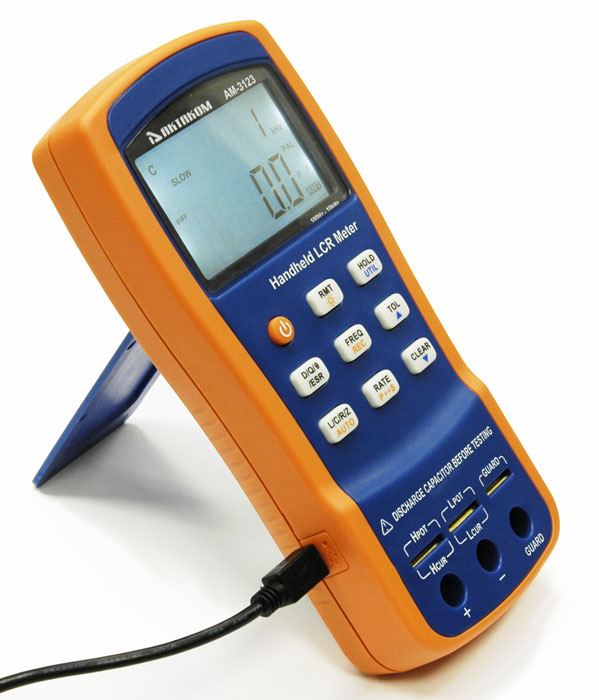

| AM-3123 LCR Meter - Connecting the USB cable |
|
|
| AM-3123 LCR Meter - Connecting the 5-wire test output with Kelvin clips |
|
|
|

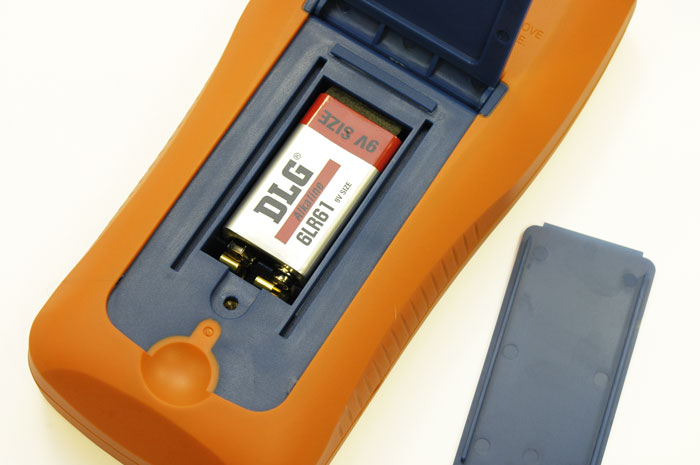

| AM-3123 LCR Meter - battery inside |
|
|

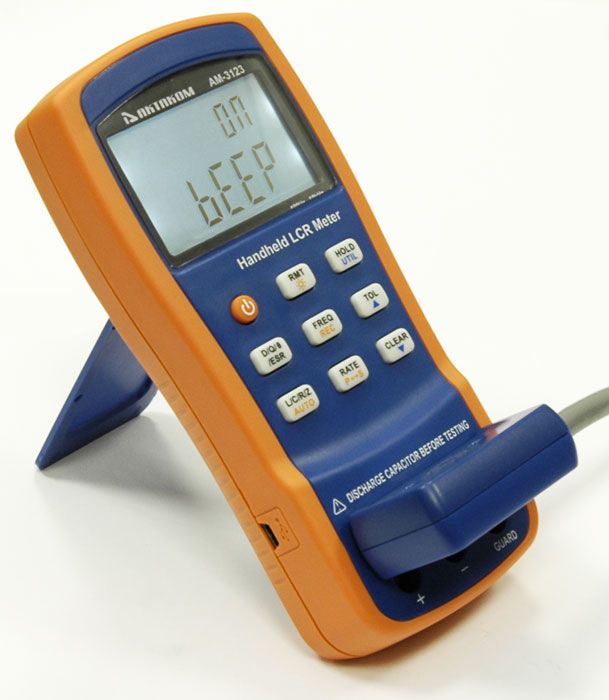

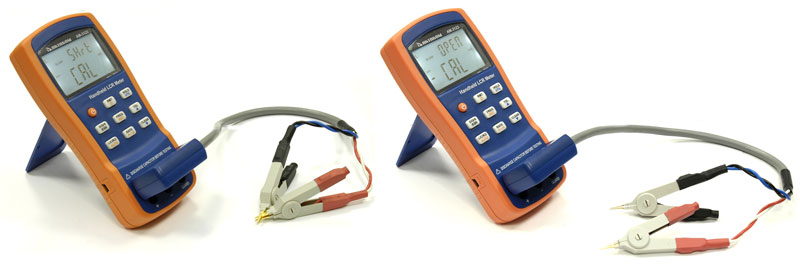

| AM-3123 LCR Meter - Calibration |
|
|

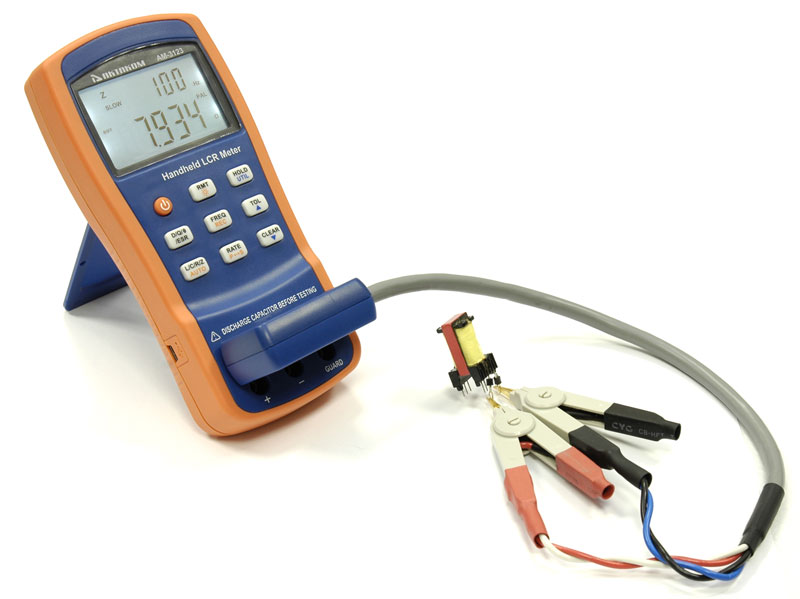

| AM-3123 LCR Meter - Full Resistance Measurement AC |
|
|
|

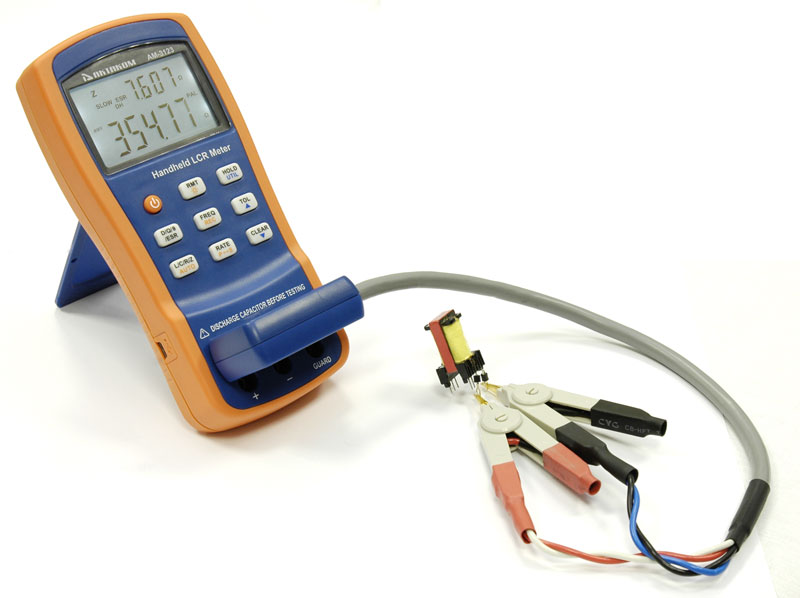

| AM-3123 LCR Meter - Full Resistance Measurement DC |
|
|

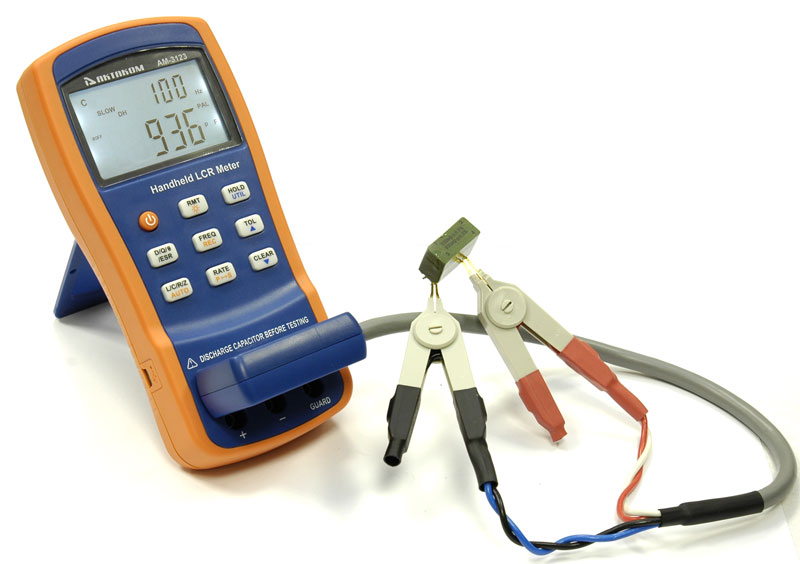

| AM-3123 LCR Meter - Capacity Measurement |
|
|

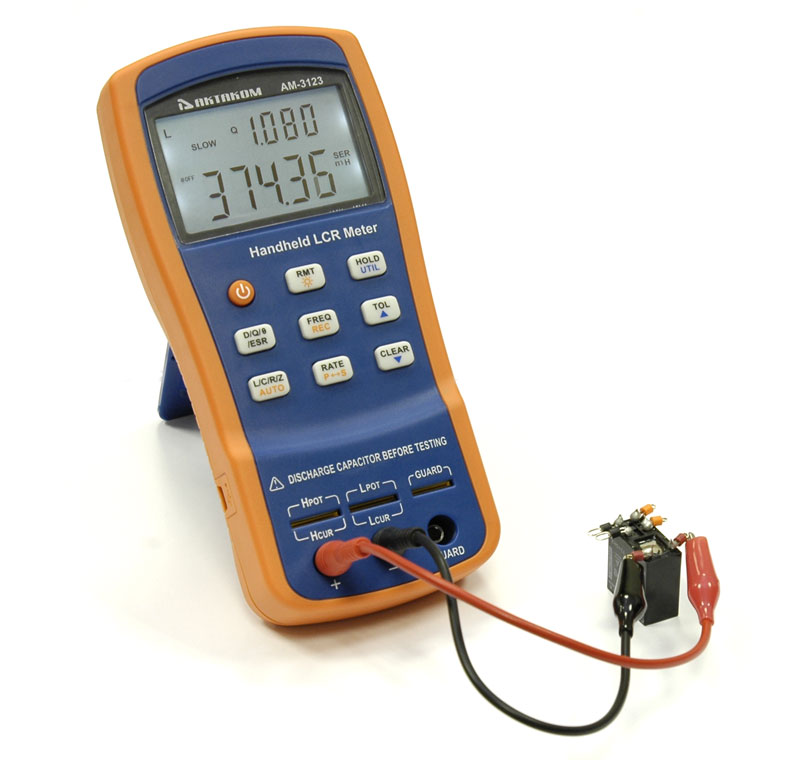

| AM-3123 LCR Meter - Inductance Measurement |
|
|
|
