ATE-1033 Thermo-Anemometer

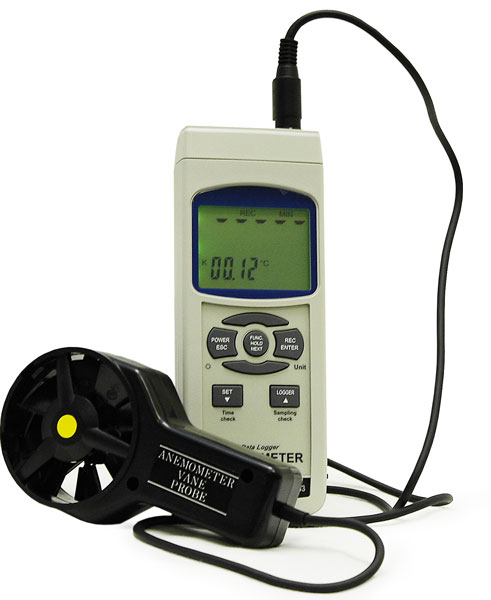

ATE-1033 Thermo-Anemometer
|
|
Range of air velocity: knots (nautical miles per hour): 0.8-68.0 ±(2%+0.4), m/s (meter per second): 0.4-30.0 ±(2%+0.2), km/h (kilometers per hour): 1.4-126.0 ±(2%+0.8), ft/min (feet per minute): 79–6890 ±(2%+40); Range of temperature: 32°F to 122°F / 0°C to 50°C
Manuals:
|
|
Wide range of applications: AKTAKOM ATE-1033 anemometer could be used to check: air conditioning & heating systems, ventilation systems, draft, air velocities, and wind temperature. Cord long 44” (112cm) with connector. Real time SD memory card Data logger.
Features
- Air velocity: m/s, ft/min, km/h, knots, mile/h
- Air temperature: (°C, °F)
- Low-friction ball vane wheels make sure high accuracy in high & low velocities
- Type K, Type J thermocouple thermometer
- Air Temp. used thermistor sensor, fast response time
- Real time SD memory card Datalogger, Built-in Clock and Calendar, real time data recorder, sampling time set from 1 second to 3600 seconds
- Manual datalogger is available (set the sampling time to 0), during the use of manual datalogger function it can set the different position (location) No. (position 1 to position 99)
- Innovation and easy operation, computer doesn’t need any extra software, after the datalogger use just take the SD card away from the meter and plug in the SD card into the computer, it can download all of the measured value with the time information (year/month/date/hour/minute/second) to the Excel directly; then users can make the further data or graphic analysis by themselves
- SD card capacity: 1 GB to 16 GB
- LCD with green light backlight, easy reading
- Can default auto power off or manual power off
- Data hold, record max. and min. reading
- Microcomputer circuit, high accuracy
- Power by UM3/AA (1.5V) x 6 batteries or DC 9V adapter
- RS-232/USB PC COMPUTER interface
- Separate probe, easy for operation of different measurement environment
Specifications
General Specifications:
Circuit: Custom microprocessor LSI circuit
Display:
- LCD size: 2.1x1.5in/52x38mm
- LCD with green backlight (ON/OFF)
Measurement:
Air velocity:
- m/s (meters per second)
- km/h (kilometers per hour)
- ft/min (FPM, feet per minute)
- knots (nautical miles per hour)
- mile/h (mph, miles per hour)
Air temperature: °C, °F
Type K/Type J thermometer: °C, °F
Datalogger / Sampling Time / Setting range:
Auto:
1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 second
Sampling time can set to 1 second, but memory data may loss.
Manual:
Push the data logger button once will save data one time
Set the sampling time to 0 second
Manual mode can also select the 1 to 99 position (Location) no.
Memory Card: SD memory card. 1 GB to 16 GB
Advanced settings:
- Set clock time (Year/Month/Date, Hour/ Minute/ Second)
- Decimal point of SD card setting
- Auto power OFF management
- Set beep Sound ON/OFF
- Set thermometer type to Type K or Type J
- Set temperature unit to °C or °F
- Set sampling time
- SD memory card format
Temperature compensation: Automatic temp. compensation for the Anemometer function and the type K/J thermometer
Data Hold: Freeze the display reading
Memory Recall: Maximum & Minimum value
Sampling Time of Display: Approx. 1 second
Data Output:
RS-232/USB PC computer interface:
- Connect the optional RS-232 cable UPCB-02 will get the RS232 plug
- Connect the optional USB cable USB-01 will get the USB plug
Operating Temperature: 0 to 50°C
Operating Humidity: Less than 85%R.H.
Power Supply:
- Alkaline or heavy duty DC 1.5V battery (UM3, AA) x 6 PCs, or equivalent
- ADC 9V adapter input. (AC/DC power adapter is optional)
Power Current:
- Normal operation (w/o SD card save data and LCD Backlight is OFF): Approx. DC 15mA.
- When SD card save the data and LCD Backlight is OFF): Approx. DC 36mA.
Electrical Specifications (23±5°C):
Air velocity
|
Measurement
|
Range
|
Resolution
|
Accuracy
|
|
m/s
|
0.4-30.0
|
0.1
|
±(2%+0.2)
|
|
km/h
|
1.4- 26.0
|
0.1
|
±(2%+0.8)
|
|
mph (mile/h)
|
0.9-78.3
|
0.1
|
±(2%+0.4)
|
|
knots
|
0.8-68.0
|
0.1
|
±(2%+0.4)
|
|
FPM (ft/min)
|
79-6890
|
1
|
±(2%+40)
|
Air temperature:
Measurement Range: 32°F to 122°F / 0°C to 50°C
Resolution: 0.1°F/0.1°C
Accuracy: ±1.5°F/0.8°C
Type K/J thermometer:
|
Sensor Type
|
Resolution
|
Range
|
Accuracy
|
|
Type K
|
0.1°C
|
-50.0 to 1300.0°C
|
±(0.4%+0.5°C)
|
|
-50.1 to -100.0°C
|
±(0.4%+1°C)
|
|
0.1°F
|
-58.0 to 2372.0°F
|
±(0.4%+1°F)
|
|
-58.1 to -148.0°F
|
±(0.4%+1.8°F)
|
|
Type J
|
0.1°C
|
-50.0 to 1200.0°C
|
±(0.4%+0.5°C)
|
|
-50.1 to -100.0°C
|
±(0.4%+1°C)
|
|
0.1°F
|
-58.0 to 2192.0°F
|
±(0.4%+1°F)
|
|
-58.1 to -148.0°F
|
±(0.4%+1.8°F)
|
Weight: 1.13lb/515g
Dimensions:
- Main instrument: 8x3x1.5in/203x76x38mm
- Anemometer sensor head: Round, 2.8in/72mm Dia.
Standard accessories
Optional Accessories
- SD Card (1 G)
- SD Card (2 G)
- Type K thermocouple probe
- AC to DC 9V adapter
- USB cable, USB-01
- RS232 cable, UPCB-02
- Data Acquisition software, SW-U801-WIN

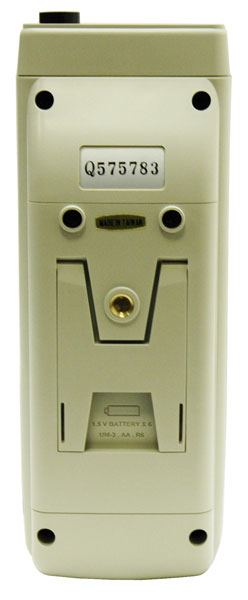

| ATE-1033 Thermo-Anemometer - rear view |
|
|

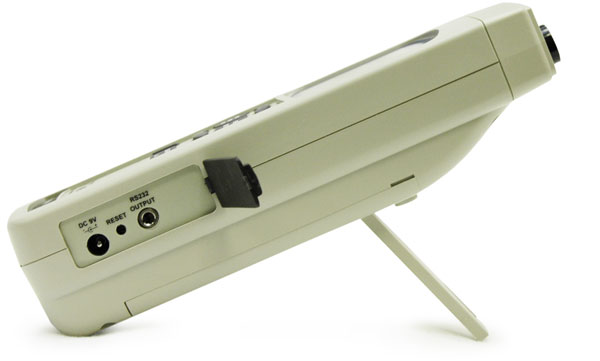

| ATE-1033 Thermo-Anemometer - right side view |
|
|

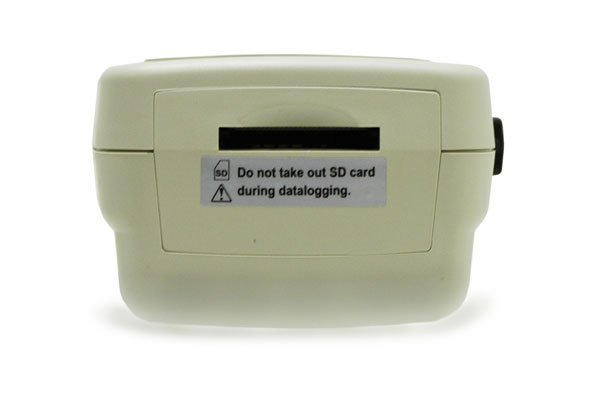

| ATE-1033 Thermo-Anemometer - bottom view |
|
|
|

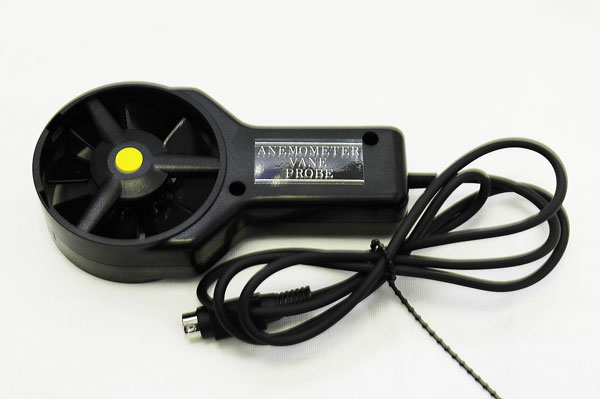

| ATE-1033 Thermo-Anemometer - vane probe |
|
|

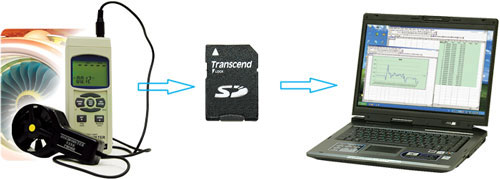

| ATE-1033 Thermo-Anemometer - Data transfer to the PC is made by SD-card in form of Excel table |
|
|
