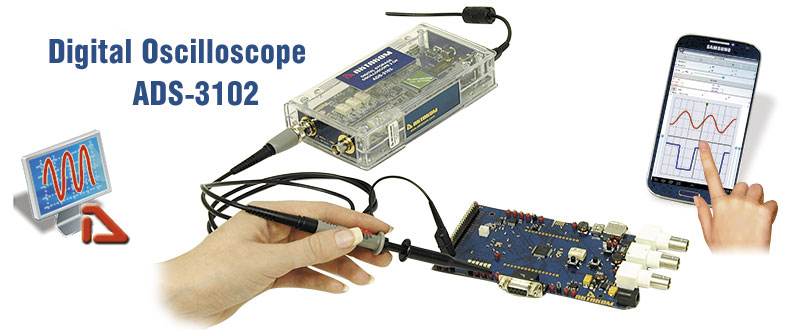

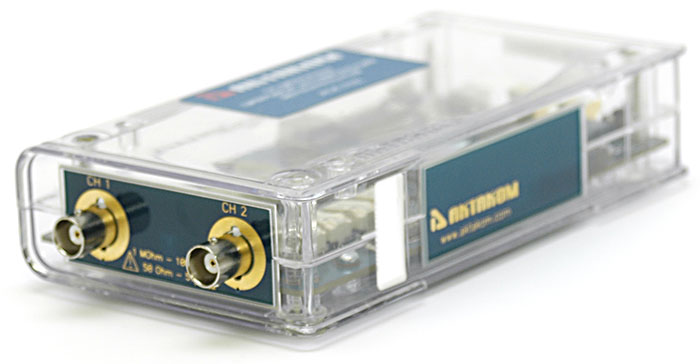

ADS-3102 Dual-channel USB PC-based Oscilloscope with Spectrum Analyzer

Compact 2-channel digital storage USB oscilloscope. It’s designed as an attachment to a computer (PC). PC connection is made via USB port. Original design and perfect technical characteristics attract specialists’ attention.

Features:

• 2 independent channels with bandwidth up to 100 MHz
• write buffer up to 128 kB per channel (specified by user)
• arbitrarily selected length of prerecord/postrecord
• high sensibility (up to 10 mV/div)
• automatic settings for input signals
• wide range of cursor and automatic measurements
• static measurements and histograming
• spectrum analyzer (FFT)
• digital luminophor
• alarm signaling
• PC connection via USB 2.0.

Specifications:

• Sampling rate: 10 GHz (stroboscopic mode)
• Sampling rate: 100 MHz (real time mode)
• Vertical deflection ratio: 10 mV/div...10 V/div with step 1-2-5
• Resolution: 8 bits
• Frequency range on level: –3 dB: 0 Hz...100 MHz (DC), 1,2 Hz...100 MHz (AC)
• Input resistance: 1 MΩ or 50 Ω
• Max. input voltage: ±50 V (RВХ=1 MΩ)
• Min. clock cycle: 20 ns
• Min. durability of synchronizing pulse: 10 ns
• Sweep ratio range: 10 ns/div....0,1 s/div
• Calibrator: 1 kHz, 3 V (peak to peak)
• Power supply: +5 V
• Weight: 0,19 kg / 6.7 oz
• Dimensions: 5.9 x 3.3 x1.4 in / 150 x 85 x 32 mm.

Accessories:

• DC 5v adapter
• Software

• User's Manual


Optional accessories:

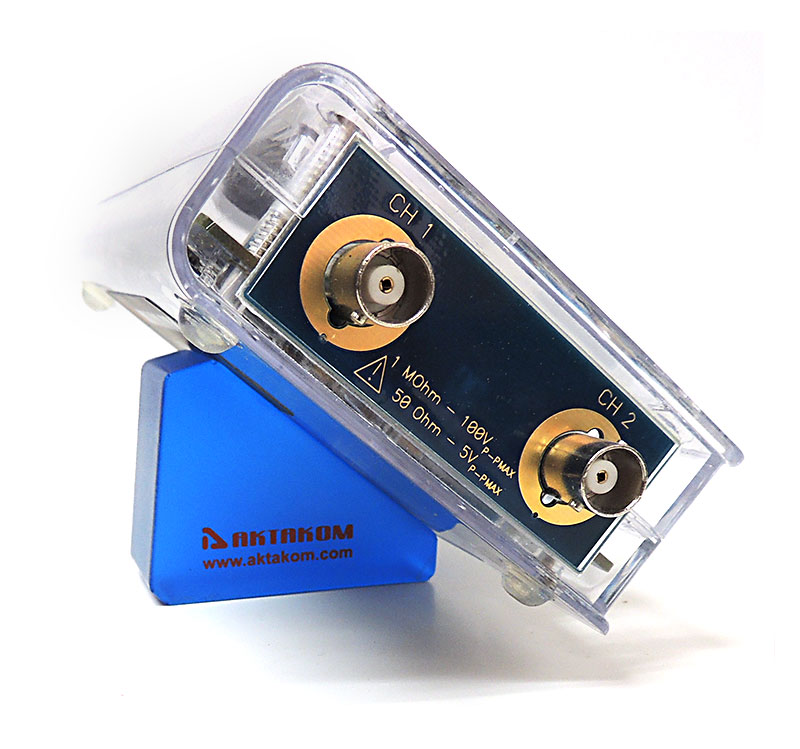

• AHA-1288 Mobile Stand
