ACK-3102 dual-channel USB PC-based oscilloscope + spectrum analyzer

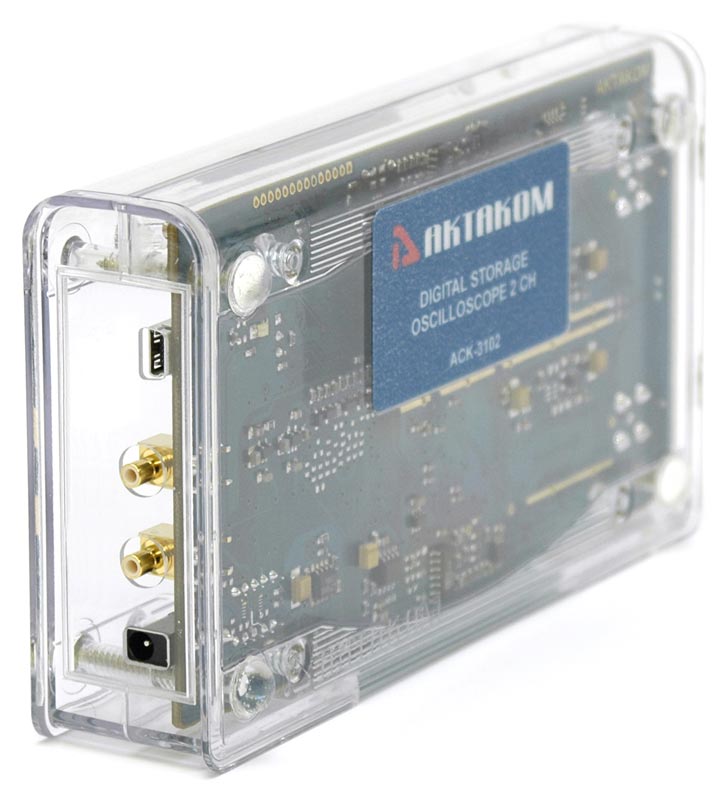

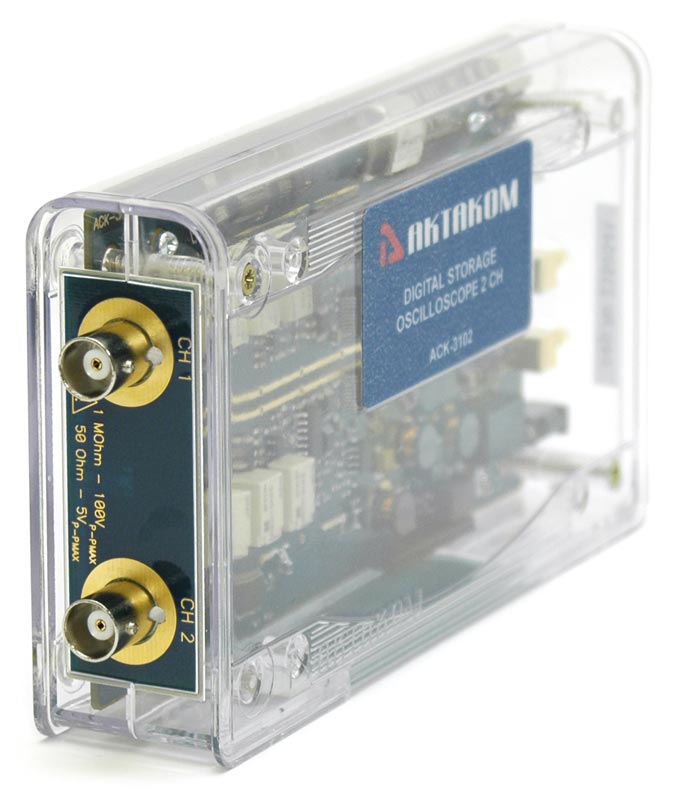

AKTAKOM ACK-3102 is a pocket model of dual channel digital storage USB oscilloscope. This is a PC-based unit which is connected to a computer (PC) via USB-port. Special design and perfect technical characteristics always attract specialists’ attention.

Features:

• 2 independent channels with the bandwidth of up to 100 MHz
• Record buffer: up to 128 kB per channel (selected by user)
• Arbitrary selectable pre record/after record length
• High sensitivity (from 10 mV/div)
• Auto set up for input signals
• Wide range of cursor and automatic measurements
• Statistic measurement and histogram construction
• Spectrum analyzer (FFT)
• Digital luminophor
• Alarm signaling
• Connection to PC via USB 2.0

Specifications:

• Sample rate: 10 GHz (stroboscopic mode)
• Sample rate 100 MHz (real-time mode)
• Vertical deflection coefficient 10 mV/div...10 V/div with 1-2-5 step
• Resolution: 8 bit
• Frequency range at –3 dB level: 0 Hz...100 MHz (DC), 1.2 Hz...100 MHz (AC)
• Input resistance: 1 MΩ or 50 Ω
• Max. input voltage: ±50 V (input R=1 MΩ)
• Min. repetition period of synchronization pulse: 20 ns
• Min. duration of synchronization pulse: 10 ns
• Sweep ratio range:10 ns/div....0.1 s/div
• Calibrator: 1 kHz, 3 V peak-to-peak
• Power supply: +5 V
• Dimensions: 5.9 x 3.4 x 1.3 in / 150 x 85 x 32 mm
• Weight: 6.7 oz / 190 g
