AKC-3116 USB PC-based logic analyzer

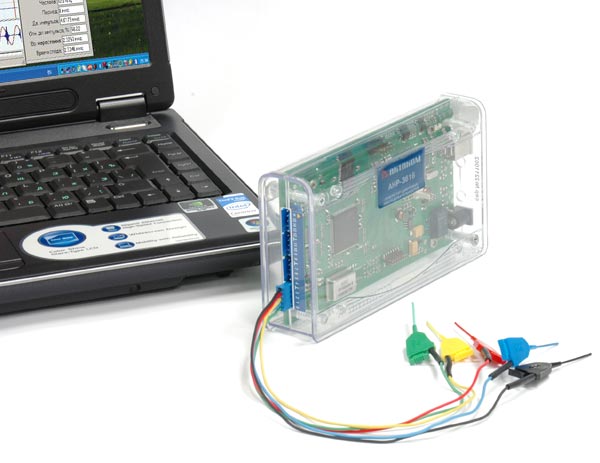

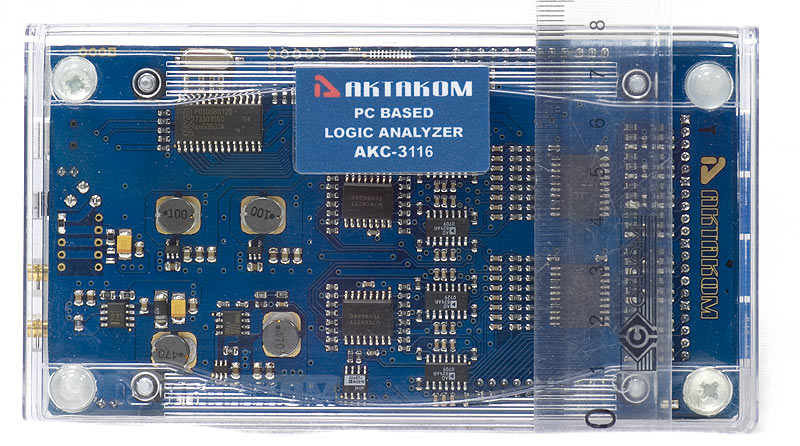

AKTAKOM AKC-3116 USB PC-based logic analyzer is designed to analyze digital data flow on 16 channels simultaneously with the sampling rate of up to 200 MHz and also can be used as a digital data logger. 2M samples per channel provides high time measurement precision of rather durable data flows. Full set of synchronization variants as well as the triggering templet allow detecting different failures in the data flow which cause the equipment disorder. AKC-3166 logic analyzer provides normal operation with the equipment which has various logic threshold levels of input signals since these thresholds are specified by user.

Program user interface consists of workspaces (windows). Every workspace contains controls set (Controls) which allows user to influence the program operation as well as indicators which display the necessary information. Comparing to Controls user can not influence the indicators directly. The majority of these controls are the part of Windows standard interface and do not require any special usage explanations.

Specifications:

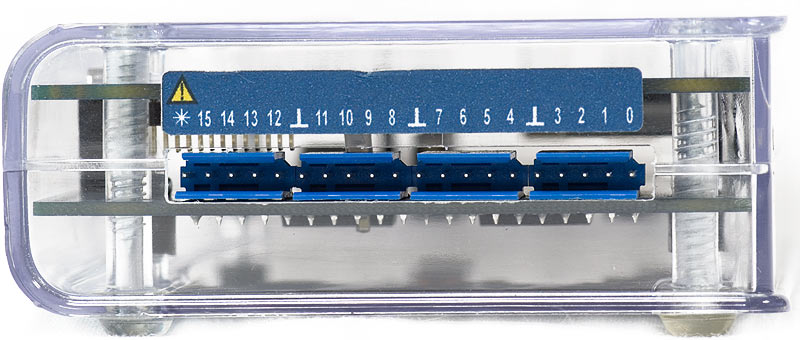

• 16 channels
• 2 M samples per channel
• Regulation of the pre-record and after-record value
• Internal timing frequency: 2.5 kHz…200 MHz
• External timing frequency: 3…37.5 MHz
• Synchronous data acquisition: 10 Hz…25 MHz
• Sample rate step: 1, 2, 5
• Input voltage range: ±20 V
• Synchronization terms: edge triggering, templet triggering, templet or edge, templet and edge, templet then edge, edge then tenplet, duration triggering in different combinations
• Triggering modes: unconditioned, conditioned, single, recorder
• Measurement unit selection

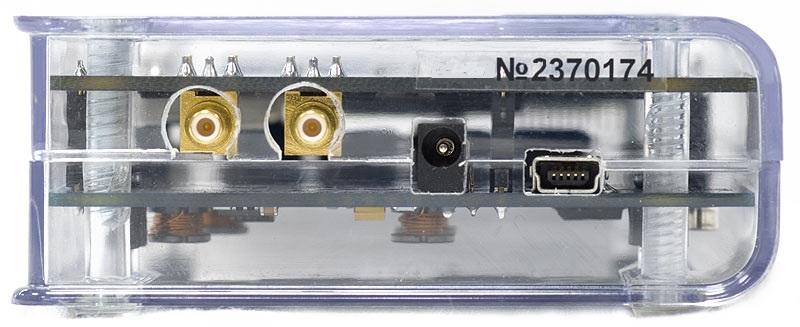

• Interface: USB 1.1
• Power supply: from the USB
• Dimensions: 5.9 x 3.4 x 1.3 in / 150 x 85 x 32 mm
• Weight: 10.6 oz / 300 g
