ACK-3172 two-channel USB PC-based oscilloscope

Two-channel USB PC-based oscilloscope connected to a computer (PC) via USB-port or 10/100BASE-T (LAN). Sample rate: 10 GHz (stroboscopic mode). Sample rate 100 MHz (real-time mode). Vertical deflection coefficient 2 mV/div...10 V/div with 1-2-5 step. Resolution: 8 bit. Frequency range at –3 dB level: 0 Hz...100 MHz (DC), 1.2 Hz...100 MHz (AC). Input resistance: 1 MΩ or 50 Ω. Max. input voltage: ±100 V at input R=1 MΩ. Dimensions: 8.3 x 2.8 x 10.3 in / 210 x 70 x 260 mm. Weight: 2.5 lb / 1.15 kg .

AKTAKOM ACK-3172 is a high end model of two-channel digital storage USB oscilloscope. This is a PC-based unit which is connected to a computer (PC) via USB-port or 10/100BASE-T (LAN). Advanced technical parameters, powerful program options and user friendly interface make this series the leader in the category.

Features:

2 independent channels with the bandwidth of up to 100 MHz
Record buffer: 128 kB per channel
Arbitrary selectable pre record/after record length
High sensitivity (from 2 mV/div)
Auto set up for input signals
Auto identification of probes
Wide range of cursor and automatic measurements
Statistic measurement and histogram construction (option)
Spectrum analyzer (FFT) (option)
Digital luminophor (option)
Alarm signaling (option)
Connection to PC via USB 1.1 or 10/100BASE-T (LAN)- 4 sockets

Specifications:

Sample rate: 10 GHz (stroboscopic mode)
Sample rate 100 MHz (real-time mode)
Vertical deflection coefficient 2 mV/div...10 V/div with 1-2-5 step
Resolution: 8 bit
Frequency range at –3 dB level: 0 Hz...100 MHz (DC), 1.2 Hz...100 MHz (AC)
Input resistance: 1 MΩ or 50 Ω
Max. input voltage: ±100 V (input R=1 MΩ)
Min. repetition period of synchronization pulse: 20 ns
Min. duration of synchronization pulse: 10 ns
Sweep ratio range:10 ns/div....0.1 s/div
Calibrator: 1 kHz, 3 V peak-to-peak
Power supply: +6 V / ~220 v / 50 Hz, not more than 20/30 W
Dimensions: 8.3 x 2.8 x 10.3 in / 210 x 70 x 260 mm
Weight: 2.5 lb / 1.15 kg

Accessories:

Network adapter
USB cable
Brief instruction

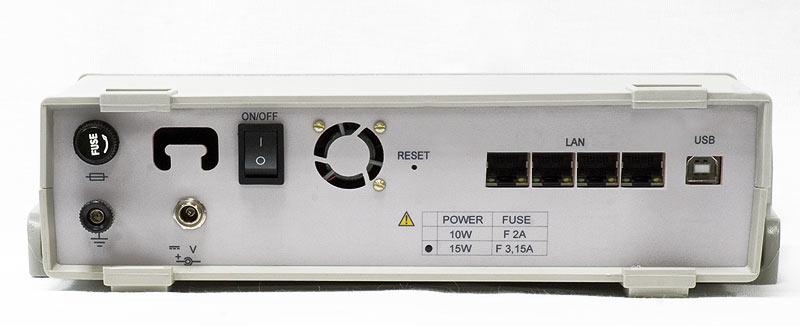

ACK-3172 two-channel USB PC-based oscilloscope - Rear panel

Enlarge

Compatible Software

Aktakom Android Oscilloscope Pro (AAOP)

Aktakom Android Oscilloscope Pro is a powerfull application to control AKTAKOM dual-channel PC-based oscilloscopes with USB interface using a mobile device (smartphone or tablet) with Android OS. This application allows to read and store measured data.

AKTAKOM File Converter (AULFConverter)

AKTAKOM File Converter (AULFConverter) is an utility to convert AKTAKOM data file format used in AKTAKOM applications including APM to other formats such as CSV and WAV.

AKTAKOM Net Configurator (ANC)

AKTAKOM Net Configurator is designed to record and read the network settings data of AKTAKOM Universal Lab devices (supporting AULNet protocol). The application provides simple and convenient user interface to work with settings, they can be recorded into the file and read afterwards.

Aktakom Oscilloscope Pro (AOP)

Aktakom Oscilloscope Pro (AOP) software is designed for the full-function control of ACK-3106, ACK-3106L, ACK-3172, ACK-3002, ACK-3102, ACK-3712, ACK-3712 1T, ACK-3712 1M oscilloscopes, measurement data acquisition from 2 channels, the data processing, displaying and storage on the PC.

AKTAKOM Web Server (AULWebServer)

AULWebServer is a web interface based application (TCP/IP protocols). It allows remote control of a power supply over the local area network (LAN).
