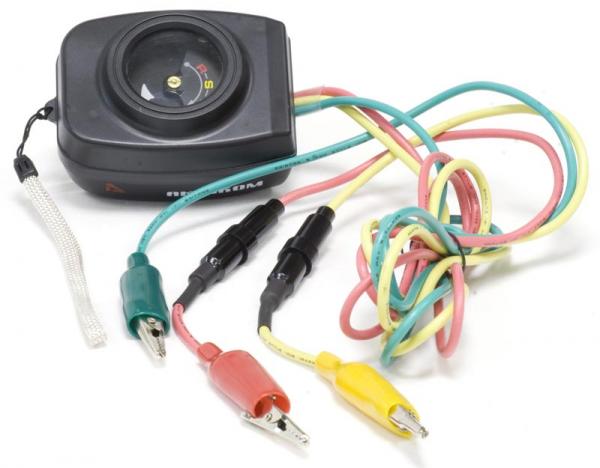

ATK-6010 Phase Interlacing Pointer

Phase interlacing pointer capable of determining phase interlacing when connecting to three-phase receivers. Voltage range: 110...480 V; Frequency range: 40...70 Hz. Insulation dielectric strength: 2000 V; Insulation resistance: 100 MΩ. Test leads length: 1.2 m. Deviation: ±15° (horizontal). Dimensions: 2.8 x 3.7 x 2.1 in / 70 x 95 x 55 mm. Weight: 0.6 lb / 280 g.

Manuals:

User's Manual (3.14 Mb)

Specifications:

Voltage range: 110...480 V;
Frequency range: 40...70 Hz.
Test time:

480 V - 4 min.
220 V - 30 min.
110 V – long time.

Insulation dielectric strength: 2000 V;
Insulation resistance: 100 MΩ.
Test leads length: 1.2 m.
Deviation: ±15° (horizontal).
Fuse: 0.5A /700 B.
Power supply: from the circuit under test.
Dimensions: 2.8 x 3.7 x 2.1 in / 70 x 95 x 55 mm.
Weight: 0.6 lb / 280 g.

Standard accessories:

Fuse
User manual
Carrying case

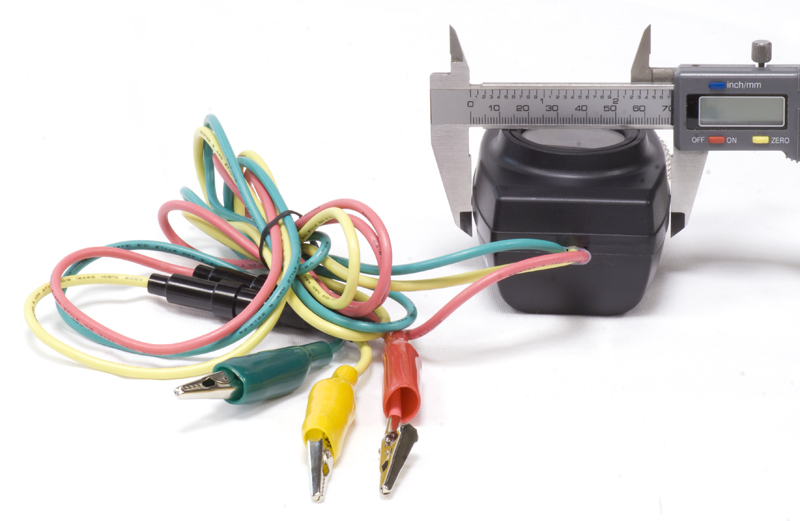

ATK-6010 Phase Interlacing Pointer - Side view

Enlarge

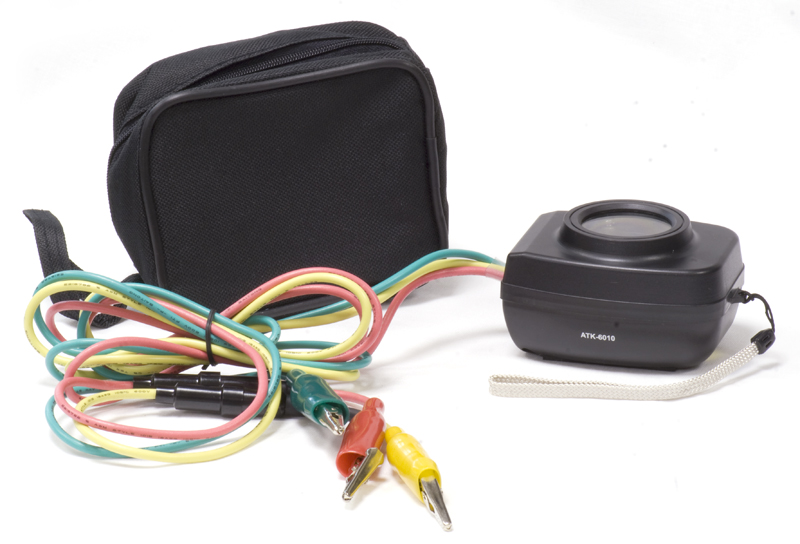

ATK-6010 Phase Interlacing Pointer - Accessories

Enlarge

Frequently Asked Questions

How can I make sure that AKTAKOM ATK-6010 phase interlacing pointer operates correctly?

How can I make sure that AKTAKOM ATK-6010 phase interlacing pointer operates correctly?
In order to check the correct operation of AKTAKOM ATK-6010 phase interlacing pointer connect it to the network with the correct phase sequence and make sure the pointer turns in the line of the arrow. Connect ATK-6010 to the phases of three-phase network with the test leads and alligator clips. If the pointer turns in the line of the arrow the order of sequence is as follows: R (red) – S (yellow) – T (Green). ATK-6010 can be also used in the horizontal condition (slope angle is ±15° at max.). Failure to meet this condition can cause the turning pointer defect and wrong test results. Up
