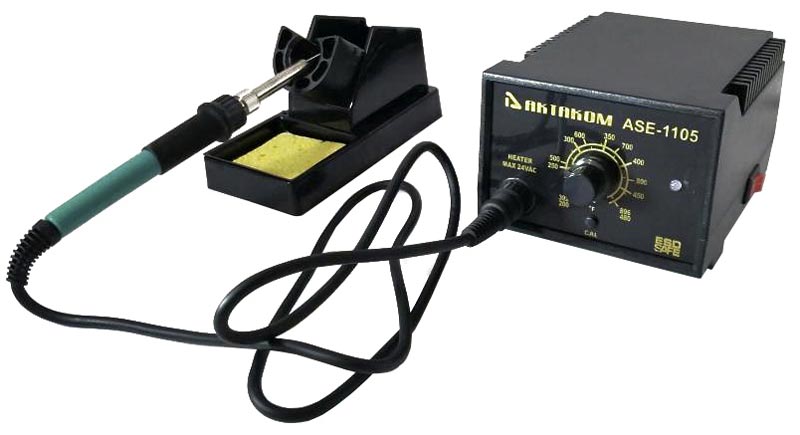

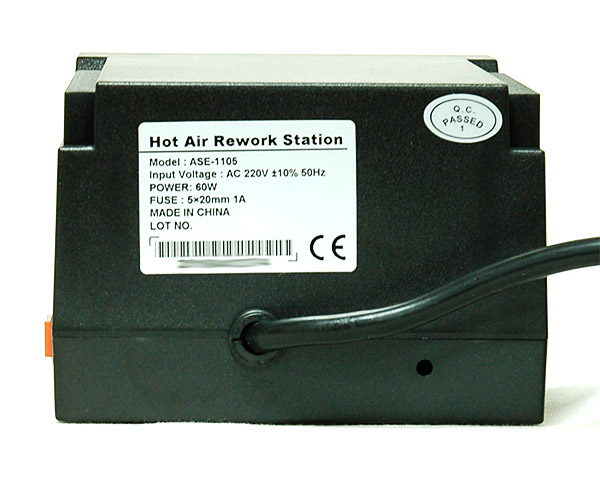

ASE-1105 ESD-Safe Temperature Controlled Soldering Station

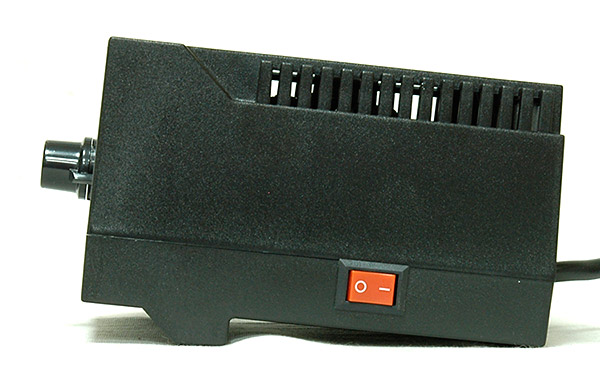

1. Power on AKTAKOM ASE-1105 soldering station setting the power switch to On position. The LED indicator will light.
2. Turning the temperature control knob set the temperature to 250°C. Cover the tip with tin.
3. Turning the temperature control knob set the required temperature. When the soldering station is warming up the LED indicator is red.
4. When the temperature reaches the preset temperature value the LED indicator will turn to green. At this step the soldering station is ready for further work.
5. AKTAKOM ASE-1105 soldering station is equipped with a temperature control knob lock. After temperature setting tighten the hex nut on the under side of the knob with a screwdriver.

Note:

• Do not overtighten the knob lock.
• Do not attempt to turn the knob when it’s locked.

High soldering temperatures can degrade the tip. Use the lowest possible soldering temperature. The excellent thermal recovery characteristics ensure efficient and effective soldering event at low temperatures. This also protects the sensitive components from thermal damage. Clean the tip regularly with a cleaning sponge, as oxides and carbides from the solder and flux can form impurities on the tip. These impurities can result in defective joints or reduce the tip's heat conductivity. When using the soldering iron continuously, be sure to loosen the tip and remove all oxides least once a week. This helps to prevent reduction of the tip temperature. Never leave the soldering iron sitting at high temperature for long periods of time, as the tip's solder plating will be covered with oxide, which can greatly reduce the tip's heat conductivity. Wipe the tip and coat it with fresh solder after use. This helps to prevent tip oxidation.

Caution! Never file the tip to remove oxide.

1. Set the temperature to 250°C.
2. When the temperature stabilizes, clean the tip with the cleaning sponge and check the condition of the tip.
3. If there is black oxide on the solder-plated portion of the tip, apply new solder (containing flux) and wipe the tip on the cleaning sponge. Repeat until the oxide is completely removed. Coat with new solder. The solder protects the tip from oxidation and prolongs the life of the tip.
4. If the tip is deformed or heavily eroded, replace it with a new one.

A de-tinned tip is one which cannot wet with solder. This exposes the plating to oxidation and degrades the heat transfer efficiency of the tip.

The de-tinning is caused by:

1) Failure to keep the tip covered with fresh solder while not in use.

2) High tip temperatures.

3) Insufficient melting in soldering operations.

4) Wiping the tip on dirty or dry sponges and rags (Always use a clean, wet, industrial grade, sulfur-free sponge).

5) Impurities in the solder, iron plating, or on the surfaces to be soldered.
