ASE-1111 Soldering Station

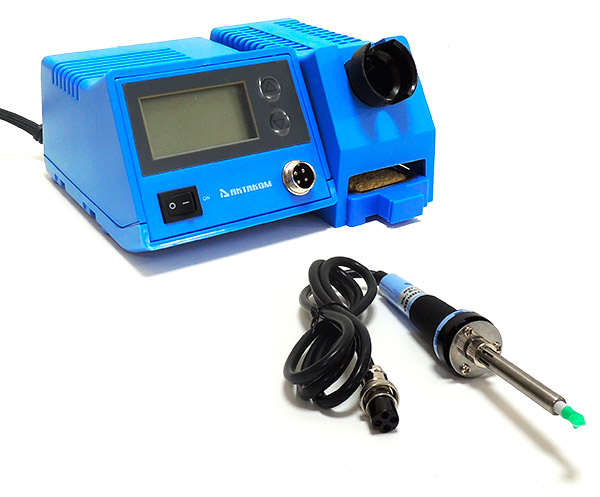

Aktakom ASE-1111 Soldering Station is used for electronic component mounting on PCB surface.

This compact soldering station is perfect for the use in such fields like electronic research, teaching and production, especially in the repairing and soldering on the electronic appliances and communication equipment.

Specifications

• Channel: 1 assembling channel
• Max. station power: 48W
• LCD:
  - shows the actual temperature of the soldering tip
  - shows the setting temperature
• Button type control
• Temperature range: 302°F - 842°F (150°C - 450°C)
• Max. power of the soldering iron: 48W
• Soldering iron voltage supply: 24V
• Ceramic heating element
• Accuracy of display readings ± 5%
• Fuse 1 A / 250 V (5x20 mm)
• Operating temperature: +5 ... + 40°C
• Storage conditions, transportation: –20 ... + 60°C, humidity not more than 90%
• Box dimensions: 9 x 9 x 4 in / 220 x 220 x 100 mm
• Box weight: 4.1 lb / 1.86 kg

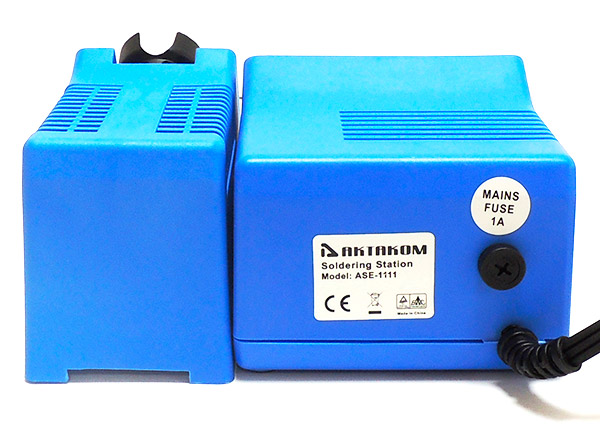

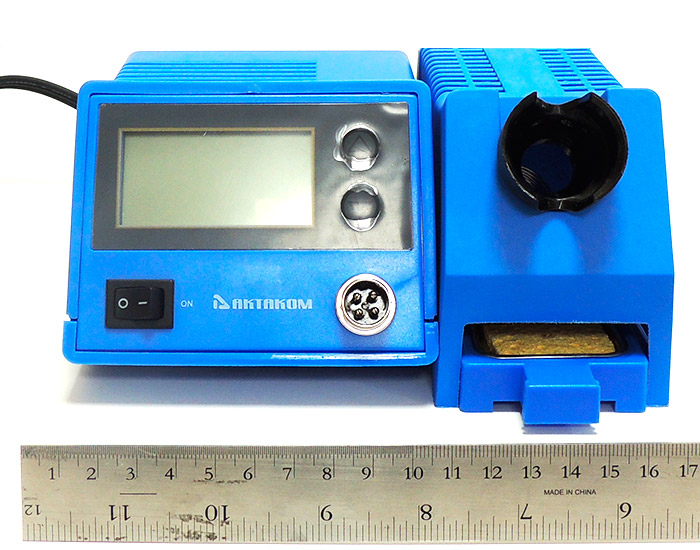

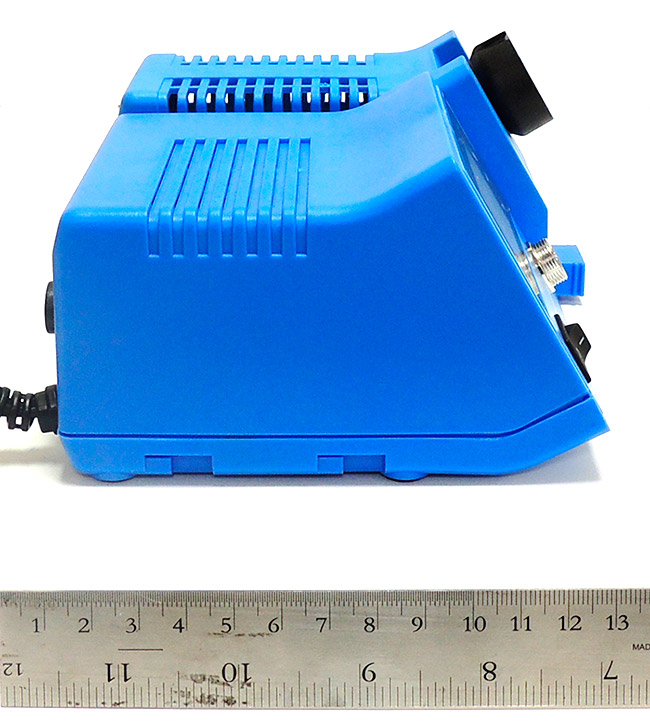

ASE-1111 Soldering Station - Rear panel Enlarge		ASE-1111 Soldering Station - Front panel Enlarge		ASE-1111 Soldering Station - Side panel Enlarge

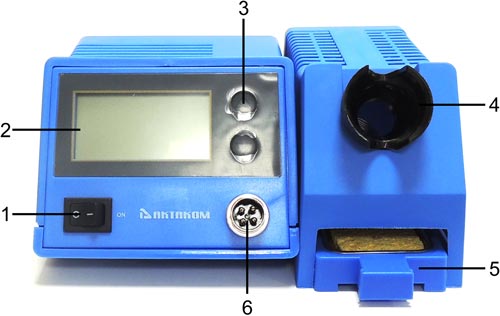

Controls of ASE-1111 Soldering Station

1. Power switch
2. Display
3. Temperature setting buttons
4. Soldering iron holder
5. Drawer with cleaning sponge
6. Socket to connect soldering iron

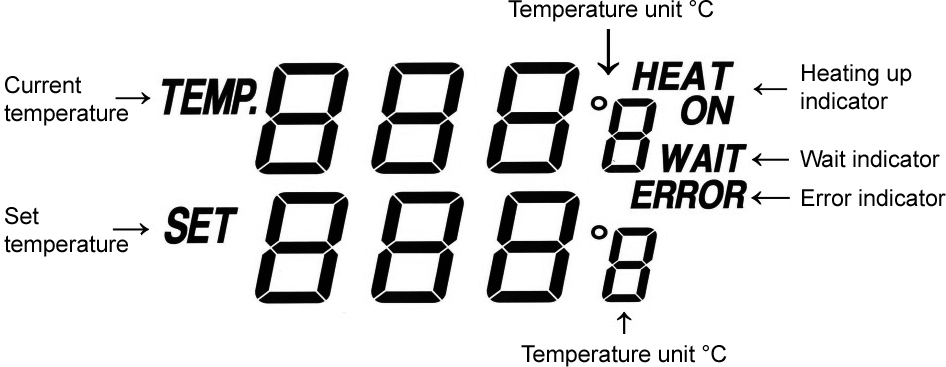

Display

Safety instructions

Take care of yourself!

1. Please read user manual carefully before using the instrument.
2. Do not use the device if there is visible damage.
3. Repair and maintenance of the device can be done only by a qualified specialist of the service center.
4. Before connecting the instrument to the electrical network, observe all known precautions, and make sure that the grounding system is to avoid electric shock.
5. Use only those accessories that are intended for use with this device.
6. While working, do not touch the metal parts near the tip of the soldering iron.
7. After completion of the work, it is necessary to install the soldering gun in the regular holder of the soldering gun.

Operation instructions

1. On the front of the housing you will find the LC-Display, the +/- button, and the ON/OFF switch.
2. After the power plug and the soldering iron have been plugged in and the soldering iron has been placed in the stand, turn on the soldering station with the ON/OFF switch.
3. For the first use, in the display, you will see 330°C in the lower line as factory default and 25°C in the upper line.
4. With the mulfunction display, temperatures from 150°C to 450°C can easily be set and confirm.
5. With the +/- button, you can set the temperature with a resolution of rc. To do so, briefly press the respective button. If you hold the button, the display will change in steps of 10°C. When the desired temperature is reached, just release the button.
6. After you have set the desired temperature, "HEAT ON" and "WAIT" will be displayed.
7. For second use, the station will memory the temperature set for the last use.
8. Select the right temperature for every job to avoid cold soldering joints or damaging delicate components or burning flux with excessive heat. Burnt flux will cause weak joints.

Frequently Asked Questions

Is this soldering station designed for soft soldering or hard soldering (brazing)?

How to care and use of the soldering tip?

How to clean the tip?

What temperature should use for soldering?

Why a "de-tinned" tip fails to work?

Is this soldering station designed for soft soldering or hard soldering (brazing)?
This soldering station is for soft soldering. Up

How to care and use of the soldering tip?

High soldering temperatures can degrade the tip. Use the lowest possible soldering temperature. The excellent thermal recovery characteristics ensure efficient and effective soldering event at low temperatures. This also protects the sensitive components from thermal damage. Clean the tip regularly with a cleaning sponge, as oxides and carbides from the solder and flux can form impurities on the tip. These impurities can result in defective joints or reduce the tip's heat conductivity. When using the soldering iron continuously, be sure to loosen the tip and remove all oxides least once a week. This helps to prevent reduction of the tip temperature. Never leave the soldering iron sitting at high temperature for long periods of time, as the tip's solder plating will be covered with oxide, which can greatly reduce the tip's heat conductivity. Wipe the tip and coat it with fresh solder after use. This helps to prevent tip oxidation. Up

How to clean the tip?

Caution! Never file the tip to remove oxide. Set the temperature to 250°C. When the temperature stabilizes, clean the tip with the cleaning sponge and check the condition of the tip. If there is black oxide on the solder-plated portion of the tip, apply new solder (containing flux) and wipe the tip on the cleaning sponge. Repeat until the oxide is completely removed. Coat with new solder. The solder protects the tip from oxidation and prolongs the life of the tip. If the tip is deformed or heavily eroded, replace it with a new one. Up

What temperature should use for soldering?
600°- 650°F (316°- 343°C) is a good place to start for lead-based solder and 650°- 700°F (343°- 371°C) for lead-free solder. Note: if clots form, the temperature is too low. Up

Why a "de-tinned" tip fails to work?

A de-tinned tip is one which cannot wet with solder. This exposes the plating to oxidation and degrades the heat transfer efficiency of the tip. The de-tinning is caused by: 1) Failure to keep the tip covered with fresh solder while not in use. 2) High tip temperatures. 3) Insufficient melting in soldering operations. 4) Wiping the tip on dirty or dry sponges and rags (Always use a clean, wet, industrial grade, sulfur-free sponge). 5) Impurities in the solder, iron plating, or on the surfaces to be soldered. Up
