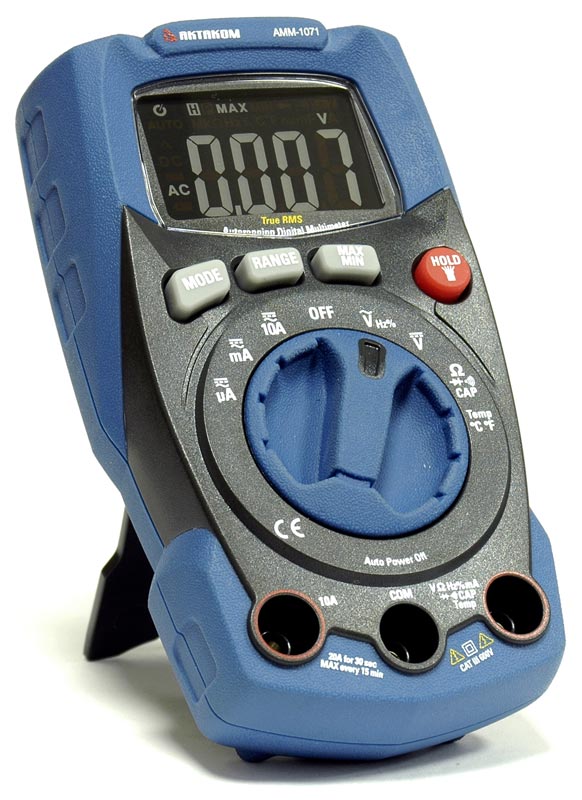

AMM-1071 Digital Multimeter

Aktakom AMM-1071 is a reliable and low cost digital multimeter designed for typical measurements. The model is equipped with a wide LCD (4000) displaying large figures.

Features

• 4 digit LCD (4000), backlight
• Input impedance when measuring DC and AC voltage: 10 MOhm
• Working frequency when measuring AC voltage: from 45 up to 1000 Hz
• Data hold function
• Overload protection at ranges µA and mA
• Manual and auto indication of the polarity
• Low battery indication
• CAT III 600V

Specifications

Function	Range	Resolution	Accuracy
DC voltage	400 mV	0.1 mV	±(1.0%+5 dgt)
	4 V	0.001 V	±(1.0%+3 dgt)
	40 V	0.01 V	±(1.0%+3 dgt)
	400 V	0.1 V	±(1.0%+3 dgt)
	600 V	1 V	±(1.0%+3 dgt)

Function	Range	Resolution	Accuracy
AC voltage (45...1000 Hz)
	4 V	0.001 V	±(1.2%+3 dgt)
	40 V	0.01 V	±(1.2%+3 dgt)
	400 V	0.1 V	±(1.2%+3 dgt)
	600 V	1 V	±(1.2%+3 dgt)

Function	Range	Resolution	Accuracy
DC	400 µA	0.1 µA	±(1.0%+3 dgt)
	4000 µA	1 µA	±(1.0%+3 dgt)
	40 mA	0.01 mA	±(1.0%+3 dgt)
	400 mA	0.1 mA	±(1.0%+3 dgt)
	4 A	0.001 A	±(1.2%+3 dgt)
	10 A	0.01 A	±(1.2%+3 dgt)

Function	Range	Resolution	Accuracy
AC	400 µA	0.1 µA	±(1.2%+3 dgt)
	4000 µA	1 µA	±(1.2%+3 dgt)
	40 mA	0.01 mA	±(1.2%+3 dgt)
	400 mA	0.1 mA	±(1.2%+3 dgt)
	4 A	0.001 A	±(1.8%+5 dgt)
	10 A	0.01 A	±(1.8%+5 dgt)

Function	Range	Resolution	Accuracy
Resistance	400 Ohm	0.1 kOhm	±(1.5%+5 dgt)
	4  kOhm	0.001 kOhm	±(1.5%+5 dgt)
	40 kOhm	0.01 kOhm	±(1.5%+5 dgt)
	400 kOhm	0.1 kOhm	±(1.5%+5 dgt)
	4 MOhm	0.001 MOhm	±(1.5%+5 dgt)
	40 MOhm	0.01 MOhm	±(2.5%+20 dgt)

Function	Range	Resolution	Accuracy
Capacitance	40 nF	0.01 nF	±(4.5%+10 dgt)
	400 nF	0.1 nF	±(4.5%+10 dgt)
	4 µF	0.001 µF	±(3.0%+5 dgt)
	40 µF	0.01 µF	±(3.0%+5 dgt)
	400 µF	0.1 µF	±(3.0%+5 dgt)
	4000 µF	1 µF	±(5%+5 dgt)

Function	Range	Accuracy
Frequency	10 Hz....10 kHz	±(1.2%)

Function	Test current	Voltage
Diode test	1.5 mA	3 V max

Function	Range	Accuracy
Temperature	-4°F...1400°F / -20...760 °C	±(3.0+5°C)

Function	Sound signal	Current
Continuity test	< 50 Ohm	< 0.35 mA

• Power supply: 4.5 V

• Dimensions: 7.2 x 3.2 x 2.3 in / 182 x 82 x 59 mm
• Weight: 12.1 oz / 342 g

Standard accessories

• Test probes - 2 pcs
• Batteries – 2 pcs
• User manual

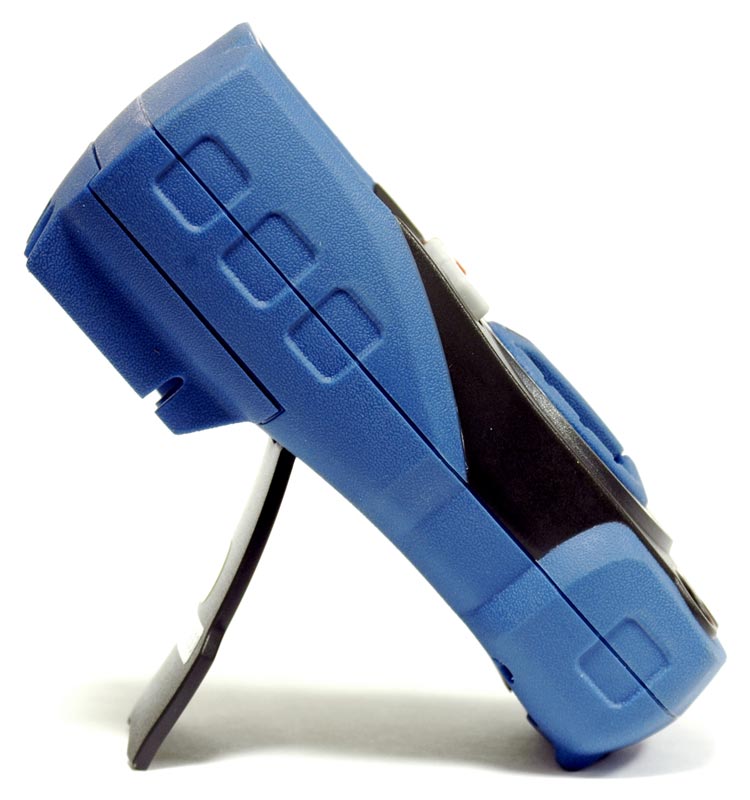

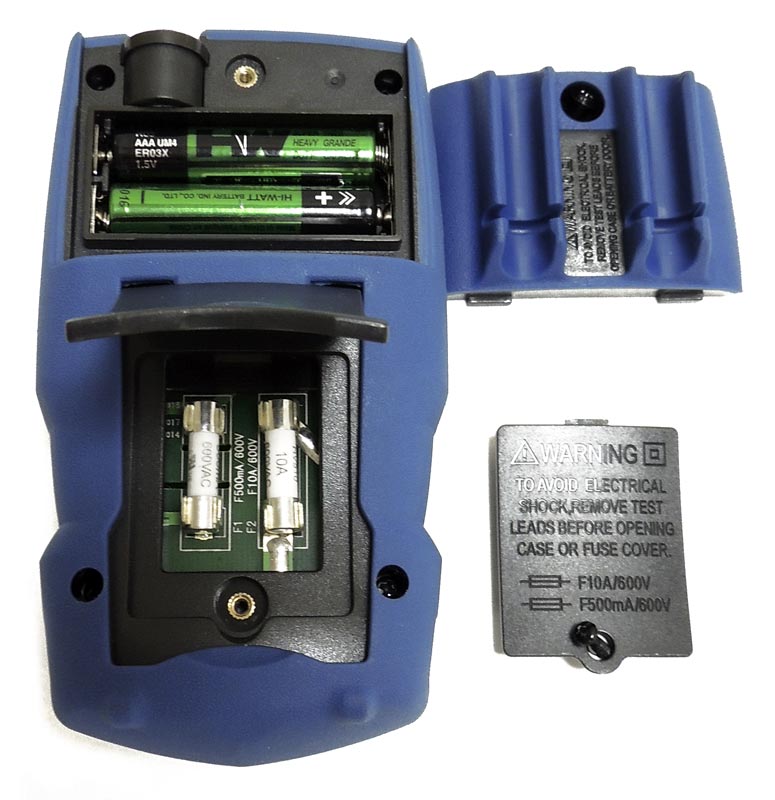

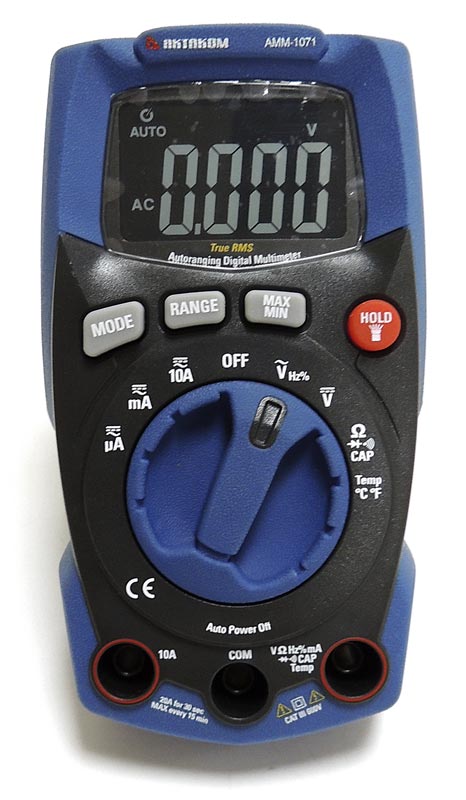

AMM-1071 Digital Multimeter - Front panel Enlarge		AMM-1071 Digital Multimeter - Rear panel Enlarge		AMM-1071 Digital Multimeter - Side view Enlarge

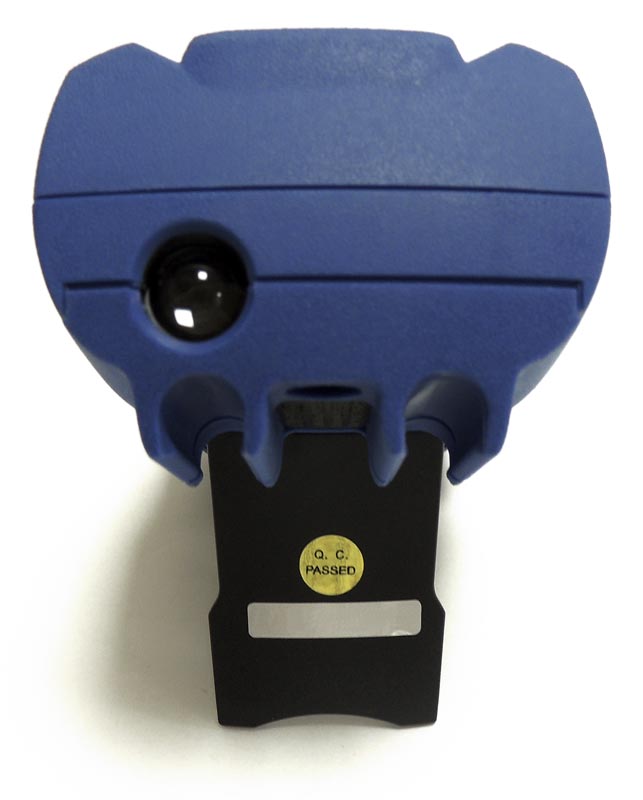

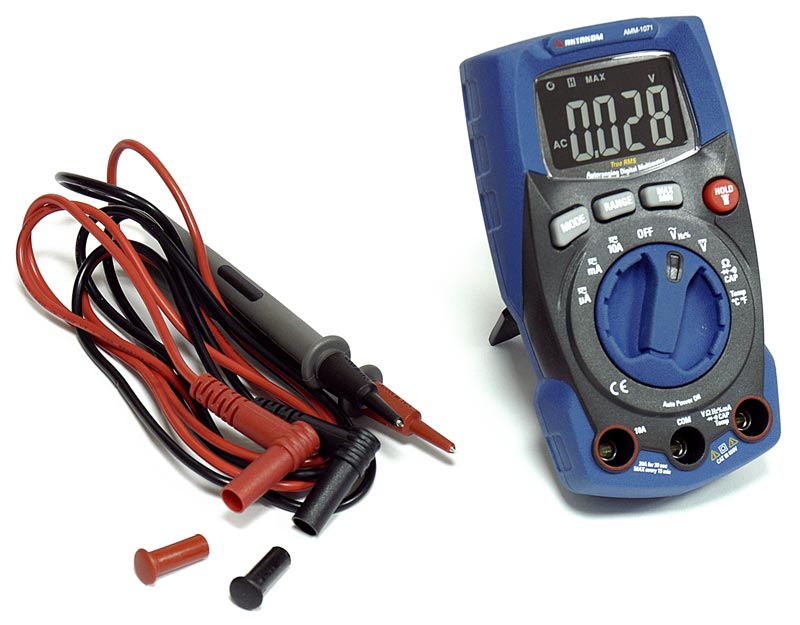

AMM-1071 Digital Multimeter - Top view Enlarge		AMM-1071 Digital Multimeter - Accessories Enlarge
