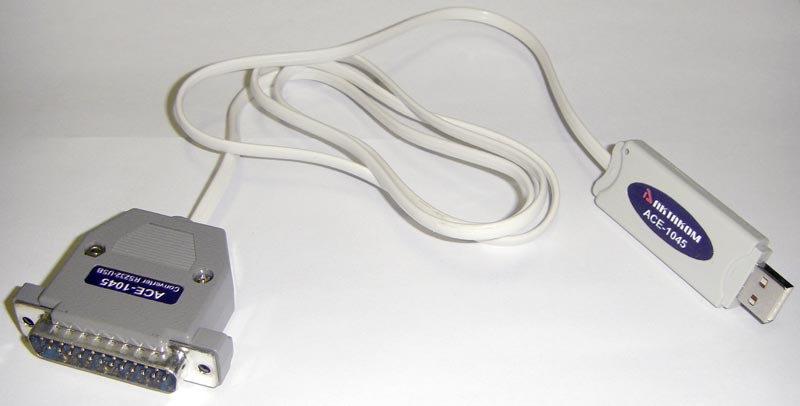

ACE-1045 RS-232-USB Interface Converter
AKTAKOM ACE-1045 RS-232-USB interface converter is used for debugging and repair of any systems, instruments and machine tools with numerical control which use the full set of RS-232 interface signals.
For connection to RS-232 interface they use the standard DB-25 connector with a complete (in accordance with RS-232 standard) set of controlling signals. The converter allows changing the commutation type of the RS-232 connector (null-modem cable / cross-cable) with the help of built-in jumpers. Therefore it is required to open the housing of DB-25-type connector.
The exchange rate and other interface parameters can be set arbitrarily in the emulator and stored in the non-volatile memory of the converter. Further on all installed RS-232 protocol settings are saved.
The length of the converter cable: 19.7 in / 50 cm.
The converter is powered from the USB interface. Compatible with software: Back to the section |
