ATE-1002 Anemometer

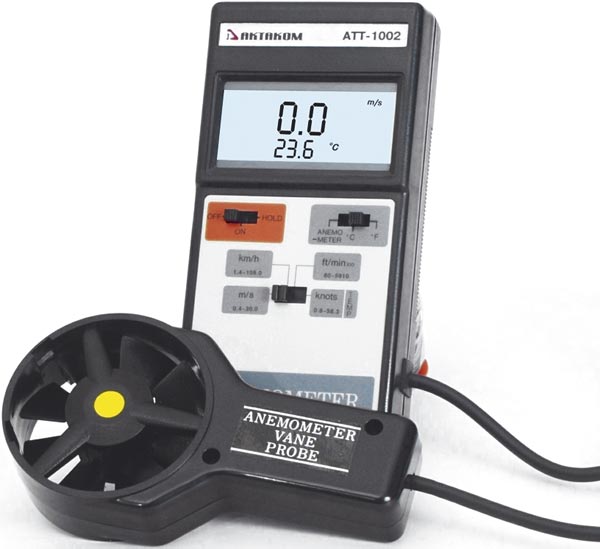

The portable anemometer AKTAKOM ATE-1002 provides fast, accurate readings, with digital readability and the convenience of a remote sensor separately. Cord long 43” inseparable

Features

• Multi-functions for air flow measurement: m/s, km/h, ft/min, knots
• Build in temperature °C, of measurement with a Thermistor sensor for fast temperature response time
• Low-friction ball-bearing design resulting in accuracy at both high and low velocities
• A sensitive balanced vane wheel rotates freely in response to air flow
• Conventional twisted vane arms, always a source of unreliability have been eliminated
• DATA HOLD functions for stored the desired value on display. Large LCD display easy to read
• LCD display for low power consumption & clear read-out even in bright ambient light condition
• Used the durable long-lasting components, including a strong, light weight ABS-plastic housing case
• Compact housing cabinet, easy to carry out
• Wide applications: use this anemometer to check air conditioning and heating systems, measure air velocities, wind speeds, temperature etc.

Specifications

General specifications:

Display: 18mm (0.7") LCD (Liquid Crystal Display), 3 1/2 digits

Measurement:

• m/s (meters per second)
• km/h (kilometers per hour)
• ft/min (feet/per minute)
• knots (nautical miles per hour)
• Temp. °C, °F
• Data hold

Operating temperature: 0°C to 50°C (32°F to 122°F)

Operating humidity: Less than 80%RH.

Air velocity sensor structure: Conventional twisted vane arms and low-friction ball-bearing design

Power Supply: DC 9V 006P, MN1604(PP3), battery (Heavy Duty Type) or equivalent

Power consumption: Approx. DC 9mA

Electrical specifications (23±5°C):

Air velocity:

Measurement	Range	Resolution	Accuracy
m/s	0.4-30.0	0.1	±(2%+0.2)
km/h	1.4-108.0	0.1	±(2%+0.8)
ft/min	80-5910	10	±(2%+40)
knots	0.8-58.3	0.1	±(2%+0.4)

Note: m/s – meters per second, km/h – kilometers per hour, ft/min – feet/per minute, knots – nautical miles per hour

Temperature:

Measurement	Range	Resolution	Accuracy
°C	0°C to 60°C	0.1°C	±0.8°C
°F	32°F to 140°F	0.1°F	±1.5°F

Dimensions:

• Instrument: 6.6x3.2x1.2in/168x80x35mm
• Sensor Head: Round, 2.8in/72mm Dia.

Weight: 0.72lb/325g

Standard accessories

• User manual

• Sensor probe

• Carrying case

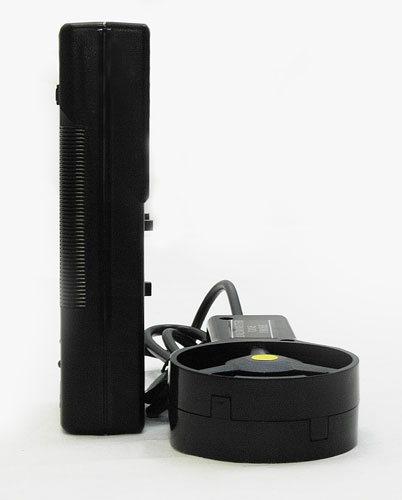

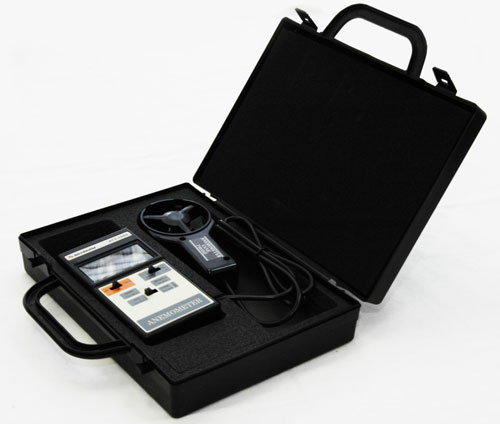

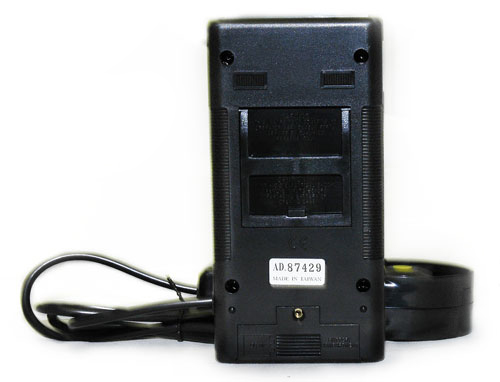

ATE-1002 Anemometer - Side view Enlarge		ATE-1002 Anemometer - Rear view Enlarge		ATE-1002 Anemometer - Case Enlarge

Measuring procedure

Air velocity measurement

1) Select the "Off/On/Hold Switch" (3-2, Fig. 1) to the "On" position.
2) Select the "Function Switch" (3-3, Fig. 1) to the "ANEMOMETER" position.
3) Select the "Range Switch" (3-4, Fig. 1) to the "m/s", "km/h", "ft/min" or "knots" position according to the measuring requirement.
4) Hold the "Vane Probe Handle" (3-7, Fig. 1) by hand & let the "Vane Probe Head" (3-6, Fig. 1) is opposite to the measuring air flow source, then the "Display" (3-1, Fig. 1) will show air velocities directly.
Measuring Consideration:
The yellow dot mark on the sensor head indicates the "yellow dot mark" need to face against the direction of air flow.
5) During the measurement, it will hold the display values if select the "Off/On/Hold Switch" (3-2, Fig. 1) to the "Hold" position.

Temperature measurement

1) Select the "Off/On/Hold Switch" (3-2, Fig. 1) to the "On" position.
2) Select the "Function Switch" (3-3, Fig. 1) to the "°C" or "°F" position.
Select the "Range Switch" (3-4, Fig. 1) to the "Temp" position.
3) The meter is designed intend to measure the environment air temperature. There is built one temp, sensor (precision thermistor) into the center of the "Sensor Head" (3-6, Fig. 1). When do the temperature measurement, it is necessary to hold the Sensor Handle (3-7, Fig. 1) by hand & let the Sensor Head is opposite to the measuring air source, then the display will show air temperature directly.
4) During the measurement, it will hold the display values, if slide the "Off/On/Hold" selector (3-2, Fig. 1) to the "Hold" position.

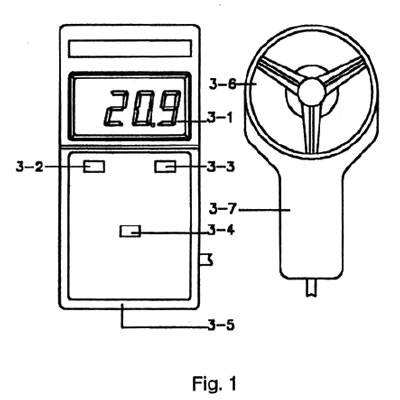

3-1 Display
3-2 Off/On/Hold Switch
3-3 Function Switch
(ANEMOMETER, °C, °F)
3-4 Range (m/s, km/h, ft/min, knots/Temp) Switch
3-5 Battery Compartment/Cover
3-6 Vane Probe Head
3-7 Vane Probe Handle
