ATE-2520 Infrared Thermometer

Measurement range: -20 °C ÷ 500 °C. Resolution: 0,3 °C. Measured values: max, min, max-min, average, ambient temperature. Range selection: automatic. Field of view: 8÷1. Back light. Laser power < 1 mW. Battery indicator. Data hold. Auto power off

Manuals:

User's Manual (173.14 Kb)

Infrared thermometer AKTAKOM ATE-2520 is designed to measure surface temperature using pyrometric method. Ability of low temperature measurement (down to -50°C) and environmental temperature indication are featured characteristics of this pyrometer.

Features

Indication of 2 temperatures on display
Indication of ambient temperature
The calculation of the temperature difference
Data hold function
Min/Max/Average values

Specifications

Temperature measurements:
-50...-20°C (±5°C)
-20°C...+500°C ±(1.5%+2°C)
Laser marker
Optical resolution 8:1
Radiation intensity: -0.95
Resolution: 0.2°C
Indication of 2 temperatures on display
Auto turn-off
Low battery indicator
Backlit display
Supply: 9V batteries
Dimensions: 120x45x180mm/4.7x1.8x7.1in
Weight: 205g/7.2oz

Standard accessories

Battery 9V
Cap
Case
User manual

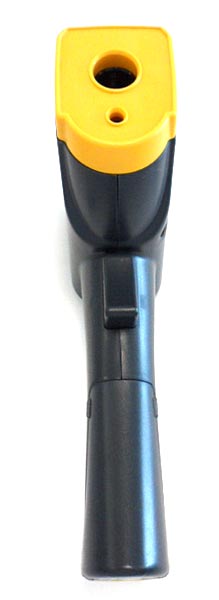

ATE-2520 Infrared Thermometer - front view

Enlarge

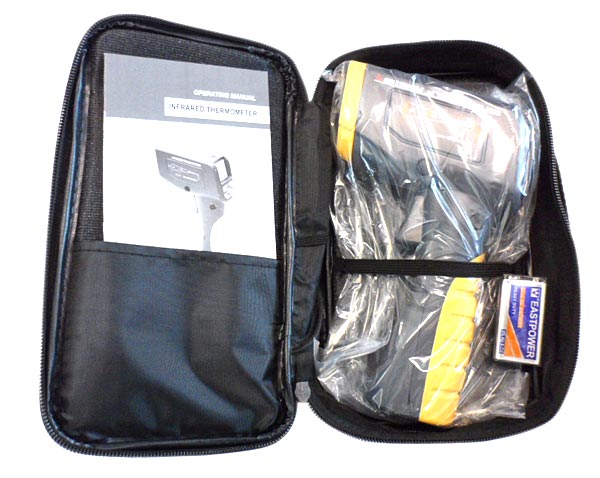

ATE-2520 Infrared Thermometer - carrying case

Enlarge
