AMM-1042 Digital Multimeter

Reliable and low cost digital multimeter for typical measurements. LCD (1999). DC voltage 600 V (±0.8%); AC voltage 600 V (±1.5%); DC current 10 A (±1.0%); AC current 10 A (±1.5%); resistance 20 MOhm (±1.0%). Diode test, continuity test, backlight, data hold function.

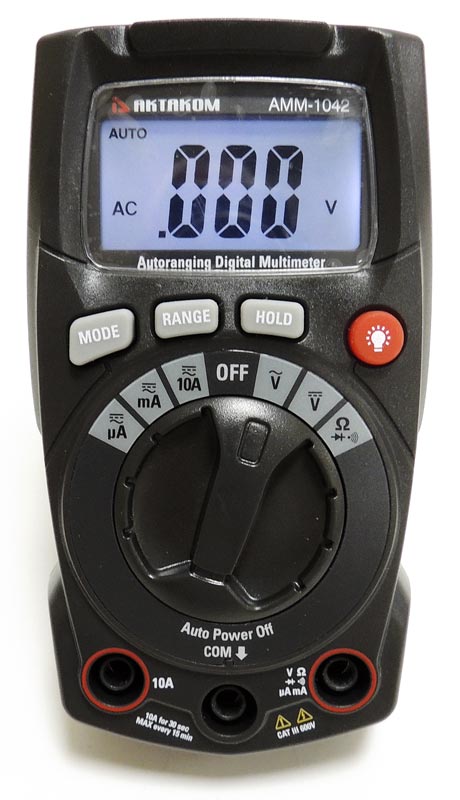

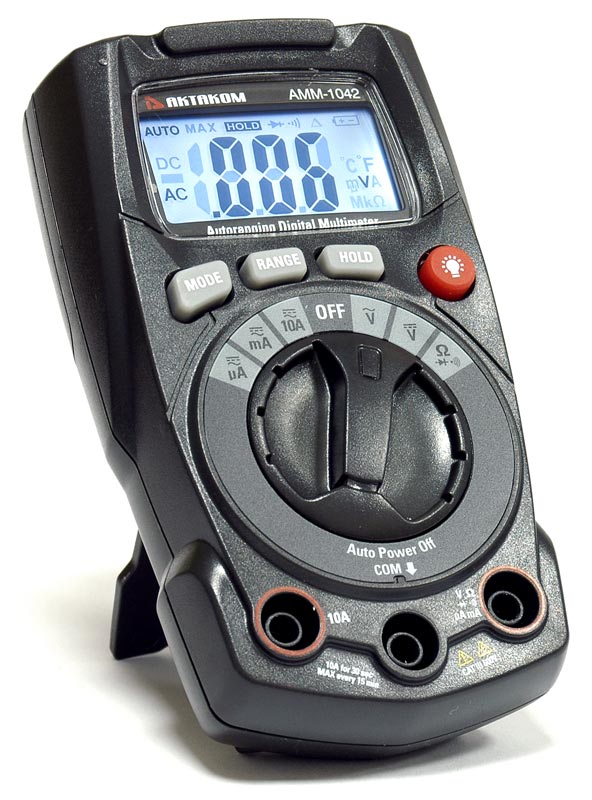

Aktakom AMM-1042 is a reliable and low cost digital multimeter designed for typical measurements. The model is equipped with a wide LCD (1999) displaying large figures.

Features

  • 3 digit LCD (1999), backlight
  • Input impedance when measuring DC and AC voltage: 10 MOhm
  • Working frequency when measuring AC voltage: from 50 up to 400 Hz
  • Data hold function
  • Overload protection at all ranges
  • Manual and auto indication of the polarity
  • Low battery indication
  • CAT III 600V

Specifications:

Function Range Resolution Accuracy Max. input voltage
DC voltage
200.0 mV 0.1 mV ±(0.8%+2 dgt) 250 V
2.000 V 0.001 V ±(1.5%+2 dgt) 600 V
20.00 V 0.01 V ±(1.5%+2 dgt)
200.0 V 0.1 V ±(1.5%+2 dgt)
600.0 V 0.1 V ±(2%+2 dgt)

Function Range Resolution Accuracy Max. input voltage
AC voltage
(50...400 Hz)
200.0 mV
0.1 mV ±(1.5%+35 dgt) 250 V
2.000 V 0.001 V ±(1.8%+8 dgt) 600 V
20.00 V 0.01 V ±(1.8%+8 dgt)
200.0 V 0.1 V ±(1.8%+8 dgt)
600.0 V 0.1 V ±(2.5%+8 dgt)

Function Range Resolution Acuracy
DC
200.0 A 0.1 µA ±(1.0%+3 dgt)
2000 µA 1 µA ±(1.5%+3 dgt)
20.00 mA 0.01 mA ±(1.5%+3 dgt)
200.0 mA 0.1 mA ±(1.5%+3 dgt)
10.00 A 0.01 A ±(2.5%+5 dgt)

Function Range Resolution Acuracy
  AC 200 µA 0.1 µA ±(1%+2 dgt)
2000 mA 1 µA ±(1%+2 dgt)
20.00 mA 0.01 mA ±(1.5%+2 dgt)
200.0 mA 0.1 mA ±(1.5%+2 dgt)
10.00 A
10 mA ±(3.0%+2 dgt)

Function Range Resolution Acuracy
Resistance 200 Ohm
0,1 Ohm ±(1.0%+4 dgt)
2.000 kOhm 1 Ohm ±(1.5%+2 dgt)
20.00 kOhm 10 Ohm ±(1.5%+2 dgt)
200.0 kOhm 100 Ohm ±(1.5%+2 dgt)
2.000 MOhm 1 kOhm ±(2.5%+3 dgt)
20.00 MOhm 10 kOhm ±(3.5%+5 dgt)

Function Test current
Voltage
Diode test
  0.3 mA
1.5 V

Function Sound signal
Current
Continuity test
< 150 Ohm
< 0.5 mA
  • Power supply: 3 V

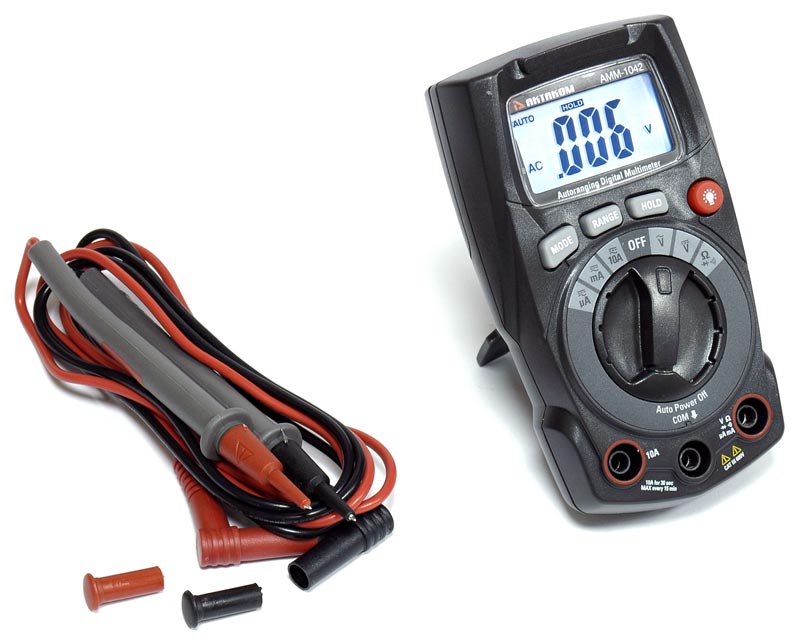

Standard accessories

  • Test probes - 2 pcs

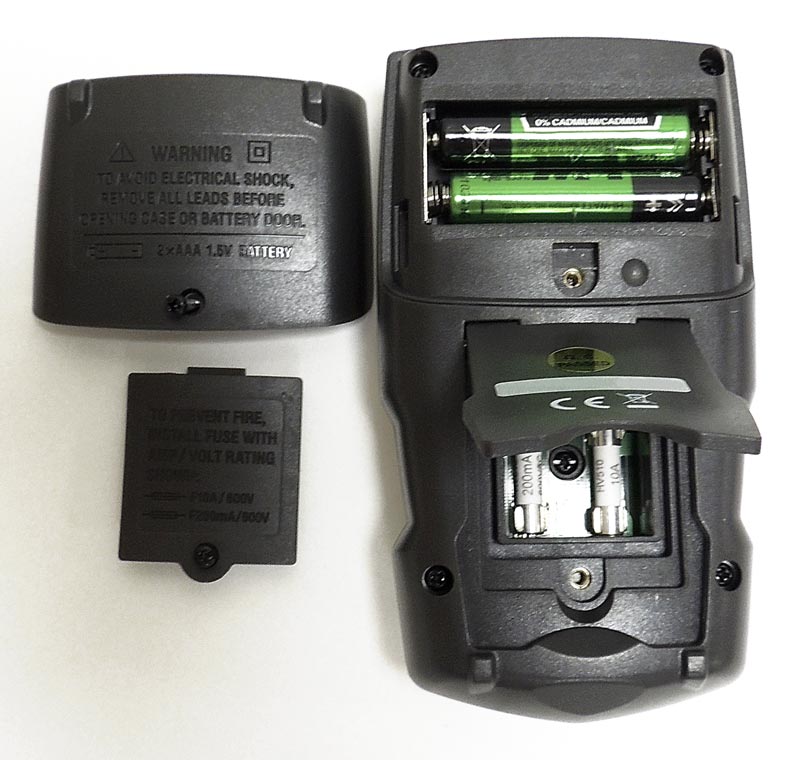

  • Batteries – 2 pcs
  • User manual
