Aktakom Power Manager Max

Aktakom Power Manager Max is an application software to control AKTAKOM Power Supplies from a computer using an USB cable or a local area network (LAN). This software provides control of output voltage and current in arbitrary (manual) mode as well as external trigger function (synchronization).

Compatible with: APS-3320L DC Power Supply, APS-3320LS DC Power Supply Remote Controlled 600W 30V / 20A 1 Channel programmable, APS-7306L DC Programmable Power Supply, APS-7306LS DC Programmable Power Supply

For Windows^®
Supported OS: Windows 10 x32, Windows 10 x64, Windows 11

Where to buy

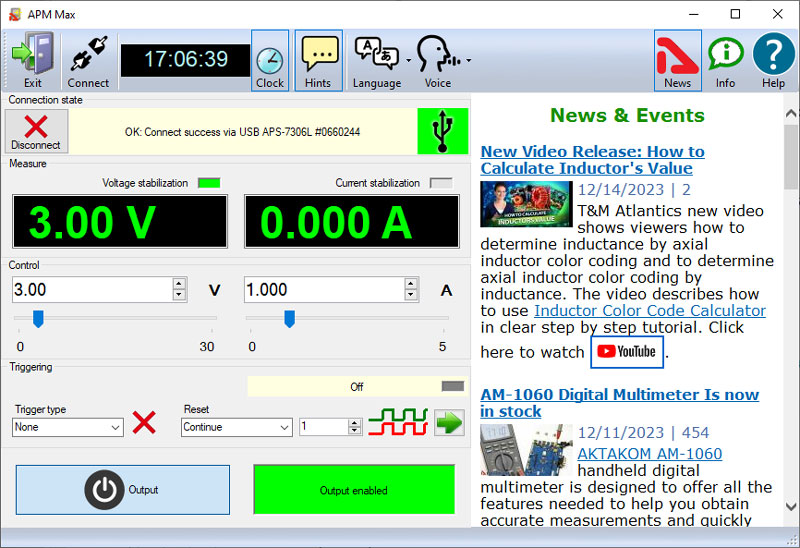

Aktakom Power Manager Max software allows users to remotely control their power supply via PC. It features Measure, Set Up and Initialization functions, as well as, automatic switching off of the outputs of the device at the end of the program. The program follows basic configurations and some features of operation as the device control panel.

Software Specification

Supported communication interface	USB, LAN
Load voltage indication	Yes
Load current indication	Yes
Load power indication	No
Indication of operation under load	No
Operating mode indication	V C / C C
Digital input of voltage and current values	Yes
Regulator for entering voltage and current values	Horizontal - Sliding
Output on/off button	Yes
Preset fixed voltage values	Yes
Preset fixed current values	Yes
Voice guide	Yes (On / Off), Eng
Activate remote control mode	Any first command sent from a PC to a power supply using USB or LAN
Switch to manual control mode	"Res" command sent from a software or turn the power supply off and on
Displaying the history of load voltage and current values	No
Work according to a given schedule of current and voltage values	No
Saving and importing current and voltage schedules	No
Current time clock	On / Off
Button names	On / Off
Help	Yes
Language support	EN, ES
News	On / Off

Note: Any first command sent from a PC to a power supply using USB or LAN switches power supply to remote control mode. To switch power supply back to manual control mode please use a software to send "Res" command or turn the power supply off and on.

The software is multifunctional and interactive, its pre-set function allows for faster set up and flawless changes. Besides functionality the software has "News" button shows or hides Aktakom news feed. "Info" button displays the information about the program and connected device, and of cause the "Help" button for those who are stuck and need a little help. "Voice" button selects a Windows voice guide that will announce application events to you. Select the "No voice" option to disable the voice guide.

Standard package

The software in the standard package of the device has no physical media (CD) and can be downloaded at www.tmatlantic.com after the purchasing and registering the equipment with a serial number. This software is not free however its cost is included into device value.

Frequently Asked Questions

What languages does the voice guide support?

What are the advantages of APM Max Pro vs APM Max?

What languages does the voice guide support?
Voice guidance works in all languages installed in the operating system on your PC. Up

What are the advantages of APM Max Pro vs APM Max?
APM Max Pro has additional functions comparing to APM Max: Automatic control of the power supply output voltage and current in accordance with the pre-set sequence of commands; Event log (in text format); Measurement history graph; Customizable user interface: you can hide and collapse all the blocks of the main window you don't need and leave only the ones you need. Also you can choose to hide or show the manual control blocks, control presets, synchronization, news feeds. User interface settings can be saved and restored. Up
