The most popular AKTAKOM APS-3320L power supply model

24.07.2024

AKTAKOM APS-3320L Single Output DC Regulated Bench power supply is based on a linear circuit of stabilization and structurally it’s assembled on SMD components. This circuit solution provides easy setting and control of the device, high stability of output parameters, low ripple and noise, and also it helps to significantly reduce the device dimensions.

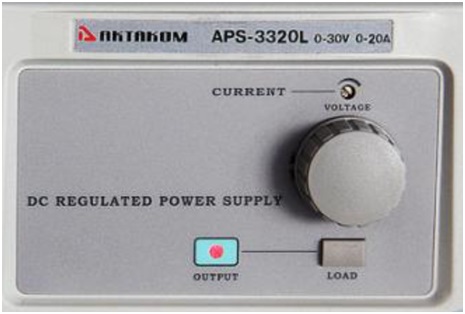

In order to reduce the influence of transient processes on load and prevent the failure of the powered device AKTAKOM APS-3320L is equipped with a button to switch on / off the load.

Furthermore the front panel of AKTAKOM APS-3320L contains additional terminals which allow using four-wire circuit of the power supply-to-load connection. Thus such four-wire connection helps to compensate the voltage drop in the test leads

For the data displaying AKTAKOM APS-3320L has a large two-line 4 digit LED display with the separate simultaneous displaying of current and voltage. Besides the device has LED indicators for current and voltage stabilization modes.

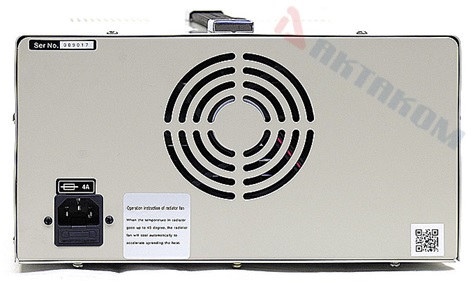

To prevent any unintentional damage of the power supply AKTAKOM APS-3320L is equipped with embedded overload protection. For cooling-down the device uses a powerful fan that allows extending the operation life of this power supply.

Developed software opens up high opportunities to broaden the device functionality:

• AKTAKOM File Converter (AULFConverter)
  AKTAKOM File Converter (AULFConverter) is an utility to convert AKTAKOM data file format used in AKTAKOM applications including APM to other formats such as CSV and WAV.
• AKTAKOM Power Manager (APM)
  APM (AKTAKOM Power Manager) is an application software to control and programming an Aktakom Power Supplies APS-730xL & APS-3xxxL from a computer using an USB cable or a local area network (LAN).
• AKTAKOM USB Device Driver for Windows (AUNLibUSB)
  AUNLibUSB device driver for Windows supports AKTAKOM USB Lab instruments (PC-based oscilloscopes and other). AUNLibUSB driver is a low-level program which does not communicate with user directly neither has user interface. After its installation in the operating system the driver starts working as a part of this operating system and supplies applications with the access to the resource of AKTAKOM supported devices and appropriate programs.
• AKTAKOM Web Server (AULWebServer)
  AULWebServer is a web interface based application (TCP/IP protocols). It allows remote control of a power supply over the local area network (LAN).
• APS-3xxxLx_SDK Software Development Kit
  This full version kit is designed to help users in creating their own applications for the following devices: APS-3310L, APS-3320L, APS-3103L, APS-3605L, APS-3610L.
• APS-3xxxLx_SDK_Base Software Development Kit
  The kit is designed to help users in creating their own applications for the following AKTAKOM power supplies: APS-3310L, APS-3320L, APS-3103L, APS-3605L, APS-3610L.

Find more details about AKTAKOM APS-3320L on the device web page.
