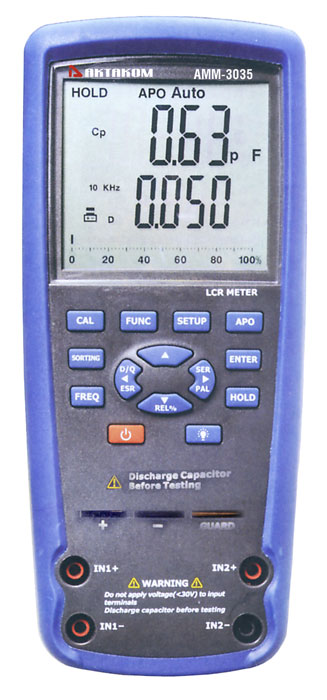

AMM-3035 RLC Meter

AKTAKOM AMM-3035 RLC Meter features with innovative automatic selection technology, automatically measuring R, L and C with Q, D and Θ by just turning on the meter. The testing frequency is up to 10 KHz and it can output up to 100KHz test frequency. It provides high accuracy with four or five terminal Kelvin measurements.

• Overload Indication
• Lower Battery Indication
• Auto Power Off

Features

• Sampling rate: 5 times/sec
• Overload Indication: "OL" or "-OL"
• Auto Power Off: 10 minutes
• Operating Temp 0-50°C,<=80%R.H.
• Storage Temp: -20-60°C
• Temp. coefficient: 0.15(Spec.Acc)/°C,<18°C or>28°C
• Safety: Comply with IEC61000 EMC standard
• Power Requirement: AA size 1.5V X 4 batteries (NEDA 15A or IEC LR6)
• Battery Life: 30 hours (Alkaline battery)

Specifications

Inductance @ Ta=18~28°C (De)

Frequency = 100Hz/120Hz

Range	Resolution	Lx Accuracy	DF Accuracy	Measurement Mode
20.000mH	1uH	1.5%±10d	1.5%±50d	Series
200.00mH	0.01mH	1.4%±15d	1.4%±50d	Series
2000.0mH	0.1mH	1.5%±15d	1.5%±50d	Series
20.000H	1mH	1.6%±10d	1.6%±50d	---
200.00H	0.01H	1.3%±10d	1.3%±50d	Parallel
2000.0H	0.1H	2.0%±15d	2.0%±50d	Parallel
20.000kH	0.001kH	2.5%±15d	2.5%±50d	Parallel

Frequency = 1kHz

Range	Resolution	Lx Accuracy	DF Accuracy	Measurement Mode
2000.0uH	0.1uH	1.3%±10d	1.3%±50d	Series
20.000mH	1uH	1.2%±10d	1.2%±50d	Series
200.00mH	0.01mH	1.2%±10d	1.2%±50d	Series
2000.0mH	0.1mH	1.5%±15d	1.5%±50d	---
20.000H	1mH	1.5%±15d	1.5%±50d	Parallel
200.00H	0.01H	2.0%±10d	2.0%±50d	Parallel
2000.0H	0.1H	2.5%±15d	2.5%±50d	Parallel

Frequency = 10kHz

Range	Resolution	Lx Accuracy	DF Accuracy	Measurement Mode
200.00uH	0.01uH	1.8%±10d	1.8%±50d	Series
2000.0uH	0.1uH	1.5%±10d	1.5%±50d	Series
20.000mH	1uH	1.2%±10d	1.2%±50d	Series
200.00mH	0.01mH	1.5%±15d	1.5%±50d	---
2000.0mH	0.1mH	2.0%±10d	2.0%±50d	Parallel
20.000H	1mH	2.5%±15d	2.5%±50d	Parallel

Frequency = 100kHz

Range	Resolution	Lx Accuracy	DF Accuracy	Measurement Mode
20.000uH	0.001uH	2.5%±10d	2.5%±50d	Series
200.00uH	0.01uH	1.5%±10d	1.5%±50d	Series
2000.0uH	0.1uH	1.3%±15d	1.3%±50d	Series
20.000mH	1uH	2.0%±15d	2.0%±50d	Parallel
200.00mH	0.01mH	2.5%±15d	2.5%±50d	Parallel

Capacitance @ Ta=18~28°C (De)

Frequency = 100Hz/120Hz

Range	Resolution	Cx Accuracy	DF Accuracy	Measurement Mode
20.000nF	1pF	2.5%±10d	2.5%±50d	Parallel
200.00nF	0.01nF	1.2%±10d	1.2%±50d	---
2000.0nF	0.1nF	0.9%±10d	0.9%±50d	---
20.000uF	1nF	1.0%±15d	1.0%±50d	Series
200.00uF	0.01uF	1.2%±10d	1.2%±50d	Series
2000.0uF	0.1uF	2.5%±10d	2.5%±50d	Series
20.00mF	0.01mF	5.0%±10d	5.0%±50d	Series

Frequency = 1kHz

Range	Resolution	Cx Accuracy	DF Accuracy	Measurement Mode
2000.0pF	0.1pF	3.5%±15d	3.5%±50d	Parallel
20.000nF	1pF	1.0%±10d	1.0%±50d	---
200.00nF	0.01nF	0.9%±10d	0.9%±50d	---
2000.0nF	0.1nF	1.0%±10d	1.0%±50d	Series
20.000uF	1nF	1.2%±15d	1.2%±50d	Series
200.00uF	0.01uF	2.5%±10d	2.5%±50d	Series
2000uF	1uF	4%±20d	4%±50d	Series

Frequency = 10kHz

Range	Resolution	Cx Accuracy	DF Accuracy	Measurement Mode
200.00pF	0.01pF	3.0%±8d	3.0%±50d	Parallel
2000.0pF	0.1pF	1.0%±10d	1.0%±50d	---
20.000nF	1pF	0.9%±10d	0.9%±50d	---
200.00nF	0.01nF	0.8%±10d	0.8%±50d	Series
2000.0nF	0.1nF	1.0%±8d	1.0%±50d	Series
20.000uF	1nF	2.0%±8d	2.0%±50d	Series
200.0uF	0.1uF	4.5%±15d	4.5%±50d	Series

Frequency = 100kHz

Range	Resolution	Cx Accuracy	DF Accuracy	Measurement Mode
200.00pF	0.01pF	2.5%±15d	2.5%±50d	Parallel
2000.0pF	0.1pF	1.0%±8d	1.0%±50d	Parallel
20.000nF	1pF	1.8%±8d	1.8%±50d	Parallel
200.00nF	0.01nF	1.5%±10d	1.5%±50d	Series
2000.0nF	0.1nF	2.5%±15d	2.5%±50d	Series

Resistance @ Ta=18~28°C (De)

Frequency = 100Hz/120Hz

Range	Resolution	Rx Accuracy	Measurement Mode
200.00Ω	0.01Ω	1.2%±10d	---
2.0000kΩ	0.1Ω	0.8%±5d	---
20.000kΩ	1Ω	0.9%±5d	---
200.00kΩ	0.01kΩ	0.7%±3d	---
2.0000MΩ	0.1kΩ	1.0%±5d	---
20.000MΩ	1kΩ	2.2%±10d	---
200.0MΩ	0.1MΩ	2.5%±10d	---

Frequency = 1kHz

Range	Resolution	Rx Accuracy	Measurement Mode
20.000Ω	1mΩ	1.2%±10d	---
200.00Ω	0.01Ω	0.8%±5d	---
2.0000kΩ	0.1Ω	0.8%±3d	---
20.000kΩ	1Ω	0.7%±3d	---
200.00kΩ	0.01kΩ	1.0%±5d	---
2.0000MΩ	0.1kΩ	1.5%±10d	---
20.000MΩ	1kΩ	1.8%±10d	---
200.0MΩ	0.1MΩ	6.0%±50d	---

Frequency = 10kHz

Range	Resolution	Rx Accuracy	Measurement Mode
20.000Ω	1mΩ	1.5%±10d	---
200.00Ω	0.01Ω	0.8%±10d	---
2.0000kΩ	0.1Ω	0.9%±5d	---
20.000kΩ	1Ω	0.8%±3d	---
200.00kΩ	0.01kΩ	1.0%±5d	---
2.0000MΩ	0.1kΩ	2.5%±10d	---
20.00MΩ	0.01MΩ	2.8%±10d	---

Frequency = 100kHz

Range	Resolution	Rx Accuracy	Measurement Mode
20.000Ω	1mΩ	2.3%±10d	---
200.00Ω	0.01Ω	1.5%±5d	---
2.0000kΩ	0.1Ω	0.8%±20d	---
20.000kΩ	1Ω	0.8%±20d	---
200.00kΩ	0.01kΩ	1.5%±10d	---
2.000MΩ	1kΩ	2.5%±30d	---

DC resistance @ Ta=18~28°C (De)

Frequency = 100Hz/120Hz/1kHz/10kHz/100kHz

Range	Resolution	Rx Accuracy	Measurement Mode
200.00Ω	0.01Ω	1.8%±10d	---
2.0000kΩ	0.1Ω	0.6%±20d	---
20.000kΩ	1Ω	0.6%±10d	---
200.00kΩ	0.01kΩ	0.5%±3d	---
2.0000MΩ	0.1kΩ	1.5%±5d	---
20.000MΩ	1kΩ	2.0%±5d	---
200.0MΩ	0.1MΩ	2.5%±5d	---

D value Accuracy @ Ta=18~28°C (De)

Freq./Z	0.1-1Ω	1-10Ω	10Ω–100kΩ	100kΩ–1MΩ	1–20ΜΩ	20−200MΩ
100/120Hz	±0.030	±0.010	±0.009	±0.010	±0.020	±0.040
1kHz	±0.030	±0.010	±0.009	±0.010	±0.020	±0.090
10kHz	±0.030	±0.010	±0.009	±0.009	±0.010	±0.040
100kHz	±0.040	±0.030	±0.010	±0.010	±0.020	±0.040

Θ value Accuracy @ Ta=18~28°C

Freq./Z	0.1Ω-1Ω	1-10Ω	10Ω–100kΩ	100kΩ–1MΩ	1–20ΜΩ	20−200MΩ
100/120Hz	±0.65°	±0.36°	±0.23°	±0.45°	± 0.65°	±1.35°
1kHz	±0.65°	±0.36°	±0.23°	±0.45°	±0.65°	±3.63°
10kHz	±0.65°	±0.36°	±0.23°	±0.45°	±1.35°	N/A
100kHz	±1.27°	±0.65°	±0.49°	±0.65°	±1.35°

Size(H×W×D): 7.8×3.8×2.4in/200×96×60mm

Weight: 12.7oz/360g

Accessories

1. Test leads

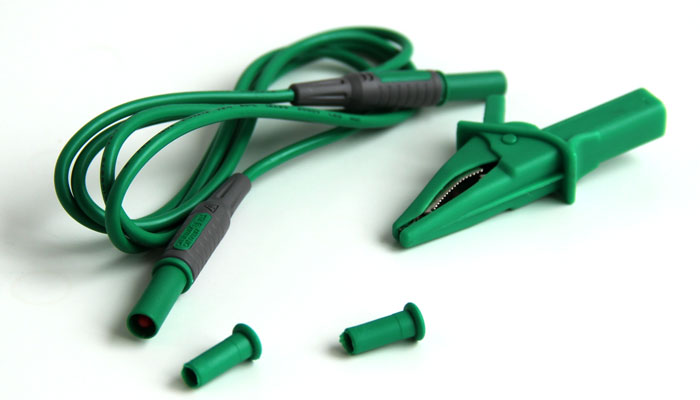

2. Test leads green

3. Tweezers

4. Probes

2. 6 x 1.5V “AA” batteries

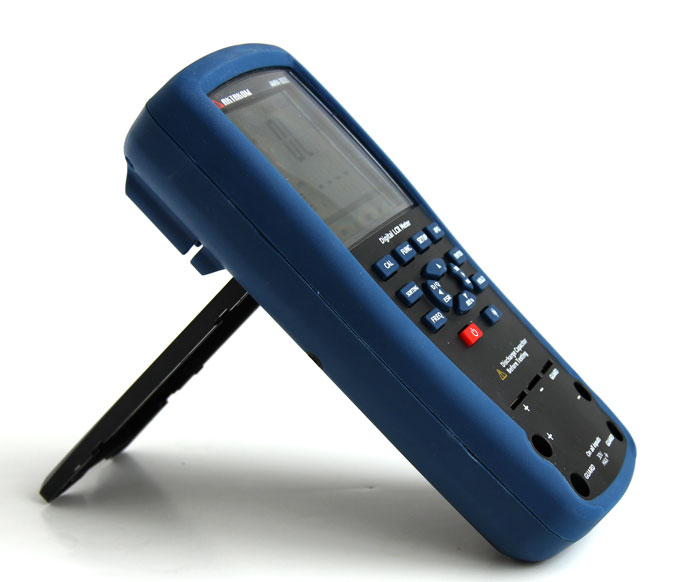

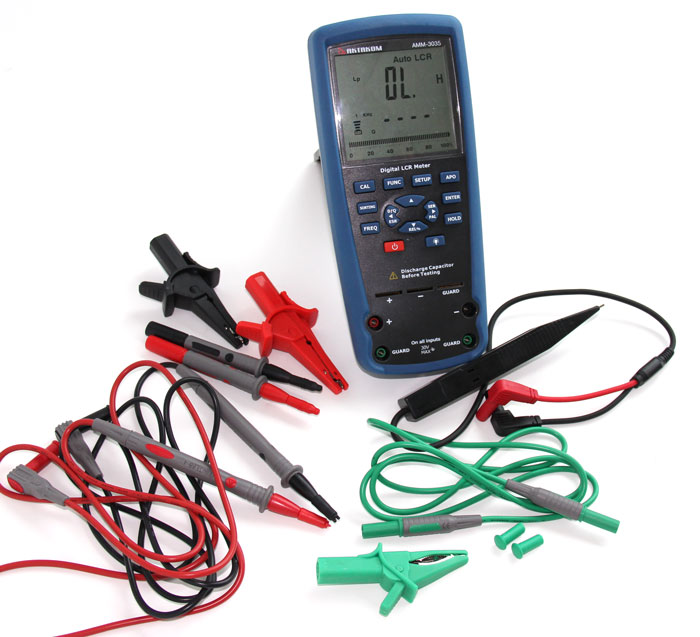

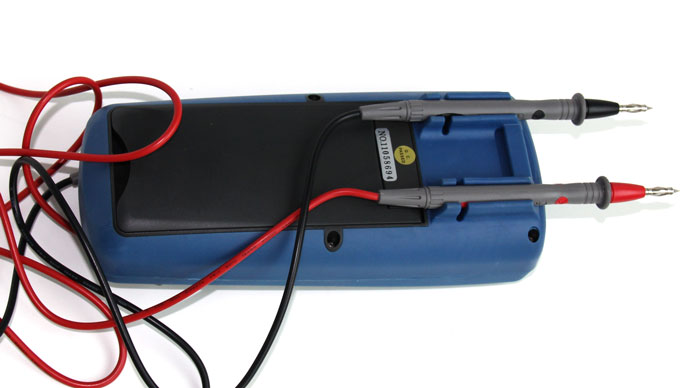

AMM-3035 RLC Meter - side view Enlarge		AMM-3035 RLC Meter - rear view Enlarge		AMM-3035 RLC Meter - with accessories Enlarge

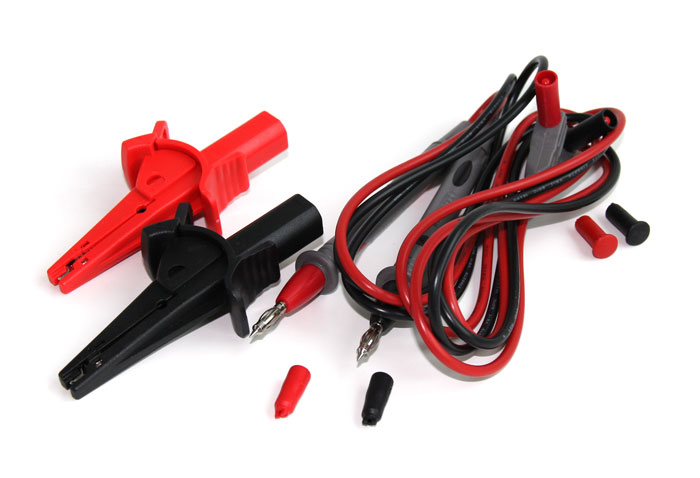

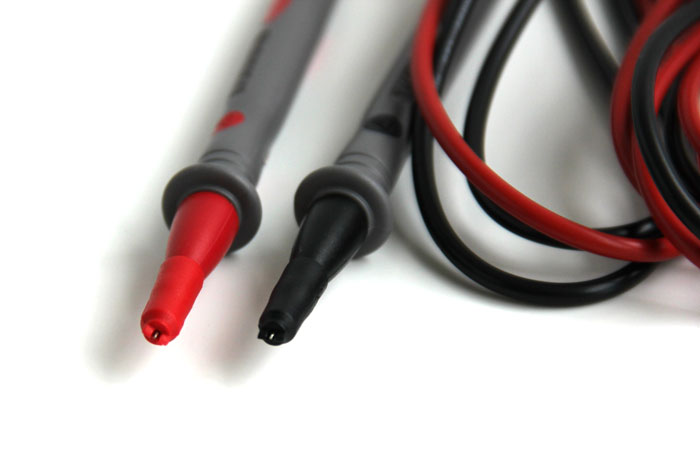

AMM-3035 RLC Meter - test leads Enlarge		AMM-3035 RLC Meter - test leads Enlarge		AMM-3035 RLC Meter - test leads Enlarge

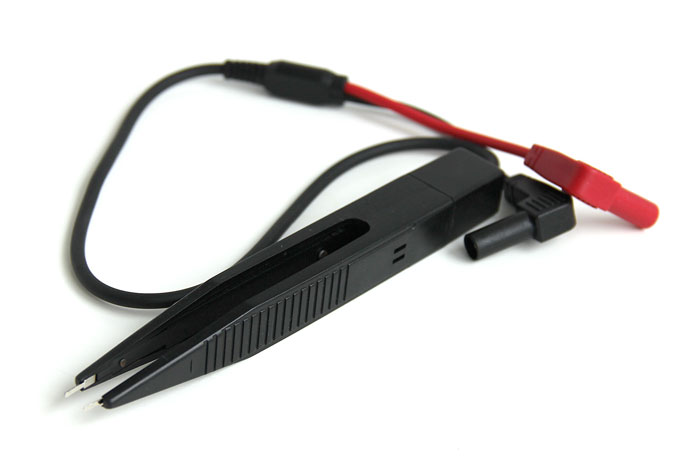

AMM-3035 RLC Meter - tweezers Enlarge

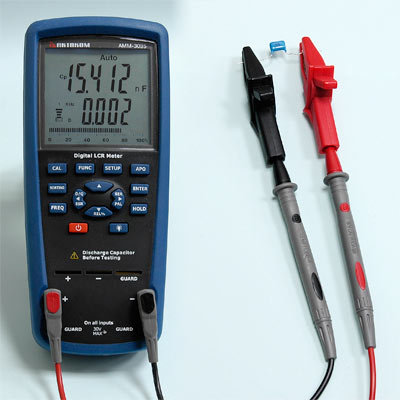

Capacitance measurement

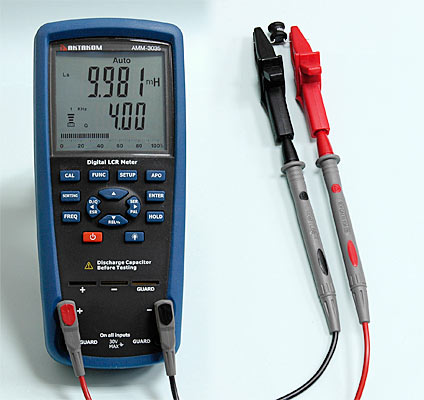

Inductance measurement

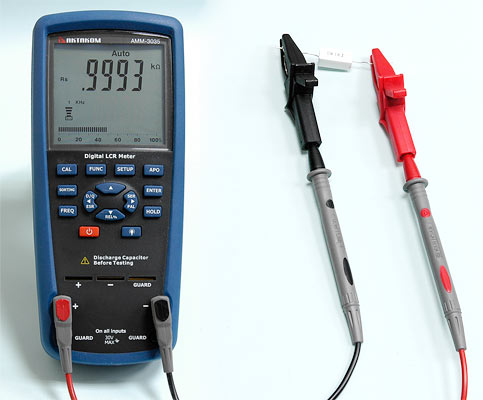

Resistance measurement

Processing calibration before measurement

In order to improve the accuracy of high/low impedance, it is recommended to do OPEN/SHORT calibration mode before measurement. Press and hold down the button for 2 seconds to enter calibration mode. The calibration procedure: OPEN ready¹ →[CAL] → OPEN calibration (30s) →[CAL] → SHORT ready² → [CAL]→ SHORT calibration (30s) . During open or short calibration processing, the 30-second countdown will be shown on LCD panels. If the calibration procedure is finished, the PASS or FAIL symbol will shown on the primary display. If PASS symbol for both OPEN and SHORT modes, the calibration data will be saved after push CAL key again.

¹OPEN ready means the input sockets or terminals have nothing connected
²SHORT ready means put a shorting bar or a short piece of conductive metal (i.e. paper clip) across the “+” and “-” input sockets or terminals.

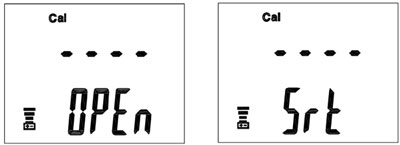

Open Calibration (left) and Short Calibration (right)

Sorting a bunch of components

The sorting mode could help the user to make a quick sort for a bunch of components. Select the primary measurement mode (L/C/R) based on the type of components to be measured. Insert the component to be used as the “standard” reference value. Another words, insert a known “good” component that will be used for testing against all other components. Press [SORTING] button to enter to the sorting mode. The sorting mode cannot be activated unless the meter senses a component is connected to either the input sockets or terminals . When sorting mode is activated, the reference value, range and the tolerance settings can be modified.
The setting process:
[SETUP]→ range setting(use </>) → [ENTER] → reference value setting (use ∧/∨/</>) →[ENTER] → tolerance setting(use </ >) →[ENTER] →sorting mode
The tolerance range setting selection: +0.25% → ±0.5% → ±1% → ±2% → ±5% → ±10% → ±20% →+80%-20%. The default tolerance is ±1%.

In the sorting mode, the primary display to show PASS or FAIL status depends on whether the impedance measured exceeds tolerance range. The current measurement result will be shown on the secondary display. Press the [SORTING] button to exit this mode.

WARNING: If the component to be measured is a capacitor, be sure that the capacitor is fully discharged BEFORE inserting it into the input sockets or terminals. For large capacitors, it may take longer periods of time for a full discharge. Inserting a charged or partially charged capacitor into the meter’s input sockets or terminals may produce an electric hazard and may also damage the instrument, making it unusable
