Measuring range - 1.2 ... 225 mm / 0.04…8.9 in (steel). Metering pipes - a diameter of 20 mm * 3 (steel). Adjustable ultrasonic velocity: 1000 ... 9999 m / s. Frequency ultrasound - 5 MHz. Display - 4 digits. Resolution - 0.1 mm. Accuracy: ± 1%. Response time - 0.6 sec. Dimensions: 165x60x30 mm / 6.5x2.4x1.2 in. Weight: 210 g / 7.4 oz.
- Easy to use
- Manual selection of materials
- Built-in calibrator using 4-mm steel plate
- Units: inches or millimeters
- 4-digit display
- Low battery indicator
- Auto power off
Specifications
- Thickness measurement range (steel): 1.2 ... 220 mm.
- Measuring range (steel pipe) minimum thickness 3.0 mm × Ø 20 mm.
- The tuning range of ultrasound velocity: 1000 ... 9999 m/s.
- Operating frequency converter: 5 MHz.
- Resolution: 0.1 mm.
- Measurement accuracy: ± (1% H +0.1 mm).
- Measurement time: 0.6 seconds.
- Power supply: 3 x AAA (3 x 1.5V).
- Dimensions of the base unit: mm 165x60x30 mm / 6.5x2.4x1.2 in
- Weight: 210 g / 7.4 oz (including batteries and probes).

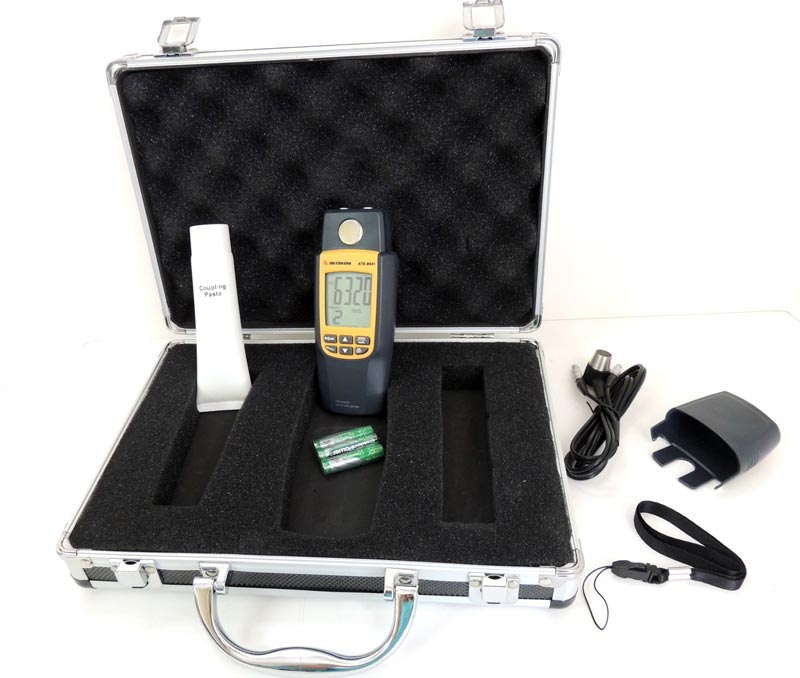

Accessories
- Device
- Sensor
- Soundconducting contact grease

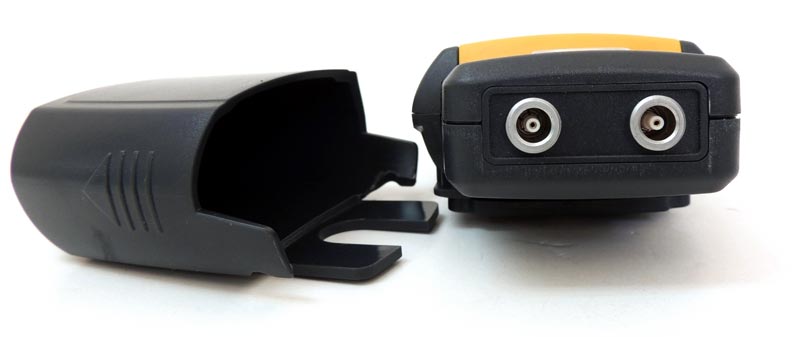

- Protective cap

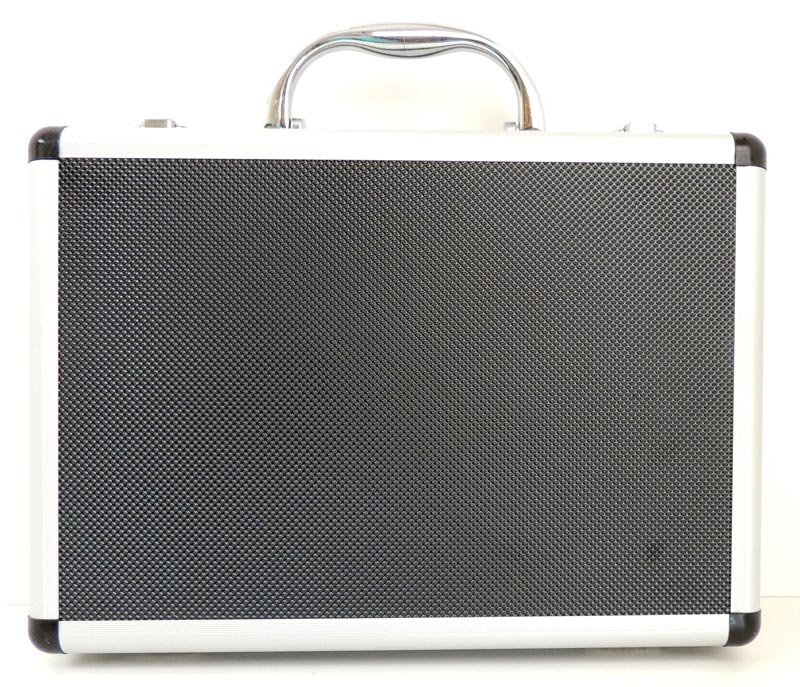

- Carrying case
- Batteries AAA batteries - 3 pcs
