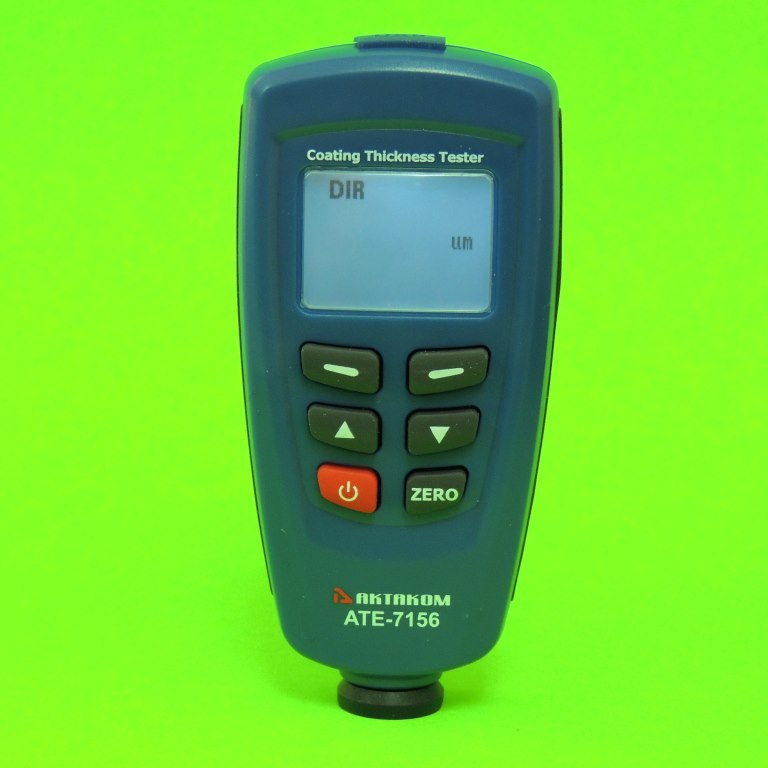

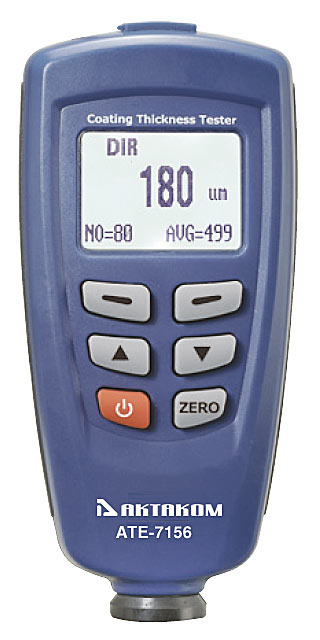

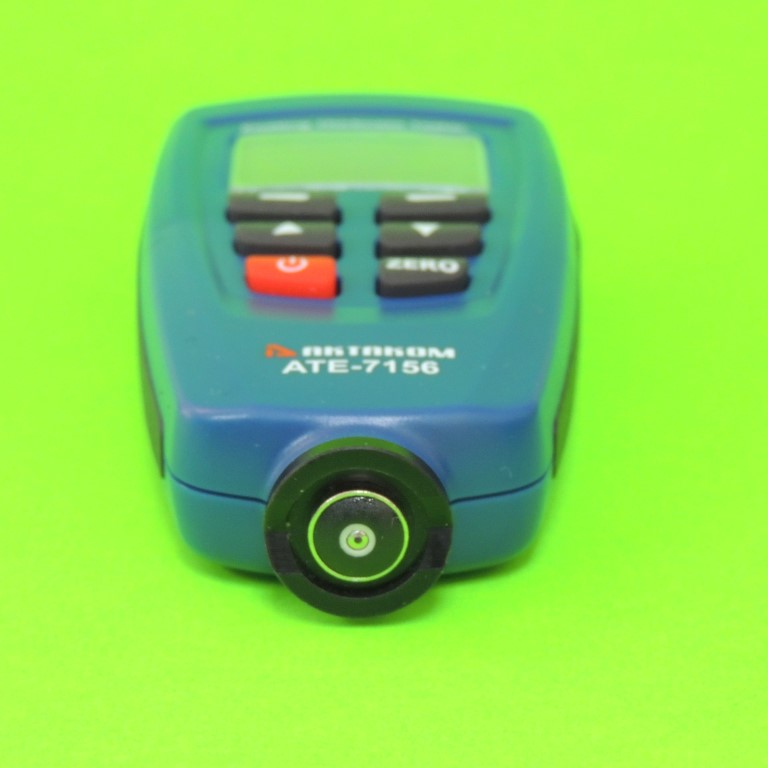

AKTAKOM ATE-7156 Coating Thickness Tester is designed for non-destructive, fast and precise coating thickness measurement. The principal application is in the field of corrosion protection. It is ideal for manufacturers and their customers, for offices and specialist advisers, for paint shops and electroplaters, for the chemical, automobile, shipbuilding and aircraft industries and for light and heavy engineering. Also gauges are suitable for laboratory, workshop and outdoor use.
The coating thickness gauges work either on the magnetic induction principle or on the eddy current principle, depending on the type of probe used. You can select the type of probe via MENU system, or it will work automatically.
Features
- Non-magnetic coatings (e.g. paint, zinc) on steel
- Insulating coatings (e.g. paint) on no-ferrous metals
- No-ferrous metals coatings on insulating substrates

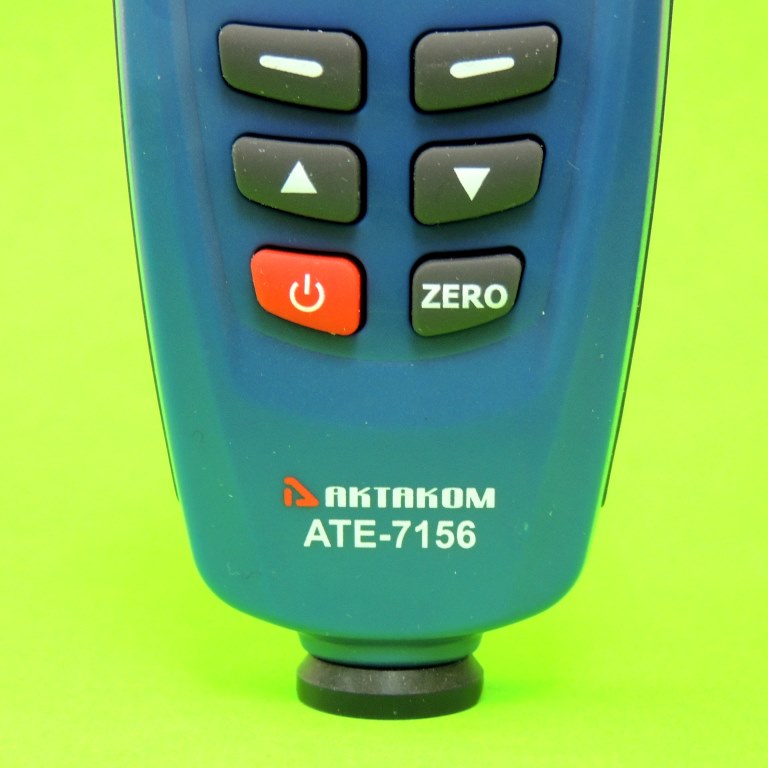

- Menu operation system
- Two measuring mode: CONTINUE and SINGLE mode
- Two working Mode: DIRECT and GROUP mode
- Statistic Display: AVG, MAX, MIN, NO., S.DEV
- One point calibrating, two points calibrating and basic calibrating easily
- Memory for 400 readings (80 DIRECT and 320 GROUP readings)
- Delete single readings and all group readings easily
- High alarm and Low alarm for all working mode
- Low battery, error indication

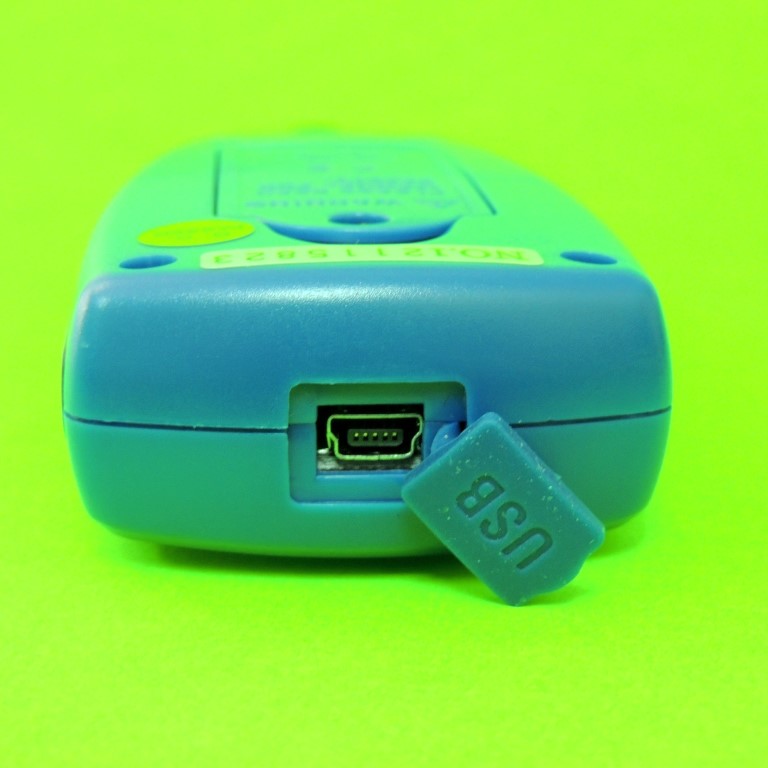

- USB interface for PC software (Windows 98/2000/XP/Vista)
Specifications
- Special features: The probe can work on magnetic induction and on the eddy current principle.
- Interface: USB
- Display: LCD

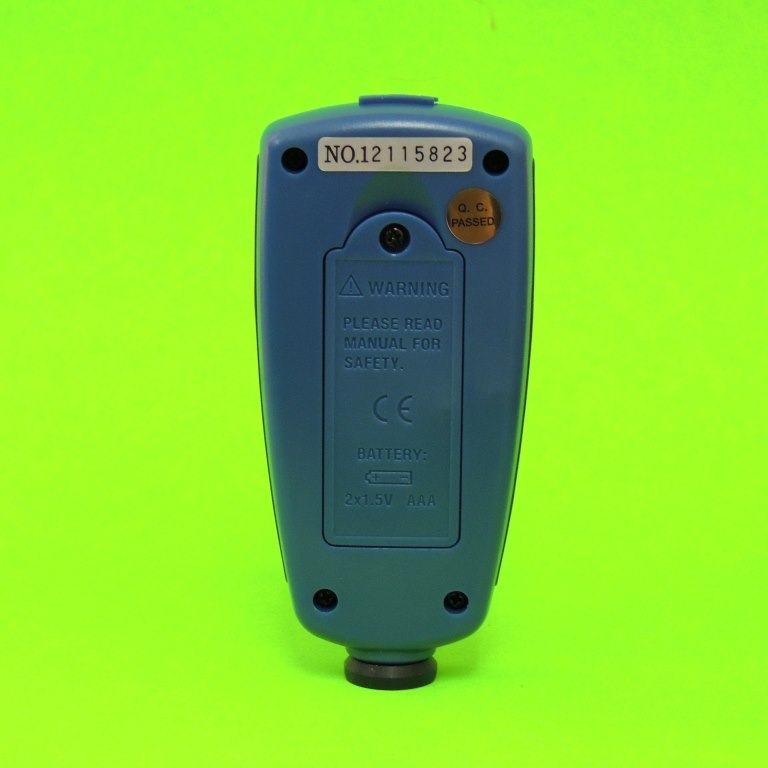

- Power supply: 2 x 1.5 V battery
- Dimensions: 4.5 x 2.1 x 1.1 in / 113.5 x 54 x 27 mm
|
Sensor probe
|
F
|
N
|
|
Working principle
|
Magnetic induction
|
Eddy current principle
|
|
Measuring range
|
0…1250μm
0…49.21mils
|
0…1250μm
0…49.21mils
|
|
Guaranteed tolerance (of reading)
|
0…850μm (±3%+1μm)
850μm…1250μm (±5%)
|
0…850μm (±3%+1.5μm)
850μm…1250μm (±5%)
|
0…33.46mils (±3%+0.039mils)
33.46…49.21mils (±3%+0.039mils)
|
0…33.46mils (±3%+0.059mils)
33.46…49.21mils (±3%+0.039mils)
|
|
Precision
|
0…50μm (0.1μm)
50…850μm (1μm)
850…1250μm (0.01mm)
|
0…50μm (0.1μm)
50…850μm (1μm)
850…1250μm (0.01mm)
|
0…1.968mils (0.001mils)
1.968…33.46mils (0.01mils)
33.46…49.21mils (0.1mils)
|
0…1.968mils (0.001mils)
1.968…33.46mils (0.01mils)
33.46…49.21mils (0.1mils)
|
|
Minimum curvature
|
1.5mm / 0.1in
|
3mm / 0.12in
|
|
Diameter of Minimum
|
7mm / 0.3in
|
5mm / 0.2in
|
|
Basic critical thickness
|
0.5mm / 0.02in
|
0.3mm / 0.01in
|
|
Working temperature
|
0°C…40°C (32°F…10°F)
|
Working relative humidity
|
20%~90%
|

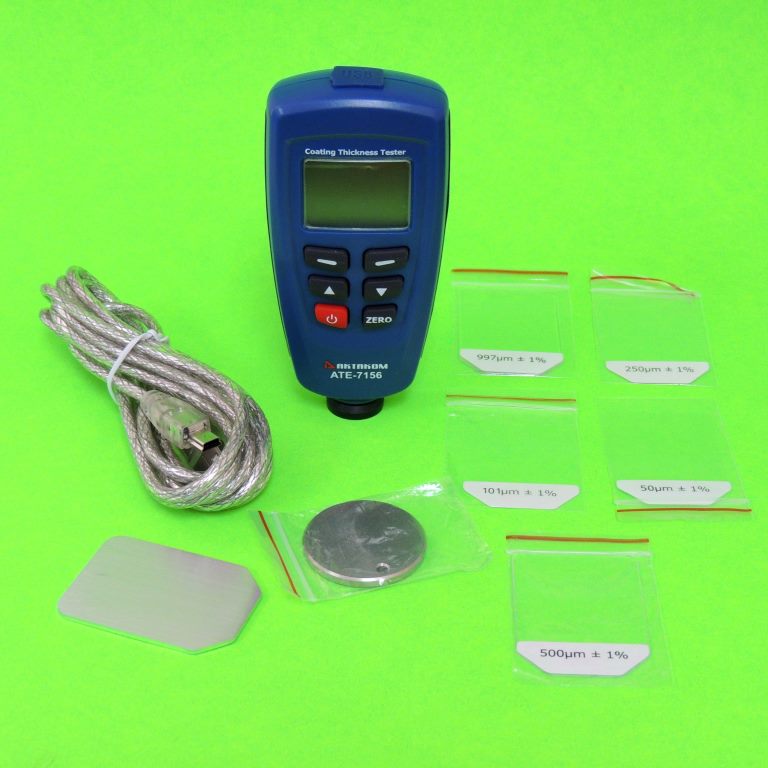

Accessories
- Two “AAA” batteries
USB cable
CD
Calibration Iron
- Calibration Aluminum

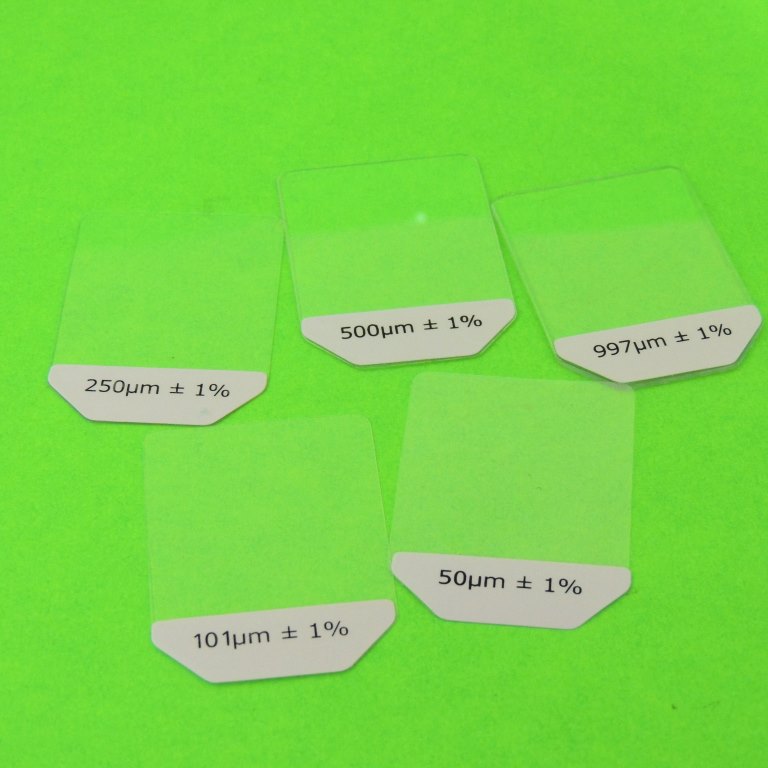

- Precision Standard

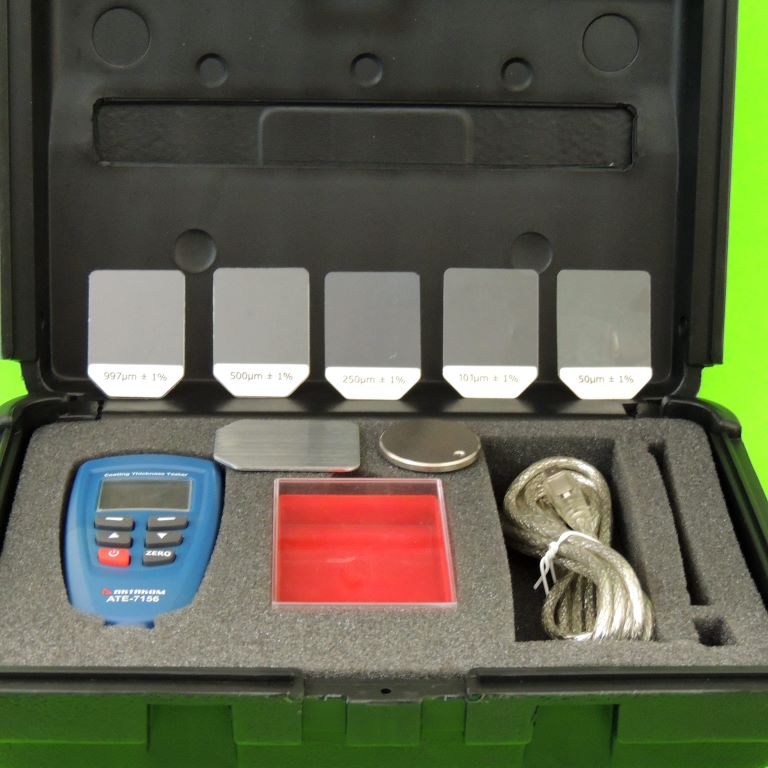

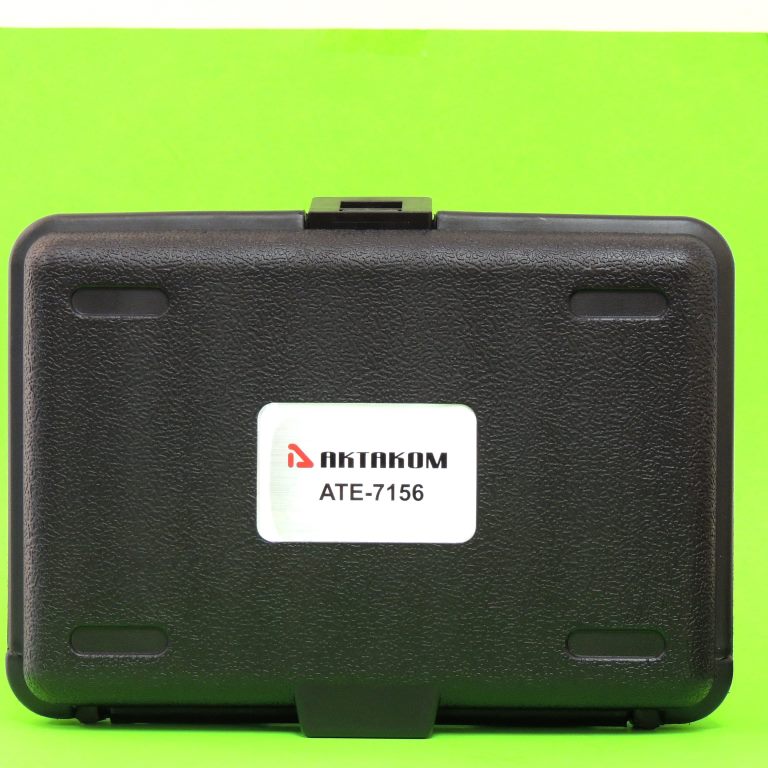

- Carrying case
- User's Manual
