AWG-4110 Function/Arbitrary Waveform Generator
AWG-4110 Function/Arbitrary Waveform Generator
|
|
Dual channel output; Max. frequency output: 10MHz; Sample rate: 125MSa/s; Wave length: 16Kpts; Frequency resolution: 14 bit; Waveform: 5 types of standard waveforms, 48 types of function waveform; Gaussian white noise: 10MHz bandwidth (-3dB); Modulation: AM, FM, PM, ASK, FSK, PWM, etc.; Frequency counter: up to 200MHz; Size: 9Ч4Ч11in/229Ч105Ч281mm (WЧHЧD); Weight: 6.1lb/2.8kg.
Manuals:
|
|
Features
- Apply DDS technology, double output, adjustable phase, the highest output frequency is 10MHz.
- 125MSa/s sample rate, 14 bit vertical resolution, 16Kpts wave length.
- Output 5 types of standard waveform, internally installed 48 types of waveform.
- Internally installed high precision, wide frequency counter, frequency is up to 200MHz.
- Abundant modulation function, sweep-frequency output, pulse train output.
- Standard collocation connection: USB Device, USB Host, support U Disk storage and software upgrading.
- GPIB and LAN port are optional.
- Can connect series digital oscilloscope perfectly, and support remote command control.
Specifications
|
Model
|
AWG-4105
|
AWG-4110
|
AWG-4150
|
|
Highest frequency output
|
5MHz
|
10MHz
|
50MHz
|
|
Output channels
|
2
|
|
Sample rate
|
125MSa/s
|
|
Wave length
|
16Kpts
|
|
Frequency resolution
|
1μHz
|
|
Vertical resolution
|
14 bit
|
|
Duty Cycle
|
10% to 90%
|
|
Waveform
|
Sine wave, square wave, triangular wave, pulse wave, white noise, 48 types of function waveform
|
|
Sine wave
|
1μHz~5MHz
|
1μHz~10MHz
|
1μHz~50MHz
|
|
Square wave
|
1μHz~5MHz
|
1μHz~10MHz
|
1μHz~25MHz
|
|
Pulse
|
1μHz~5MHz
|
1μHz~5MHz
|
1μHz~5MHz
|
|
Ramp
|
1μHz~300kHz
|
1μHz~300kHz
|
1μHz~300kHz
|
|

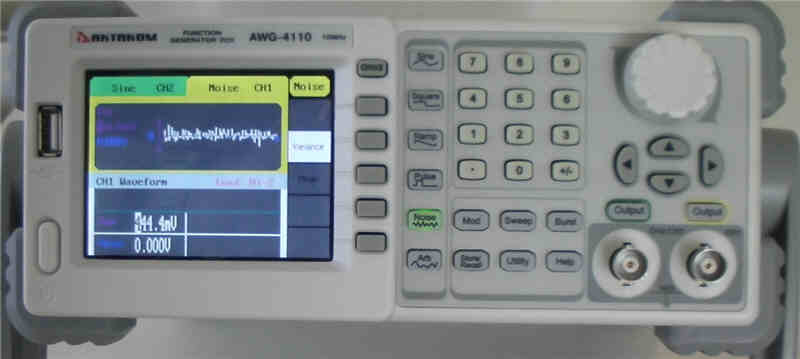

Gaussian white noise
|
5MHz bandwidth (-3dB)
|
10MHz bandwidth (-3dB)
|
50MHz bandwidth (-3dB)
|
|
Wave
|
1μHz~5MHz
|
1μHz~5MHz
|
1μHz~5MHz
|
|
Modulation function
|
AM, FM, PM, ASK, FSK, PWM, etc.
|
|
Other functions
|
Counter frequency is up to 200MHz
|
|
Standard configuration
|
USB 2.0 Host FAT32 & USB 2.0 Device
|
|
Optional port
|
GPIB (IEEE-488), LAN
|
|
Product classify
|
function/arbitrary waveform generator
|
|
Size
|
(widthЧheightЧdepth) 229mmЧ105mmЧ281mm
|
|
Accessories
|
Power Cord, USB Cable, Manual, Application Software CD
|
Frecuency specifications:
|
Model
|
AWG-4105
|
AWG-4110
|
AWG-4150
|
|
Highest frequency output
|
5MHz
|
10MHz
|
50MHz
|
|
Waveform
|
Sine, Square, Ramp, Triangular, Pulse, Noise, Arbitrary
|
|
Sine wave
|
1μHz~5MHz
|
1μHz~10MHz
|
1μHz~50MHz
|
|
Square wave
|
1μHz~5MHz
|
1μHz~10MHz
|
1μHz~25MHz
|
|
Pulse
|
1μHz~5MHz
|
1μHz~5MHz
|
1μHz~5MHz
|
|
Ramp
|
1μHz~300kHz
|
1μHz~300kHz
|
1μHz~300kHz
|
|
Ramp/Triangular
|
1μHz~300kHz
|
1μHz~300kHz
|
1μHz~300kHz
|
|
Wave
|
1μHz~5MHz
|
1μHz~5MHz
|
1μHz~5MHz
|
|
Gaussian white noise
|
5MHz (-3dB)
|
10MHz (-3dB)
|
50MHz (-3dB)
|
|
Arbitrary waveform
|
1μHz~5MHz
|
1μHz~5MHz
|
1μHz~5MHz
|
|
Resolution
|
1μHz
|
|
Accuracy
|
Within 90 days +50ppm within 1 year +100ppm 18°C~28°C
|
|
Temperature Coefficient
|
<5ppm/°C
|
Sine Wave Spectrum Purity:
|
Harmonic Distortion
|
CH1
|
CH2
|
|
<1Vpp
|
>1Vpp
|
<1Vpp
|
>1Vpp
|
|
DC-1MHz
|
-55dBC
|
-45dBc
|
-55dBC
|
-45dBC
|
|
1MHz-5MHz
|
-55dBC
|
-40dBC
|
-55dBC
|
-40dBC
|
|
5MHz-25MHz
|
-50dBC
|
-35dBC
|
-50dBC
|
-35dBC
|
|
Total harmonic waveform distortion
|
DC~20kHz, 1Vpp<0.2%
|
|
Spurious signal (non-harmonic)
|
DC~1MHz <-70dBc 1MHz~10MHz <-70dBc +6dB/spectrum phase
|
|
Phase noise
|
10kHz Offset, -108dBc/Hz (typical value)
|
Square Wave:
|
Rise/fall time (10%~90%, typical value, 1kHz)
|
<12ns
|
|
Overshoot
|
<5% (typical value, 1kHz, 1Vpp)
|
|
Duty
|
1μHz~10MHz
|
20%~80%
|
|
10MHz (exclude)~20MHz
|
40%~60%
|
|
20MHz (exclude)~25MHz
|
50%
|
|
Asymmetric (50% Duty Cycle)
|
Cycle 1% + 20ns (typical value, 1kHz, 1Vpp)
|
|
Jitter
|
6ns + cycle 0.1% (typical value, 1kHz, 1Vpp)
|
Ramp Wave:
|
Linearity
|
< Peak value output 0.1%, (typical value, 1kHz, 1Vpp, symmetric 100%)
|
|
Symmetry
|
0% to 100%
|
Pulse Wave Specification:
|
Pulse width
|
Max. 2000s / Min. 20ns, Min. resolution 1ns
|
|
Rise/Fall time (10%-90%, typical value, 1kHz, 1Vpp)
|
same as square waveform
|
|
Overshoot
|
<5%
|
|
Jitter
|
6ns + cycle 100ppm
|
Arbitrary Waveform Specification:
|
Waveform length
|
16k points
|
16k points
|
|
Vertical resolution
|
14 bits (include symbol)
|
14 bits (include symbol)
|
|
Sample rate
|
125MSa/s
|
125MSa/s
|
|
Min. Rise/Fall time
|
20ns (typical value)
|
20ns (typical value)
|
|
Jitter (RMS)
|
6ns + 30ppm (typical)
|
6ns + 30ppm (typical)
|
|
Storage in non-volatile RAM memory (10 in total)
|
10 waveforms
|
10 waveforms
|
Output Specification:
|
Output
|
CH1
|
CH2
|
|
Amplitude
|
2mVpp-10Vpp (50ohm, <10MHz)
2mVpp-5Vpp (50ohm, >10MHz)
4mVpp~20Vpp (high impedance) <10MHz
4mVpp-10Vpp (high impedance) >10MHz
|
2mVpp-3Vpp (50ohm, >10MHz)
4mVpp~6Vpp (high impedance)
|
|
Vertical resolution (100kHz sine waveform)
|
+(1%+1mVpp of setting value)
|
+(1%+1mVpp of setting value)
|
|
Amplitude flatness (compared to 100kHz sine waveform, 5Vpp)
|
<100kHz 0.1dB
|
<100kHz 0.1dB
|
|
100kHz~5 MHz 0.15dB
|
100kHz~5MHz 0.15dB
|
|
>5MHz 0.3dB
|
>5MHz 0.3dB
|
DC Offset:
|
Range (DC)
|
5V (50ohm)
10V (high impedance)
|
1.5V (50ohm)
3V (high impedance)
|
|
Offset accuracy
|
±(|setting offset value|1%+1mV)
|
±(|setting offset value|1%+1mV)
|
Waveform Output:
|
Impedance
|
50ohm (typical value)
|
50ohm (typical value)
|
|
Protection
|
short-circuit protection
|
short-circuit protection
|
AM Modulation (CH1/CH2):
|
Carrier
|
Sine, Square, Ramp, Arbitrary (except DC)
|
|
Source
|
Internal/External
|
|
Modulation waveform
|
Sine, Square, RAMP, Noise, Arbitrary (2mHz~20kHz)
|
|
Modulation depth
|
0%~120%
|
FM Modulation (CH1/CH2):
|
Carrier
|
Sine, Square, Ramp, Arbitrary (except DC)
|
|
Source
|
Internal/External
|
|
Modulation waveform
|
Sine, Square, RAMP, Triangle, Gaussian Noise, Arbitrary (2mHz~20kHz)
|
|
Frequency deviation
|
AWG-4105
|
0~2.5MHz
|
|
AWG-4110
|
0~5MHz
|
|
AWG-4150
|
25MHz
|
PM Modulation (CH1/CH2):
|
Carrier
|
Sine, Square, Triangle, Arbitrary (except DC)
|
|
Source
|
Internal/External
|
|
Modulation waveform
|
Sine, Square, RAMP, Triangle, Gaussian Noise, Arbitrary (2mHz~20kHz)
|
|
Deviation
|
0~360°
|
FSK Modulation (CH1/CH2):
|
Carrier
|
Sine, Square, Triangle, Arbitrary (except DC)
|
|
Source
|
Internal/External
|
|
Modulation waveform
|
50% duty square waveform (2mHz~50kHz)
|
ASK Modulation (CH1/CH2):
|
Carrier
|
Sine, Square, Triangle, Arbitrary (except DC)
|
|
Source
|
Internal/External
|
|
Modulation waveform
|
50% duty square waveform (2mHz~50kHz)
|
PWM Modulation (CH1/CH2):
|
Frequency
|
500μHz~20kHz
|
|
Source
|
Internal/External
|
|
Modulation waveform
|
Sine, Square, RAMP, Triangle, Arbitrary (except DC)
|
|
External
|
-6~+6V (corresponding modulation depth 0%~100%)
|
Sweep (CH1/CH2):
|
Carrier
|
Sine, Square, RAMP, Triangle, Arbitrary (except DC)
|
|
Type
|
linear/logarithmic
|
|
Direction
|
Up/down
|
|
Sweep time
|
1ms~500s +0.1%
|
|
Trigger source
|
Manual, external, internal
|
Burst (CH1/CH2):
|
Waveform
|
Sine, Square, RAMP, Triangle, Arbitrary (except DC)
|
|
Type
|
Count (1~50,000 cycles), infinite, Gated
|
|
Start/Stop phase
|
0°~360°
|
|
Internal cycle
|
1ms~500s +0.1%
|
|
Gated trigger
|
External trigger
|
|
Trigger source
|
Manual, external, internal
|
Rear Panel Connector:
|
External modulation
|
±6Vpk = 100% modulation depth 5kΩ input impedance
|
|
External trigger
|
TTL compatible
|
|
The external input voltage can’t be over ±6V, otherwise instrument gets damaged.
|
Trigger Input:
|
Voltage level input
|
TTL compatible
|
|
Slope
|
>100ns
|
|
Input impedance
|
>10k, DC coupling
|
|
Response time
|
Sweep: <500μs (typical value)
|
|
Burst
|
<500ns (typical value)
|
Trigger Output:
|
Voltage level
|
TTL compatible
|
|
Pulse width
|
>400ns (typical value)
|
|
Output impedance
|
>50 (typical value)
|
|
Max. frequency
|
1MHz
|
SYNC Output:
|
Voltage level
|
TTL compatible
|
|
Pulse width
|
>50ns (typical value)
|
|
Output impedance
|
>50 (typical value)
|
|
Max. frequency
|
2MHz
|
Frequency Counter:
|
Measurement
|
Frequency, Cycle, Positive/negative pulse width, duty cycle
|
|
Frequency range
|
Single Channel: 100MHz~200MHz
|
|
Frequency resolution
|
6 bits/s
|
|
Voltage range and sensitivity (non-modulated signal)
|
|
Auto
|
1Hz~200MHz
|
200mVpp~5Vpp
|
|
Manual
|
DC coupling
|
DC deviation range
|
+1.5VDC
|
|
100mHz~100MHz
|
20mVRMS~ +5Vac+dc
|
|
100 mHz~200MHz
|
40mVRMS ~ +5Vac+dc
|
|
AC coupling
|
1Hz~100MHz
|
50mVRMS ~ +5Vac+dc
|
|
100mVRMS ~ +5Vac+dc
|
|
Pulse width and duty measurement
|
1Hz~10MHz (100mVpp~10Vpp)
|
|
Input adjustment
|
Input impedance
|
1MΩ
|
|
Coupling methods
|
AC, DC
|
|
High-frequency inhibition
|
High-frequency noise inhibition (HFR) open or close
|
|
Sensitivity
|
Three levels: low, middle, high
|
|
Trigger method
|
Trigger voltage level range: ±3V (0.1%~100%)
|
|
Resolution: 6mV
|
|
Adjust trigger voltage level manually/automatically
|
General Specifications:
|
Display
|
Display Type
|
3.5” TFT-LCD
|
|
Resolution
|
320x240xRGB
|
|
Contrast (typical value)
|
350:1
|
|
Backlight intensity (typical value)
|
300cd/mІ
|
|
Power
|
Voltage
|
100~240VAC RMS, 45~440Hz, CAT II
|
|
Consumption
|
<30W
|
|
Fuse
|
1A, 250V
|
|
Environment
|
Temperature
|
Operation: 0°C/50°C 35°F/122°F
|
|
Storage: -20°C/60°C -4°F/140°F
|
|
Cooling method
|
natural cooling down
|
|
Temperature range
|
Below +35°C: ≤90% relative humidity
|
|
+35°C~+50°C: ≤60% relative humidity
|
|
Altitude
|
Operation: below 3,000 meters
|
|
Storage: below 15,000 meters
|
|
Other
|
Dimension
|
Width: 229mm
|
|
Height: 105mm
|
|
Depth: 281mm
|
|
Weight
|
N.W: 2.8kg
|
|
G.W: 4.2kg
|
|
IP protection
|
IP2X
|
|
Calibration Cycle
|
1 year
|
Standard Accessories
- One Power Cord that fits the standard of destination country
- One Set Of UltraWave for WIN98/2000/XP arbitrary Waveform Drawing software
Optional Accessories

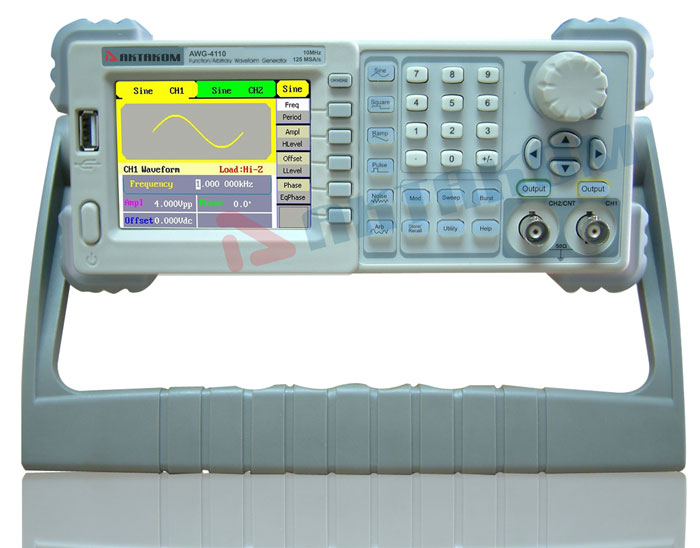

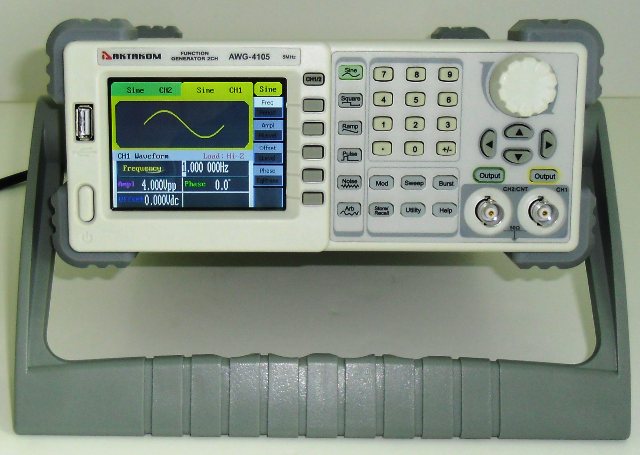

| AWG-4110 Function/Arbitrary Waveform Generator |
|
|

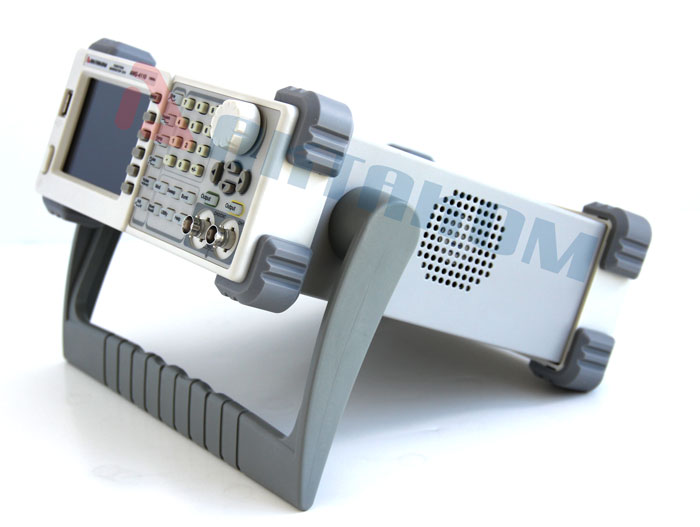

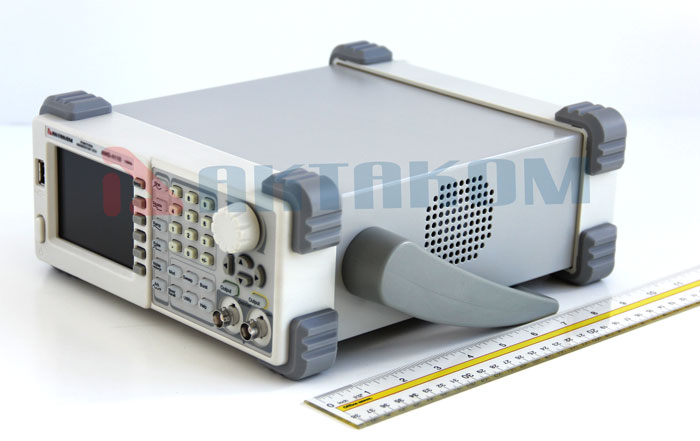

| AWG-4110 Function/Arbitrary Waveform Generator - Side view |
|
|

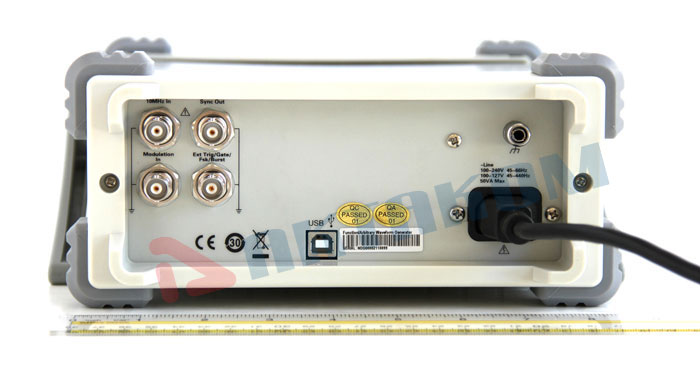

| AWG-4110 Function/Arbitrary Waveform Generator - Rear view |
|
|
|

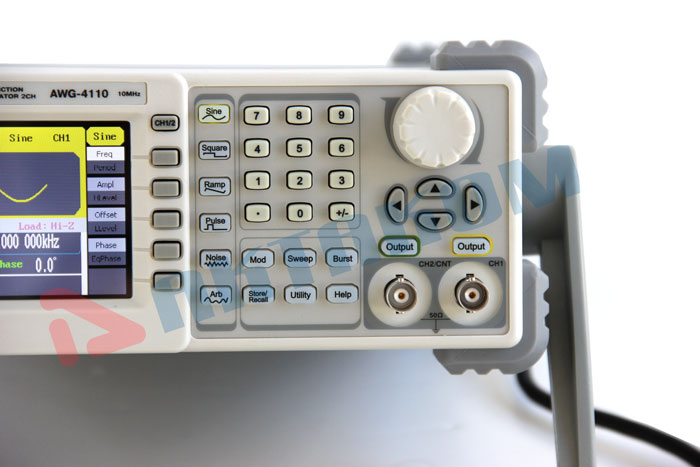

| AWG-4110 Function/Arbitrary Waveform Generator - Panel |
|
|

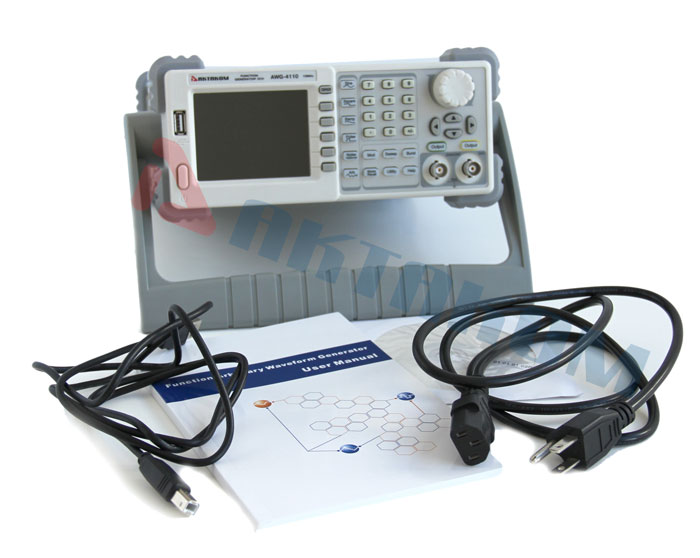

| AWG-4110 Function/Arbitrary Waveform Generator - With accessories |
|
|
AKTAKOM Wave Function Generator Fundamentals
Test equipment applications require signal stimuli varying from advanced communication signals to the playback of captured real-world analog signals. Signal source instruments generate the signal stimulus that is applied to a device under test (DUT). Consequently, signal sources comprise an important class of test instruments. AKTAKOM AWG-4105, AWG-4110 and AWG-4150 Series Function/Arbitrary Waveform Generators adopt the direct digital synthesis (DDS) technology, which can provide stable, high-precision, pure and low distortion signals. Its combination of excellent system features, easiness in usage and versatile functions makes this generator a perfect solution for your job now and in the future.
There is a general market consensus on the naming conventions for signal, function and waveform generators. A signal generator provides a high-fidelity sine wave signal ranging from low frequencies to many GHz. Attenuation, modulation, and sweeping are typical features of a signal generator. A function generator is a lower-frequency instrument that provides sine, square, pulse, triangle and ramp waveforms. Function generators in general provide these standard functions from DC to a few MHz, and typically provide large voltage ranges. AKTAKOM arbitrary waveform generator is a highly flexible signal source that generates any arbitrary waveform that has been constructed point-by-point in digital memory. The constructed waveform is converted to an analog signal using a digital-to-analog converter (DAC) operating at clock rates up to a design frecuency. The built-in AM, FM, PM, ASK, and FSK modulation functions generate modulated waveforms at ease, without the help of a separate modulating source. USB I/O is a standard accessory, while LAN and GPIB are optional. Remote instructions meet the SCPI specification requirements.
Standard Functions
Standard functions include the sine, square, pulse, triangle, and ramp waveforms that are commonly used in applications such as the testing of baseband, audio, sonar, ultrasound, and video components and circuits. Some tests that can be performed with standard function waveforms include frequency response characterization, device linearity characterization, digital logic generation, and DC-offset signal generation. The frequency response of a device under test (DUT) can be characterized by waveform responses

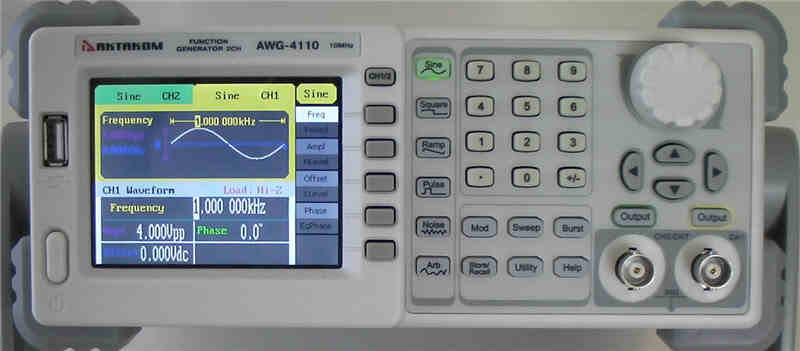

Sine
Square

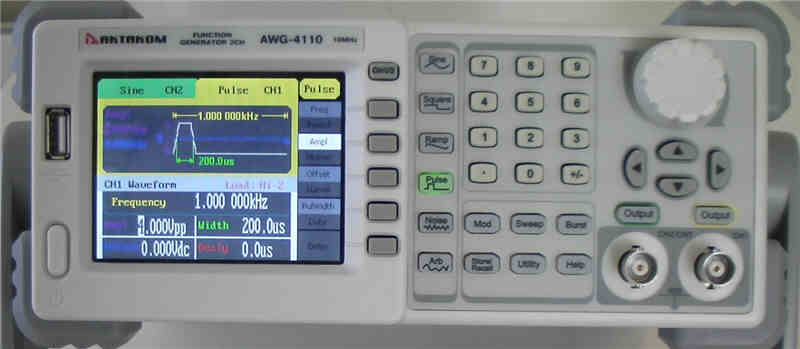

Pulse
Ramp

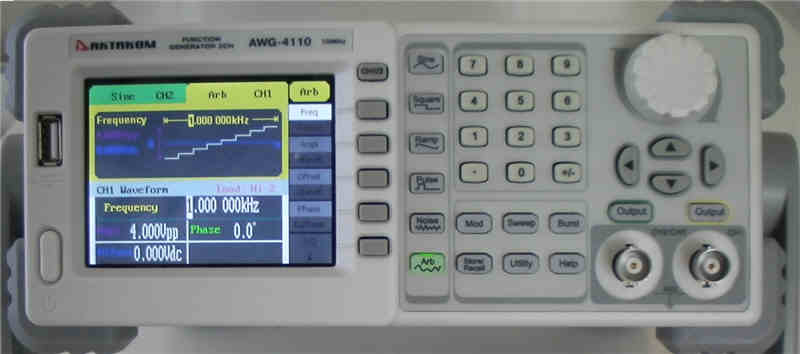

Arbitrary Waveforms
Arbitrary waveforms involve the point-by-point user-defined waveform synthesis. This provides unlimited flexibility to the user to create custom waveforms.

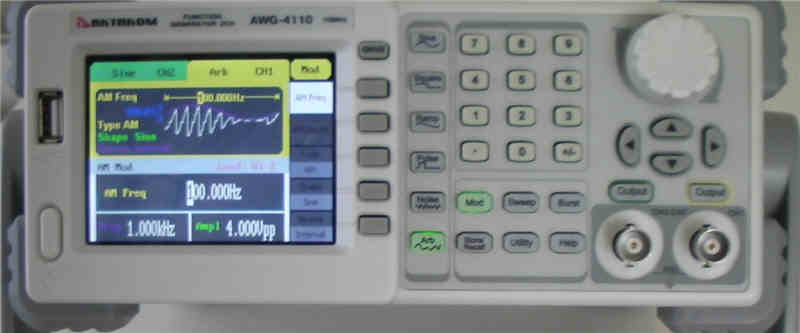

Modulate
The modulated waveform can be changed by modifying the parameters such as type, internal/external modulation, depth, frequency, waveform, etc. AWG Series can modulate waveform using AM, FM, PM, ASK and FSK. Sine, square, ramp or arbitrary waveforms can be modulated (pulse, noise and DC can not be modulated).
Sweep

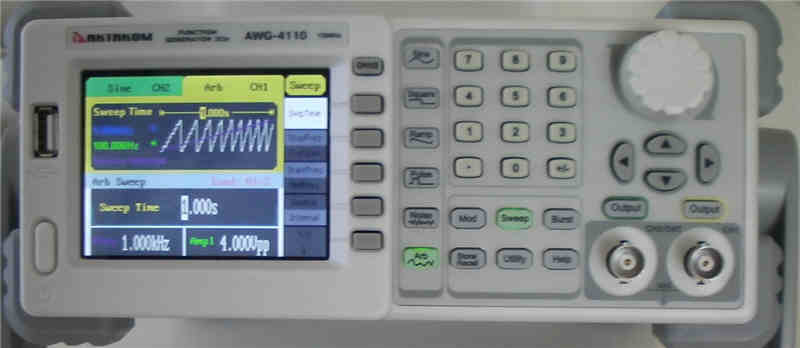

Pressing Sweep button, sine, square, ramp or arbitrary waveform can be swept (pulse, noise and DC can not be swept). In the sweep mode, AWG Series generate signal with variable frequencies.
Burst

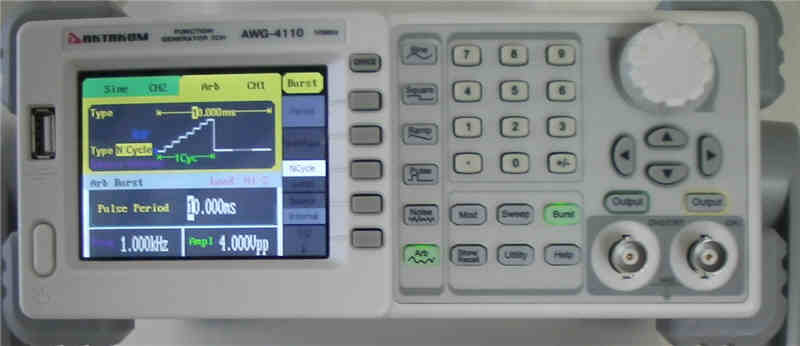

Pressing Burst button, burst for sine, square, ramp, pulse or arbitrary waveform can be generated. Output waveforms with set cycle times. Burst can last for certain times of waveform cycle (N-Cycle Burst) or be controlled by external gated signals (Gated Burst). Burst applies to all kinds of waveforms, but noise can only be used in gated burst. Generally it is called burst function within every signal generator.
Frequently Asked Questions
How to change my wave generator from Chinese to English?
How to generate 1 to 5.5 Hz frequency signal at a voltage level of 5 millivolts RMS?
AWG Series have included a frequency counter. How to use it?
| How to change my wave generator from Chinese to English? |
|

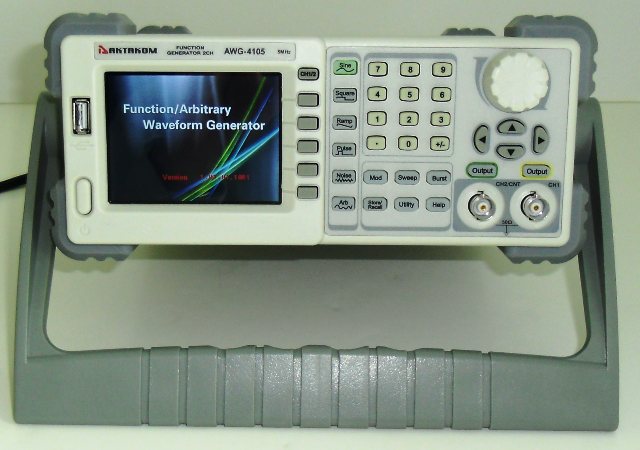

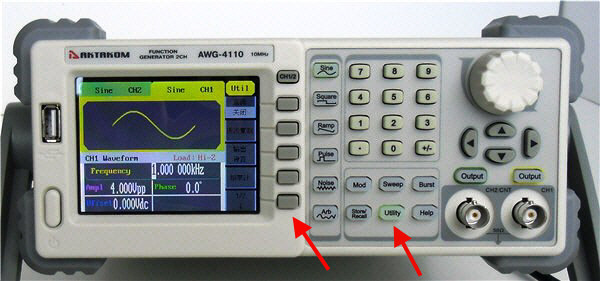

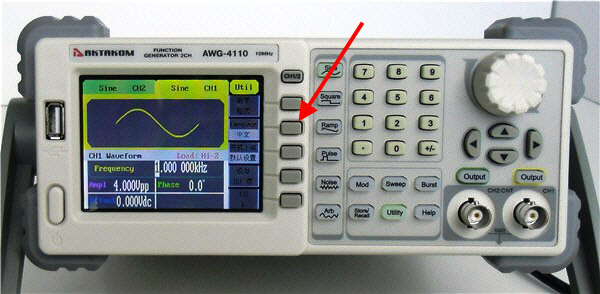

1. First press Utility button.
2. Second press the last button from the right side of the screen.
3. Finally press three times the second button on the right side of the screen.

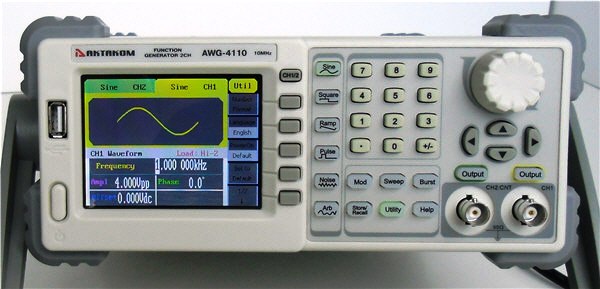

Now the wave generator is in English
Up
|
| How to generate 1 to 5.5 Hz frequency signal at a voltage level of 5 millivolts RMS? |
|

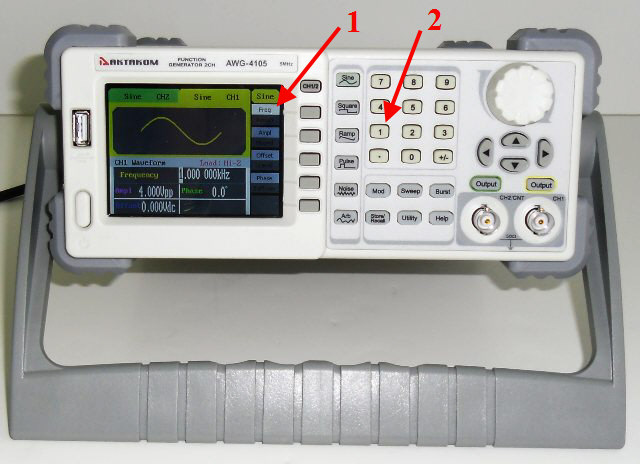

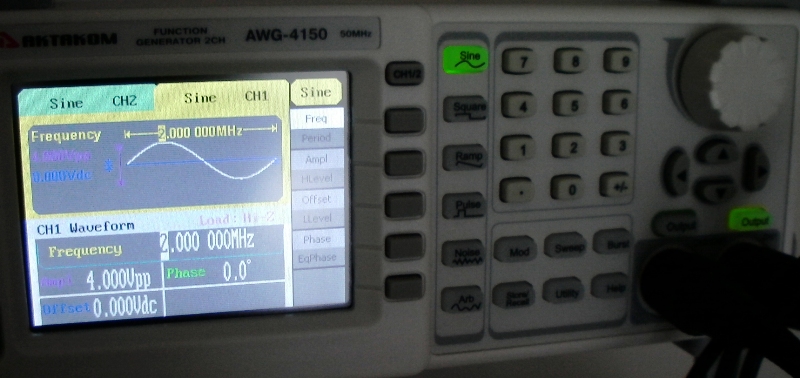

First select the button frequency and then the required amount:
1 Hz:
Now we input voltage:

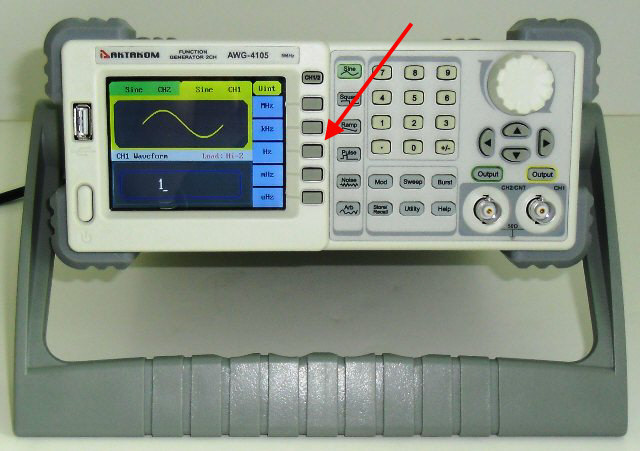

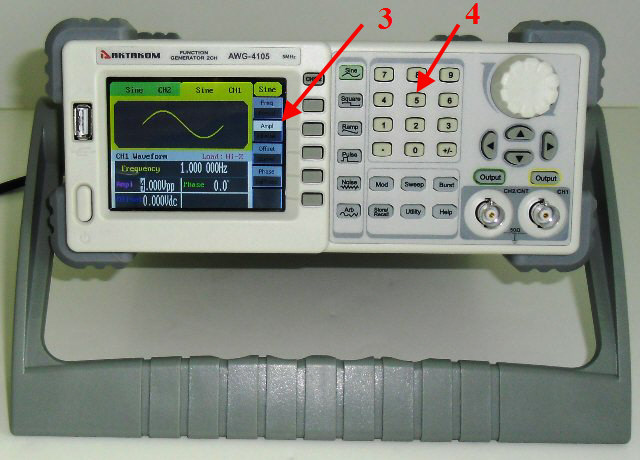

Third amplitude and forth the desired amount:
5 mVrms:

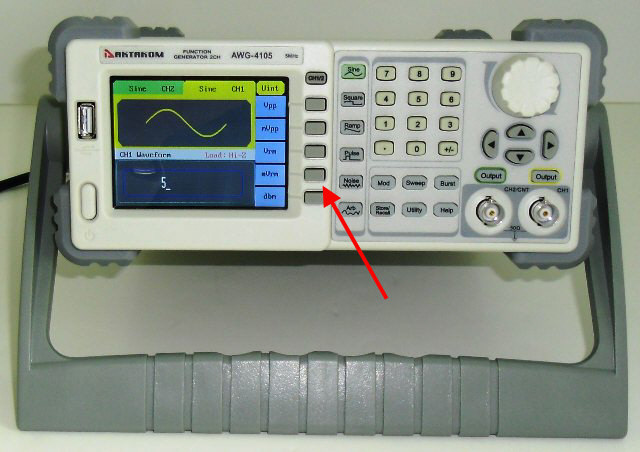

Final the output channel:
Up
|
| AWG Series have included a frequency counter. How to use it? |
|

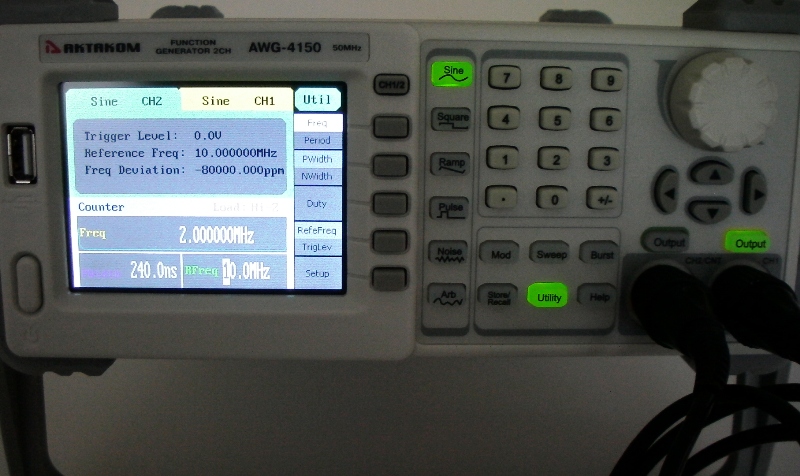

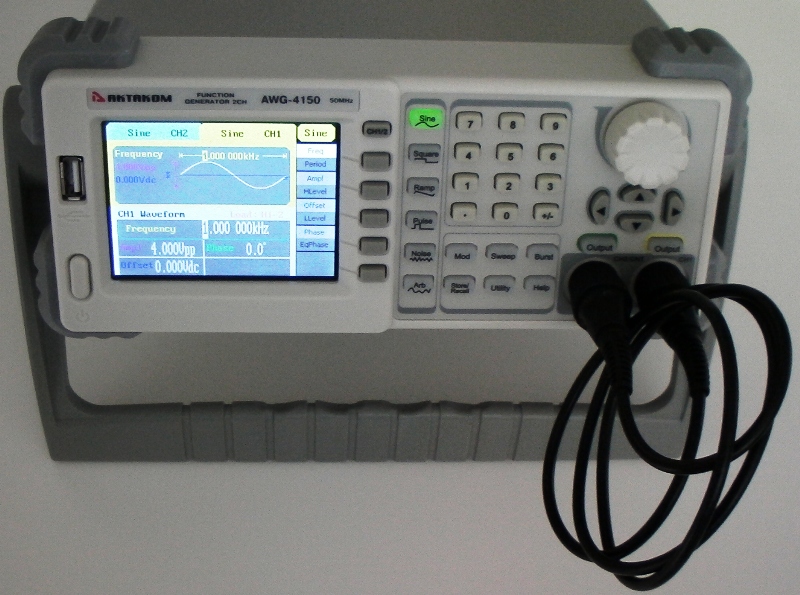

AWG Series have included a frequency counter which could measure frequency from 100mHZ to 200MHZ under CH2/CNT utility regime. For testing purpose you may connect CH1 and CH2 using a BNC cable.
Set any signal at CH1 with any frequency and press the Output button.
Now at CH2 (please press CH1/2 button) press button Utility and then following the column down press the button at the right of Counter. You will see the value of the frequency you programmed at CH1 immediately.
Up
|
Compatible Software
|
AKTAKOM AWG Manager Application Software AKTAKOM AWG Manager Application Software allows to create a waveform and send data from a PC to a waveform generator.
The application's special feature is the ability to use the light universal libusb driver for communication with the device, which implements the USBTMC driver functions. Work via the USB interface is implemented.
|
AKTAKOM presents the new function/arbitrary waveform generators
Back to the section
|
|
