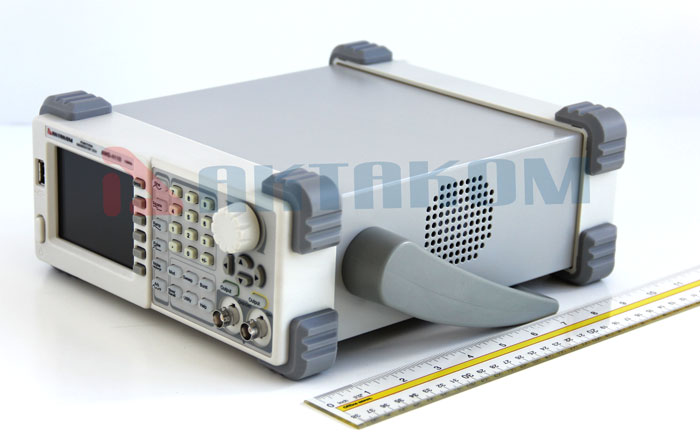

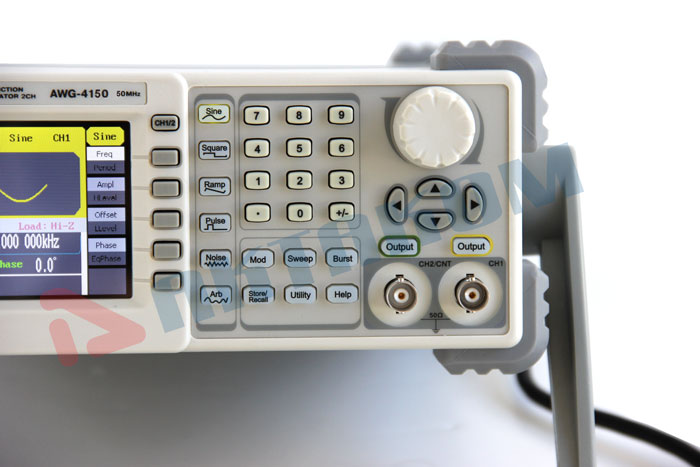

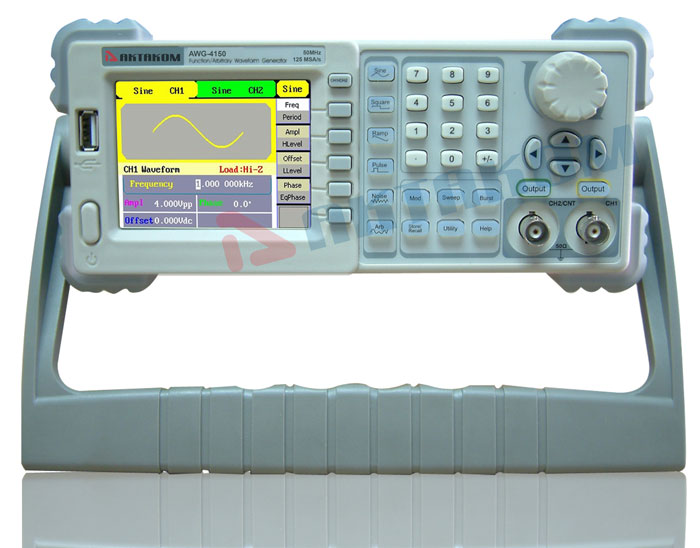

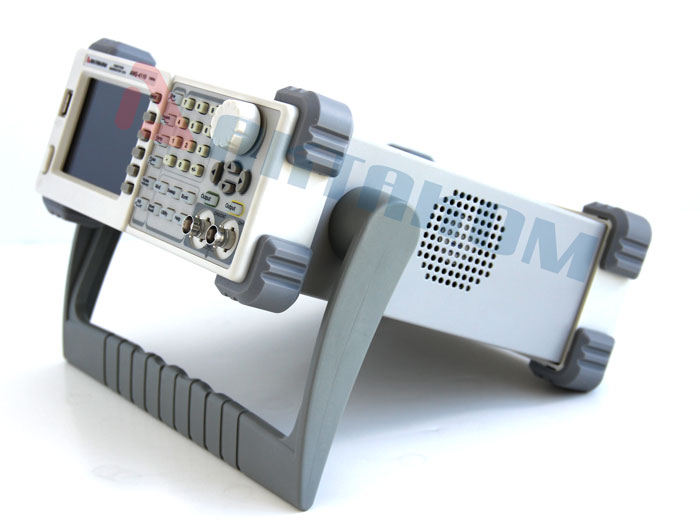

AWG-4150 Function/Arbitrary Waveform Generator

Dual channel output; Max. frequency output: 50MHz; Sample rate: 125MSa/s; Wave length: 16Kpts; Frequency resolution: 14 bit; Waveform: Sine wave, square wave, triangular wave, pulse wave, white noise, 48 types of function waveform; Gaussian white noise: 50MHz bandwidth (-3dB); Modulation: AM, FM, PM, ASK, FSK, PWM, etc.; Frequency counter: up to 200 MHz; Size: 9x4x11in/229x105x281mm (WxHxD); Weight: 6.1lb/2.8kg.

Manuals:
User's Manual (5.72 Mb)

Features

  • Apply DDS technology, double output, adjustable phase, the highest output frequency is 50MHz.
  • 125MSa/s sample rate, 14 bit vertical resolution, 16Kpts wave length.
  • Output 5 types of standard waveform, internally installed 48 types of waveform.
  • Internally installed high precision, wide frequency counter, frequency is up to 200MHz.
  • Abundant modulation function, sweep-frequency output, pulse train output.
  • Standard collocation connection: USB Device, USB Host, support U Disk storage and software upgrading.
  • GPIB and LAN ports are optional.
  • Can perfectly connect digital oscilloscope series, and support remote command control.

Specifications

Model AWG-4105 AWG-4110 AWG-4150
Highest frequency output 5MHz 10MHz 50MHz
Output channels 2
Sample rate 125MSa/s
Wave length 16Kpts
Frequency resolution 1μHz
Vertical resolution 14 bit
Duty Cycle 10% to 90%
Waveform Sine wave, square wave, triangular wave, pulse wave, white noise, 48 types of function waveform
Sine wave 1μHz~5MHz 1μHz~10MHz 1μHz~50MHz
Square wave 1μHz~5MHz 1μHz~10MHz 1μHz~25MHz
Pulse 1μHz~5MHz 1μHz~5MHz 1μHz~5MHz
Ramp 1μHz~300kHz 1μHz~300kHz 1μHz~300kHz
Gaussian white noise 5MHz bandwidth (-3dB) 10MHz bandwidth (-3dB) 50MHz bandwidth (-3dB)
Wave 1μHz~5MHz 1μHz~5MHz 1μHz~5MHz
Modulation function AM, FM, PM, ASK, FSK, PWM, etc.
Other functions Counter frequency is up to 200MHz
Standard configuration USB 2.0 Host FAT32 & USB 2.0 Device
Optional port GPIB (IEEE-488), LAN
Product classify function/arbitrary waveform generator
Size (width×height×depth) 229mm×105mm×281mm
Accessories Power Cord, USB Cable, Manual, Application Software CD

Frequency specifications:

Model AWG-4105 AWG-4110 AWG-4150
Highest frequency output 5MHz 10MHz 50MHz
Waveform Sine, Square, Ramp, Triangular, Pulse, Noise, Arbitrary
Sine wave 1μHz~5MHz 1μHz~10MHz 1μHz~50MHz
Square wave 1μHz~5MHz 1μHz~10MHz 1μHz~25MHz
Pulse 1μHz~5MHz 1μHz~5MHz 1μHz~5MHz
Ramp 1μHz~300kHz 1μHz~300kHz 1μHz~300kHz
Ramp/Triangular 1μHz~300kHz 1μHz~300kHz 1μHz~300kHz
Wave 1μHz~5MHz 1μHz~5MHz 1μHz~5MHz
Gaussian white noise 5MHz (-3dB) 10MHz (-3dB) 50MHz (-3dB)
Arbitrary waveform 1μHz~5MHz 1μHz~5MHz 1μHz~5MHz
Resolution 1μHz
Accuracy Within 90 days +50ppm within 1 year +100ppm 18°C~28°C
Temperature Coefficient <5ppm/°C

Sine Wave Spectrum Purity:

Harmonic Distortion CH1 CH2
<1Vpp >1Vpp <1Vpp >1Vpp
DC-1MHz -55dBC -45dBc -55dBC -45dBC
1MHz-5MHz -55dBC -40dBC -55dBC -40dBC
5MHz-25MHz -50dBC -35dBC -50dBC -35dBC
Total harmonic waveform distortion DC~20kHz, 1Vpp<0.2%
Spurious signal (non-harmonic) DC~1MHz <-70dBc 1MHz~10MHz <-70dBc +6dB/spectrum phase
Phase noise 10kHz Offset, -108dBc/Hz (typical value)

Square Wave:

Rise/fall time (10%~90%, typical value, 1kHz) <12ns
Overshoot <5% (typical value, 1kHz, 1Vpp)
Duty 1μHz~10MHz 20%~80%
10MHz (exclude)~20MHz 40%~60%
20MHz (exclude)~25MHz 50%
Asymmetric (50% Duty Cycle) Cycle 1% + 20ns (typical value, 1kHz, 1Vpp)
Jitter 6ns + cycle 0.1% (typical value, 1kHz, 1Vpp)

Ramp Wave:

Linearity < Peak value output 0.1%, (typical value, 1kHz, 1Vpp, symmetric 100%)
Symmetry 0% to 100%

Pulse Wave Specification:

Pulse width Max. 2000s / Min. 20ns, Min. resolution 1ns
Rise/Fall time (10%-90%, typical value, 1kHz, 1Vpp) same as square waveform
Overshoot <5%
Jitter 6ns + cycle 100ppm

Arbitrary Waveform Specification:

Waveform length 16k points 16k points
Vertical resolution 14 bits (include symbol) 14 bits (include symbol)
Sample rate 125MSa/s 125MSa/s
Min. Rise/Fall time 20ns (typical value) 20ns (typical value)
Jitter (RMS) 6ns + 30ppm (typical) 6ns + 30ppm (typical)
Storage in non-volatile RAM memory (10 in total) 10 waveforms 10 waveforms

Output Specification:

Output CH1 CH2
Amplitude 2mVpp-10Vpp (50ohm, <10MHz)
2mVpp-5Vpp (50ohm, >10MHz)
4mVpp~20Vpp (high impedance) <10MHz
4mVpp-10Vpp (high impedance) >10MHz
2mVpp-3Vpp (50ohm, >10MHz)
4mVpp~6Vpp (high impedance)
Vertical resolution (100kHz sine waveform) +(1%+1mVpp of setting value) +(1%+1mVpp of setting value)
Amplitude flatness (compared to 100kHz sine waveform, 5Vpp) <100kHz 0.1dB <100kHz 0.1dB
100kHz~5 MHz 0.15dB 100kHz~5MHz 0.15dB
>5MHz 0.3dB >5MHz 0.3dB

DC Offset:

Range (DC) 5V (50ohm)
10V (high impedance)
1.5V (50ohm)
3V (high impedance)
Offset accuracy ±(|setting offset value|1%+1mV) ±(|setting offset value|1%+1mV)

Waveform Output:

Impedance 50ohm (typical value) 50ohm (typical value)
Protection short-circuit protection short-circuit protection

AM Modulation (CH1/CH2):

Carrier Sine, Square, Ramp, Arbitrary (except DC)
Source Internal/External
Modulation waveform Sine, Square, RAMP, Noise, Arbitrary (2mHz~20kHz)
Modulation depth 0%~120%

FM Modulation (CH1/CH2):

Carrier Sine, Square, Ramp, Arbitrary (except DC)
Source Internal/External
Modulation waveform Sine, Square, RAMP, Triangle, Gaussian Noise, Arbitrary (2mHz~20kHz)
Frequency deviation AWG-4105 0~2.5MHz
AWG-4110 0~5MHz
AWG-4150 25MHz

PM Modulation (CH1/CH2):

Carrier Sine, Square, Triangle, Arbitrary (except DC)
Source Internal/External
Modulation waveform Sine, Square, RAMP, Triangle, Gaussian Noise, Arbitrary (2mHz~20kHz)
Deviation 0~360°

FSK Modulation (CH1/CH2):

Carrier Sine, Square, Triangle, Arbitrary (except DC)
Source Internal/External
Modulation waveform 50% duty square waveform (2mHz~50kHz)

ASK Modulation (CH1/CH2):

Carrier Sine, Square, Triangle, Arbitrary (except DC)
Source Internal/External
Modulation waveform 50% duty square waveform (2mHz~50kHz)

PWM Modulation (CH1/CH2):

Frequency 500μHz~20kHz
Source Internal/External
Modulation waveform Sine, Square, RAMP, Triangle, Arbitrary (except DC)
External -6~+6V (corresponding modulation depth 0%~100%)

Sweep (CH1/CH2):

Carrier Sine, Square, RAMP, Triangle, Arbitrary (except DC)
Type linear/logarithmic
Direction Up/down
Sweep time 1ms~500s +0.1%
Trigger source Manual, external, internal

Burst (CH1/CH2):

Waveform Sine, Square, RAMP, Triangle, Arbitrary (except DC)
Type Count (1~50,000 cycles), infinite, Gated
Start/Stop phase 0°~360°
Internal cycle 1ms~500s +0.1%
Gated trigger External trigger
Trigger source Manual, external, internal

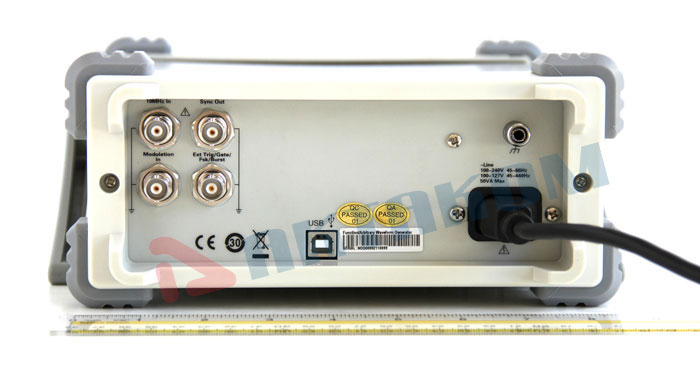

Rear Panel Connector:

External modulation ±6Vpk = 100% modulation depth 5kΩ input impedance
External trigger TTL compatible
The external input voltage can’t be over ±6V, otherwise instrument gets damaged.

Trigger Input:

Voltage level input TTL compatible
Slope >100ns
Input impedance >10k, DC coupling
Response time Sweep: <500μs (typical value)
Burst <500ns (typical value)

Trigger Output:

Voltage level TTL compatible
Pulse width >400ns (typical value)
Output impedance >50 (typical value)
Max. frequency 1MHz

SYNC Output:

Voltage level TTL compatible
Pulse width >50ns (typical value)
Output impedance >50 (typical value)
Max. frequency 2MHz

Frequency Counter:

Measurement Frequency, Cycle, Positive/negative pulse width, duty cycle
Frequency range Single Channel: 100MHz~200MHz
Frequency resolution 6 bits/s
Voltage range and sensitivity (non-modulated signal)
Auto 1Hz~200MHz 200mVpp~5Vpp
Manual DC coupling DC deviation range +1.5VDC
100mHz~100MHz 20mVRMS~ +5Vac+dc
100 mHz~200MHz 40mVRMS ~ +5Vac+dc
AC coupling 1Hz~100MHz 50mVRMS ~ +5Vac+dc
100mVRMS ~ +5Vac+dc
Pulse width and duty measurement 1Hz~10MHz (100mVpp~10Vpp)
Input adjustment Input impedance 1MΩ
Coupling methods AC, DC
High-frequency inhibition High-frequency noise inhibition (HFR) open or close
Sensitivity Three levels: low, middle, high
Trigger method Trigger voltage level range: ±3V (0.1%~100%)
Resolution: 6mV
Adjust trigger voltage level manually/automatically

General Specifications:

Display Display Type 3.5” TFT-LCD
Resolution 320x240xRGB
Contrast (typical value) 350:1
Backlight intensity (typical value) 300cd/m²
Power Voltage 100~240VAC RMS, 45~440Hz, CAT II
Consumption <30W
Fuse 1A, 250V
Environment Temperature Operation: 0°C/50°C 35°F/122°F
Storage: -20°C/60°C -4°F/140°F
Cooling method natural cooling down
Temperature range Below +35°C: ≤90% relative humidity
+35°C~+50°C: ≤60% relative humidity
Altitude Operation: below 3,000 meters
Storage: below 15,000 meters
Other Dimension Width: 229mm
Height: 105mm
Depth: 281mm
Weight N.W: 2.8kg
G.W: 4.2kg
IP protection IP2X
Calibration Cycle 1 year

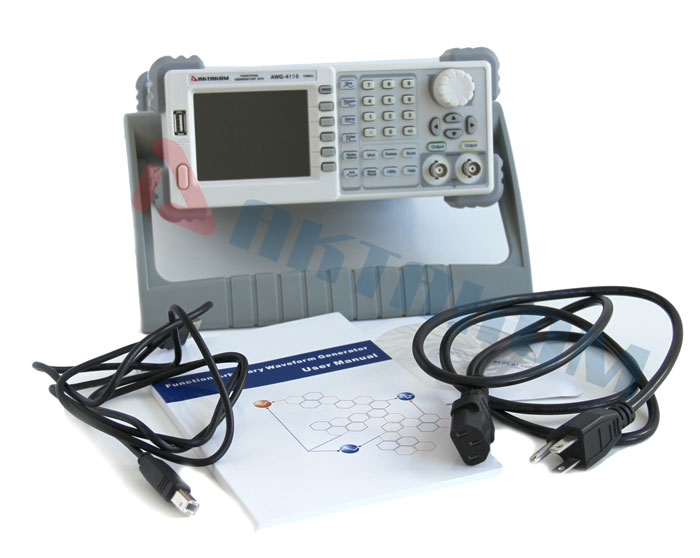

Standard Accessories

  • One Power Cord that fits the standard of destination country

  • One USB Cable

  • One User Manual

  • One Set Of UltraWave for WIN98/2000/XP arbitrary Waveform Drawing software

Optional Accessories

  • BNC Coaxial cable

  • GPIB/LAN Interface

AKTAKOM Wave Function Generator Fundamentals

Test equipment applications require signal stimuli varying from advanced communication signals to the playback of captured real-world analog signals. Signal source instruments generate the signal stimulus that is applied to a device under test (DUT). Consequently, signal sources comprise an important class of test instruments. AKTAKOM AWG-4105, AWG-4110 and AWG-4150 Series Function/Arbitrary Waveform Generators adopt the direct digital synthesis (DDS) technology, which can provide stable, high-precision, pure and low distortion signals. Its combination of excellent system features, easiness in usage and versatile functions makes this generator a perfect solution for your job now and in the future.

There is a general market consensus on the naming conventions for signal, function and waveform generators. A signal generator provides a high-fidelity sine wave signal ranging from low frequencies to many GHz. Attenuation, modulation, and sweeping are typical features of a signal generator. A function generator is a lower-frequency instrument that provides sine, square, pulse, triangle and ramp waveforms. Function generators in general provide these standard functions from DC to a few MHz, and typically provide large voltage ranges. AKTAKOM arbitrary waveform generator is a highly flexible signal source that generates any arbitrary waveform that has been constructed point-by-point in digital memory. The constructed waveform is converted to an analog signal using a digital-to-analog converter (DAC) operating at clock rates up to a design frecuency. The built-in AM, FM, PM, ASK, and FSK modulation functions generate modulated waveforms at ease, without the help of a separate modulating source. USB I/O is a standard accessory, while LAN and GPIB are optional. Remote instructions meet the SCPI specification requirements.

Standard Functions

Standard functions include the sine, square, pulse, triangle, and ramp waveforms that are commonly used in applications such as the testing of baseband, audio, sonar, ultrasound, and video components and circuits. Some tests that can be performed with standard function waveforms include frequency response characterization, device linearity characterization, digital logic generation, and DC-offset signal generation. The frequency response of a device under test (DUT) can be characterized by waveform responses

Sine

Square

Pulse

Ramp

Arbitrary Waveforms

Arbitrary waveforms involve the point-by-point user-defined waveform synthesis. This provides unlimited flexibility to the user to create custom waveforms.

Modulate

The modulated waveform can be changed by modifying the parameters such as type, internal/external modulation, depth, frequency, waveform, etc. AWG Series can modulate waveform using AM, FM, PM, ASK and FSK. Sine, square, ramp or arbitrary waveforms can be modulated (pulse, noise and DC can not be modulated).

Sweep

Pressing Sweep button, sine, square, ramp or arbitrary waveform can be swept (pulse, noise and DC can not be swept). In the sweep mode, AWG Series generate signal with variable frequencies.

Burst

Pressing Burst button, burst for sine, square, ramp, pulse or arbitrary waveform can be generated. Output waveforms with set cycle times. Burst can last for certain times of waveform cycle (N-Cycle Burst) or be controlled by external gated signals (Gated Burst). Burst applies to all kinds of waveforms, but noise can only be used in gated burst. Generally it is called burst function within every signal generator.

Frequently Asked Questions

  • How to change my wave generator from Chinese to English?
  • How to generate 1 to 5.5 Hz frequency signal at a voltage level of 5 millivolts RMS?
  • AWG Series have included a frequency counter. How to use it?

  • How to change my wave generator from Chinese to English?

    1. First press Utility button.

    2. Second press the last button from the right side of the screen.

    3. Finally press three times the second button on the right side of the screen.

    Now the wave generator is in English


    Up

    How to generate 1 to 5.5 Hz frequency signal at a voltage level of 5 millivolts RMS?

    First select the button frequency and then the required amount:

    1 Hz:

    Now we input voltage:

    Third amplitude and forth the desired amount:

    5 mVrms:

    Final the output channel:


    Up

    AWG Series have included a frequency counter. How to use it?

    AWG Series have included a frequency counter which could measure frequency from 100mHZ to 200MHZ under CH2/CNT utility regime. For testing purpose you may connect CH1 and CH2 using a BNC cable.

    Set any signal at CH1 with any frequency and press the Output button.

    Now at CH2 (please press CH1/2 button) press button Utility and then following the column down press the button at the right of Counter. You will see the value of the frequency you programmed at CH1 immediately.


    Up

    Compatible Software


    AKTAKOM AWG Manager Application Software
    AKTAKOM AWG Manager Application Software allows to create a waveform and send data from a PC to a waveform generator.
