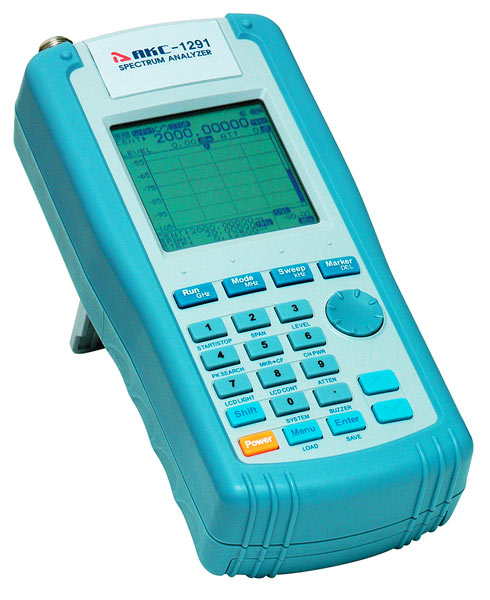

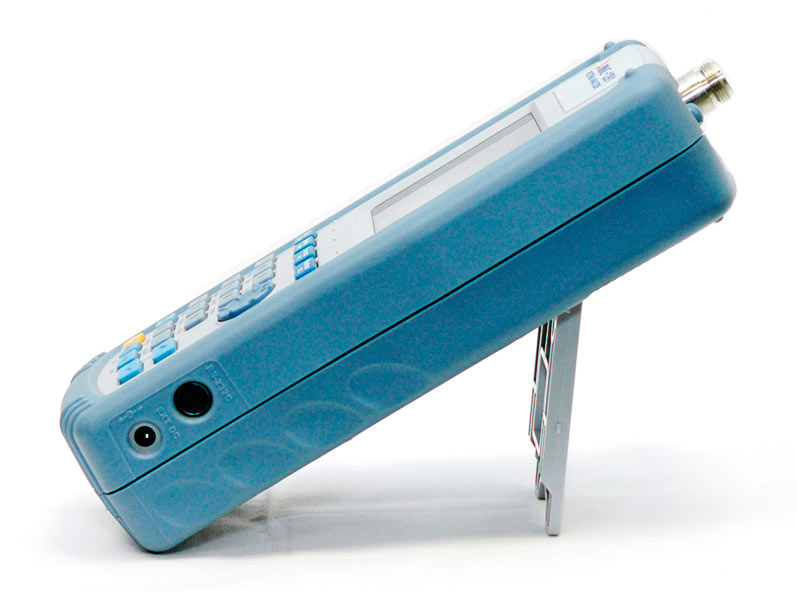

ASA-1291 Handheld Spectrum Analyzer

Range: 100kHz to 2900MHz; Resolution: 3.125 kHz (Multiple of 3.125kHz); Accuracy: TXO: ±3PPM / Display: ±1.5PPM; Step Range: 6.25kHz; Measurement Range: -20dBm to -110dBm; Reference Level Ranges: 120dBm to -90dBm; Log Scale: 0.2dB/DIV min. in 0.25dB Steps (5 Display Division); Trigger Source: Narrow FM / Wide FM / AM / SSB; Trigger Level: TTL Level; Trace Storage/Setup Storage: Max 100 Waveforms and 100 States; Display Resolution: 192x192 pixels; Operation Temperature: 0°C to 40°C; Storage Temperature: 10°C to 50°C; Dimensions: 102x229x45 mm / 4x9x1.8 in; Weight: appr. 700g / 2.2lb (except antenna).

Manuals:

User's Manual (4.34 Mb)

ASA-1291 Handheld Spectrum Analyzer is the compact, lightweight, portable, and cost-effective equipment with various measurement functions such as Marker, Delta Marker, Peak Search, Channel Power measurement etc. It is the ideal tool for field RF technicians to test, install and maintain Wireless Mobile Telecommunications Systems, Cable Systems, Satellite Antennas, RFID and Jammer Systems etc.

Features

100kHz to 2.9GHz measurement range
Measures and demodulates W-FM /N-FM /AM /SSB signals
Sweep mode (Free Run, Single Run, Squelch Run)
100 Saves and loads for waveforms and settings
Marker /Delta Marker /Squelch Adjustment Function
Peak Search Function
Marker To Center Function
Channel Power Measurement Function
RS-232 Interface

Applications

Field wireless Equipment Installation and Maintenance
General field use for Communications Installation and Maintenance
Cable Installation and Maintenance
RFID Tag RF Strength Measurement
Jammer (for hospital, theatre, & military) Performance Test
Satellite Antenna Installation and Maintenance
Tapping, Hidden Camera Detection

Specifications

Frequency

Range: 100kHz to 2900MHz
Resolution: 3.125kHz

Accuracy:

TXO: ±3PPM
Display: ±1.5PPM

Modulation Bandwidth:

Wide FM : Apprx. 180kHz (-6dB)
Narrow FM : Apprx 12.5kHz / AM / SSB: Apprx 2.4kHz(-6dB)

Step Range: 6.25kHz, 12.5kHz
Frequency Selection: Start / Stop / Center span setup

Amplitude

Measurement Range: -20dBm to -110dBm

Average Noise Level:

Wide FM / AM / SSB: -100dBm
Narrow FM:-110dBm

Amplitude Units: dBm, dBmV, dBuV

Reference Level Accuracy:

Wide FM/AM/SSB Typical ±1.5dB (20°C ~30°C)
Narrow FM Typical ±1.5dB (25°C)

Reference Level Ranges: 120dBm to -90dBm
Log Scale: 0.2 dB/DIV min. in 0.25 dB Steps (5 Display Division)

Internal Atten: 10 dB, 20 dB, 30 dB, 35 dB

Sweep

Speed: Min. 500ms
Trigger Source: Narrow FM / Wide FM / AM / SSB
Trigger Mode: Free Run/ Single Run/ Continous Wave/ Squelch Run
Trigger Level: TTL Level
Marker Modes: Marker/ Delta Marker/ Peak Search/ Marker to Center/ Channel Power

Memory

Trace Storage/Setup Storage: Max 100 Waveforms and 100 States

Display

Type: Mono STN LCD
Display Resolution: 192x192 pixels
LCD BackLight: ON/ OFF

Input

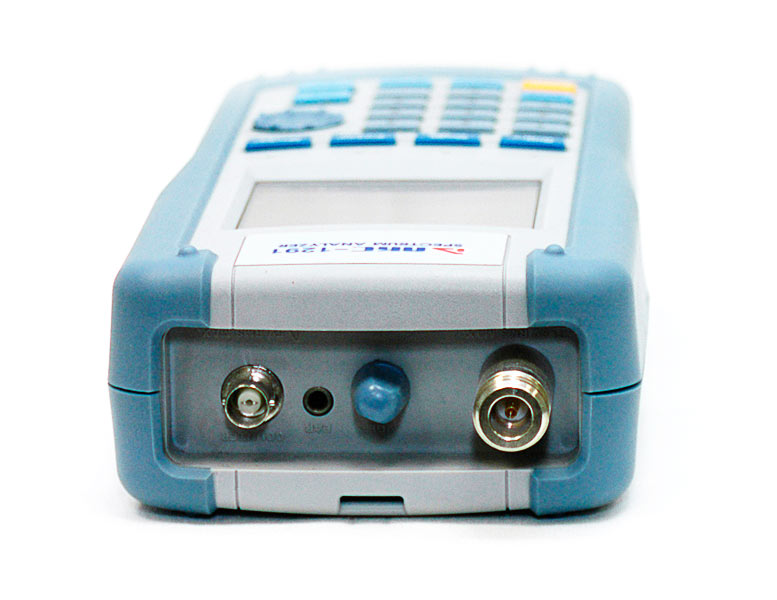

RF Input Connector: N Type Female, 50ohms
Maximum Input Power: Max+10dBm, 5VRMS

Frequency

Range: 35MHz to 2900MHz
RF Input Connector: BNC Type Female, 50 ohms (Standard)

General Specification

Operation Temperature: 0°C to 40°C
Humidity: 35 RH to 85 RH
Storage Temperature: 10°C to 50°C

Power

Power Source: AA Type Ni-MH Rechargeable Battery x 6pcs

Power Adaptor:

SMPS Type AC Adapter DC 12V
Car-adapter DC 12V

Auto Power: OFF/ 5 min/ 10 min/ 20 min/ 30 min

Other

Speaker: 0.5W into 8 ohms Speaker
Antenna: Dipole Antenna (Receive Only)
RS-232 Interface: 9600 bps, 19200 bps, 38400 bps, 57600 bps, and 115200 bps
8-pin MINI-DIN Connector

Dimensions: 102x229x45mm / 4x9x1.8in

Weight: appr. 700g / 1.5lb (except antenna)
