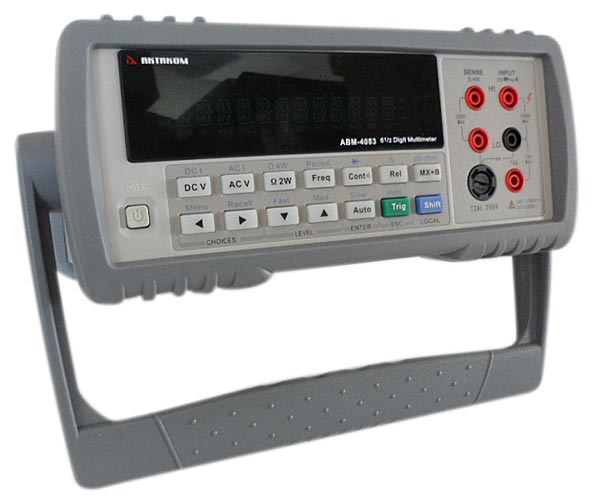

ABM-4083 Benchtop Digital Multimeter
ABM-4083 Benchtop Digital Multimeter
|
|
Benchtop Digital multimeter. Auto and manual measurement range selection. VFD 6 1/2 digits display (1200000 counts). TrueRMS. Measurements: DC voltage 1μV...1000V, AC voltage 1μV...750V (frequency up to 300kHz), DC and AC current 10nA...3A, Resistance 0,1 mΩ...100MΩ, frequency/period. Basic accuracy 0,0035%. Continuity test, Diod test. Mathematics calculation functions: dBm, mX+b, %, dB, comparator function, MAX/MIN. RS-232, USB Interfaces. Dimensions 8.9x3.9x14in / 225×100×355mm, Weight 5.5lb/2.5kg.
Manuals:
|
|
Digital multimeter AKTAKOM ABM-4083 is a benchtop instrument designed for AC and DC voltage and current, resistance and frequency measurements. Its 12 different measurement functions: DCV/ACV, DCI/ACI, Ω2W/Ω4W, frequency/period, diode test, continuity, dB/dBm cover all basic measurement needs. USB and RS-232 Interfaces provide easy system communication.
Features:
- 12 different measurement functions: DCV/ACV, DCI/ACI, Ω2W/Ω4W, frequency/period, diode, continuity, dB/dBm, etc
- Maximum reading of 1200000 digits
- DCV measurement accuracy up to 0.0035%, resolution of 1μV DCV
- True RMS AC voltage and current measurements, frequency up to 300kHz
- MAX Measurement rate: 45 times/second
- Equal accuracy frequency measurement more than 1MHz, minimum resolution of 10μHz
- Good reading stability, high accuracy and high measurement rate
- High-brightness vacuum fluorescent display (VFD), 6 1/2 digits
- Zeroing (REL) mode to eliminate residual reading
- 2W and 4W resistance measurement modes selectable
- Build-in mathematics calculation functions: mX+b, %, dB, dBm
- 512 readings storage and MAX/MIN/AVER/STD statistics
- HI/IN/LO comparator function
- USB and RS-232 interfaces for convenient system communication
- Calibration performed without opening the cover
- 10 sets of measurement states saved and recalled up
Specifications
|
Full-scal reading & reading rate (readings/second)
|
|
Speed
|
Slow
|
Medium
|
Fast
|
|
Full-scale reading (digits)
|
1199,999
|
119,999
|
11,999
|
|
Reading rate (readings/second)
|
DCV, DCI
|
3.6
|
13
|
45
|
|
ACV, ACI
|
2
|
3.9
|
22.7
|
|
Ω-2W
|
3.6
|
13
|
45
|
|
Ω-4W
|
2.7
|
10
|
32.9
|
|
DCV
|
|
Range
|
MAX. reading
|
Resolution
|
Accuracy (1 year)
|
Input impedance
|
|
100mV
|
119.999
|
0.1μV
|
±(0.0065+0.0045)
|
>10GΩ
|
|
1V
|
1.19999
|
1μV
|
±(0.0040+0.0009)
|
>10GΩ
|
|
10V
|
11.9999
|
10μV
|
±(0.0035+0.0005)
|
>10GΩ
|
|
100V
|
119.999
|
100μV
|
±(0.0045+0.0006)
|
10MΩ
|
|
1000V
|
1010.00
|
1mV
|
±(0.0055+0.0015)
|
10MΩ
|
|
DCI
|
|
Range
|
MAX.reading
|
Resolution
|
Accuracy (1 year)
|
Load voltage/shunt resistance
|
|
10mA
|
11.9999
|
10nA
|
±(0.050+0.004)
|
<0.15V/10Ω
|
|
100mA
|
119.999
|
0.1μA
|
±(0.050+0.004)
|
<1.5V/10Ω
|
|
1A
|
1.19999
|
1μA
|
±(0.080+0.004)
|
<0.3V/0.1Ω
|
|
3A
|
3.03000
|
10μA
|
±(0.120+0.015)
|
<0.15V/0.1Ω
|
|
AC voltage (ACV true-rms measurement)
|
|
Range
|
10mV
|
1V
|
10V
|
100V
|
750V
|
|
MAX.reading
|
11.9999
|
1.19999
|
11.9999
|
119.999
|
757.5
|
|
Resolution
|
0.1μV
|
1μV
|
10μV
|
0.1mV
|
1mV
|
|
Accuracy(1 year)
|
10~20Hz
|
±(1.50+0.20)
|
|
20~50Hz
|
±(0.50+0.10)
|
|
50~100Hz
|
±(0.10+0.03)
|
|
100~20kHz
|
±(0.05+0.03)
|
±(0.08+0.03)
|
|
20k~50kHz
|
±(0.15+0.05)
|
±(0.11+0.05)
|
±(0.18+0.05)
|
------
|
|
50k~100kHz
|
±(0.60+0.08)
|
------
|
|
100k~300kHz
|
±(4.00+0.05)
|
------
|
------
|
|
AC current (ACI true-rms measurement)
|
|
Range
|
10mA
|
1A
|
3A
|
|
MAX. reading
|
11.9999
|
1.19999
|
3.03000
|
|
Resolution
|
10nA
|
0.1μA
|
10μA
|
|
Accuracy (1 year)
|
10~20Hz
|
±(1.50+0.10)
|
|
20~50Hz
|
±(0.50+0.03)
|
±(0.60+0.05)
|
|
50~100Hz
|
±(0.10+0.3)
|
±(0.12+0.03)
|
±(0.15+0.03)
|
|
100~2kHz
|
±(0.05+0.03)
|
±(0.10+0.04)
|
±(0.12+0.04)
|
|
2k~5kHz
|
±(0.10+0.03)
|
±(0.50+0.03)
|
±(0.60+0.03)
|
|
5k~10kHz
|
±(0.20+0.03)
|
±(2.00+0.10)
|
±(2.50+0.10)
|
|
Load voltage/shunt resistance
|
<0.15V/10Ω
|
<0.3V/0.1Ω
|
<1V/0.1Ω
|
|
Resistance (Ω2W/Ω4W)
|
|
Range
|
MAX.reading
|
Resolution
|
Measurement current
|
Accuracy (1 year)
|
|
100.000Ω
|
119.999
|
100μΩ
|
1mA
|
±(0.010+0.004)
|
|
1.00000kΩ
|
1.19999
|
1mΩ
|
1mA
|
±(0.010+0.001)
|
|
10.0000kΩ
|
11.9999
|
10mΩ
|
100μA
|
±(0.010+0.001)
|
|
100.000kΩ
|
119.999
|
100mΩ
|
10μA
|
±(0.010+0.001)
|
|
1.00000MΩ
|
1.19999
|
1Ω
|
10μA
|
±(0.010+0.001)
|
|
10.0000MΩ
|
11.9999
|
10Ω
|
7.0xRx/(10M+Rx)
|
±(0.040+0.001)
|
|
100.000MΩ
|
119.999
|
100Ω
|
7.0xRx/(10M+Rx)
|
±(0.800+0.010)
|
|
Frequency
|
|
Range
|
MAX.reading
|
Resolution
|
Accuracy(1 year)
|
Sensitivity(sine wave)
|
|
5~10Hz
|
9.99999
|
1μHz
|
±0.050
|
200mV rms
|
|
10~100Hz
|
99.9999
|
10μHz
|
±0.010
|
40mV rms
|
|
100~100kHz
|
99.9999
|
10mHz
|
±0.005
|
40mV rms
|
|
100k~1MHz
|
999.999
|
0.1Hz
|
±0.005
|
100mV rms
|
- Operating temperature & humidity: 0°C...40°C, ≤90%RH
- Power supply:
Voltage: 99V...121V, 198V...242V
Frequency: 47.5Hz...63Hz
- Power consumption: ≤ 20 VA
- Dimensions (W×H×D): 8.9x3.9x14in /225×100×355mm
- Weight: Approx. 5.5lb/2.5kg

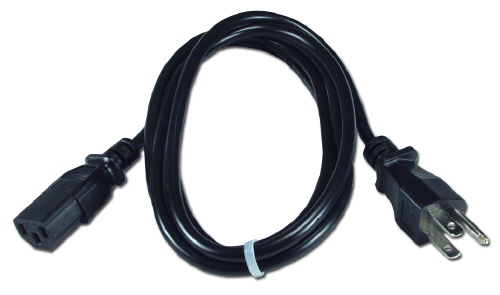

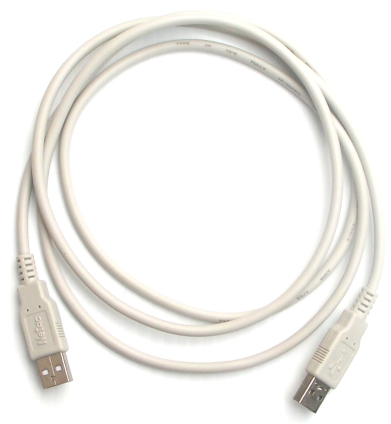

Accessories

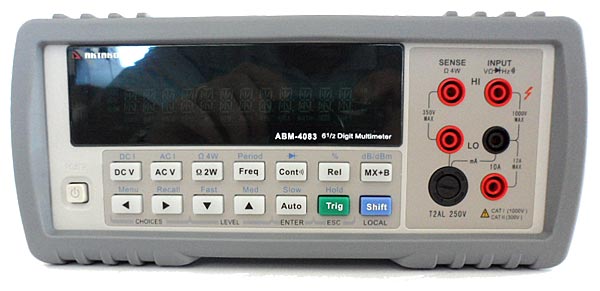

| ABM-4083 Benchtop Digital Multimeter - front view |
|
|

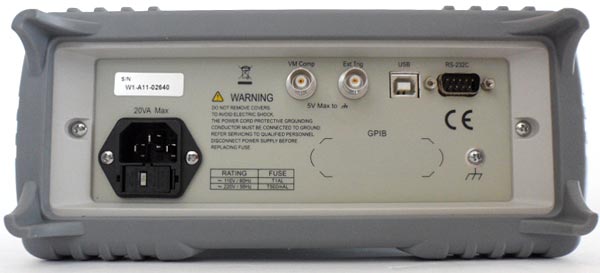

| ABM-4083 Benchtop Digital Multimeter - rear view |
|
|
