AM-7111 Process Calibrator

AKTAKOM AM-7111 multifunctional process calibrators are designed to generate high-precision signals when testing and calibrating different types of equipment (probes, measurers, converters, controllers etc.) during repair or adjustment work. These compact handheld devices are necessary for service engineers, they save time and solve a wide range of tasks in field conditions.

Specifications

Function		Range	Resolution	Accuracy
DC Voltage	100mV 1000mV 10V	-10.000…110.000mV -100.00…1100.00mV -1.0000…11.0000V	1μV 10μV 0.1mV	±(0.02%+11)
DC Current	20mA	0.000mA…22.000mA	1μA	±(0.02%+0.02)
Resistance	400Ω 4kΩ 40kΩ	0.00Ω…400.00Ω 0.0000kΩ…4.0000kΩ 0.000kΩ…40.000kΩ	0.01Ω 0.1Ω 1Ω	±(0.02%+8) ±(0.02%+10) ±(0.02%+40)
Frequency	100Hz / 1kHz 10kHz / 100kHz	1.00…110.0 Hz 0.100…1.100 kHz 1.0…11.0 kHz 10…110 kHz	0.01Hz/ 1Hz 0.1kHz/ 2kHz	±2
Pulse	100Hz/ 1kHz 10kHz	1…100000	1	±2
Switch	100Hz / 1kHz 10kHz / 100kHz	1.00…110.0 Hz 0.100…1.100 kHz 1.0…11.0 kHz 10…110 kHz	0.01Hz / 1Hz 0.1kHz / 2kHz	±2 / ±2 ±2 / ±5
Thermocouple	R, S	0…100…1767°C	1 °C	1.5°C / 1.2°C
	B	600…800…1820°C		1.5°C / 1.1°C
	E	-200.0…-100.0…600.0…1000.0°C	0.1 °C	0.6°C / 0.5°C / 0.4°C
	K	-200.0…-100.0…400.0…1200.0…1372.0°C		0.6°C / 0.5°C / 0.7°C / 0.9°C
	J	-200.0…-100.0…800.0…1200.0°C		0.6°C / 0.5°C / 0.7°C
	T	-250.0 °C…400.0°C		0.6°C
	N	-200.0…-100.0…900.0…1300.0°C		1.0°C / 0.7°C / 0.8°C
	L	-200.0…0.0…900.0°C		0.7°C / 0.5°C
	U	-200.0…0.0…600.0°C		0.7°C / 0.5°C
Thermistor	Pt100	-200.0…0.0…400.0°C	0.1 °C	0.3°C / 0.5°C
	Pt200	-200.0…100.0…300.0…630.0°C		0.8°C / 0.9°C / 1.0°C
	Pt500	-200.0…100.0…300.0…630.0°C		0.4°C / 0.5°C / 0.7°C
	Pt1000	-200.0…100.0…300.0…630.0°C		0.2°C / 0.5°C / 0.7°C
	Cu10	-100.0…260.0°C		1.8°C
	Cu50	-50.0…150.0°C		0.6°C

• Double 5 digit LCD (50000 counts)
• The basic error: 0.02%
• Power: 4 x 1.5V (AAA)
• Auto power off function which can be disabled
• Dimensions: 205x95x42mm / 8.07x3.7x1.7in
• Weight: 500g / 17.6oz

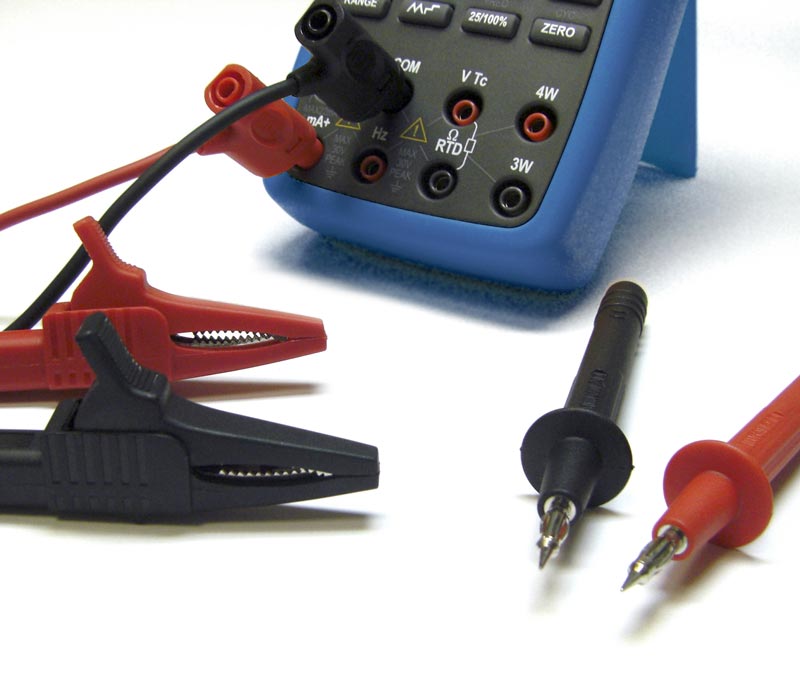

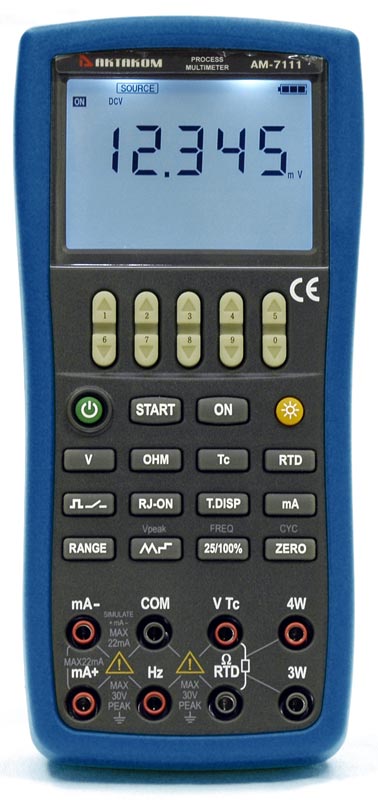

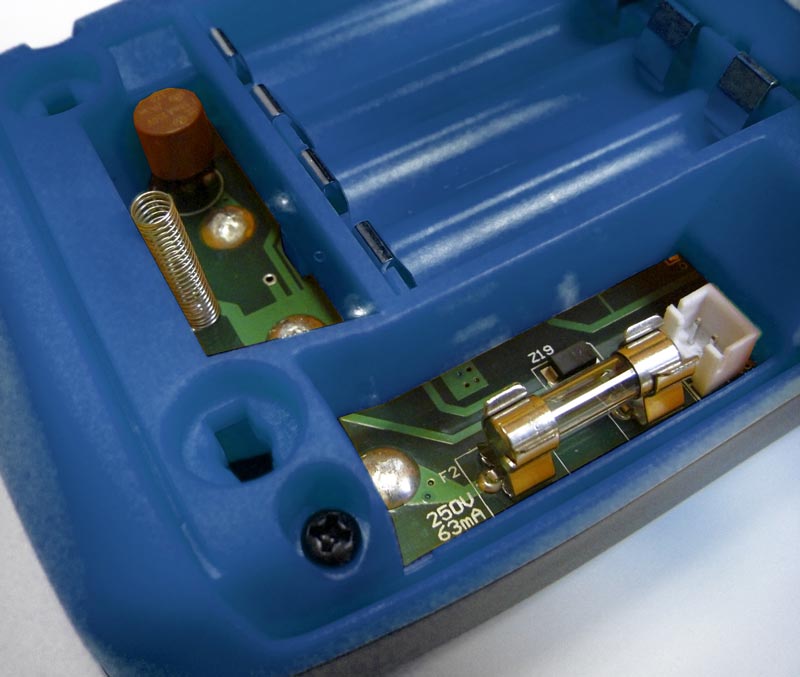

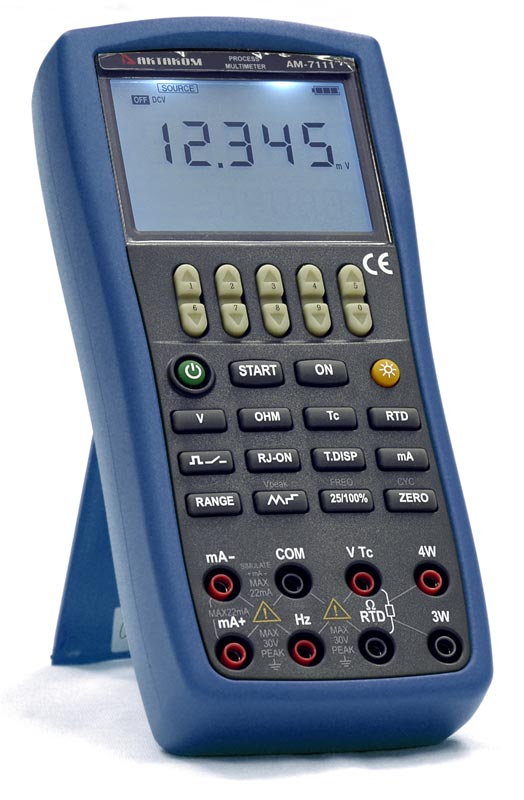

AM-7111 Process Calibrator - front view Enlarge		AM-7111 Process Calibrator - test probes Enlarge		AM-7111 Process Calibrator - fuse Enlarge

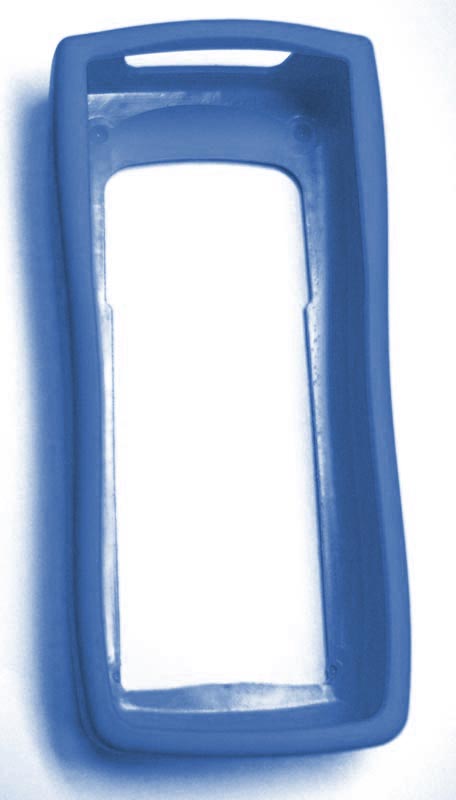

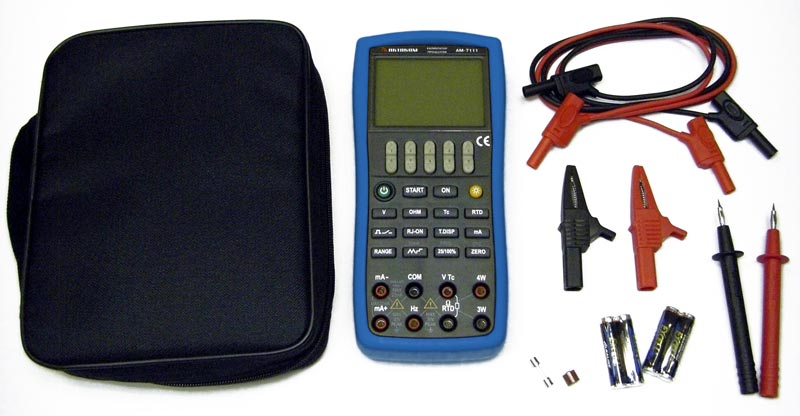

AM-7111 Process Calibrator - holster Enlarge		AM-7111 Process Calibrator - accessories Enlarge

Sourcing DC Voltage

Step 1: Using V key to select DC voltage source function, select the desired range from 100mV, 1000mV, and 10V by pressing the RANG key. The default value and unit of the selected source function and range shall be displayed in the main districts part of the LCD.

Step 2: Set the output value digit by digit using ▲ / ▼ keys. Each pair of ▲ / ▼ keys corresponds to each digit of the LCD reading. Each press of ▲ / ▼ key increases or decreases the digit. Increasing the digit from 9 or decreasing it from 0 causes the digit to overflow or underflow, allowing you to set the output value without interruption. Holding down the ▲ / ▼ keys continuously changes the digit in question. And the value won’t change if it is increased or decreased to the Maxim or Minimum value. Pressing ZERO key initializes the output set point to the default value (0).

Step 4: To turn off the output, press the ON key once again. OFF appears on the LCD and no signals sourced between the terminals.

Sourcing DC Current

Step 1: Using mA key to select the desired source function 0-22mA .The default value and unit of the selected source function shall be displayed in the main districts part of the LCD.

Step 2: Set the output value digit by digit using ▲ / ▼ keys.

Each pair of ▲ / ▼ keys corresponds to each digit of the LCD reading. Each press of the ▲ / ▼ key increases or decreases the digit. Increasing the digit from 9 or decreasing it from 0 causes the digit to overflow or underflow, allowing you to set the output value without interruption. Holding down ▲ / ▼ key continuously changes the digit in question. And the value won’t change if it is increased or decreased to the Maxim or Minimum value. Pressing the ZERO key initializes the output set point to the default value (0).

Step 3: Pressing ON key causes the indicator on the LCD to change from OFF to ON. The calibrator sources the preset DC current between the output terminals.

Step 4: To turn off the output, press ON key once again. OFF appears on the LCD and no signals sourced between the terminals.

Sourcing Resistance

• Firstly, the calibrator sources a resistance signal by receiving the resistance-measuring current I supplied from the device being calibrated (such as a resistance meter) and then delivering the voltage V proportional to the preset resistance R between the output terminals, and thus producing the equivalent resistance R =V/I. Consequently, the calibrator sources the signal correctly only for such devices that employ this method of measurement.
• The allowable range of the resistance measuring current I that the calibrator receives from a resistance measuring device under calibration is rated as 0.1 mA to 3 mA. To ensure accuracy, the resistance measuring current I from the device under calibration shall be strictly confined within the range. For further details, see Chapter 14, “Specification”.
• Any resistance signal being sourced does not include the resistance component of the lead cables for source. The whole resistance, when measured at the ends of the lead cables for source, is given by adding the resistance of the lead cables (approximately 0.1Ω on a round-trip basis) to the sourced resistance signal. For source of precise resistance signals, use three-wire or four-wire connection.(See figure 10)
• If capacitance between the terminals of a device under calibration is greater than 0.1ųF, the calibrator may fail to source correct resistance signals.

Step 1: Using the OHM key, select Ohm function. Using the RANGE key, select the desired range. The selected function and the default range source value and unit shall be shown in the main districts part of the LCD.

Step 2: Set the output value digit by digit using each pair of ▲ / ▼ keys.

Each pair of ▲ / ▼ keys corresponds to each digit of the LCD reading. Each press of the ▲ / ▼ key increases or decreases the digit. Increasing the digit from 9 or decreasing it from 0 causes the digit to overflow or underflow, allowing you to set the output value without interruption. Holding down the ▲ / ▼ key continuously changes the digit in question. And the value won’t change if it is increased or decreased to the Maxim or Minimum value. Pressing the ZERO key initializes the output set point to the default value (0).

Step 3: Pressing the ON key causes the SOURCE indicator on the LCD to change from OFF to ON. The calibrator sources the preset resistance value between the output terminals.

Step 4: To turn off the output, press the ON key once again. The OFF appears on the LCD and no signals sourced between the terminals.

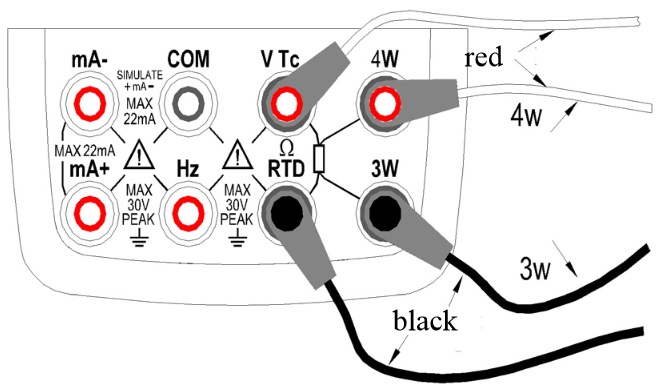

The connection method based on three-wire and four-wire is shown in the below picture:

Simulate Sourcing TC

The calibrator is designed with an internal temperature sensor. To calibrate a device with built-in reference junction temperature compensation by sourcing a thermoelectromotive force with the calibrator without using non-external 0C reference junction compensation means, use the RJ sensor function. Select simulate TC source function, in which RJ senor goes on work automatically. The “RJ-ON” mark displays on the middle part of the screen.

Step 1: Using the Tc key, select simulate TC source function. Using the RANGE key, select the desired range from K, E, J, T, B, N, R, S, L, U. The selected function and the default range source value and unit shall be shown in the main districts part of the LCD.

Step 2: Set the output value digit by digit using each pair of ▲ / ▼ keys.

Each press of ▲ / ▼ key increases or decreases the digit. Increasing the digit from 9 or decreasing it from 0 causes the digit to overflow or underflow, allowing you to set the output value without interruption. Holding down ▲ / ▼ key continuously changes the digit in question. And the value won’t change if it is increased or decreased to the Max. or Min. value. Pressing the ZERO key initializes the output set point to the default value (the default value of a typical B type is 600°C).

Step 3: Pressing ON key causes the SOURCE indicator on the LCD to change from OFF to ON. A thermoelectromotive force based on the temperature detected by the RJ sensor develops between the output terminals.

Step 4: To turn off the output press ON key once again. OFF appears on the LCD and no signals sourced between the terminals.

Note: If you don’t need the reference junction compensation, press the RJ-ON key to shut off. The calibrator source a value with using external 0°C reference junction compensation means, and the RJ-ON mark vanishes. Press the RJ-ON key once more to start the reference junction compensation and the RJ-ON mark displays in the middle of the screen.

Simulate Sourcing RTD

• Firstly, the calibrator sources a resistance signal by receiving the resistance-measuring current I supplied from the device being calibrated (such as a resistance meter) and then delivering the voltage V proportional to the preset resistance R between the output terminals, and thus producing the equivalent resistance R =V/I. Consequently, the calibrator sources the signal correctly only for such devices that employ this method of measurement.
• The allowable range of the resistance measuring current I that the calibrator receives from a resistance measuring device under calibration is rated as 0.1 to 3mA at PT100,Cu10,Cu50, 0.05 to 0.3mA at PT200,PT500,PT1000. To ensure accuracy, the resistance measuring current I from the device under calibration shall be strictly confined within the range. For further details, see Chapter 24, “Specification”.
• Any resistance signal being sourced does not include the resistance component of the lead cables for source. The whole resistance, when measured at the ends of the lead cables for source, is given by adding the resistance of the lead cables (approximately 0.1Ω on a round-trip basis) to the sourced resistance signal. For source of precise resistance signals, use three-wire or four-wire connection.

Step 1: Using the RTD key, select RTD function. Using the RANGE key, select a desired RTD range from PT100, PT200, PT500, PT1000, Cu10, Cu50. The selected function and the default range source value and unit shall be shown in the main districts part of the LCD. Types of RTD shall be shown in the middle part of the LCD.

Step 2: Set the output value digit by digit using each pair of ▲ / ▼ keys.

Each press of ▲ / ▼ key increases or decreases the digit. Increasing the digit from 9 or decreasing it from 0 causes the digit to overflow or underflow, allowing you to set the output value without interruption. Holding down the ▲ / ▼ key continuously changes the digit in question. And the value won’t change if it is increased or decreased to the Maxim or Minimum value. Pressing the ZERO key initializes the output set point to the default value (0).

Step 3: Pressing ON key causes SOURCE indicator on the LCD to change from OFF to ON. The calibrator sources the preset resistance value between the output terminals.

Step 4: To turn off the output, press ON key once again. The OFF appears on the LCD and no signals sourced between the terminals.

Sourcing Frequency

The calibrator can source a constant pulse signal responding to the preset frequency and amplitude.

Step 1: Using key, select frequency source function. The LCD shows the default frequency value10 Hz.

Step 2: Using RANG key, select a desired frequency range from 100Hz, 1KHz,10kHz,100KHz. The selected function and the default range source value and unit shall be shown in the LCD.

Step 3: Set the output value digit by digit using each pair of ▲ / ▼ output setting keys.

Each pair of ▲ / ▼ keys corresponds to each digit of the LCD reading. Each press of ▲ / ▼ key increases or decreases the digit. Increasing the digit from 9 or decreasing it from 0 causes the digit to overflow or underflow, allowing you to set the output value without interruption. Holding down ▲ / ▼ key continuously changes the digit. And the value won’t change if it is increased or decreased to the Maxim or Minimum value.

Step 4: Pressing the Vpeak key once switches to amplitude setting mode. The LCD provides a reading of 1V.

Step 5: Set the output value digit by digit using each pair of ▲ / ▼ output setting keys.

Each pair of ▲ / ▼ keys corresponds to each digit of the LCD reading. Each press of ▲ / ▼ key increases or decreases the digit. Increasing the digit from 9 or decreasing it from 0 causes the digit to overflow or underflow, allowing you to set the output value without interruption. Holding down ▲ / ▼ key continuously changes the digit. And the value won't change if it is increased or decreased to the Max. or Min. value.

Step 6: To re-enter into the frequency set mode, press the FREQ key to set the frequency.

Step 7: Pressing ON key causes the SOURCE indicator on the LCD to change from OFF to ON. The calibrator sources constant pulse signals responding to the preset frequency and amplitude between the output terminals.

Step 8: To turn off the output, press ON key once again. The OFF appears on the LCD and no signals sourced between the terminals.

Sourcing Number of Pulses

The calibrator can source a preset number of pulse signal responding to the preset frequency and amplitude.

Step 1: Using key, select pulse source function. The LCD shows the default value10 Hz.

Step 2: Using the RANGE key, select a desired frequency range from 100Hz, 1KHz, 10kHz. The selected function and the default range source value and unit shall be shown in the LCD.

Step 3: Set the output value digit by digit using each pair of ▲ / ▼ output setting keys.

Each pair of ▲ / ▼ keys corresponds to each digit of the LCD reading. Each press of ▲ / ▼ key increases or decreases the digit. Increasing the digit from 9 or decreasing it from 0 causes the digit to overflow or underflow, allowing you to set the output value without interruption. Holding down ▲ / ▼ key continuously changes the digit . And the value won’t change if it is increased or decreased to the Maxim or Minimum value.

Step 4: Pressing the Vpeak key once switches to amplitude setting mode. The LCD provides a reading of 1V.

Step 5: Set the output value digit by digit using each pair of ▲ / ▼ output setting keys.

Each pair of ▲ / ▼ keys corresponds to each digit of the LCD reading. Each press of ▲ / ▼ key increases or decreases the digit. Increasing the digit from 9 or decreasing it from 0 causes the digit to overflow or underflow, allowing you to set the output value without interruption. Holding down ▲ / ▼ key continuously changes the digit. And the value won't change if it is increased or decreased to the Max. or Min. value.

Step 6: Pressing CYC key ,enter into the pulse number set mode, and the LCD shows the default number of 1 CYC.

Step 7: Set the output value digit by digit using each pair of ▲ / ▼ output setting keys.

Each pair of ▲ / ▼ keys corresponds to each digit of the LCD reading. Each press of ▲ / ▼ key increases or decreases the digit. Increasing the digit from 9 or decreasing it from 0 causes the digit to overflow or underflow, allowing you to set the output value without interruption. Holding down ▲ / ▼ key continuously changes the digit. And the value won't change if it is increased or decreased to the Max. or Min. value.

Step 8: To re-enter into the frequency set mode, press FREQ key to set the frequency.

Step 9: Pressing ON key causes the SOURCE indicator on the LCD to change from OFF to ON, and the calibrator sources low level between the output terminals.

Step 10: Pressing START key the calibrator sources the set number of pulse responding to the preset frequency and amplitude, LCD shows the symbol RUN.

Step 11: When source is complete, the calibrator automatically turns off the output and ceases operation. RUN symbol disappears from the LCD.

Step 12: To turn off the output, press ON key once again. OFF appears on the LCD and no signals sourced between the terminals.

Sourcing Switch

You can turn on or off the output terminals by using the contact output function. An FET is used as the contact-switching device.

Step 1: Using key, select the contact output source function. The LCD shows the default value 10Hz,and symbol.

Step 2: Using RANGE key select the desired frequency from 100Hz, 1KHz, 10 KHz and 100KHz. The LCD shows the default value and unit.

Step 3: Set the output value digit by digit using each pair of ▲ / ▼ output setting keys.

Each pair of ▲ / ▼ keys corresponds to each digit of the LCD reading. Each press of ▲ / ▼ key increases or decreases the digit. Increasing the digit from 9 or decreasing it from 0 causes the digit to overflow or underflow, allowing you to set the output value without interruption. Holding down ▲ / ▼ key continuously changes the digit. And the value won’t change if it is increased or decreased to the Max. or Min. value.

Step 4: Pressing ON key causes the SOURCE indicator on the LCD to change from OFF to ON and the calibrator sources contact signals responding to the present frequency.

Step 5: To turn off the output, press ON key once again. The OFF appears on the LCD and no signals sourced between the terminals.

Zero-off function

In any range of DC voltage, DC current, ohm, TC and RTD functions, pressing ZERO key selects clearing off function which initializes the preset source value for the convenience of user to reset source value.

In frequency, pulse, contact output functions ZERO key is unavailable.

Frequently Asked Questions

Can I set auto power-off time when operating AM-7111 calibrator?

How can I set the backlight time of AM-7111 calibrator?

Can I change the temperature unit when working with AM-7111?

Does AKTAKOM AM-7111 process calibrator have auto power off function?

Can I set auto power-off time when operating AM-7111 calibrator?

Press START key, LCD will display AP.OFF symbol on the upper part indicating automatic power-off setting mode. Set the time within 0-60 minute range by using the second pair of ▲ / ▼ counting from right to left. Each press of ▲ / ▼ key causes 10 minute increments or 10 minute decrement with constant setting. Constant press of the key causes increments or decrement of the value in sequence. The value won’t change when reaching the maximum or minimum value. The time unit is minute. Press ON key, LCD will display SAVE symbol on the upper part for 1 s. Tips: Zero default value (0) represents no automatic power-off function. Up

How can I set the backlight time of AM-7111 calibrator?

Press START key LCD will display BL.OFF symbol on the upper part indicating backlight time setting mode. Set the time by using the pair of ▲ / ▼. And the unit is second. Each pair of ▲ / ▼ keys corresponds to each digit of the LCD reading. Each press of ▲ / ▼ key increases or decreases the digit. Increasing the digit from 9 or decreasing it from 0 causes the digit to overflow or underflow, allowing you to set the output value without interruption. Holding down ▲ / ▼ key continuously changes the digit. And the value won't change if it is increased or decreased to the Maxim or Minimum value. The setting range is confined within 0-3600 seconds. Press ON key, LCD will display SAVE symbol on the upper part for 1 sec. Tips: When the default value is 0, the backlight won't be off automatically except that you turn it off manually. Up

Can I change the temperature unit when working with AM-7111?
Press START key, LCD will display TEM.U symbol on the upper part indicating temperature unit setting mode. Choose between °C and °F using ▲ / ▼. Press ON key, LCD will display SAVE symbol on the upper part for 1s. Up

Does AKTAKOM AM-7111 process calibrator have auto power off function?
Yes, it does. There is Auto Power Off function in AM-7111 and it’s off on default. Up
