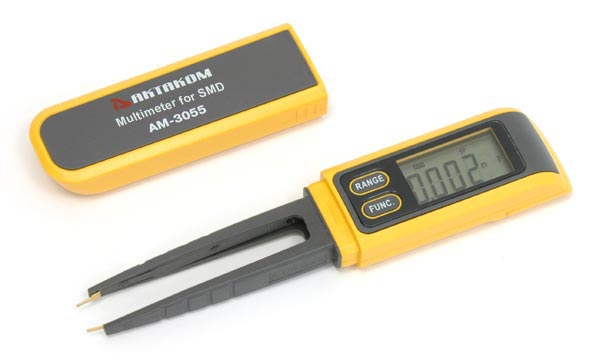

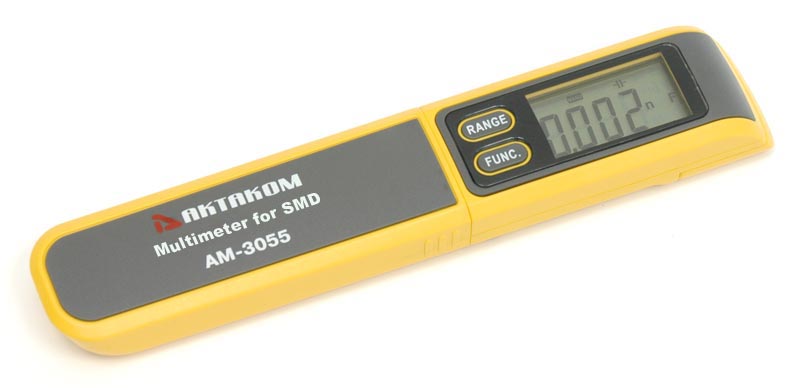

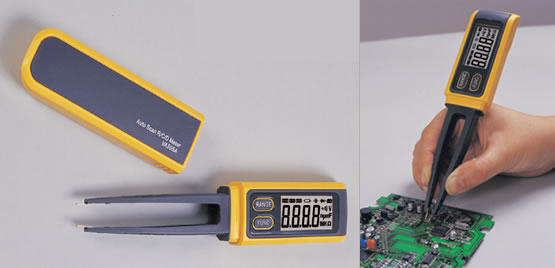

AKTAKOM AM-3055 is an auto scan Pen R/C/D Meter in a single box with tweezers. Automatic recognize resistance, capacitance and diode. Measure high resistance and capacitance quickly. Specifically designed for use with SMD components on board circuits. Ideal for electronic maintenance, industry or homework.
Specifications
|
Function
|
Range
|
Resolution
|
Accuracy
|
|
Resistance
|
300mΩ / 3kΩ / 30kΩ / 300kΩ / 3MΩ / 30MΩ / 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ
|
0,1Ω
|
±(1%+5)
|
|
Capacitance
|
3nF / 30nF / 300nF / 3μF / 30μF / 300μF / 3mF / 30mF / 6nF / 60nF / 600nF / 6μF / 60μF / 600μF / 6mF / 60mF
|
1pF
|
±(3%+5)
|
|
Auto-scan mode
|
0...3 MΩ / 400 pF...300 μF
|
|
±(1%+5)
|
|
0...6 MΩ / 400 pF...600 μF
|
|
±(3%+5)
|
- Supply: 3V, battery
- Size: 181x35x20mm / 7.1x1.4x0.9in
- Weight: 65g / 2.3oz

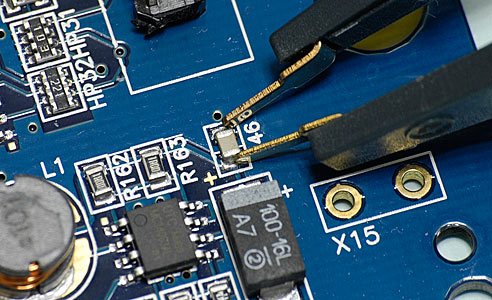

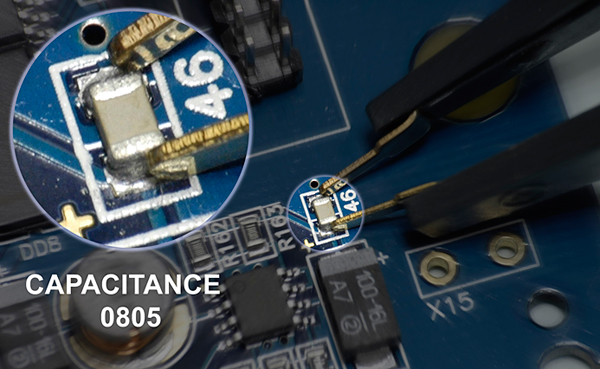

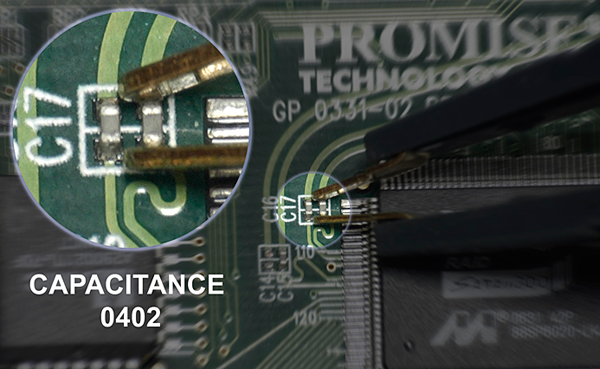

Capacitance measurement
To avoid electrical shock or damages to the meter under test, disconnect circuit power and discharge all high-voltage capacitors before measuring capacitance. Keep two pins of the capacitance in short before measuring.
- Press FUNC. Key and select the function at
mode.
- Connect the test clip to the capacitor being measured and read the displayed value.
NOTE:
- When this mode the RANGE key is available.
- Discharge the capacitor before measuring.

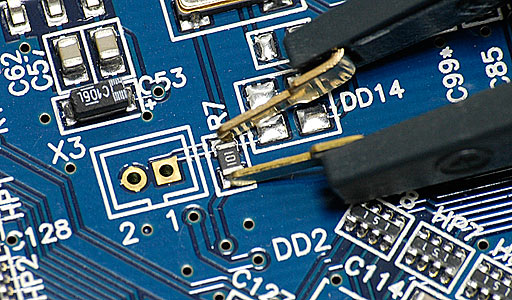

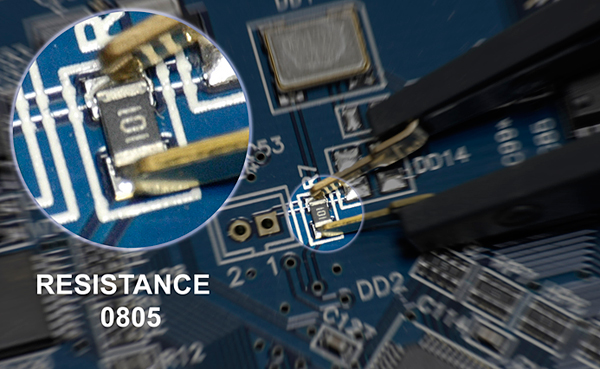

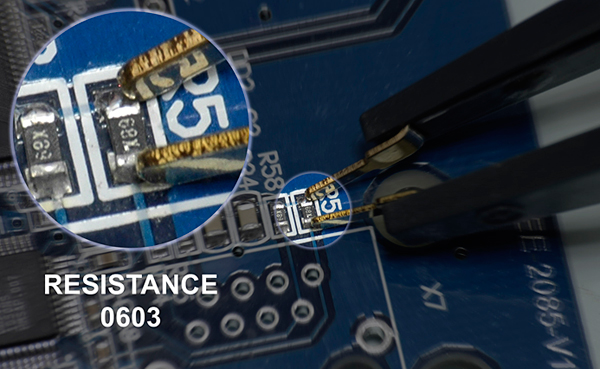

Resistance measurement
To avoid electrical shock or damages to the meter under test, disconnect circuit power and discharge all high-voltage capacitors before measuring resistance.
- Press FUNC. key and select the function at
mode.
- Connect the test clip to the object being measured and the measured value will show on the display.
NOTE:
- When this mode the RANGE key is available.
- When the input is not connected, i.e. at open circuit, the figure "OL" will be displayed for the overrange condition.
Continuity check
- Press FUNC. Key and select the function at
mode
- Connect the test clip to the resistance. If continuity exists (i.e., resistance less than 30Ω) built – in buzzer will sound.
Diode measurement
To avoid electrical shock or damages to the meter under test, disconnect circuit power and discharge all high-voltage capacitors before testing diodes.
- Press FUNC. Key and select the function at
mode.
- Connect the + pin to the anode, the - pin to the cathode of the diode under testing.
- The meter will show the approx. forward voltage of the diode. If the lead connection is reversed, only figure "OL" displayed.
