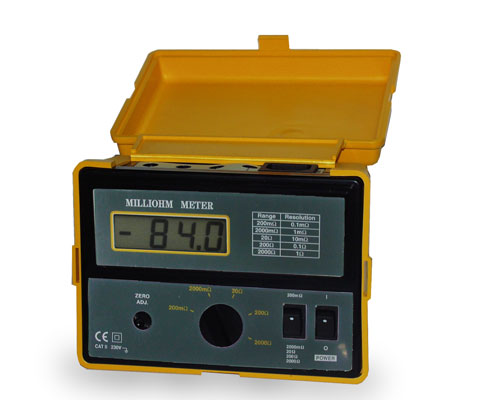

AKTAKOM AM-6000 Milliohm Meter is ideal for measuring the resistance of the motor coil, transformer, PCB layout.
Features
- 4 terminal devices for accurate measurement of very low resistance
- Ideal for testing protective conductors, lightning conductors and welded points
- Wide measuring range, 0.1 m ohm – 2000 ohm, 5 ranges
- 18mm (0.7"), large size LCD display, easy to read-out
- LSI circuit provides high accuracy, reliability and durability
- Built-in over input indication
- Durable and portable housing plastic case with the front protective cover
Specifications
General specifications:
Display: 18mm (0.7") LCD (Liquid Crystal Display). Max. indication 1999.
Range: 200 m ohm, 2,000 m ohm, 20 ohm, 200 ohm, 2000 ohm
Zero Adjustment: External adjustment for zero value of the display

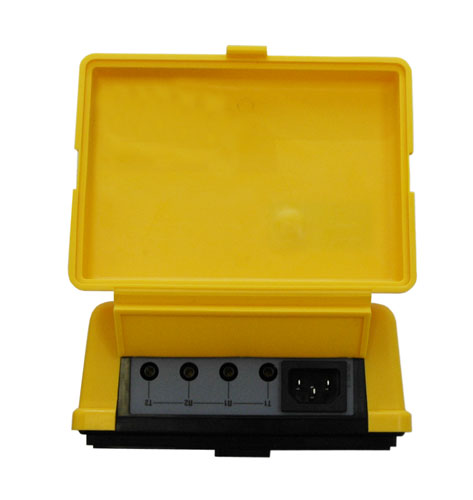

Input Terminal: 4 terminal input, accurate for low ohms measuring
Over input Indication: Indication of “1”
Sampling Time: Approx. 0.4 sec
Operating Temp.: 0°C to 50°C (32°F to 122°C)
Operating Humidity: Less than 80%R.H.
Power Supply:
- AC 110V 15%, 50/60Hz
- or AC 220V/240V 15%, 50/60Hz
Power Consumption: Approx. 2VA
Electrical specifications (23±5°C):
|
Range
|
Resolution
|
Test current
|
Accuracy
|
Open circuit voltage
|
|
200 m ohm
|
0.1 m ohm
|
100mA
|
±(0.75%+4d)
|
Approx. 3.8VDC
|
|
2000 m ohm
|
1 m ohm
|
10mA
|
±(0.75%+2d)
|
Approx. 3.4VDC
|
|
20 ohm
|
10 m ohm
|
10mA
|
Approx. 3.4VDC
|
|
200 ohm
|
0.1 ohm
|
1mA
|
Approx. 3.2VDC
|
|
2000 ohm
|
1 ohm
|
1mA
|
Approx. 3.2VDC
|
Remark: When order the MILLIOHM METER you should inform about the power supply type which is AC 110V, 220V/240V, moreover you should indicate the plug type (USA, GERMANY) of the power cord
Dimensions: 6.3x4.7x3.4in/160x120x85mm, with housing front cover
Weight: Approx. 1.5lb/680g

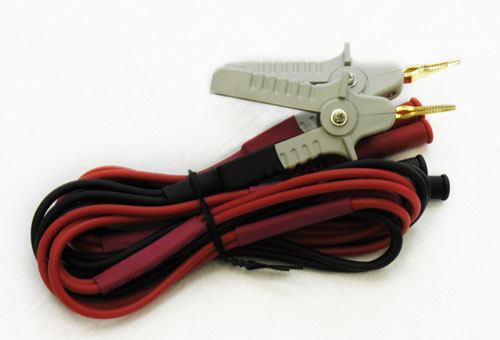

Standard Accessories
