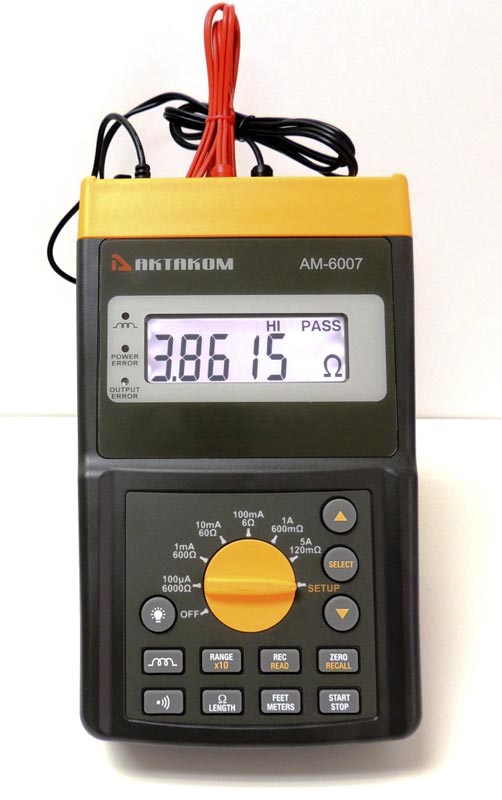

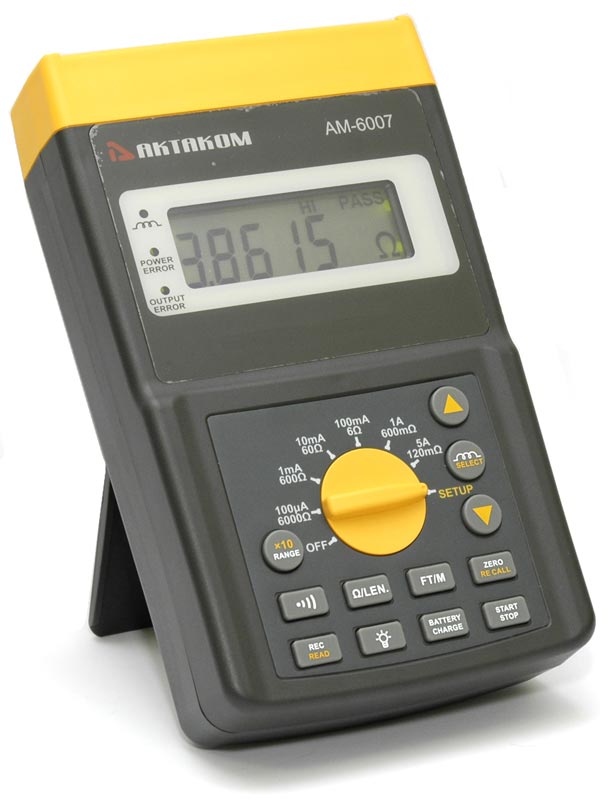

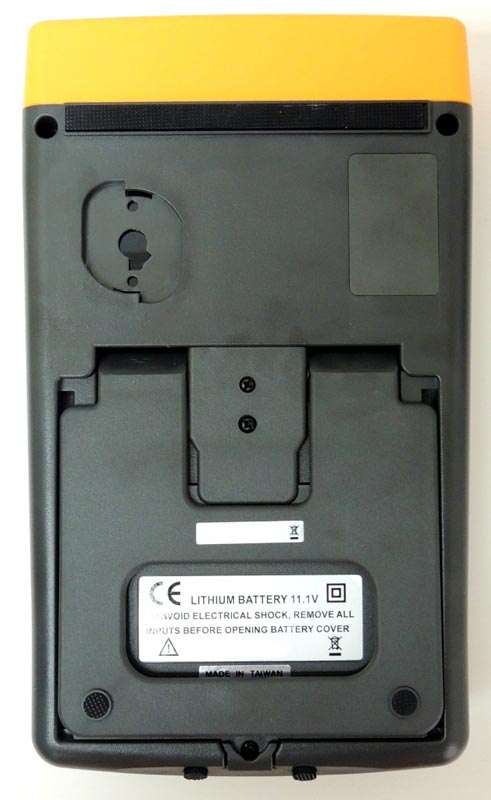

AM-6007 Milliohm Meter

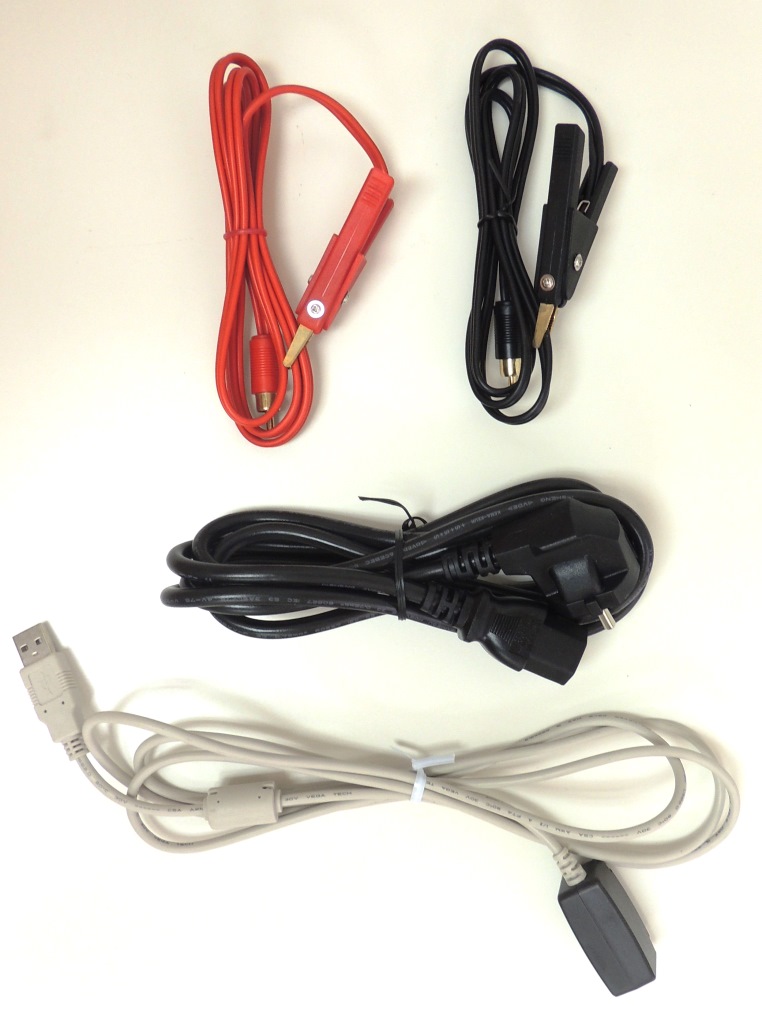

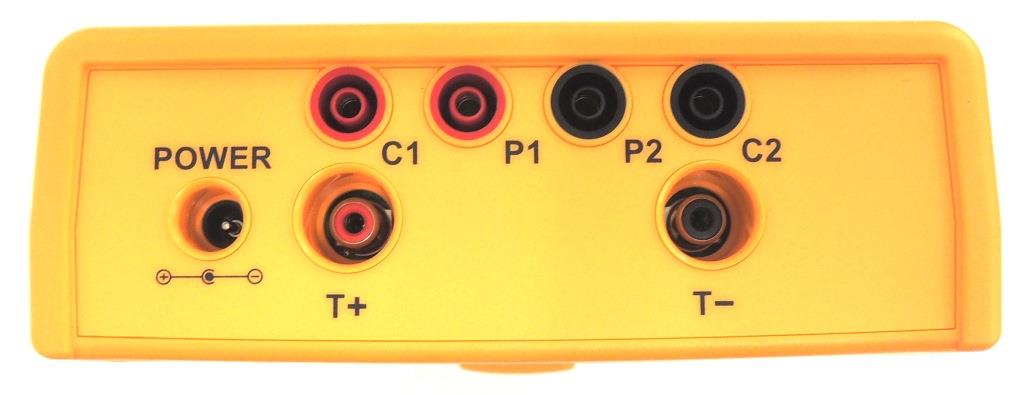

Milliohmmeter AM-6007 is designed to measure low values of resistance in circuits and their components, as well as contact resistances. The measurements are performed with 2 and 4-wire Kelvin clips

Milliohmmeter AM-6007 is designed to measure low values of resistance in circuits and their components, as well as contact resistances. The measurements are performed with 2 and 4-wire Kelvin clips.

Measuring range: 1,000 milliohms ... 6.0000 ohms
Error: 0.05%
Test current: 100 mA, 1 mA, 10 mA, 100 mA, 1 A, 5 A

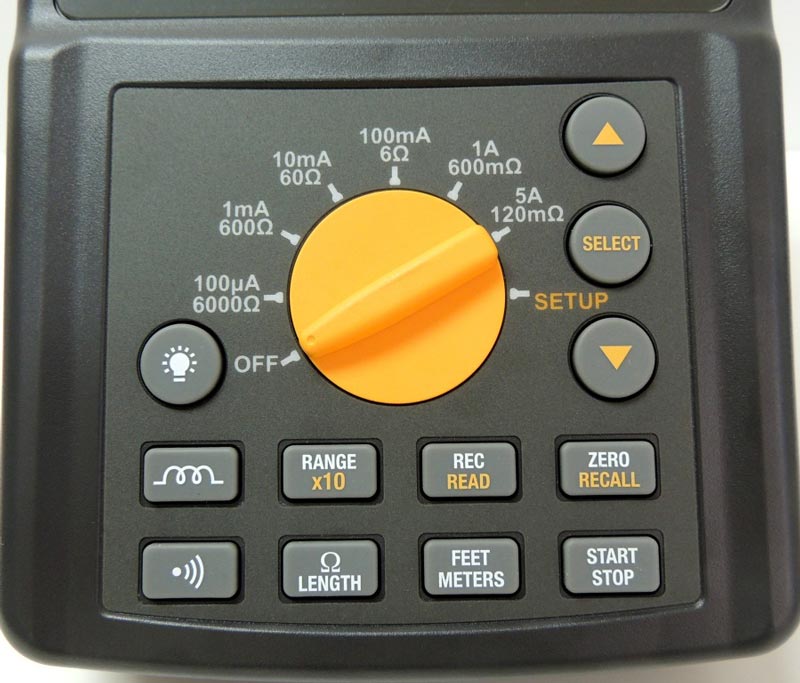

Range selection: Automatic and manual
Cable length measurement: m, ft
Memory: 3000 measurements
Screen: Wide LCD display, 6.5 4 bits off the backlight
Power supply: 12V DC 2A, or acc.10 hours of battery life
Interface: RS-232C / USB
Dimensions: 257x155x57 mm
Weight: 1.16 kg
