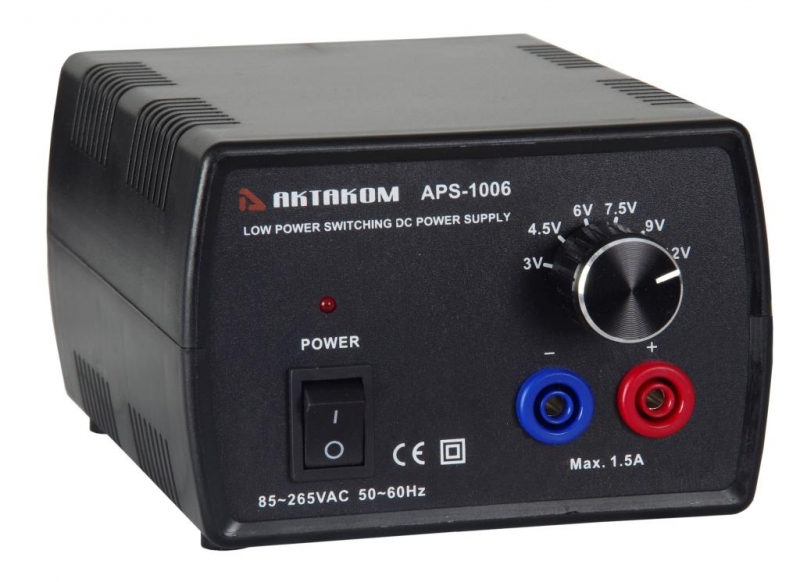

APS-1006 Low Power Switching DC Power Supply
APS-1006 Low Power Switching DC Power Supply
|
|
Single channel low power switching DC power supply. Input voltage: 85~265VAC 50/60Hz. Output voltage: 3V, 4.5V, 6V, 7.5V, 9V, 12V. Output current: 1.5A. Load regulation: 20mV. Line regulation: 15mV. Ripple&Noise: 1.5mVrms, 5mVpp. Output accuracy: ±5%. Protection: Over current. Dimensions: 110 x 74 x140 mm / 4.3 x 2.9 x 5.5 in. Weight: 0.3 kg / 10.6 oz.
Manuals:
|
|
AKTAKOM APS-1006 model is a low power switching DC power supply with 6 fixed output voltages (3V, 4.5V, 6V, 7.5V, 9V, 12V) and over current protection.
The unit has compact structure, double insulation, safety and easy operation, wide voltage import, good performance, novel appearance etc.
Specifications:
- Input voltage: 85~265VAC 50/60Hz
- Output voltage: 3V, 4.5V, 6V, 7.5V, 9V, 12V
- Output current: 1.5A
- Load regulation: 20mV
- Line regulation: 15mV
- Ripple&Noise: 1.5mVrms, 5mVpp
- Output accuracy: ±5%
- Protection: Over current
- Dimensions: 110 x 74 x140 mm / 4.3 x 2.9 x 5.5 in
- Weight: 0.3 kg / 10.6 oz
Accessories

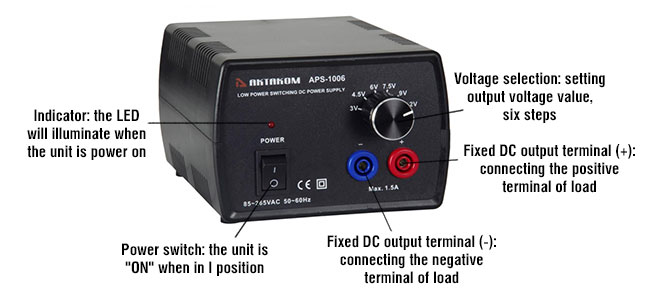

Controls of APS-1006 Power Supply
Frequently Asked Questions
May I use AKTAKOM power supplies to charge accumulators?
| May I use AKTAKOM power supplies to charge accumulators? |
|
AKTAKOM power supplies can’t be used for accumulator charging since it may cause the accumulator breakage (recharge, electrolyte boiling, extra pressure of the internal gas which will lead to the accumulator explosion). Accumulators should be charged with the current source which controls the accumulator voltage and regulates the charging current accordingly. When the required accumulator voltage is achieved such type of source simply stops the charging process, its name is a charging device.
