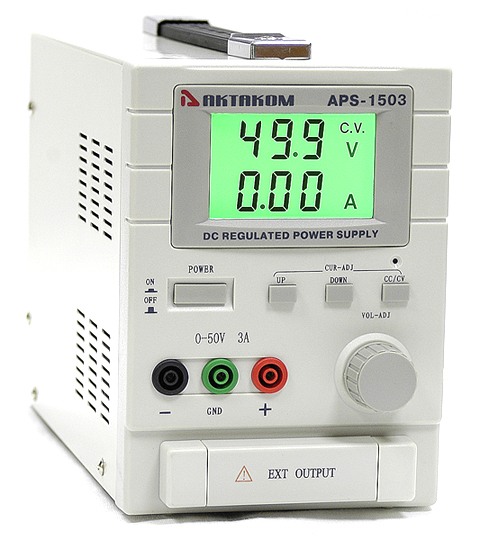

APS-1503 DC Power Supply
|
|
DC Power Supply: 50V, 3A, 1 channel. 2-line LCD display. 4-wire circuit. Push-button control current. Ripple/noise ratio — 1mV RMS. Resolution 100 mV/10mA. Select the highlight color. Dimensions: 5.1x7.5x10.6in/130x190x270mm. Weight: 12.35lb/5.6kg
Manuals:
|
|
Features
- Output: 0-50V @ 0-3A
- Utilizing SMD technology
- LCD displays voltage and current
- LCD displays stable voltage and current
- Discretional choice of green, yellow backlight for LCD
- Automatic conversion of stable voltage and current
- Loopy type high accuracy voltage regulation
- Step-type electric current adjustment
- With extention output connectors
Specifications
- Source effect: ≤5x10-4+3mV
- Load effect: ≤5x10-4+3mV
- Ripple coefficient: ≤1mV
- Stepped current: 30MA±1mA
- Dimensions: 5.1x7.5x10.6in / 130x190x270mm
- Weight: 12.35lb / 5.6kg
Accessories

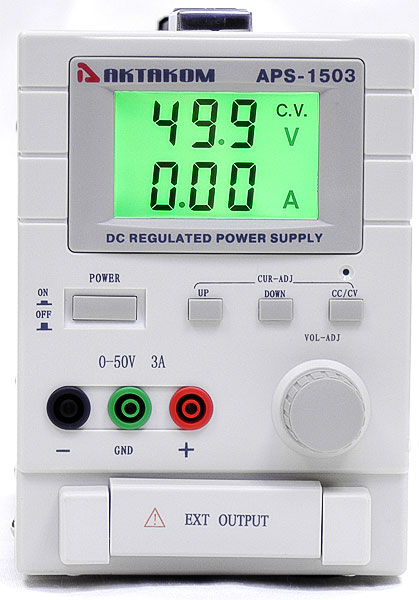

| APS-1503 DC Power Supply - front view |
|
|

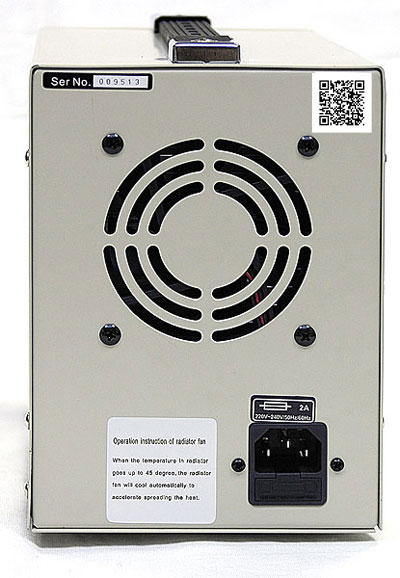

| APS-1503 DC Power Supply - rear view |
|
|

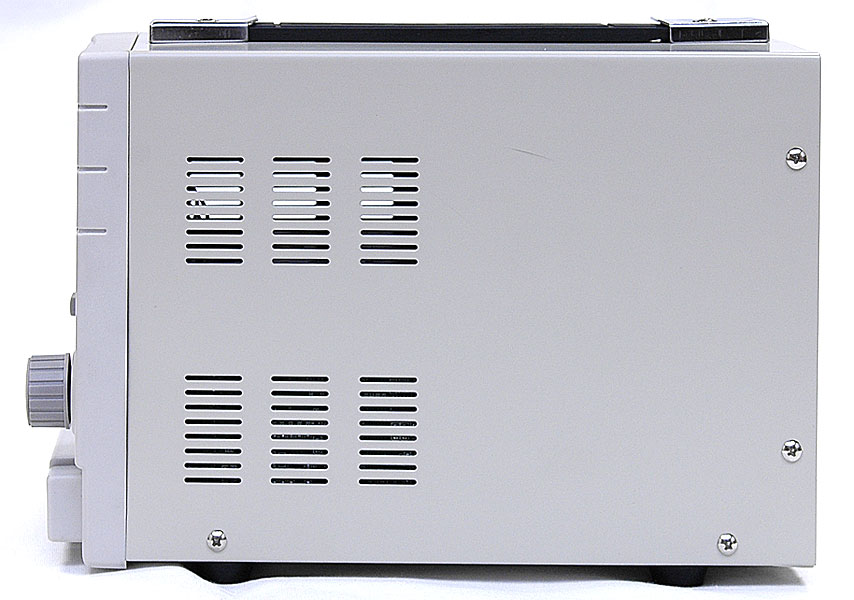

| APS-1503 DC Power Supply - side view |
|
|
|

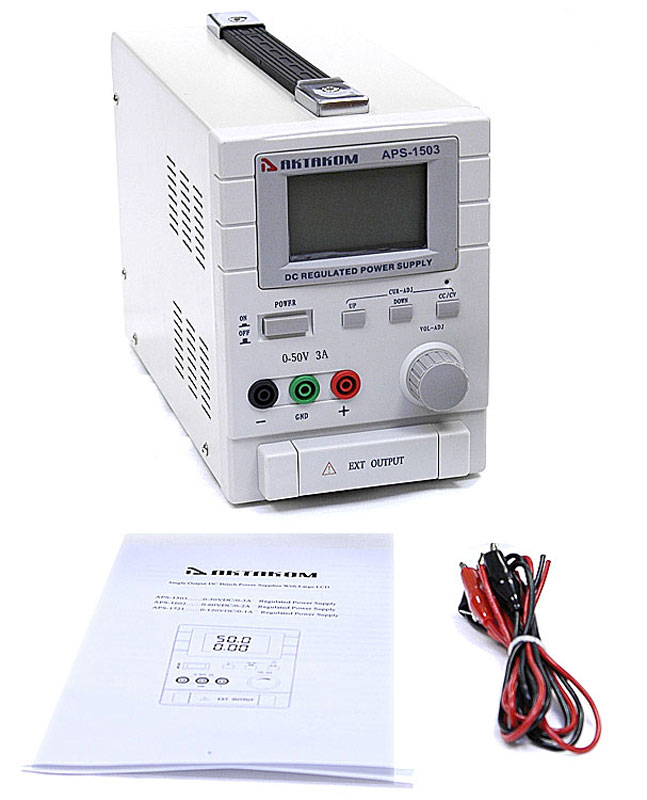

| APS-1503 DC Power Supply - with accessories |
|
|

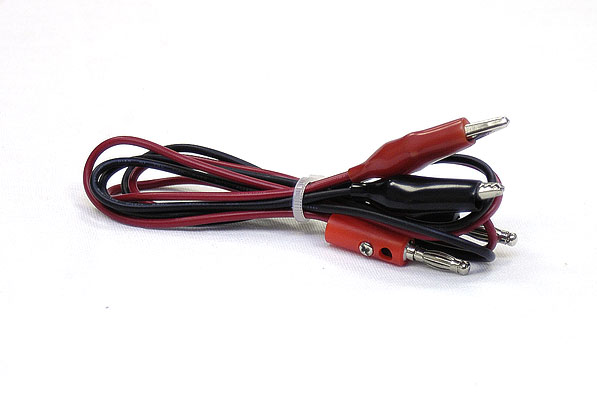

| APS-1503 DC Power Supply - Set of Banana plug to Alligator Clips |
|
|

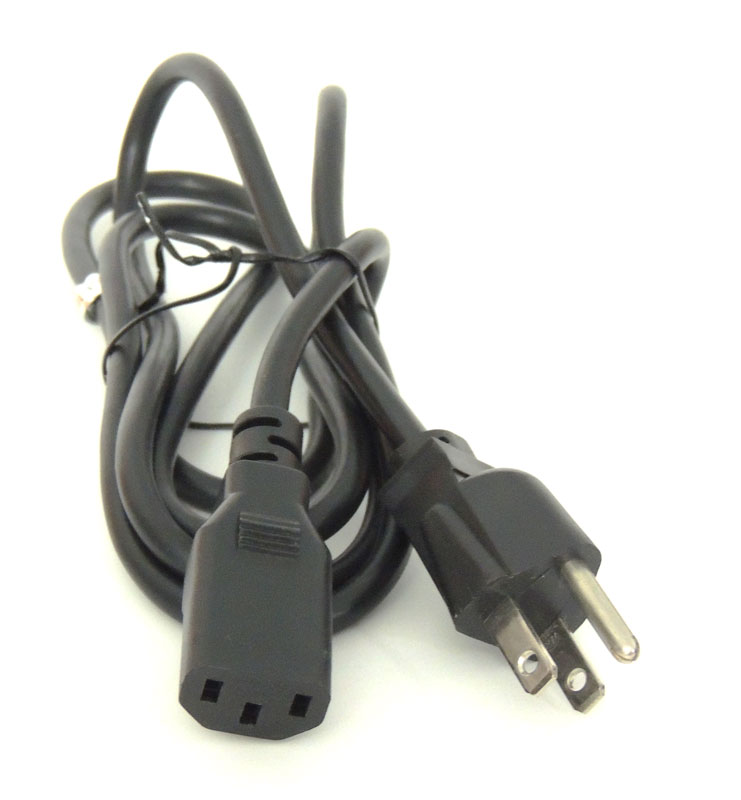

| APS-1503 DC Power Supply - Power cord |
|
|
|
Frequently Asked Questions
May I use AKTAKOM power supplies to charge accumulators?
| May I use AKTAKOM power supplies to charge accumulators? |
|
AKTAKOM power supplies can’t be used for accumulator charging since it may cause the accumulator breakage (recharge, electrolyte boiling, extra pressure of the internal gas which will lead to the accumulator explosion). Accumulators should be charged with the current source which controls the accumulator voltage and regulates the charging current accordingly. When the required accumulator voltage is achieved such type of source simply stops the charging process, its name is a charging device.
