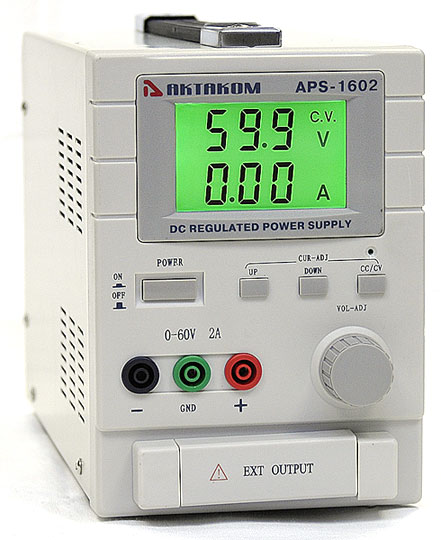

APS-1602 DC Power Supply

Features

• Output: 0-60V @ 0-2A
• Utilizing SMD technology
• LCD displays voltage and current
• LCD displays stable voltage and current
• Discretional choice of green, yellow backlight for LCD
• Automatic conversion of stable voltage and current
• Loopy type high accuracy voltage regulation
• Step-type electric current adjustment
• With extention output connectors

Specifications

• Source effect: ≤5x10^-4+3mV
• Load effect: ≤5x10^-4+3mV
• Ripple coefficient: ≤1mV
• Stepped current: 30MA±1mA
• Dimensions: 5.1x7.5x10.6in / 130x190x270mm
• Weight: 12.35lb / 5.6kg

Accessories

• User Manual

• Power Cord




• Set of Banana plug to Alligator Clips

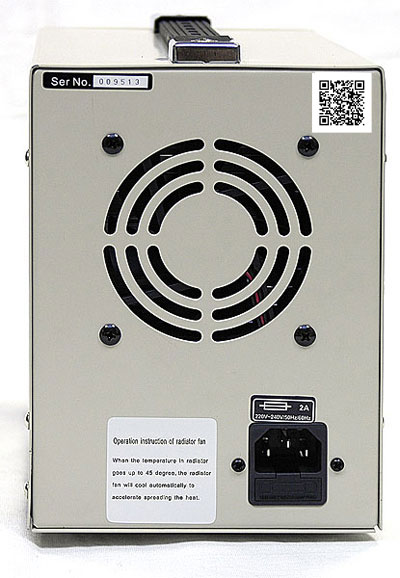

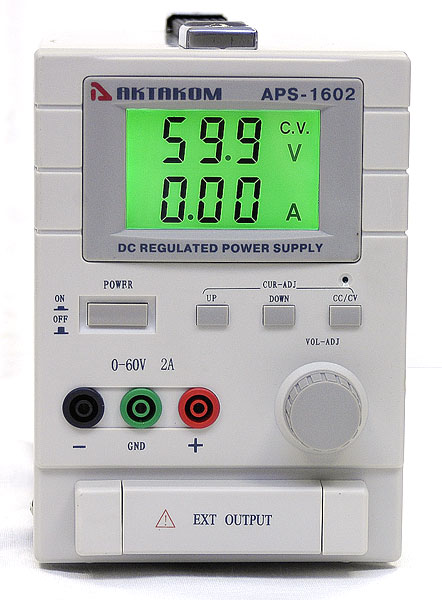

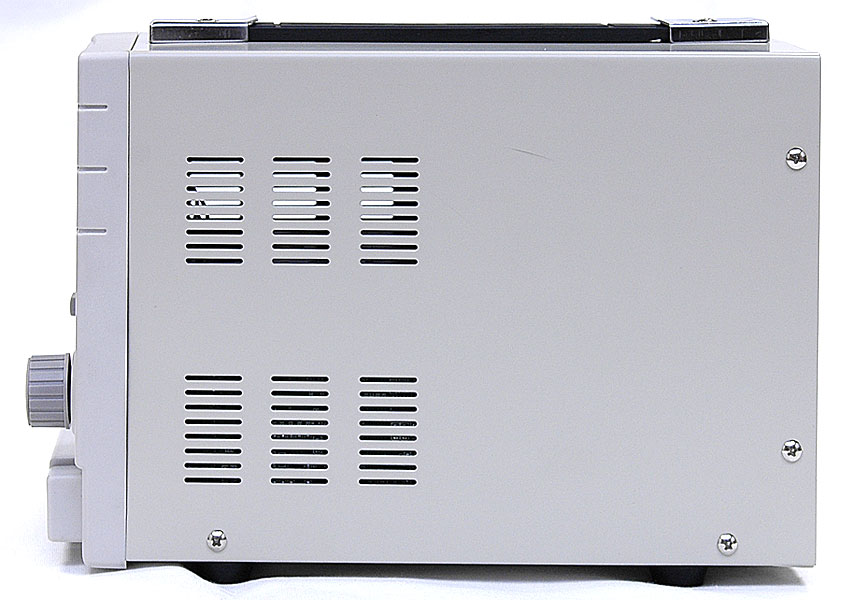

APS-1602 DC Power Supply - front view Enlarge		APS-1602 DC Power Supply - rear view Enlarge		APS-1602 DC Power Supply - side view Enlarge

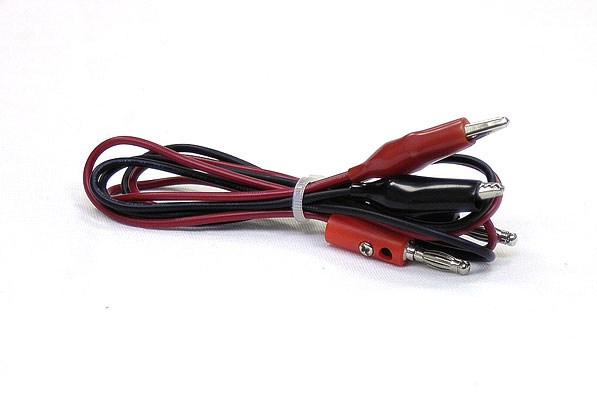

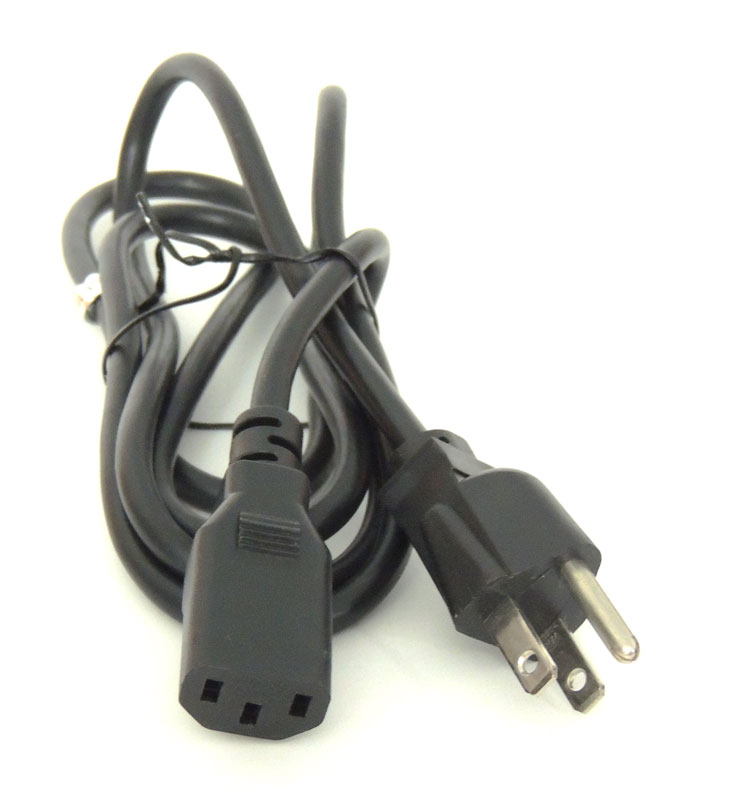

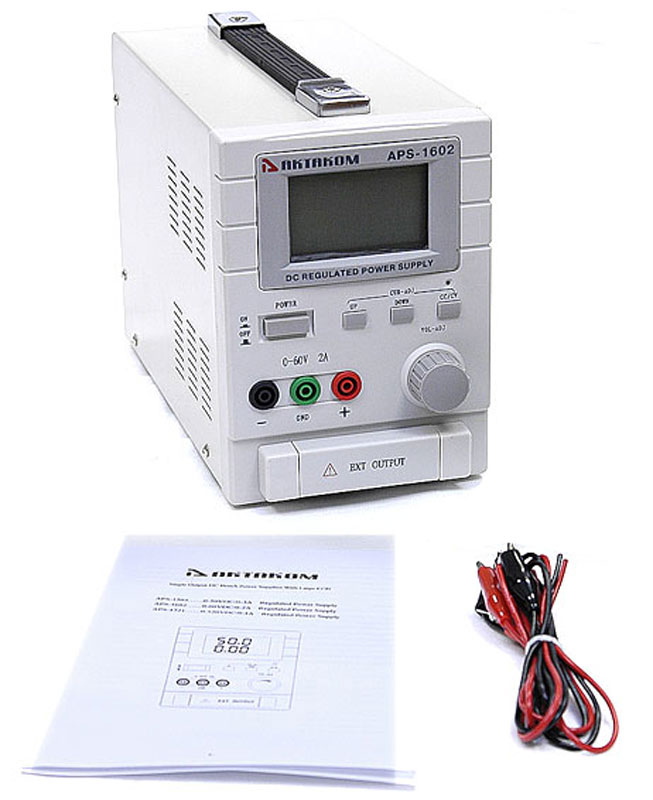

APS-1602 DC Power Supply - with accessories Enlarge		APS-1602 DC Power Supply - Set of Banana plug to Alligator Clips Enlarge		APS-1602 DC Power Supply - Power cord Enlarge

Frequently Asked Questions

May I use AKTAKOM power supplies to charge accumulators?

May I use AKTAKOM power supplies to charge accumulators?

AKTAKOM power supplies can’t be used for accumulator charging since it may cause the accumulator breakage (recharge, electrolyte boiling, extra pressure of the internal gas which will lead to the accumulator explosion). Accumulators should be charged with the current source which controls the accumulator voltage and regulates the charging current accordingly. When the required accumulator voltage is achieved such type of source simply stops the charging process, its name is a charging device. Up
