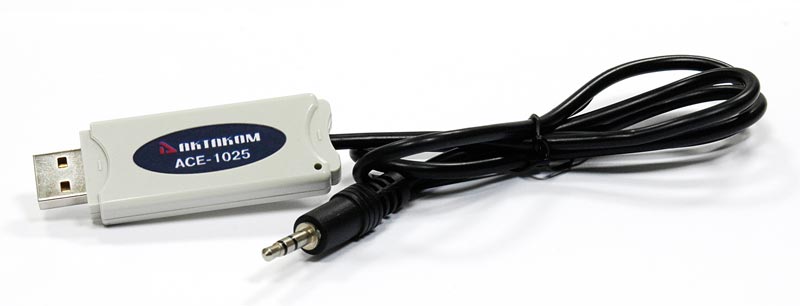

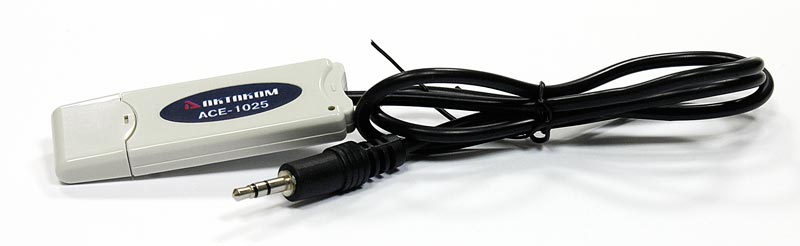

ACE-1025 Interface Converter

1. Install USB Host Diagnostics application on your Android device and run it.
2. Start diagnostics by clicking the key of the same name.
3. Follow the displayed instructions of the application.
4. After the diagnostics check the condition of Android API. «claims support = no, device detected = no» means your device IS NOT ready for operation with USB-devices.
5. In this case the application should offer to correct the error after the diagnostics and to restart Android.
6. Agree to the application by clicking «Ok» after that restart your device pressing the power button of the device.
7. Run the utility again and make sure the condition of Android API has changed for «claims support = yes, device detected = yes».
8. Now your device is ready to work with USB-devices.

If due to some reasons you do not have a chance to use this utility or would like to find more information by yourself you may search it online with the key phrases «android.hardware.usb.host.xml».

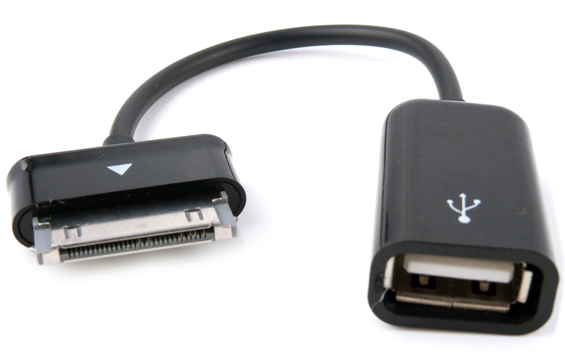

Therefore you need to buy Aktakom Data Logger Monitor (ADLM-A).To connect USB converter you will need a special adapter – USB OTG.

This adapter is not included into the delivery set.

To make your Android-based device (tablet PC, smartphone) operate with connected USB-devices it should meet some requirement that you may find in the description of Aktakom Data Logger Monitor (ADLM-A). Here are some of the most important features to pay attention to:

1. Android settings should allow applications to use API USB-host functions. Some of Android-based devices do not provide such permit on default (as a rule these are specialized devices like television-game device or set-top box etc.).
2. To check this functions (whether they are allowed or not) on your Android device you may use for example free utility «USB Host Diagnostics» available on Google Play. This utility can in some cases install necessary permit in the system.
