AHT-5173B Ground wire

To protect electronic circuits when working with electronic components, boards and devices from potential danger it’s necessary to use protective ground equipment.

AHT-5173B Ground wire is used to connect antistatic mat to the ground bus.

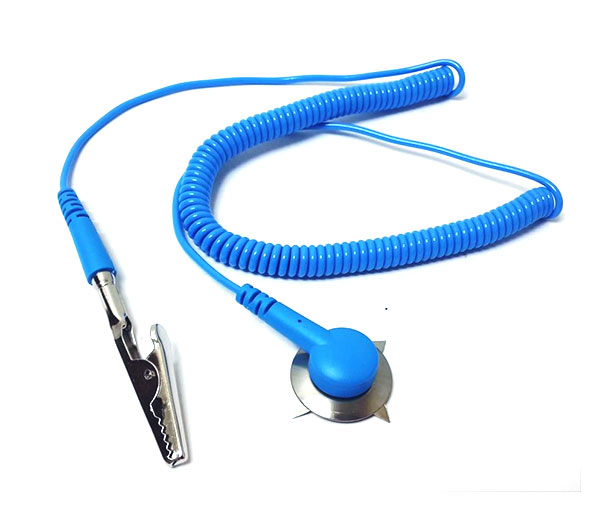

AHT-5173B Ground wire of 98,4 in / 1.5 m length has 1 MΩ resistor and removable alligator clip at one end and a button clip at the other one.

Specifications

• Wire length: 98,4 in / 1.5 m
• Wire color: blue
• Plug of 0.2 in / 4 mm length with resistor
• Resistor: 1 MΩ
• Removable alligator clip

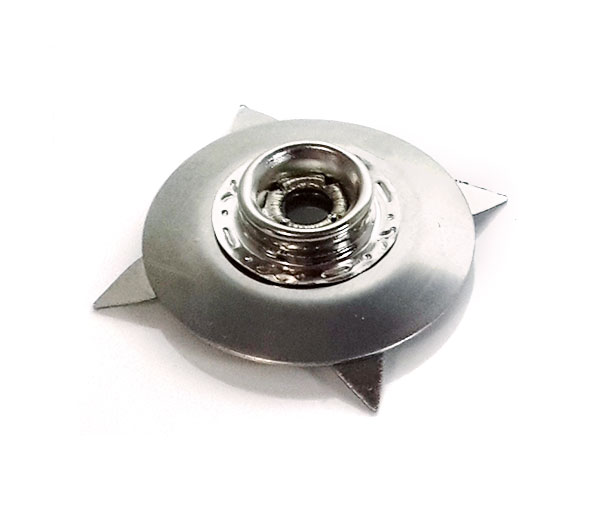

• AHT-5174 metal clip for connection to an antistatic mat. Button is for clip connection

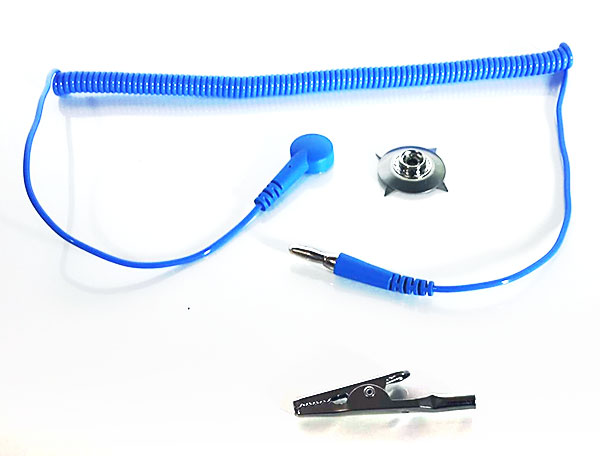

Standard accessories

• Ground wire with button and plug with 1 MΩ resistor.
• AHT-5174 clip to connect the ground wire

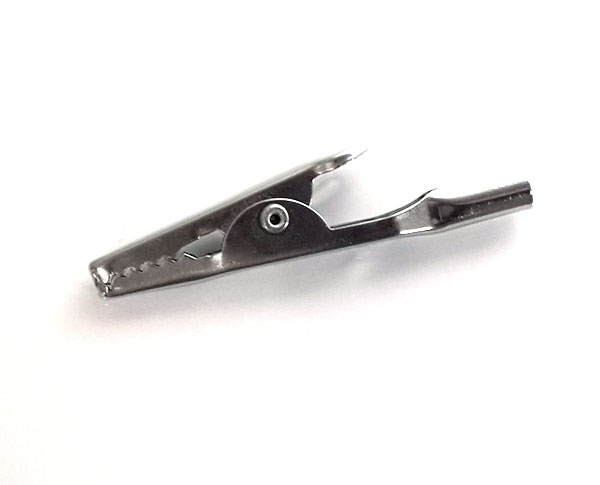

• Alligator clip

AHT-5173B Ground wire Enlarge		AHT-5173B Ground wire Enlarge		AHT-5173B Ground wire Enlarge
