ATK-2103 Clamp Meter

AKTAKOM ATK-2103 contains 2 devices in one housing! There is multimeter and clamp meter! ATK-2103 is capable of measuring up to 8 electric quantities, continuity testing. Big diameter of clamp meter jaws allows you to measure current in flat wires 2.4 in / 60 mm wide as well as round wires with 2 in / 50 mm diameter.

Features:

• 2 in 1, 2000 A clamp meter + Digital multimeter
• True RMS reading for ACV & ACA measurement
• 4000 counts, Auto range, multi-functions for ACA, DCA, ACV, DCV, Ohms, Capacitance, Hz, Duty cycle, diode and continuity test
• Wide ranges (2000A, 400 A) clamp on current measurement both for ACA and DCA
• 4 ranges (400 µA, 4000 µA, 40 mA, 400 mA) direct current input measurement both for ACA and DCA
• LSI circuit provides high reliability and durability
• Overload protection circuit is provided for all ranges
• Data hold
• Backlight

Specifications:

General specifications:

• Display: 0.6 in / 15 mm, 4 digit LCD, max. indication: 4000
• Measurement range: ACA, DCA, ACV, DCV, Ohms, Capacitance, Hz, Duty cycle, diode and continuity test
• Polarity: Automatic switching
• Current Sensor: Hall effect sensor
• Over-input: Indication of "1" or "-1"
• Sampling time: 0.35 sec. approx.
• Battery: DC 9V battery, heavy duty or Alkaline type, 006P, MN1604 ( PP3) or equivalent
• Power consumption: approx. DC 5 mA
• Operating temperature: 32°F to 122°F / 0°C to 50°C
• Operating humidity: less than 80% RH
• Dimensions: 10 x 2.9 x 1.5 in / 255 x 73 x 38 mm
• Weight: 0.85 lb / 380 g

Electrical Specifications:

Function	Range	Resolution	Accuracy	Overload protection

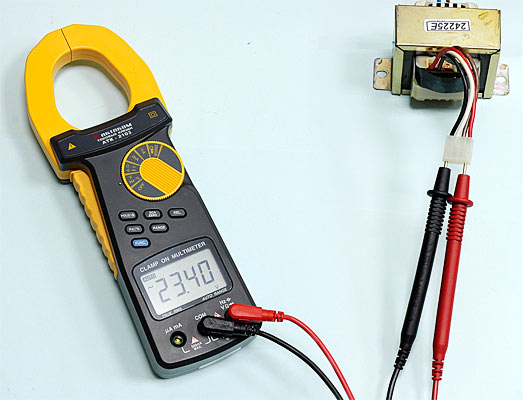

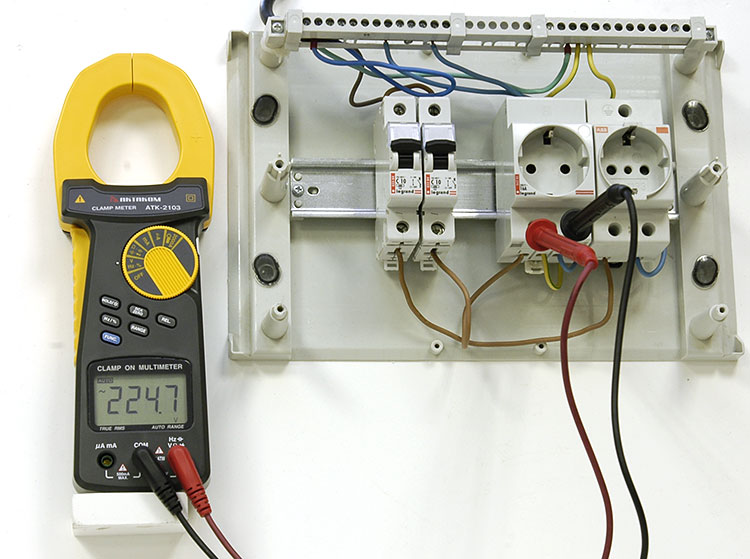

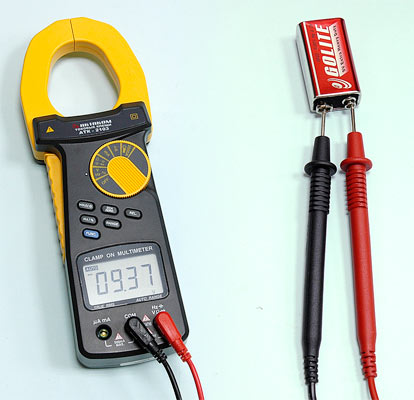

DC/AC voltage	400 mV (DC only)	0.1 mV	±( 0.5 % + 2d )	AC/DC 1000 V
	4 V	0.001 V	DCV: ±(1 % + 2d) ACV: (1.2 % + 5d)
	40 V	0.01 V
	400 V	0.1 V
	1000 V	1 V
DC/AC current (direct input)	400 µA	0.1 µA	±(1.2% + 5d)	AC/DC 500 mA (fuse)
	4000 µA	1 µA
	40 mA	0.01 mA
	400 mA	0.1 mA

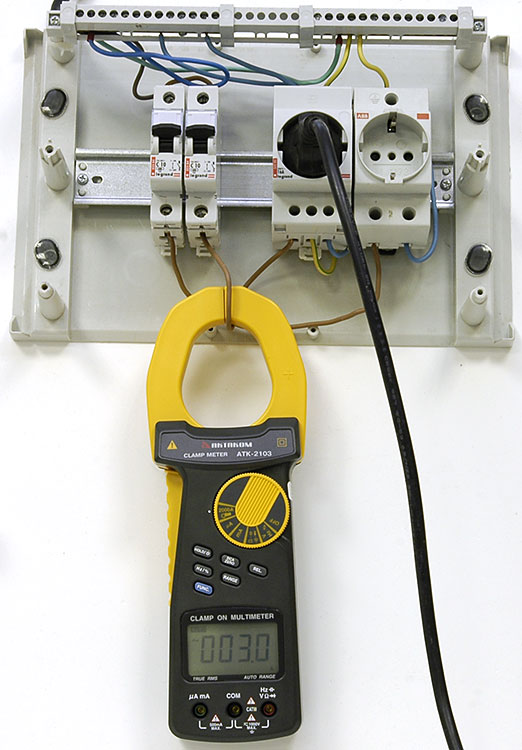

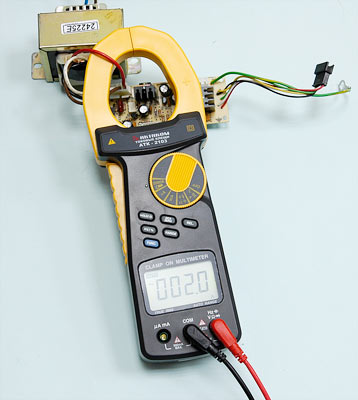

DC/AC current (clamp on)	400 A	0.1 A	±(2 % + 5 d)	AC/DC2000A/1000V
	2000 A	1 A	±(2 % + 8 d)
Note: · True rms measurement both for ACV, ACA function · Input impedance for ACV and DCV range is 10 MΩ · ACA, ACV frequency response is from 45 to 1 KHz · ACA, ACV specification be tested on sine wave 50/60 Hz.
Ohms	400 Ω	0.1 Ω	±(1 % + 5 d)	AC / DC 400V
	4 kΩ	1 Ω
	40 kΩ	10 Ω
	400 kΩ	100 Ω
	4 MΩ	1 kΩ	±(2 % + 2 d)
	40 MΩ	10 kΩ	±(3.5 % + 5d)
Capacitance	50 nF	10 pF	±(3 % + 5d)	AC / DC 400V
	500 nF	100 pF
	5 µF	0.001 µF
	50 µF	0.01 µF

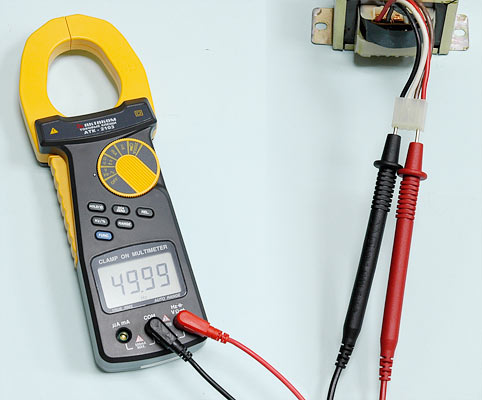

Frequency (>5 V)	5 Hz	0.001 Hz	±(1 % + 5 d)	AC / DC 1000V
	50 Hz	0.01 Hz
	500 Hz	0.1Hz
	5 kHz	1 Hz
	50 kHz	0.01 kHz
	100 kHz	0.1 kHz
Duty cycle	1 % to 99%	0.1 %

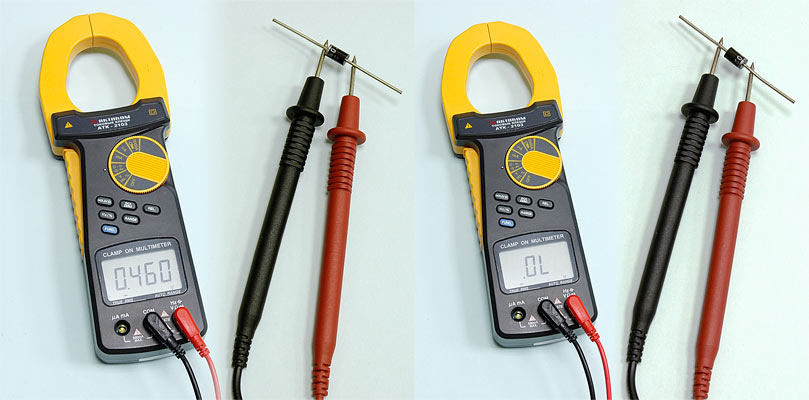

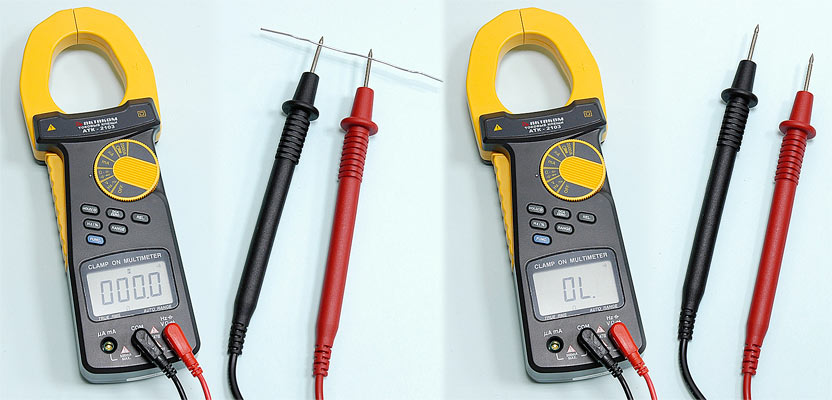

Diode	Short/non conductance, good/defect test

Accessories:

• Test leads
• User manual

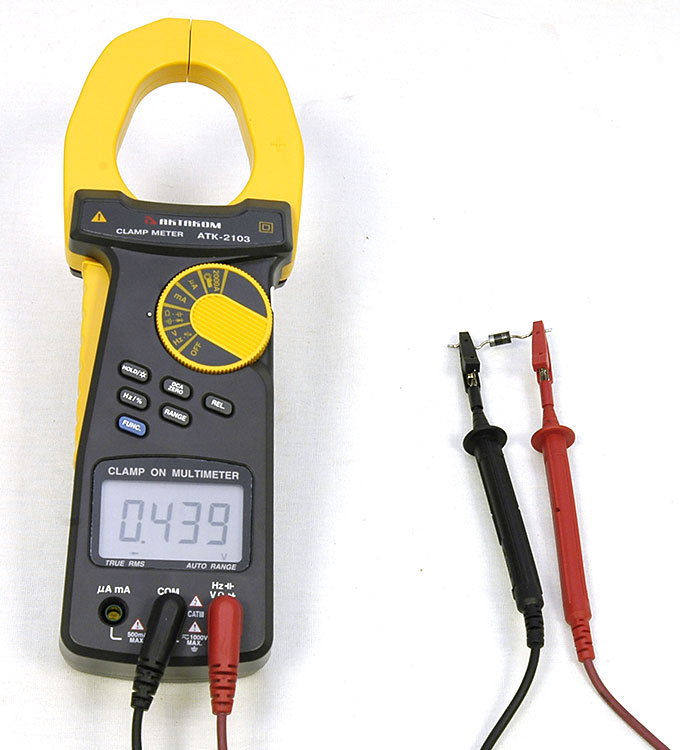

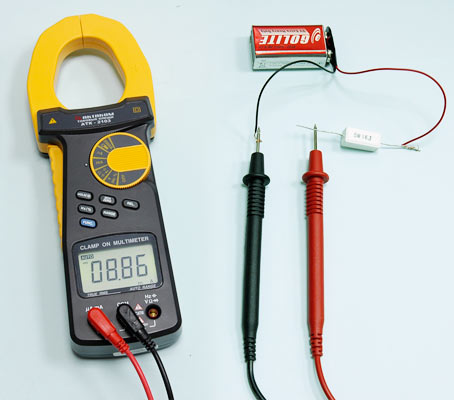

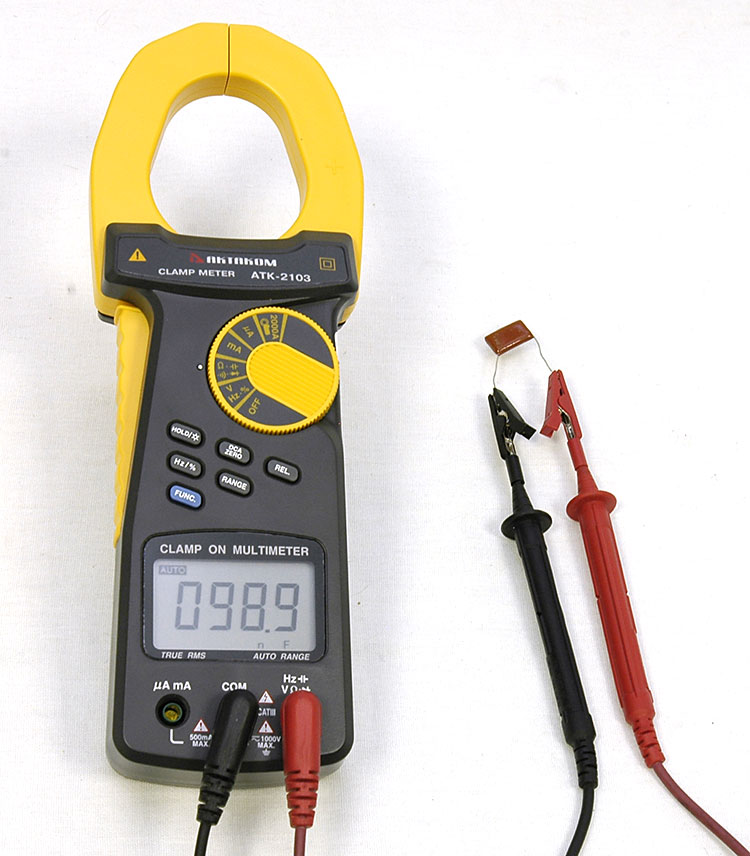

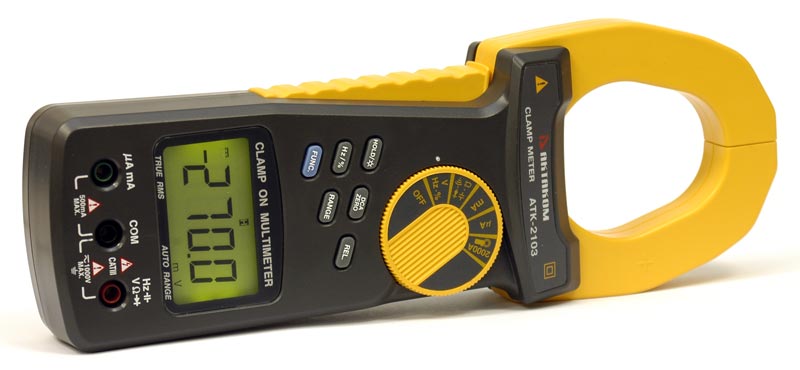

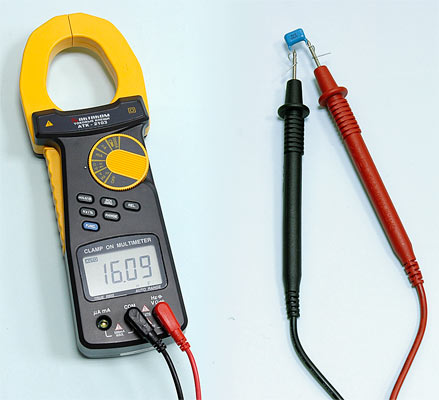

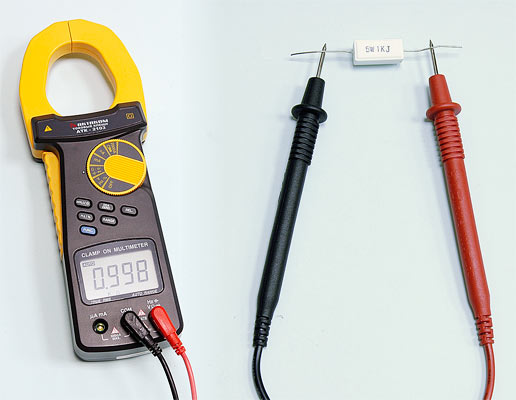

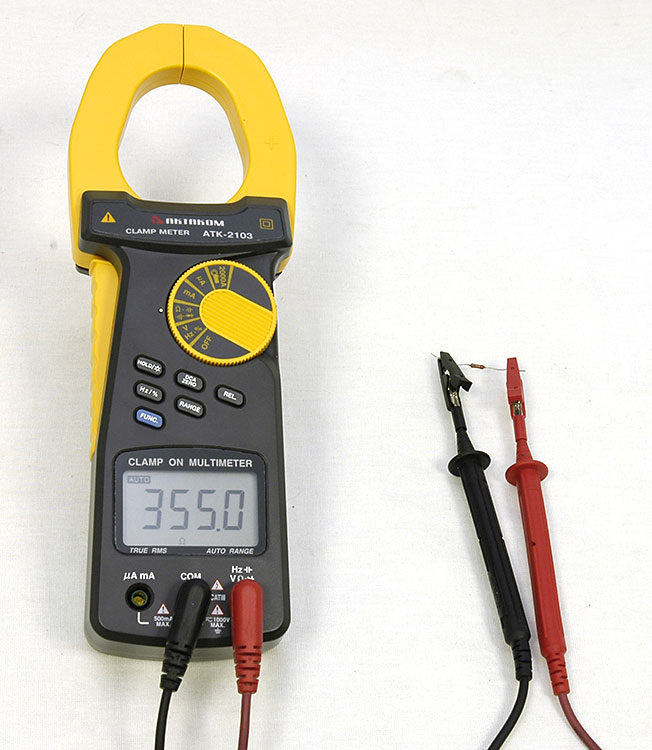

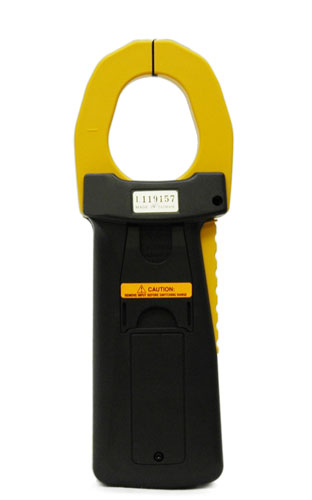

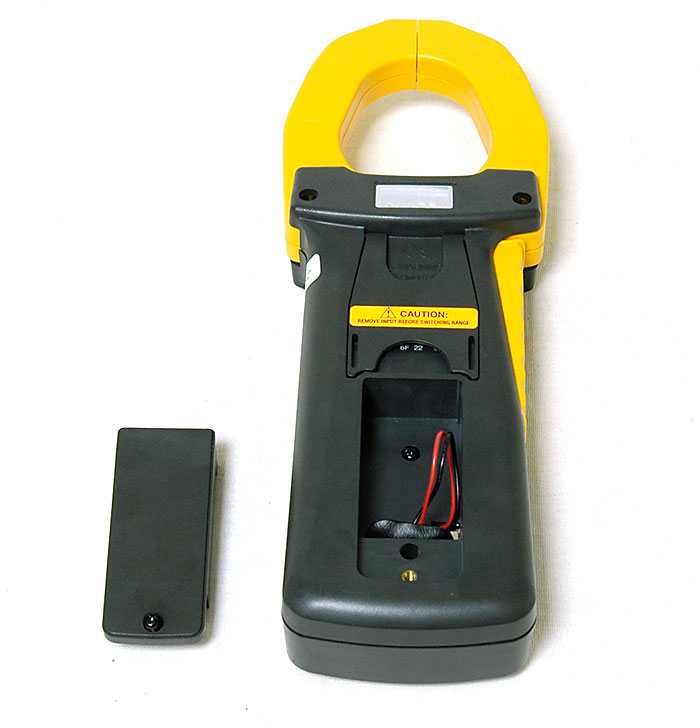

ATK-2103 Clamp Meter Enlarge		ATK-2103 Clamp Meter Enlarge		ATK-2103 Clamp Meter - rear view Enlarge

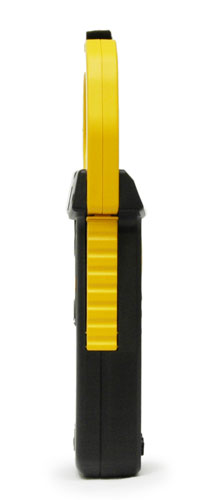

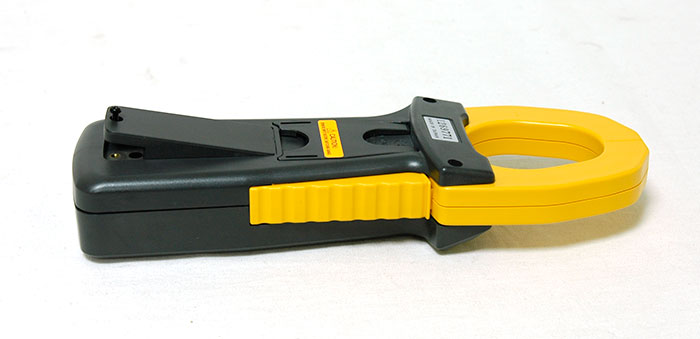

ATK-2103 Clamp Meter - side view Enlarge		ATK-2103 Clamp Meter Enlarge		ATK-2103 Clamp Meter Enlarge
ATK-2103 Clamp Meter Enlarge		ATK-2103 Clamp Meter Enlarge		ATK-2103 Clamp Meter Enlarge
ATK-2103 Clamp Meter Enlarge		ATK-2103 Clamp Meter Enlarge		ATK-2103 Clamp Meter Enlarge
ATK-2103 Clamp Meter Enlarge		ATK-2103 Clamp Meter Enlarge		ATK-2103 Clamp Meter Enlarge
ATK-2103 Clamp Meter Enlarge		ATK-2103 Clamp Meter Enlarge		ATK-2103 Clamp Meter Enlarge

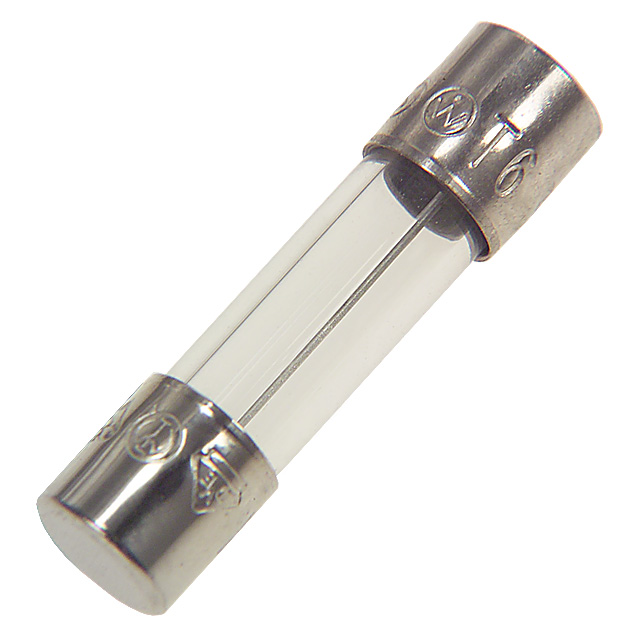

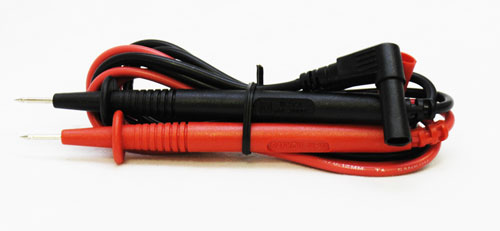

ATK-2103 Clamp Meter - test leads Enlarge		ATK-2103 Clamp Meter - fuse Enlarge
