ATA-2504 Clamp Meter
|
|
Clamp meter-adapter. Three ranges (4 A, 40 A, 200 A) in every measurement mode (AC/DC). Output signal: from 1 to 100 mV, 1 A (AC/DC). Frequency range: 40 Hz...1 kHz. Hall effect sensor. Dimensions: 7.2 x 2.4 x 1.4 in / 183 x 61 x 36 mm. Weight: 6.7 oz / 190 g.
Manuals:
|
|

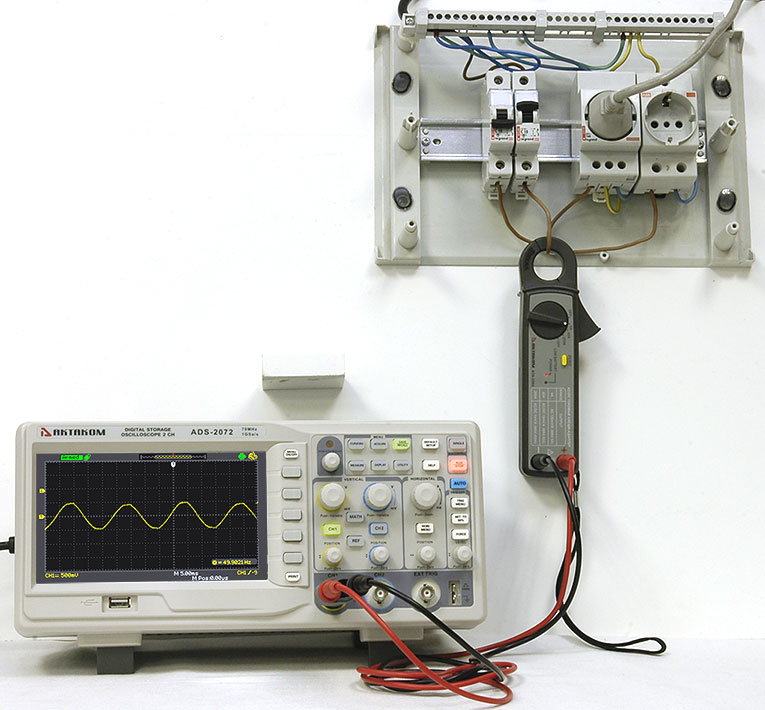

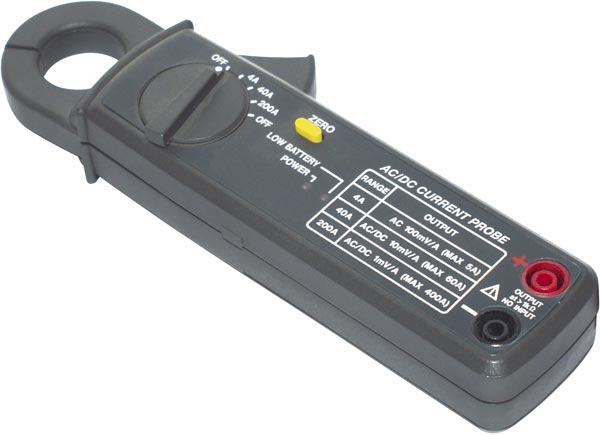

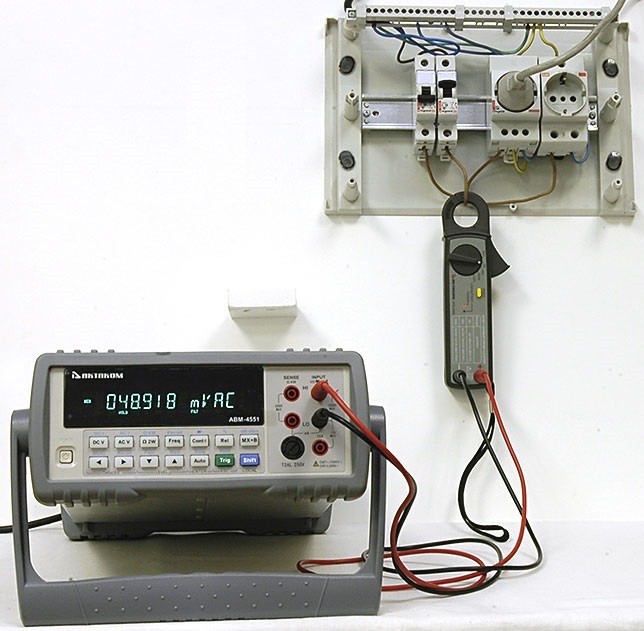

AKTAKOM ATA-2504 is a clamp meter-adapter. If you connect it to a multimeter the measurement results will be displayed on the display of this multimeter. In case of connecting ATA-2504 to an oscilloscope you will be able of researching a signal waveform.
Specifications:
- Three ranges (4 A, 40 A, 200 A) in every measurement mode (AC/DC)
- Output signal: from 1 to 100 mV, 1 A (AC/DC)
- Frequency range: 40 Hz...1 kHz
- Hall effect sensor
- 2 batteries: 1.5V, AA-type
- Dimensions: 7.2 x 2.4 x 1.4 in / 183 x 61 x 36 mm
- Weight: 6.7 oz / 190 g
Direct current
|
Range
|
Output
|
Accuracy
|
Sensitivity
|
|
0...4 A*
|
100 mV/A
|
±(0.02 + 0,005 A)
|
0.1 mV/1 mA
|
|
0...40 A
|
10 mV/A
|
±(0.01 + 0,02 A)
|
0.1 mV/10 mA
|
|
0...150 A
|
1 mV/A
|
±(0.01 + 0,2 A)
|
0.1 mV/100 mA
|
|
150...200 A
|
1 mV/A
|
±(0.022 + 0,2 A)
|
0.1 mV/100 mA
|
* at the range of 4 A the output voltage can vary within 0.4 mV
Alternating current (with 40 Hz...1 kHz frequency)
|
Range
|
Output
|
Accuracy
|
Sensitivity
|
|
0...4 A
|
100 mV/A
|
±(0.02 + 0.005 A)
|
0.1 mV/1 mA
|
|
0...40 A
|
10 mV/A
|
±(0.015 + 0.03 A)
|
0.1 mV/10 mA
|
|
0...150 A
|
1 mV/A
|
±(0.015 + 0.3 A)
|
0.1 mV/100 mA
|
|
150...200 A
|
1 mV/A
|
±(0.022 + 0.2 A)
|
0.1 mV/100 mA
|
Accessories:
- Measurement probes
- Varrying case
- User manual
