AEE-2087 4-channel Crosspoint Switch

Matrix switch box with electronic control. This is an add-on unit to a computer (PC). Software-based switching control is made by USB interface or remotely through the network interface 10/100BASE-T (LAN). Number of inputs: 1…7 (selected by user). Number of outputs: 1…7 (selected by user). AEE-2087 allows commutating: X1-Y1, X2-Y2, X3-Y3, X4-Y4. Type and max. voltage value of the switched circuit: direct, alternating (peak-to-peak): 10 mV…300 V. Max. Current value of the switched circuit: 3.0 A. Ma. Frequency of the switched signal: 100 kHz. Interface: USB 1.1 (12 Mbit/s), Ethernet 10/100BASE-T. Dimensions: 5.9 x 3.4 x 1.4 in / 150 x 85 x 35 mm. Weight: 7.4 oz / 0.21 kg.

AKTAKOM AEE-2087 is a matrix switch box with electronic control. This is an add-on unit to a computer (PC). Software-based switching control is made by USB interface or remotely through the network interface 10/100BASE-T (LAN).

Specifications:

Number of inputs: 1…7 (selected by user)
Number of outputs: 1…7 (selected by user)
AEE-2087 allows commutating: X1-Y1, X2-Y2, X3-Y3, X4-Y4
Type and max. voltage value of the switched circuit: direct, alternating (peak-to-peak): 10 mV…100 V.
Max. Current value of the switched circuit: 3.0 A.
Ma. Frequency of the switched signal: 100 kHz
Interface: USB 1.1 (12 Mbit/s), Ethernet 10/100BASE-T
Power supply: 5.5 V / 220 V with a network adapter
Dimensions: 5.9 x 3.4 x 1.4 in / 150 x 85 x 35 mm
Weight: 7.4 oz / 0.21 kg

Accessories:

Network adapter
User manual

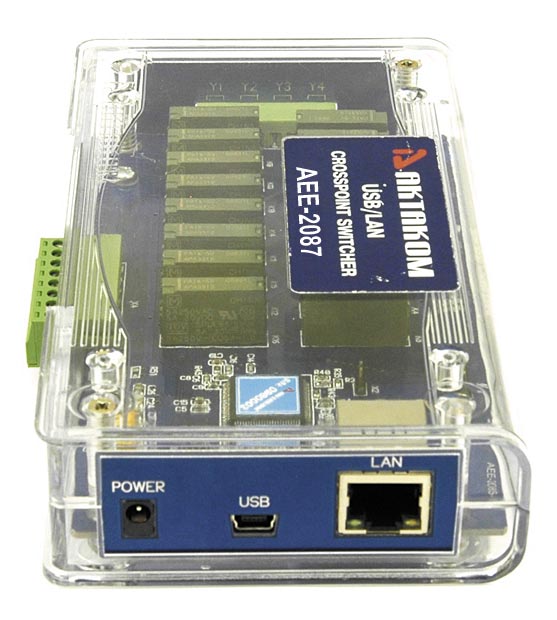

AEE-2087 4-channel Crosspoint Switch - Top view

Enlarge

AEE-2087 4-channel Crosspoint Switch - Acceptable switch point field

Enlarge

Compatible Software

AKTAKOM Net Configurator (ANC)

AKTAKOM Net Configurator is designed to record and read the network settings data of AKTAKOM Universal Lab devices (supporting AULNet protocol). The application provides simple and convenient user interface to work with settings, they can be recorded into the file and read afterwards.
