ACK-3174 four-channel USB PC-based oscilloscope

AKTAKOM ACK-3174 is a high end model of four-channel digital storage USB oscilloscope. This is a PC-based unit which is connected to a computer (PC) via USB-port or 10/100BASE-T (LAN). Advanced technical parameters, powerful program options and user friendly interface make this series the leader in the category.

Features:

• 4 independent channels with the bandwidth of up to 100 MHz
• Record buffer: 128 kB per channel
• Arbitrary selectable pre record/after record length
• High sensitivity (from 2 mV/div)
• Auto set up for input signals
• Auto identification of probes
• Wide range of cursor and automatic measurements
• Statistic measurement and histogram construction (option)
• Spectrum analyzer (FFT) (option)
• Digital luminophor (option)
• Alarm signaling (option)

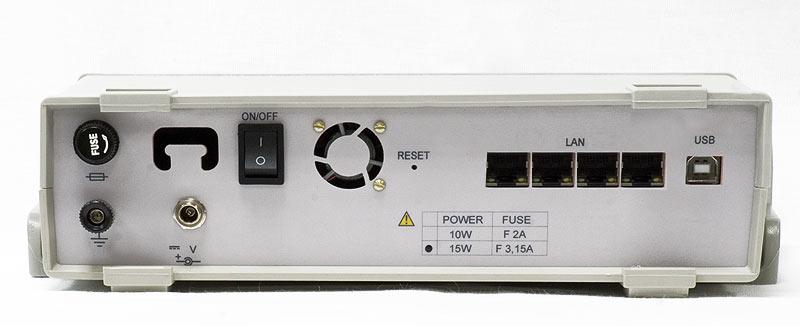

• Connection to PC via USB 1.1 or 10/100BASE-T (LAN)

Specifications:

• Sample rate: 10 GHz (stroboscopic mode)
• Sample rate 100 MHz (real-time mode)
• Vertical deflection coefficient 2 mV/div...10 V/div with 1-2-5 step
• Resolution: 8 bit
• Frequency range at –3 dB level: 0 Hz...100 MHz (DC), 1.2 Hz...100 MHz (AC)
• Input resistance: 1 MΩ or 50 Ω
• Max. input voltage: ±100 V (input R=1 MΩ)
• Min. repetition period of synchronization pulse: 20 ns
• Min. duration of synchronization pulse: 10 ns
• Sweep ratio range:10 ns/div....0.1 s/div
• Calibrator: 1 kHz, 3 V peak-to-peak
• Power supply: +6 V / ~220 v / 50 Hz, not more than 20/30 W
• Dimensions: 8.3 x 2.8 x 10.3 in / 210 x 70 x 260 mm
• Weight: 2.9 lb / 1.3 kg

Accessories:

• Network analyzer
• USB cable
• Brief instruction


Compatible Software
