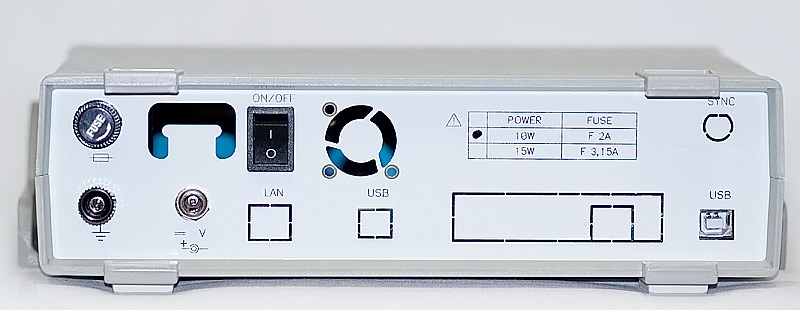

AKTAKOM ACK-3117 four-channel digital storage USB oscilloscope. This is a PC-based unit which is connected to a computer (PC) via USB-port or LPT parallel port. This model is used for a wide range of oscilloscope measurements and allows user to view waveforms using 4 independent channels with 8 bit resolution and sensitivity from 2 mV/div to 10 V/div at the bandwidth from 0 up to 100 MHz. Input resistance is 1 MΩ or 50 Ω.
This USB oscilloscope has a standard triggering system operable in “waiting”, “single” and “auto” modes with regulated trigger level.
Horizontal sweep varies in the wide range and corresponds to 3 main modes of a USB oscilloscope:
- real-time mode (sweep range: from 500 ns/div up to 50 ms/div; sample rate: up to 100 MHz)
- stroboscopic mode (sweep range: from 25 ns/div up to 200 ns/div; equivalent sample rate: up to 2 GHz)
- recorder (paperless, sweep range: 500µs/div up to 50 h/div, sample rate: up to 50 kHz depending on the PC used)
Specifications:
- Sampling: up to 100 MHz (real-time mode)
- 4 independent channels with the bandwidth of up to 100 MHz per channel
- Record length: up to 132 kB per channel (selected by user)
- Arbitrary selectable pre record/after record length
- High sensitivity (from 2 mV/div)
- Input resistance: 1 MΩ or 50 Ω
- Interface: USB 1.1
- Record mode (paperless)
- Alarm signaling
- Sweep/triggering auto set button
- Automatic measurements including phase angle determination
- Statistic measurement and histogram construction
- Spectrum analyzer (FFT)
- Digital afterglow
- Digital filtering
- Program emulation of the input signal
- Data save as MS Excel maintaining the scales along the oscillogram axes
- Resolution: 8 bit
- Power supply: +6.5 V with a network adapter
- Dimensions: 8.3 x 2.8 x 10.3 in / 210 x 70 x 260 mm
- Weight: 2.1 lb / 0.96 kg
Galvanic isolation:
- Max. acceptable pulse amplitude between the input and output of galvanic isolation (via USB interface): not more than 1000 V.
- Rate of rise: not exceeding 5000 V/µs
- Repetition frequency: not more than 100 Hz
Embedded generator:
- Output socket: BNC matched with external triggering input
- Output impedance: about 150 Ω
- Input signal: square with duty factor 2
- Output signal frequency: 1 kHz
- Output voltage: about 3.5V peak-to-peak
Accessories:
- Cable
- Brief instruction

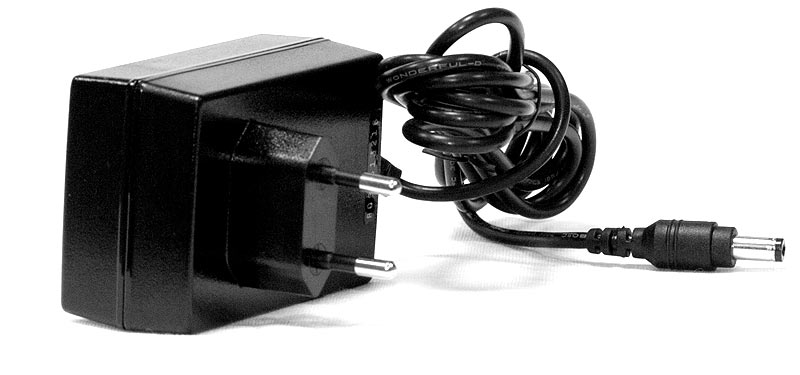

- Network adapter
