ATH-8065 Programmable Electronic Load
ATH-8065 Programmable Electronic Load
|
|
Programmable electronic load is designed for the operation as a load when testing, setting and adjusting power blocks, amplifiers, sound reproducers and other radio equipment with supply voltage of up to 500V, load current of up to 30A and accepted power of up to 600 W. Operation modes: CV voltage stabilization, CC current stabilization, CR resistance stabilization, CW power stabilization, 2 combined modes: CC+CV, CR+CW. Protection: current, voltage, power, heat, wrong polarity connection. Soft launch function. Battery test. Dynamic test support with rising / falling edge setting. External triggering support. Voltage drop compensation. Operation per the list. Auto test. USB / RS-232 control. Dimensions: 16.9 x 4.1 x 17,9 in / 428 x 103.5 x 453.5 mm. Weight: 36,8lb / 17.6kg.
|
|
Programmable electronic load is designed for the operation as a load when testing, setting and adjusting power blocks, amplifiers, sound reproducers and other radio equipment with supply voltage of up to 500V, load current of up to 30A and accepted power of up to 600 W.
Main Features:
Specifications:
|
Input ratings
|
Power
|
600 W
|
|
Current
|
0...30 A
|
|
Voltage
|
0...500 V
|
|
CC mode
|
Range
|
0...3 A
|
0...30 A
|
|
Resolution
|
1 mA
|
10 mA
|
|
Accuracy
|
0.03%set value +0.05%range
|
0.03% set value +0.05% range
|
|
CV mode
|
Range
|
0.1...19.999 V
|
0.1...500 V
|
|
Resolution
|
1 mV
|
10 mV
|
|
Accuracy
|
0.03%set value +0.02%range
|
0.03%set value +0.05%range
|
|
CR mode
|
Range
|
0.03...10 kΩ
|
0.03...5 kΩ
|
|
Resolution
|
16 bit
|
16 bit
|
|
Accuracy
|
0.1%set value +0.1%range
|
0.1%set value+ 0.1%range
|
|
CW mode
|
Range
|
0...600 W
|
0...600 W
|
|
Resolution
|
1 mW
|
10 mW
|
|
Accuracy
|
0.1%set value +0.1%range
|
0.1%set value +0.1%range
|
|
Voltage measurement
|
Voltage
|
0...19.999 V
|
0...500 V
|
|
Resolution
|
1 mV
|
10 mV
|
|
Accuracy
|
0.015%set value+0.03%range
|
0.015%set value+0.03%range
|
|
Current measurement
|
Current
|
0...3 A
|
0..30 A
|
|
Resolution
|
0.01 mA
|
0.1 mA
|
|
Accuracy
|
0.03%set value +0.05%range
|
0.03%set value +0.08%range
|
|
Power measurement
|
Power
|
100 W
|
600W
|
|
Resolution
|
1 mW
|
10 mW
|
|
Accuracy
|
0.1%set value +0.1%range
|
0.1%set value +0.1%range
|
|
Battery test
|
Battery voltage: 0.1...150 V; Max. measurable capacity: 999 Ah; Resolution: 0.1 mA
|
|
Dynamic test
|
Operation per the list: switching: 0...25 kHz; 2.5 A/µs; T1&T2: 60 µs -999 s; Accuracy: ±(15% shift+10% range)
|
|
Soft launch; Time
|
1 ms; 2 ms; 5 ms; 10 ms; 20 ms; 50 ms; 100 ms; 200 ms; 500 ms; 1000 ms
Accuracy: ±(15% shift +10% range)
|
|
Short circuit
|
Current (CC)
|
=3.3 A
|
= 33 A
|
|
Voltage (CV)
|
0 V
|
|
Resistance (CR)
|
= 100 mΩ
|
|
Dimensions
|
W*H*L (in/mm)
|
16.9 x 4.1 x 17,9 in / 428 x 103.5 x 453.5 mm
|
|
Weight
|
lb / kg
|
36,8lb / 17.6kg
|

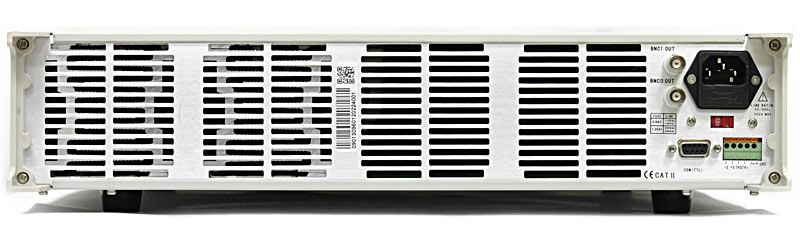

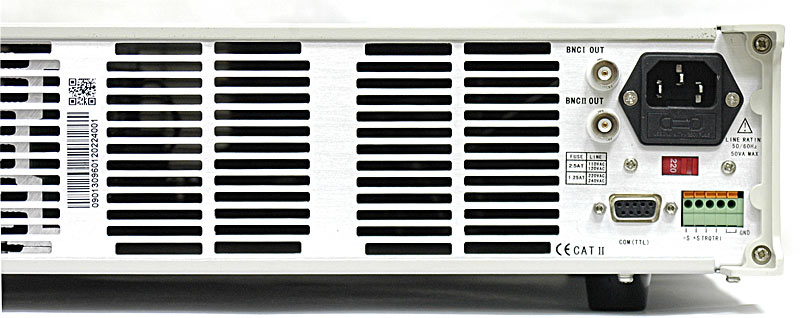

| ATH-8065 Programmable Electronic Load - Rear panel |
|
|

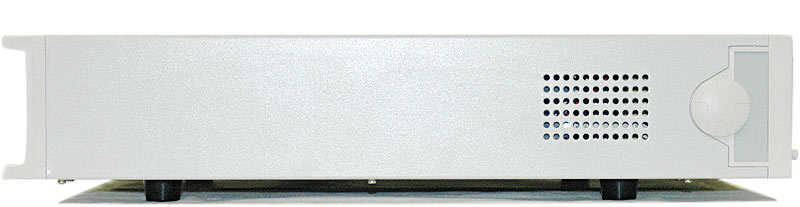

| ATH-8065 Programmable Electronic Load - Side view |
|
|
