AME-8821-100 Non-invasive AC Sensor (100A max)

AME-8821-100 is a non-invasive AC sensor (100A max), there is a current transformer used on the basis with a split ferrite core. It’s recommended to use it for current measuring monitoring as well as for power efficiency control. Capture parameter: 0.5 in x 0.5 in / 13 mm x 13 mm. Lead wire length: 4.9 ft / 1.5 m. Ø3.5, three-pin.

Specifications:

Max. current: 100A
Capture parameter: 0.5 in x 0.5 in / 13 mm x 13 mm
Lead wire length: 4.9 ft / 1.5 m
Ø3.5, three-pin
Output type: voltage (built-in low-value resistor)
Core material: ferrite
Mechanical strength: no less than 1000 times closing (test temperature: 68°F / 20°Ñ)
Dielectric strength (between the shell and output): 5000 V AC/1 min.
Operating temperature: -13°F +158°F / -25°C +70°C

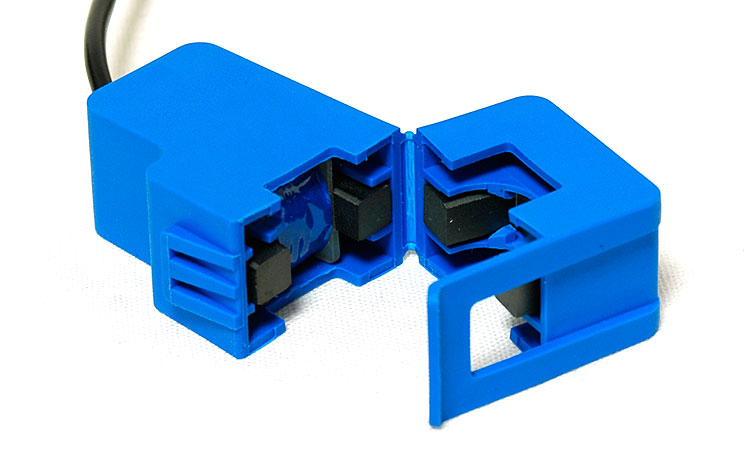

AME-8821-100 Non-invasive AC Sensor (100A max)

Enlarge

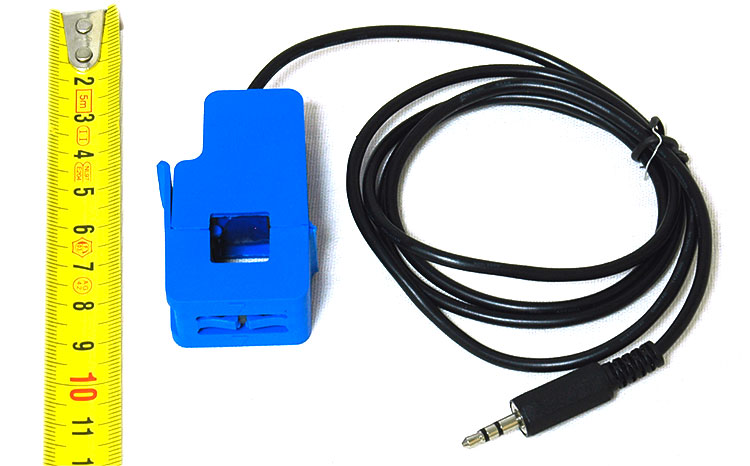

AME-8821-100 Non-invasive AC Sensor (100A max)

Enlarge

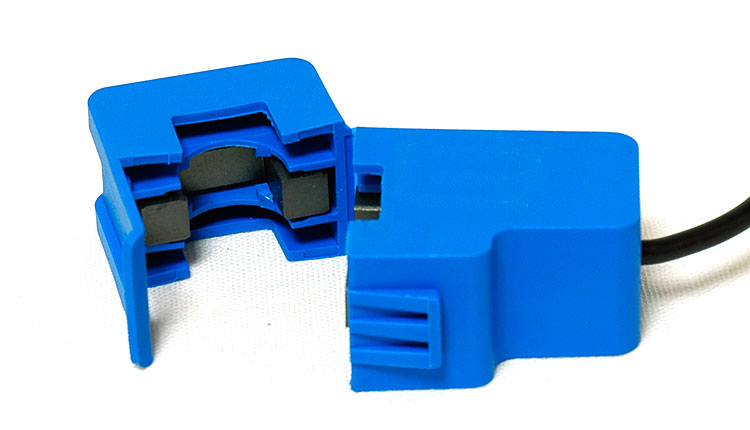

AME-8821-100 Non-invasive AC Sensor (100A max)

Enlarge
