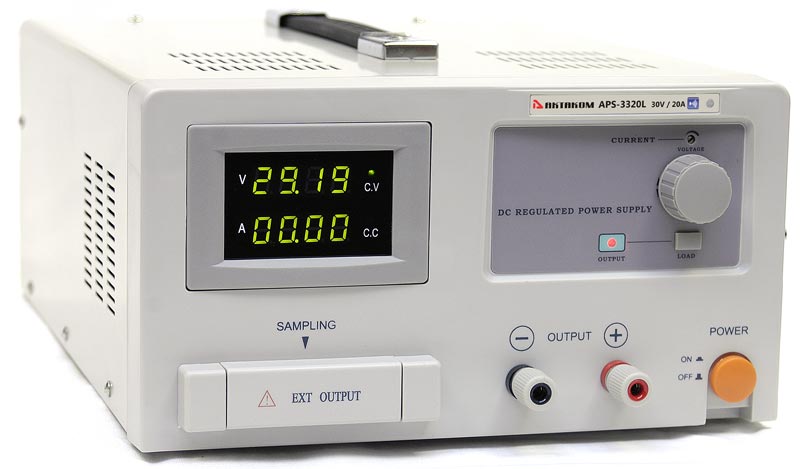

APS-3320LS DC Power Supply Remote Controlled 600W 30V / 20A 1 Channel programmable

Single channel DC remote controlled programmable power supply with current limit. Four-wire (4-wire) connection scheme. Rated Output Voltage: 0~30V (Adjustable). Rated Output Current: 0~20A (Adjustable). Rated Output Power: 600W. Large Digital Display with LED meter displays Volts & Amps. Resolution 10mV (Voltage) / 10mA (Current). Ripple And Noise: 3mVrms. SMD technology. Remote control via USB or LAN. Dimensions (WxHxD): 10.4x5.5x14.2in / 265x140x360mm. Weight: 40lb / 18kg.

Manuals:

User's Manual (250.78 Kb)

AKTAKOM APS-3320LS Single Output DC Regulated Bench remote controlled programmable power supply with Adjustable Current limit. Large Digital Display with LED meter displays Volts & Amps. Push button switch allows connection & removal of load. Multiturn Voltage control for precise settings. Front panel output Banana Jacks & Terminal strip for remote Voltmeter Sensing at the load.

There is a four-wire (4-wire) connection scheme used. This connection method provides accurate voltage supply preset in the load. This leads to the compensation of the wire resistance connecting the power supply and the load that is especially important in the industrial application of the power supply.

There is a single channel, output regulated voltage of 0…30 V, output current of 0…20 A.

AKTAKOM APS-3320LS DC power supply differs from other similar power supplies by wide capabilities of local and remote control through AKTAKOM Power Manager software.

APS-3320LS remote controlled DC power supply is capable of operating in several modes:

Manual control mode. Including the use of 4 memory cells to store preset voltage and current.

Remote control mode to operate AKTAKOM APS-3320LS DC power supply by computer via USB interface through AKTAKOM Power Manager Software. Moreover the USB interface has full galvanic isolation between the power supply and the computer.

Remote control mode to operate AKTAKOM APS-3320LS DC power supply by computer using an USB cable or LAN cable (ethernet).

Remote control mode to operate AKTAKOM APS-3320LS DC power supply throught the remote access to the computer USB-connected to APS-3320LS. AKTAKOM Power Manager Software provides the operation in «server-client» mode even for power supplies without built-in LAN interface. Meanwhile the power supply is physically connected to computer-server via USB interface and the data is available for reading from any computer of the network.

AKTAKOM Power Manager Software (APM) provides a wide range of control capabilities of output voltage and stabilization current both in manual and functional modes. Functional control is a very powerful tool of APM software which allows you not only to control your AKTAKOM power supply automatically by computer but also to program its off-line operation mode by prespecified algorithm. Functional control mode in APM software allows automatically controlling the output parameters (voltage and current) of the power supply according to the principle specified with the help of graphics and tabular editors. In a convenient graphics editor user may specify 10 standard forms of parameters (including sine, square, triangle, saw, flash, pulse, 2 types of exponents, 2 types of S-curves), as well as, almost any arbitrary form which can be described formulary. The program operation in equipment operation compatibility mode is also available.

The software system for AKTAKOM APS-3320LS remote controlled DC power supply includes a software development kit (SDK). This SDK contains the device driver with all necessary functions for the power supply operation and represents dynamic-link library (DLL) Windows followed with the library header file in the C programming language, with LabWindows function tree and the tool library for LabVIEW which fully repeats it. Additionally (in contrast to APS-3xxxLx_SDK_Base Software Development Kit) it contains the examples of programming in the following development environment: Borland C++ Builder, MS Visual C++, NI LabWindows/CVI and NI LabVIEW.

Features

Input: 110/220VAC 50Hz/60Hz
Output: 0-30VDC @ 0-20A
SMD technology
Attractive digital display shows voltage and current
Cooling fan
High precision voltage regulation
Proqressive current regulation
Dual terminal system: Safety test style or expandable screw terminals
Overload protection circuit
Output polarity: positive or negative
Remote control via USB or LAN
Rugged reinforced metal frame construction

Specifications

Regulated Single Channel with Current Limit
Input: 110VAC 60Hz
Output: 0-30VDC @ 0-20A
Output voltage accuracy: ±(1% + 2 digits)
Output current accuracy: ±(1% + 2 digits)
Rated Output Power: 600W
Load stability: ±(1% + 10 mV)
Interface: USB Device, LAN
Display: 2 LED displays
Power supply: 100 / 220 V
SMD technology
Four-wire (4-wire) connection scheme used. This connection method provides accurate voltage supply preset in the load. This leads to the compensation of the wire resistance connecting the power supply and the load that is especially important in the industrial application of the power supply
Button to connect/disconnect the load
Digital display shows voltage and current with LEDs
Cooling fan
High precision voltage regulation
Display resolution: 10mV (Voltage) / 10mA (Current)
Ripple And Noise: 5mV
Remote control via USB or LAN
Dimensions (WxHxD): 10.4x5.5x14.2in / 265x140x360mm
Weight: 40lb/18kg

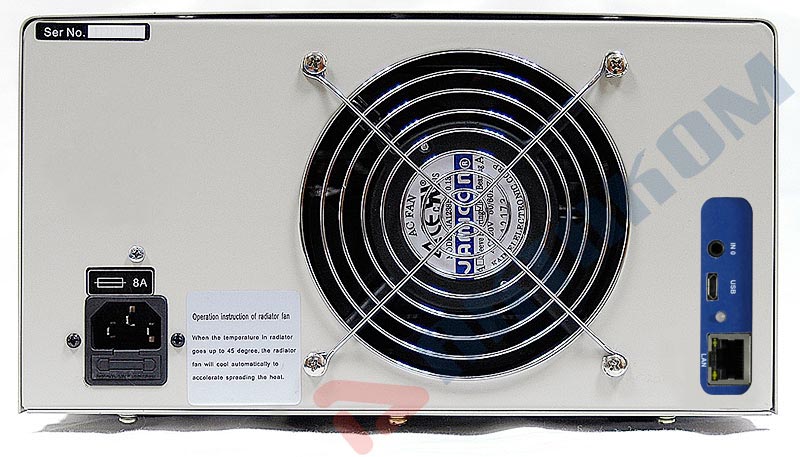

APS-3320LS DC Power Supply Remote Controlled 600W 30V / 20A 1 Channel programmable - Rear panel

Enlarge

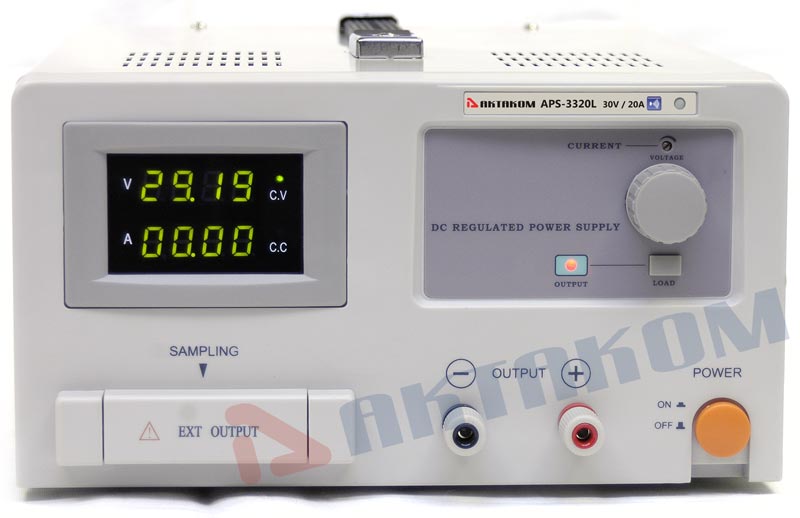

APS-3320LS DC Power Supply Remote Controlled 600W 30V / 20A 1 Channel programmable - Front panel

Enlarge

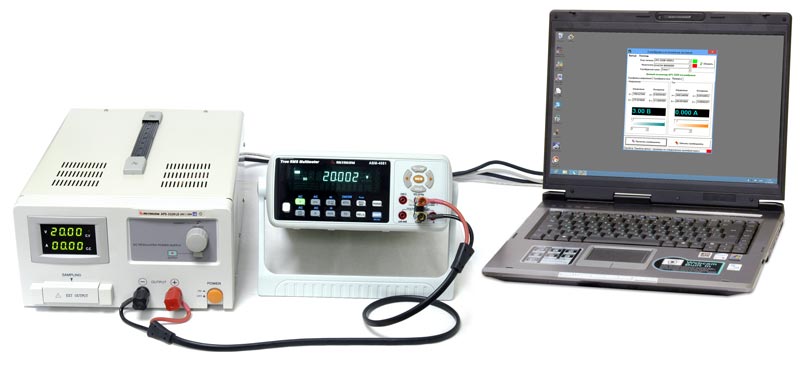

APS-3320LS DC Power Supply Remote Controlled 600W 30V / 20A 1 Channel programmable - Calibrating AKTAKOM power supply

Enlarge

Frequently Asked Questions

What are the advantages of APM21 Pro vs Light?

How to connect to the sync input of AKTAKOM APS-3xxxLS and APS-7xxxLS power supplies with remote control?

How to check power supply network settings?

May I use AKTAKOM power supplies to charge accumulators?

What are the advantages of APM Max Pro vs APM Max?

What are the advantages of APM21 Pro vs Light?
We have added a number of new features to AKTAKOM Power Manager 21 Pro, trying to keep it simple and easy to use. Template management AKTAKOM laboratory power supplies can supply current with arbitrary parameters precisely set by the user, but in practice a number of parameters with fixed values are most often used - 1.5 Volts, 3.3, 9, 12 ... In APM21 Pro, you can make a list of your "favorite" values in advance voltage and current and then set them to the device with one click. Command list management Another important property of our power supplies is the ability to dynamically change the current output parameters. APM21 Pro can do this automatically. Set a list of commands to the device in advance, specifying the necessary parameters and time, save the list to a file and run it for automatic execution when you need it. Customizable user interface In addition to additional ways to control the device, the main window of the program also has a graph displaying the history of measurements received from the device. All this may seem redundant and cluttering for someone who plans to use the source for simple standard tasks. In this case, you can customize the user interface in a way that is convenient for you: hide and collapse all the blocks you don’t need with special buttons and leave only the ones you need. Saving data If your lab's power supply is used for research, you may need to review instrument operation later. Therefore, we saved the history of events (displayed in the Protocol window) and measurement data (displayed on the graph in the main window) to a file. Up

How to connect to the sync input of AKTAKOM APS-3xxxLS and APS-7xxxLS power supplies with remote control?

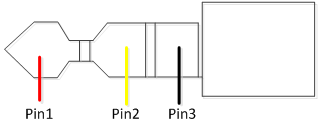

Sync input is a 2.5 mm audio jack stereo. The counterpart is a 2.5 mm audio jack plug. The scheme of this plug for synchronization signaling, see pic. 1. Pic. 1 Pin1: Sync input Pin2: Reserved Pin3: Common wire Parameters of the synchronization control pulse are shown in pic. 2. Pic. 2 Note! In APS-7306LS power supply the signal of pin 2 input of the sync connector is also used to reset network settings to default. APS-3xxxLS power supplies do not use this signal. Up

How to check power supply network settings?

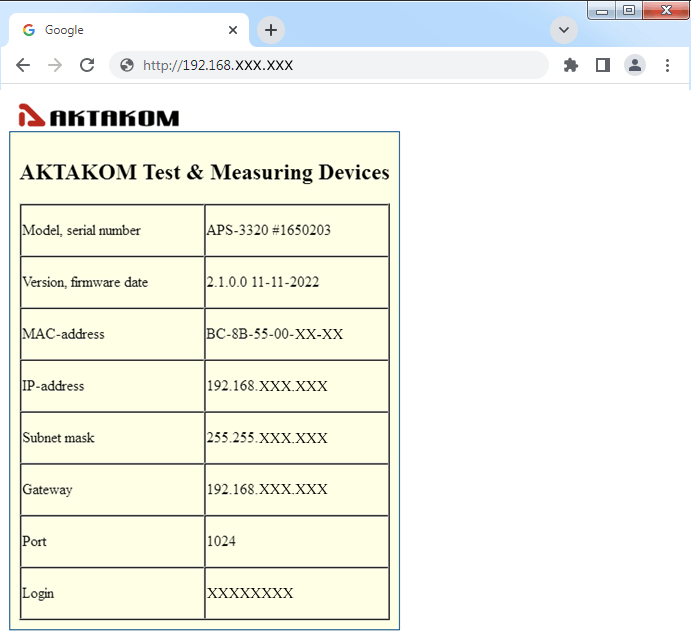

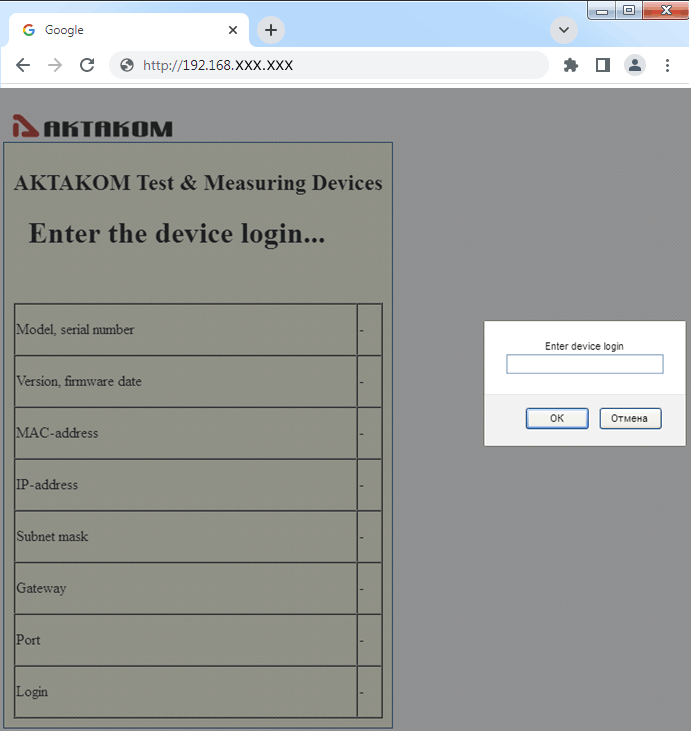

Connect the power supply to the local network using LAN connector. Power on the device. Open any Internet browser and enter the IP-address of the power supply in its address bar. You should see a window to enter the login assigned to the power supply with AKTAKOM Net Configurator (ANC) program. By default the login window already contains the default login. After entering the login click "OK". If the entered login is correct then the browser will display information about the power supply including network settings. Up

May I use AKTAKOM power supplies to charge accumulators?
AKTAKOM power supplies can’t be used for accumulator charging since it may cause the accumulator breakage (recharge, electrolyte boiling, extra pressure of the internal gas which will lead to the accumulator explosion). Accumulators should be charged with the current source which controls the accumulator voltage and regulates the charging current accordingly. When the required accumulator voltage is achieved such type of source simply stops the charging process, its name is a charging device. Up

What are the advantages of APM Max Pro vs APM Max?
APM Max Pro has additional functions comparing to APM Max: Automatic control of the power supply output voltage and current in accordance with the pre-set sequence of commands; Event log (in text format); Measurement history graph; Customizable user interface: you can hide and collapse all the blocks of the main window you don't need and leave only the ones you need. Also you can choose to hide or show the manual control blocks, control presets, synchronization, news feeds. User interface settings can be saved and restored. Up

Compatible Software

AKTAKOM File Converter (AULFConverter)

AKTAKOM File Converter (AULFConverter) is an utility to convert AKTAKOM data file format used in AKTAKOM applications including APM to other formats such as CSV and WAV.

AKTAKOM Net Configurator (ANC)

AKTAKOM Net Configurator is designed to record and read the network settings data of AKTAKOM Universal Lab devices (supporting AULNet protocol). The application provides simple and convenient user interface to work with settings, they can be recorded into the file and read afterwards.

AKTAKOM Power Manager (APM)

APM (AKTAKOM Power Manager) is an application software to control and programming an Aktakom Power Supplies APS-730xL & APS-3xxxL from a computer using an USB cable or a local area network (LAN). This application implements some advanced features (graphical and tabular editor, formula calculator for output parameters and more).

AKTAKOM Power Manager 21 Light (APM21 Light)

APM21 Light (AKTAKOM Power Manager 21 Light) is an application software to control AKTAKOM Power Supplies from a computer using an USB cable or a local area network (LAN). This software provides control of output voltage and current in arbitrary (manual) mode as well as external trigger function (synchronization).

AKTAKOM Power Manager 21 Professional (APM21 Pro)

AKTAKOM Power Manager 21 Professional (APM21 Pro) is an application software to control AKTAKOM Power Supplies from a computer using an USB cable or a local area network (LAN). This software offers some advanced features, such as control templates, command lists, customizable user interface, history of events.

AKTAKOM Power Manager Light (APM Light)

APM Light (AKTAKOM Power Manager Light) is an application software to control Aktakom Power Supplies from a computer using an USB cable or a local area network (LAN).

Aktakom Power Manager Max

Aktakom Power Manager Max is an application software to control AKTAKOM Power Supplies from a computer using an USB cable or a local area network (LAN). This software provides control of output voltage and current in arbitrary (manual) mode as well as external trigger function (synchronization).

Aktakom Power Manager Max Pro

Aktakom Power Manager Max Pro is an application software to control AKTAKOM Power Supplies from a computer using an USB cable or a local area network (LAN). This software offers some advanced features, such as control templates, command lists, customizable user interface, history of events.

AKTAKOM Web Server (AULWebServer)

AULWebServer is a web interface based application (TCP/IP protocols). It allows remote control of a power supply over the local area network (LAN).

APS Calibration

Software to calibrate AKTAKOM power supplies

APS-3xxxLx_SDK Software Development Kit

This full version kit is designed to help users in creating their own applications for the following devices: APS-31xxL, APS-33xxL, APS-36xxL..

APS-3xxxLx_SDK_Base Software Development Kit

The kit is designed to help users in creating their own applications for the following AKTAKOM power supplies: APS-31xxL, APS-33xxL, APS-36xxL.

APS-3xxxLx_SDK_MS_VB Software Development Kit

This full version kit is designed to help users in creating their own applications for the following devices: APS-31xxL, APS-33xxL, APS-36xxL. Capable of working in Windows and LabView environments with USB and LAN interfaces.
