AMM-1203 Digital Multimeter

AKTAKOM AMM-1203 digital multimeter is a combination of wide functionality at an affordable price. In addition to the standard measuring functions for portable multimeters AMM-1203 digital multimeter has functions to measure duty cycle and temperature (using K-type thermocouple).

AMM-1203 multimeter also has a built-in data logger and the ability to plot trends in graphical form.

Main features:

• Large LCD display (69 mm x 52 mm) with backlight: 3 3/4 digits, 3999 counts
• Basic accuracy 0.5%
• Input impedance ≥10 MΩ
• Measurement speed 3 times/s
• Automatic and manual range selection
• Hold current values
• Relative measurement mode
• Diode and continuity test
• Low battery indicator
• Auto power off
• Overload protection 1000 V CATIII
• Bluetooth interface BLE 4.0

Specifications:

DC voltage

Ranges	Best resolution	Accuracy
400,0 mV	0,1 mV	±(0,5%+2 digits)
4,000 V	0,001 V
40,00 V	0,01 V
400,0 V	0,1 V
1000 V	1 V	±(0,8%+2 digits)

AC voltage (40…400 Hz)

Ranges	Best resolution	Accuracy
4,000 V	0,001 V	±(0,8%+2 digits)
40,00 V	0,01 V
400,0 V	0,1 V	±(1,0%+3 digits)
750 V	1 V

DC current

Ranges	Best resolution	Accuracy
400,0 µA	0,1 µA	±(0,8%+2 digits)
4000 µA	1 µA
40,00 mA	0,01 mA
400,0 mA	0,1 mA
4.000 A	0,001 A	±(1,2%+3 digits)
10,00 A	0,01 A

AC current (40…400 Hz)

Ranges	Best resolution	Accuracy
400,0 µA	0,1 µA	±(1,0%+3 digits)
4000 µA	1 µA
40,00 mA	0,01 mA	±(0,8%+2 digits)
400,0 mA	0,1 mA
4.000 A	0,001 A	±(2,0%+3 digits)
10,00 A	0,01 A

Resistance

Ranges	Best resolution	Accuracy
400,0 Ω	0,1 Ω	±(0,8%+2 digits)
4,000 kΩ	0,001 kΩ
40,00 kΩ	0,01 kΩ
400,0 kΩ	0,1 kΩ
4,000 MΩ	0,001 MΩ
40,00 MΩ	0,01 MΩ	±(2,0%+3 digits)

Capacity

Ranges	Best resolution	Accuracy
40,00 nF	0,01 nF	±(3,0%+3 digits)
400,0 nF	0,1 nF
4,000 µF	0,001 µF
40,00 µF	0,01 µF
100,0 µF	0,1 µF	±(3,0%+5 digits)

Frequency

Ranges	Best resolution	Accuracy
4,999 Hz	0,001 Hz	±(0,8%+2 digits)
49,99 Hz	0,01 Hz
499,9 Hz	0,1 Hz
4,999 kHz	0,001 kHz
49,99 kHz	0,01 kHz
499,9 kHz	0,1 kHz
4,999 MHz	0,001 MHz
49,99 MHz	0,01 MHz

Fill factor

Ranges	Best resolution	Accuracy
0,1% ~ 99,9% (Vrms = 1 V)	0,1 %	not standardized

Temperature (K-type)

Ranges	Best resolution	Accuracy
-50°C…400°C / -58°F…752°F	1°C / 33.8°F	not standardized

• Power supply: 2 batteries 1,5 V (AA)
• Dimensions: 185x85x30 mm
• Weight: 290 g.

Standard accessories:

• Multimeter
• Test leads - 2 pcs.
• Crocodile clip - 2 pcs.

• K-type thermocouple
• User manual

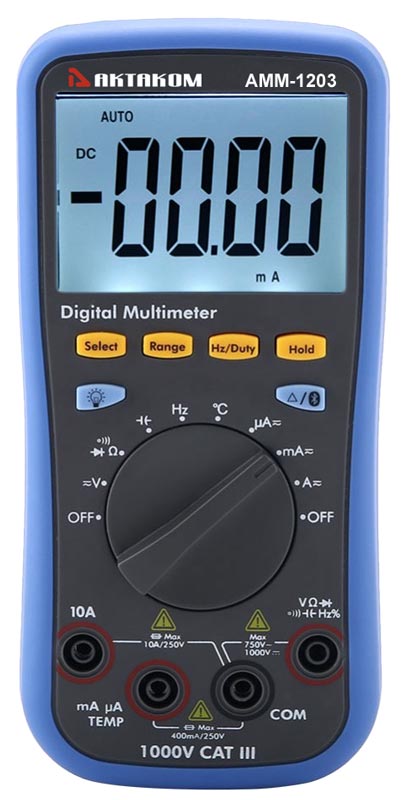

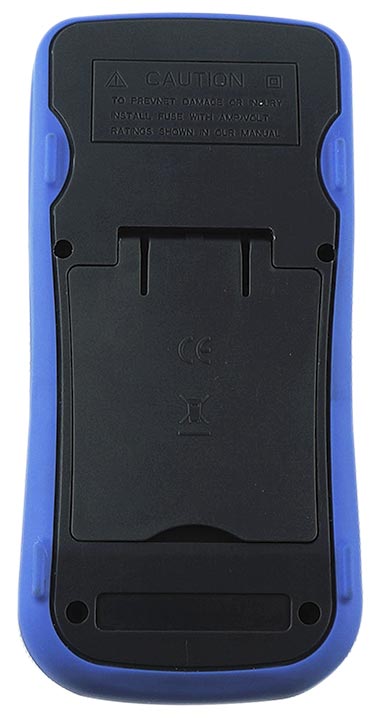

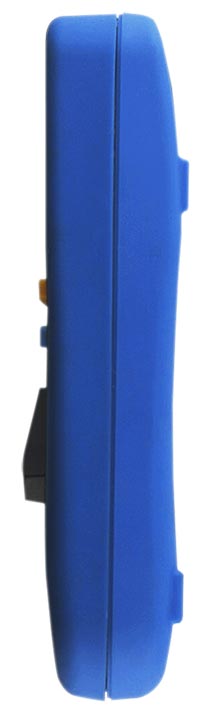

AMM-1203 Digital Multimeter - Front panel Enlarge		AMM-1203 Digital Multimeter - Rear panel Enlarge		AMM-1203 Digital Multimeter - side view Enlarge
