APS-1507 Power Supply

AKTAKOM APS-1507 power supply has a built-in voltage and current protection function with user-defined limit parameters, monitoring function for output parameters and a list operating mode with automatic start. The device is designed using a pulse stabilization circuit therefore it has compact dimensions and light weight.

One of the distinctive features of AKTAKOM APS-1507 power supply is the availability of a built-in 4½-digit multimeter capable of measuring DC/AC voltage and current, resistance, capacitance, test diodes and check circuit integrity.

Power supply features:

• 1 adjustable channel
• Maximum power 300 W
• Voltage stabilization and current stabilization modes
• High stability of parameters
• Displaying the current power value on the screen
• Monitoring function in graphical form
• List operating mode (timing) for 10 groups
• Memory 4 groups of parameters
• Keypad lock
• Current and voltage protection with the ability to set their values
• Smart Cooling System
• USB port 5V/1A for fast charging of mobile devices
• USB-device interface

Digital multimeter features:

• 4 1/2 digits
• Measuring of DC/AC voltage and current, resistance, capacitance, LED testing and continuity testing
• Automatic and manual selection of measuring ranges

Specifications:

Power supply

Parameters		Main channel
Output parameters	Voltage	0...60 V
	Current	0...5 A
Network instability	Voltage	30 mV
	Current	20 mA
Load instability	Voltage	30 mV
	Current	20 mA
Ripple and noise (20 Hz...20 MHz)	Voltage	≤30 mVp-p ≤3 mVrms
	Current	≤30 mArms
Resolution	Voltage	10 mV
	Current	1 mA
Resolution accuracy (25 °C ±5 °C / 77 °F ±41 °F)	Voltage	≤0,1% + 20 mV
	Current	≤0,05% + 10 mA
Reading resolution	Voltage	10 mV
	Current	1 mA
Reading accuracy (25 °C ±5 °C / 77 °F ±41 °F)	Voltage	≤0,1% + 20 mV
	Current	≤0,05% + 10 mA
Output temperature coefficient (0 °C ... 40 °C / 32 °F ... 104 °F)	Voltage	≤100 ppm/°C
	Current	≤200 ppm/°C
Reading temperature coefficient	Voltage	≤100 ppm/°C
	Current	≤200 ppm/°C
Response time		1 ms

Multimeter

	Range	Resolution	Accuracy
DC Voltage	200.00 mV	0.01 mV	±(0.3%+10 digits)
	2.0000 V	0.0001 V	±(0.3%+5 digits)
	20.000 V	0.001 V
	200.00 V	0.01 V
	1000.0 V	0.1 V
AC Voltage	200.00 mV	0.01 mV	±(0.8%+10 digits)
	2.0000 V	0.0001 V
	20.000 V	0.001 V
	200.00 V	0.01 V
	750.0 V	0.1 V	±(1.0%+10 digits)
DC Current	200.00 mA	0.01 mA	±(0.8%+10 digits)
	10.000 A	0.001 A	±(2.5%+10 digits)
AC Current	200.00 mA	0.01 mA	±(1.0%+10 digits)
	10.000 A	0.001 A	±(2.8%+10 digits)
Resistance	200.00 Ω	0.01 Ω	±(0.8%+10 digits)
	2.0000 kΩ	0.0001 kΩ
	20.000 kΩ	0.001 kΩ
	200.00 kΩ	0.01 kΩ
	2.0000 MΩ	0.0001 MΩ
	20.000 MΩ	0.001 MΩ	±(1.0%+3 digits)
	100.00 MΩ	0.01 MΩ	±(5.0%+10 digits)
Capacity	20.000 nF	0.001 nF	±(3.0%+10 digits)
	200.00 nF	0.01 nF
	2.0000 µF	0.0001 µF
	20.000 µF	0.001 µF
	200.00 µF	0.01 µF
	2.0000 mF	0.0001 mF
Diode test	0 - 2 V
Ñontinuity test	Sound signal <50 Ω

• SCPI command support
• Display: LCD, color, 2.8", 65536 colors, TFT matrix
• Operating temperature 0...40 °C / 32...104 °F
• Power supply: AC 220 V ± 10%; 50/60 Hz
• Dimensions: 82x142x226 mm
• Weight: about 1.5 kg

Standard accessories:

• Device
• Power cord
• Multimeter test leads 1 pair (red and black)
• Ground wire
• Fuse
• User manual

APS-1507 Power Supply - Front panel Enlarge

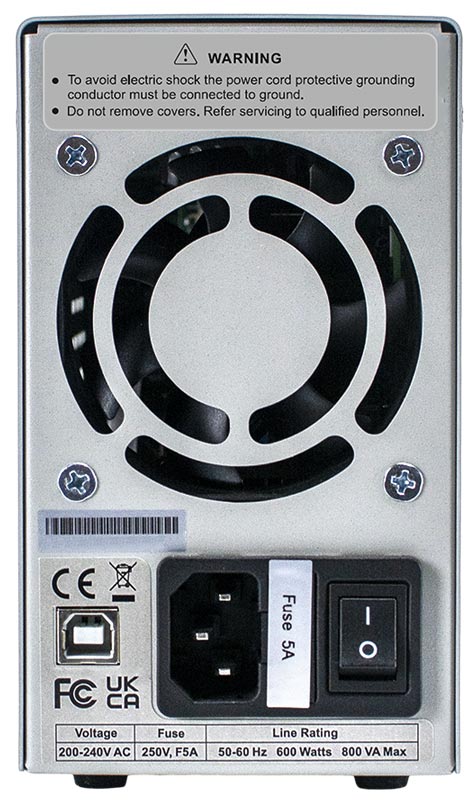

APS-1507 Power Supply - Rear panel Enlarge

Frequently Asked Questions

May I use AKTAKOM power supplies to charge accumulators?

May I use AKTAKOM power supplies to charge accumulators?

AKTAKOM power supplies can’t be used for accumulator charging since it may cause the accumulator breakage (recharge, electrolyte boiling, extra pressure of the internal gas which will lead to the accumulator explosion). Accumulators should be charged with the current source which controls the accumulator voltage and regulates the charging current accordingly. When the required accumulator voltage is achieved such type of source simply stops the charging process, its name is a charging device. Up
