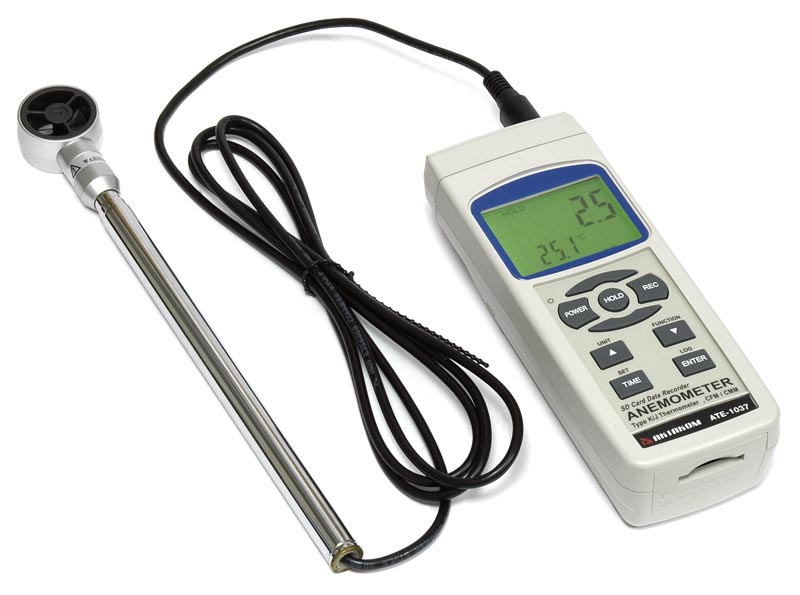

ATE-1037 Anemometer, Real time SD memory card Datalogger
ATE-1037 Anemometer, Real time SD memory card Datalogger
|
|
Air velocity measurement: 0.4...20.00 m/s, 1.4...72 km/h, 1.0...44.7 mile/h, 0.8...38.8 knots, 78...3940 ft/min. Temperature measurement: 0...50 °C (32...122 °F). Sensor: 35 mm diameter mini vane with telescope probe (max. 620 mm). Display: 52 x 38 mm LCD. Data hold function. RS-232 interface. Power supply: 6 x 1.5V AA batteries. Dimensions: 182 x 73 x 47.5 mm / 7.2 x 2.9 x 1.9 inch
|
|
AKTAKOM ATE-1037 Anemometer accurately measures air speed and temperature and can be used to check air conditioning and heating systems, ventilation systems, air velocities, and wind temperature. Separate probe allows easy operation in different measurement environment.
Features
- Air velocity: m/s, ft/min, km/h, knots, mile/h
- Air temperature: (°C, °F)
- Low-friction ball vane wheels make sure high accuracy in high & low velocities
- Type K, Type J thermocouple thermometer
- Air Temp. used thermistor sensor, fast response time
- Real time SD memory card Datalogger, Built-in Clock and Calendar, real time data recorder, sampling time set from 1 second to 3600 seconds
- Manual datalogger is available (set the sampling time to 0), during the use of manual datalogger function it can set the different position (location) No. (position 1 to position 99)
- Innovation and easy operation, computer doesn’t need any extra software, after the datalogger use just take the SD card away from the meter and plug in the SD card into the computer, it can download all of the measured value with the time information (year/month/date/hour/minute/second) to the Excel directly; then users can make the further data or graphic analysis by themselves
- SD card capacity: 1 GB to 16 GB
- LCD with green light backlight, easy reading
- Can default auto power off or manual power off
- Data hold, record max. and min. reading
- Power by UM3/AA (1.5V) x 6 batteries or DC 9V adapter
- Interface: RS-232, USB via interface converter
Specifications
Electrical specifications (23±5 °C)
|
Measurement
|
Range
|
Resolution
|
Accuracy
|
|
m/s
|
0.4...20.00
|
0.1
|
±(5%+0.1)
|
|
km/h
|
1.4...72
|
0.1
|
±(5%+0.3)
|
|
mile/h
|
1.0...44.7
|
0.1
|
±(5%+0.2)
|
|
ft/min
|
78...3940
|
1
|
±(5%+20)
|
|
knots
|
0.8...38.8
|
0.1
|
±(5%+0.2)
|
|
Temperature (°C)
|
0...50
|
0.1
|
±0.8
|
|
Temperature (°F)
|
32...122
|
0.1
|
±1.5
|
General specifications
- Sampling time: approx. 1 sec.
- Display: 52 mm x 38 mm LCD
- Operating temperature: 0...50 °C (32...122 °F)
- Operating humidity: <85% RH
- Power supply: 6 x 1.5V AA batteries
- Power current: approx. DC 30 mA
- Dimensions:
- Instrument: 182 x 73 x 47.5 mm (7.1 x 2.9 x 1.9 inch)
- Probe: 35 mm diameter (vane), telescopic probe length - max. 620 mm
- Weight: 347 g / 0.76 LB

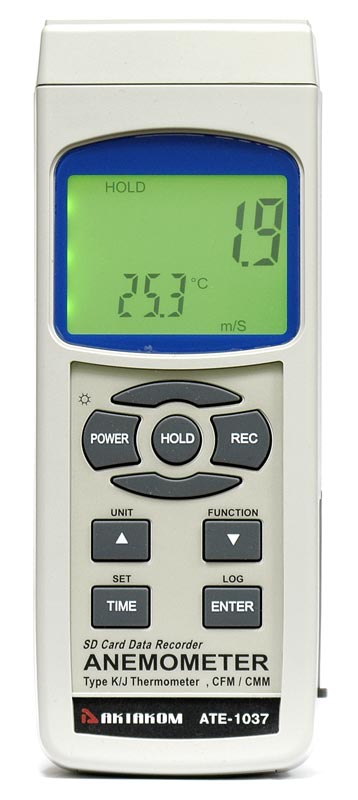

| ATE-1037 Anemometer, Real time SD memory card Datalogger - front view |
|
|

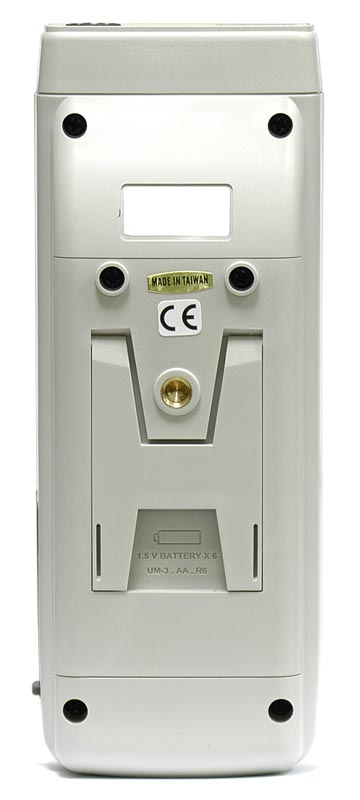

| ATE-1037 Anemometer, Real time SD memory card Datalogger - rear view |
|
|

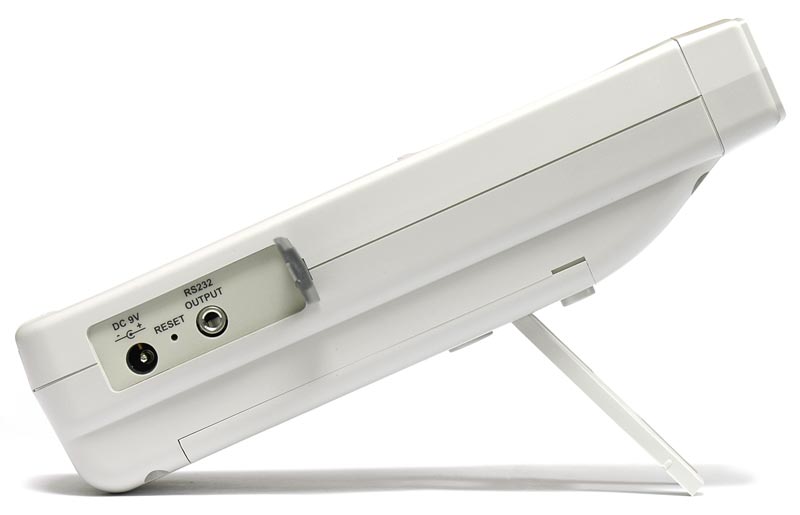

| ATE-1037 Anemometer, Real time SD memory card Datalogger - side view |
|
|
|

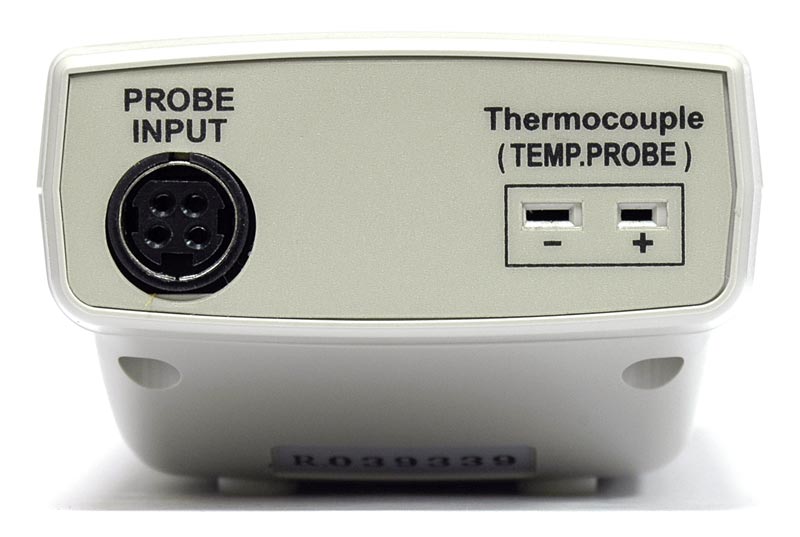

| ATE-1037 Anemometer, Real time SD memory card Datalogger - top view |
|
|

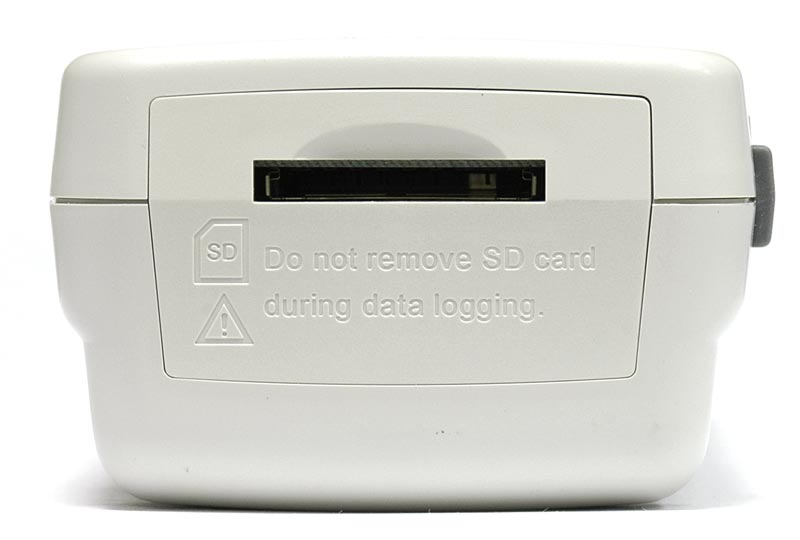

| ATE-1037 Anemometer, Real time SD memory card Datalogger - bottom view |
|
|

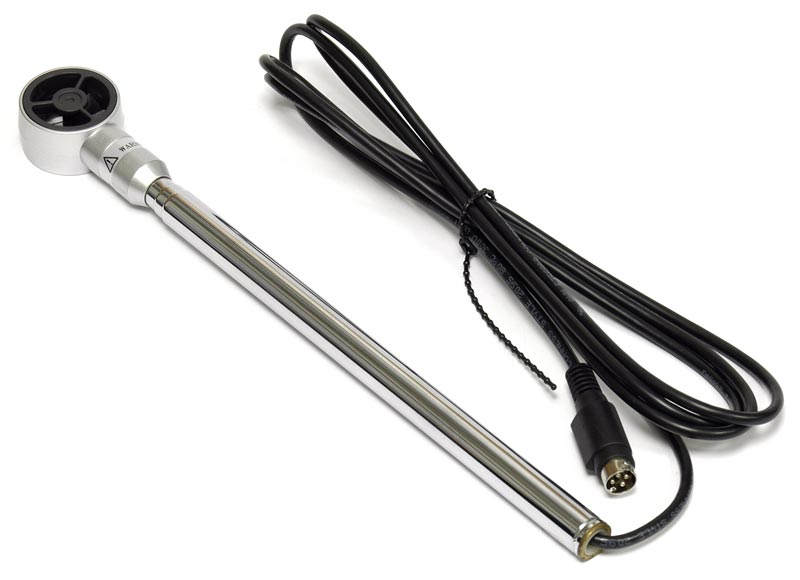

| ATE-1037 Anemometer, Real time SD memory card Datalogger - probe |
|
|
|

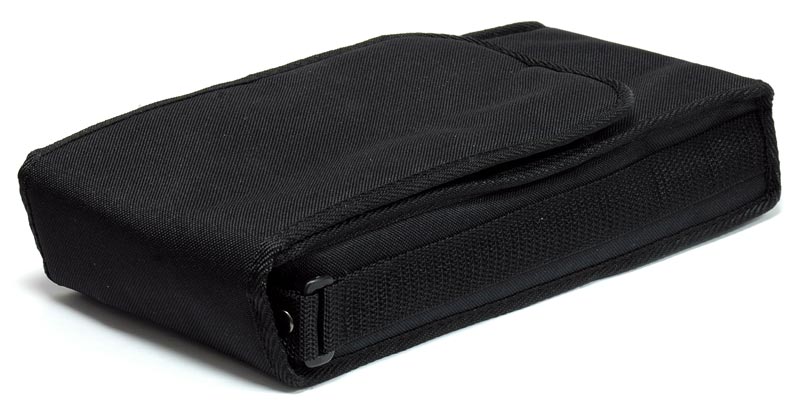

| ATE-1037 Anemometer, Real time SD memory card Datalogger - case |
|
|
Frequently Asked Questions
How to collect my recorder data using Datalogger memory card?
| How to collect my recorder data using Datalogger memory card? |
|
Once you have finished to record your measurements with your Data Logger memory card just take off the card from your equipment and stick in to your computer. You'll be able to read the plain files using Microsoft Excel or any open source software.
SD card capacity: 1 GB to 16 GB available everywhere
