ATT-6001 Contact Tachometer

AKTAKOM ATT-6001 is a portable tachometer which is designed for contact measurement of rotation velocity and linear velocity of details movement. It provides high precision measurement results. The last and max/min values can be memory recorded automatically.

Features:

• Wide measuring range from 5 to 100,000 RPM
• 0.1 RPM resolution for the measured value <1000 RPM
• The last value, max value, min value will be stored into the memory automatically and can be obtained by pressing Memory call button.
• LCD gives RPM reading clearly and saves battery energy
• This tachometer used the exclusive one chip Micro-Computer LSI circuit and crystal time base, offer the high accurate measurement and fast sampling time

Specifications:

• Display: 5 digits, 0.4 in / 10 mm
• Measurement and range:
• Contact tach. – 0.5 to 19,999 RPM
• Surface speed:
• m/min – 0,05 to 1,999.9 m/min
• ft/min – 0.2 to 6560 ft/min
• Resolution:
• 0.1 RPM (<1000 RMP)
• 1 RPM (≥1000 RPM)
• 0.01 m/min (<100 m/min)
• 0.1 m/min (≥100 m/min)
• 0.1 ft/min (<100 ft/min)
• 1 ft/min (≥100 ft/min)
• Accuracy (23±5°C) ±(0,05%+1digit).
• Time base: Quartz Crystal, 4.194 MHz
• Circuit: Exclusive one-chip of microcomputer LSI circuit.
• Operating Temp.: 32°F - 122°F / 0°C - 50°C
• Operating Humidity: Less than 80% R.H.
• Memory: Last / Max. / Min. value.
• Battery: 4 x 1.5V AA ( UM-3 ) battery.
• Power Consumption: Approx. DC 10 mA.
• Dimensions: 8.2 x 2.8 x 1.5 in / 208 x 72 x 37 mm
• Weight: 0.62lb / 280g

Accessories:

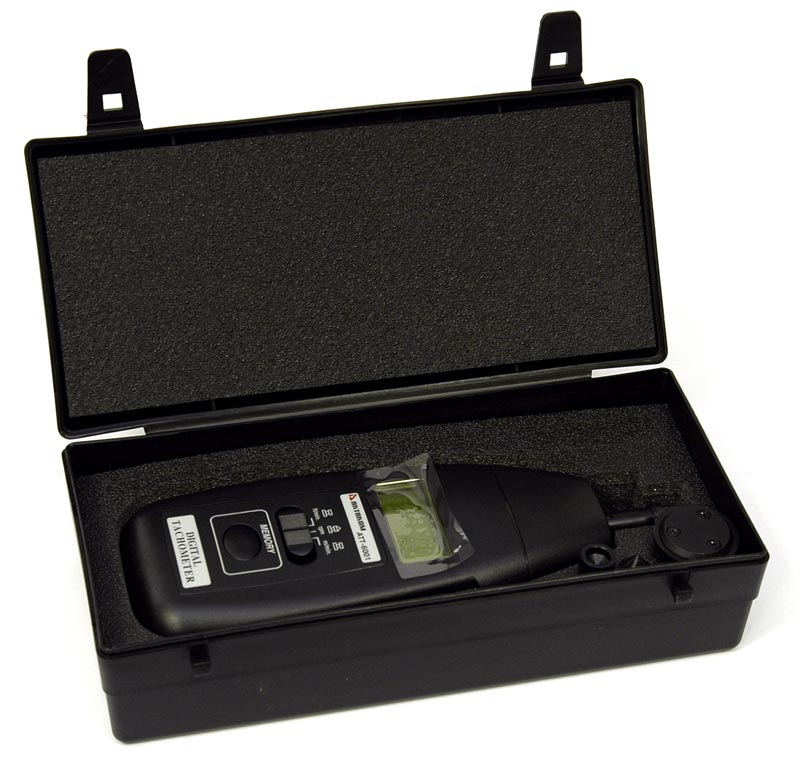

• Carrying case

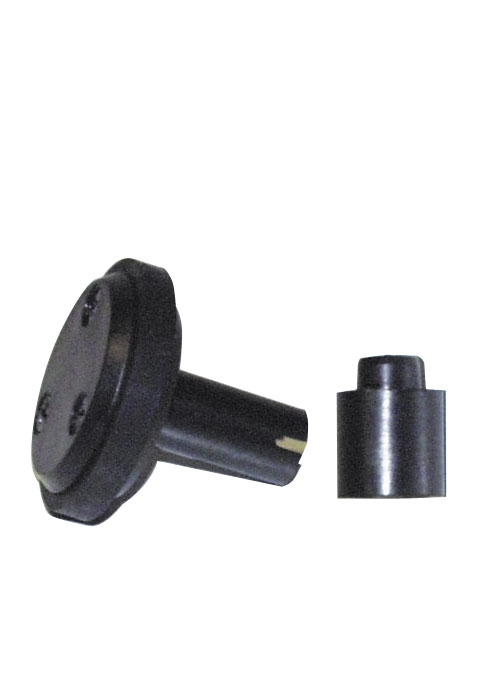

• RPM adapter (Cone)
• RPM adapter (Funnel)
• Surface speed test wheel
• User manual
