AKTAKOM COM-Terminal

The Aktakom Com-Terminal program uses COM port to facilitate two-way data exchange with external devices. Aktakom Com-Terminal uses two data formats - text (TXT) and hexadecimal (HEX). You can automatically add terminal characters (CR LR) to messages

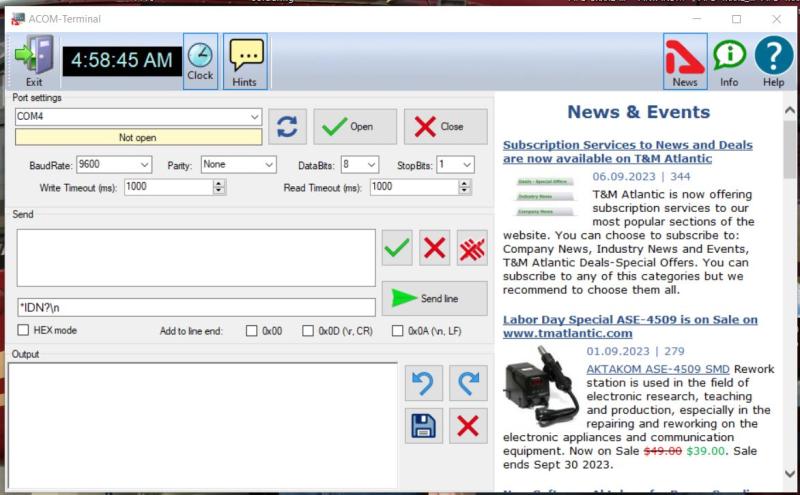

The program window has 4 sections

The top section is used to design the program window (exit, clock, button for hiding captions, advertising window button, information about the program and help)

Port setting

The Port setting section allows you to set all exchange parameters

BaudRate (600-15200)

Parity (None-Mark)

DataBits (5-9)

StopBits (1-1.5-2)

For more information about exchange parameters see our on-line encyclopedia D.E.V.I.C.E.

Send

The Send section contains a line for sending using the button and the entire history of sent messages, which can be transferred to the line for sending by double clicking or the V button

The button allows you to clear the message history line

The button clears the whole dialog box

At the bottom there is a checkbox for selecting the message format - text (TXT) and hexadecimal (HEX). As well as automatically adding terminal characters (00, CR, LR)

Output

The Output section contains the history of the dialogue (sent on the right, received on the left)

For ease of diagnostics, the dialog displays the time of the reception and sending event.

The Aktakom Com-Terminal program allows you to save the entire dialogue to a file.

Standard package

The software in the standard package of the device has no physical media (CD) and can be downloaded at www.tmatlantic.com after the purchasing and registering the equipment with a serial number. This software is not free however its cost is included into device value.

We recommend you save a copy of your software. If lost: registered user can download software free of charge during warranty period. After warranty period has expired the software could be purchased and downloaded from the tmatlantic website. The software could be written on the CD and shipped to the customer for an additional fee and only upon request.

In the new version of the software, when connecting the unit for the first time, it will ask for a license (access key). It is available online after product registration. Insert the entire character set by coping and pasting it from www.tmatlantic.com. Follow the instructions on the site. We recommend that you make and keep a copy of the downloaded software. Follow the our websites news releases to receive software updates.
