Aktakom Power Manager Express Pro
Aktakom Power Manager Express Pro
|
|
The Aktakom Power Manager Express Pro application is designed to manage AKTAKOM APS-7306 power supplies.
Compatible with: APS-7306 DC Programmable Power Supply
 For Windows®
Supported OS: Windows 10 x32, Windows 10 x64, Windows 11
|
|

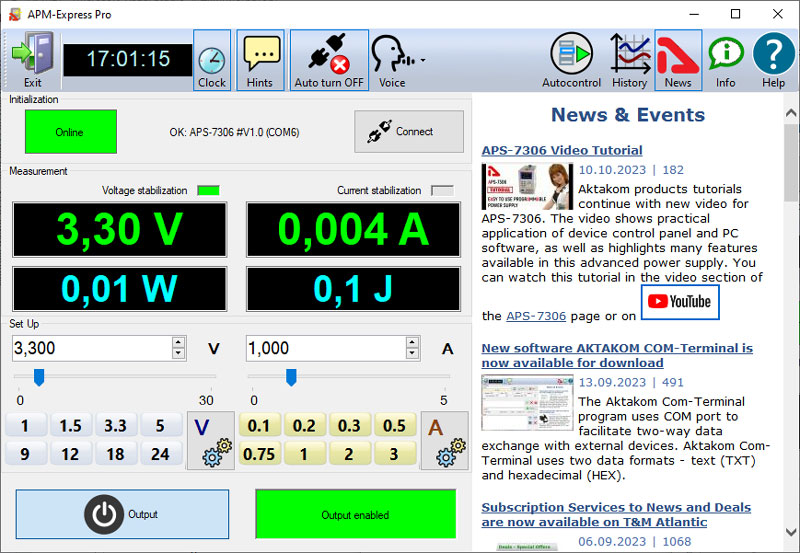

Aktakom Power Manager Express Pro software allows users to remotely control their power supply via PC. It features Measure, Set Up and Initialization functions, as well as, automatic switching off of the outputs of the device at the end of the program. The program follows basic configurations and some features of operation as the device control panel.
Software Specification
|
Load voltage indication
|
Yes
|
|
Load current indication
|
Yes
|
|
Load power indication
|
Yes
|
|
Indication of operation under load
|
Yes
|
|
Operating mode indication
|
V C / C C
|
|
Digital input of voltage and current values
|
Yes
|
|
Regulator for entering voltage and current values
|
Horizontal - Sliding
|
|
Output on/off button
|
Yes
|
|
Preset fixed voltage values
|
Yes
|
|
Preset fixed current values
|
Yes
|
|
Voice guide
|
Yes (On / Off), Eng
|
|
Activate remote control mode
|
Any first command sent from a PC to a power supply using USB
|
|
Switch to manual control mode
|
Turn the power supply off and on
|
|
Displaying the history of load voltage and current values
|
Yes
|
|
Work according to a given schedule of current and voltage values
|
Yes
|
|
Saving and importing current and voltage schedules
|
Yes
|
|
Current time clock
|
On / Off
|
|
Button names
|
On / Off
|
|
Help
|
Yes
|
|
Language support
|
EN, ES
|
|
News
|
On / Off
|
|
Supported communication interface
|
USB
|
Note: Any first command sent from a PC to a power supply using USB switches power supply to remote control mode. To switch power supply back to manual control mode please turn the power supply off and on.
The software is multifunctional and interactive, its pre-set function allows for faster set up and flawless changes. Besides functionality the software has "News" button shows or hides Aktakom news feed. "Info" button displays the information about the program and connected device, and of cause the "Help" button for those who are stuck and need a little help.
Standard package
The software in the standard package of the device has no physical media (CD) and can be downloaded at www.tmatlantic.com after the purchasing and registering the equipment with a serial number. This software is not free however its cost is included into device value.

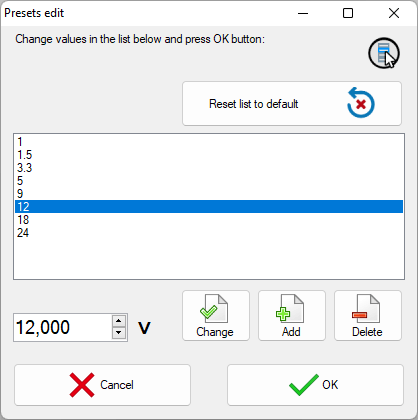

| Aktakom Power Manager Express Pro - presets edit |
|
|

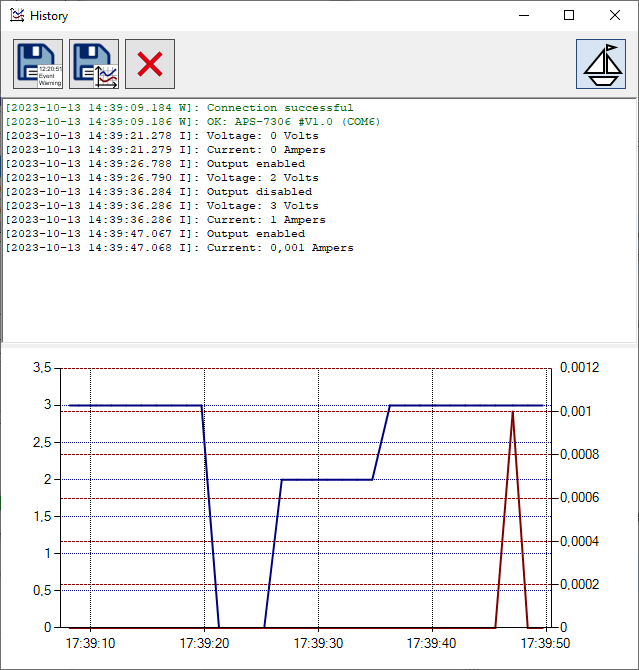

| Aktakom Power Manager Express Pro - history log |
|
|

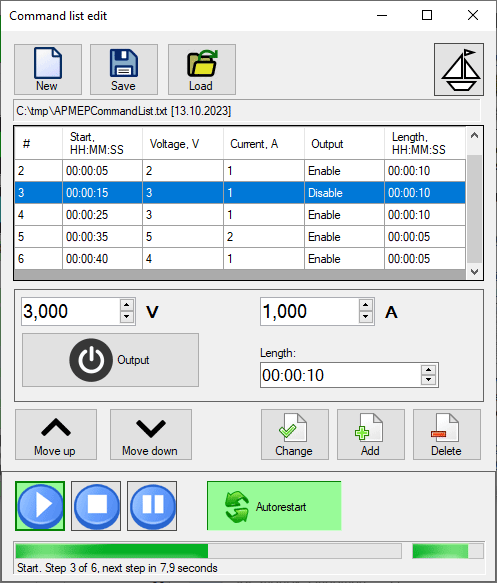

| Aktakom Power Manager Express Pro - command list editor |
|
|
|
Frequently Asked Questions
Can I Turn-Off News and Events feed on my Control Panel?
What languages does the voice guide support?
What are the advantages of APM Express Pro vs APM Express?
| Can I Turn-Off News and Events feed on my Control Panel? |
|
To turn off the News and Events feed click on Aktakom Logo as shown on the picture. To turn it back on click on the Logo again.
Up
|
| What languages does the voice guide support? |
Voice guidance works in all languages installed in the operating system on your PC.
Up
|
| What are the advantages of APM Express Pro vs APM Express? |
|
APM Express Pro has additional functions comparing to APM Express:
- Display of current power and integral consumption;
- Automatic control of the power supply output voltage and current in accordance with the pre-set sequence of commands;
- Event log (in text format);
- Measurement history graph.
Up
|
